Bilstein 6112 0-2.75″ Front Lift Suspension Kit for Chevy Colorado 2015-2020
Bilstein 6112 0-2.75″ Front Lift Suspension Kit for Chevy Colorado 2015, 2016, 2017, 2018, 2019, 2020

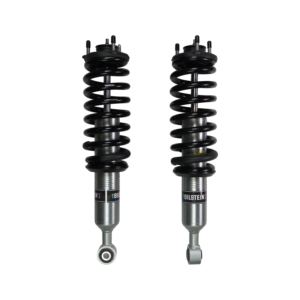

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
- Finish: Dampers: Zinc Plated/Springs: Black
- Reservoir: No
- Aftermarket Upper Arms Required: No
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter: 60mm
- Fits Crew Cab Pickup, Extended Cab Pickup
|B8 6112 Typical Lift Heights**|
|Circlip Location (Driver side / Passenger side)||Crew/Extended Cab 4WD 3.6L V6||Crew/Extended Cab 2WD 3.6L V6||Crew/Extended Cab 4WD 2.8L Diesel|
|#10 / #8||2.75”||DO NOT USE||1.5”|
|#9 / #7||2.4”||2.0”||1.2”|
|#8 / #6||2.1”||1.7”||0.9”|
|#7 / #5||1.8”||1.5”||0.6”|
|#6 / #4||1.5”||1.2”||0.3”|
|#5 / #3||1.2”||0.9”||Stock|
|#4 / #2||0.9”||0.6”||DO NOT USE|
|#3 / #1||0.6”||0.3”||DO NOT USE|
** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.
Modifying/lifting the suspension to your vehicle may raise its center of gravity and may make it more susceptible to loss of control and/or rollover, which may result in death or serious injury. We strongly recommend that you offset the loss of rollover resistance as much as possible by increasing tire track width, and that you equip the vehicle with a functional roll bar and cage system. Wear seat belts and shoulder harnesses at all times, and avoid situations where a side rollover may occur.
Questions and answers of the customers
What spring rate do these springs have?
Q What spring rate do these springs have? answer nowA approximately 10% stronger than stock
Is there a recommended boot to protect the shaft?
Q Is there a recommended boot to protect the shaft? answer nowA No The manufacturer does not recommend the use of rubber boots on the stock
Will the spring rate handle the 2.8L Duramax engine?
Q Will the spring rate handle the 2.8L Duramax engine? answer nowA ys, the max lift will be 1.5'' please refer to the picture
