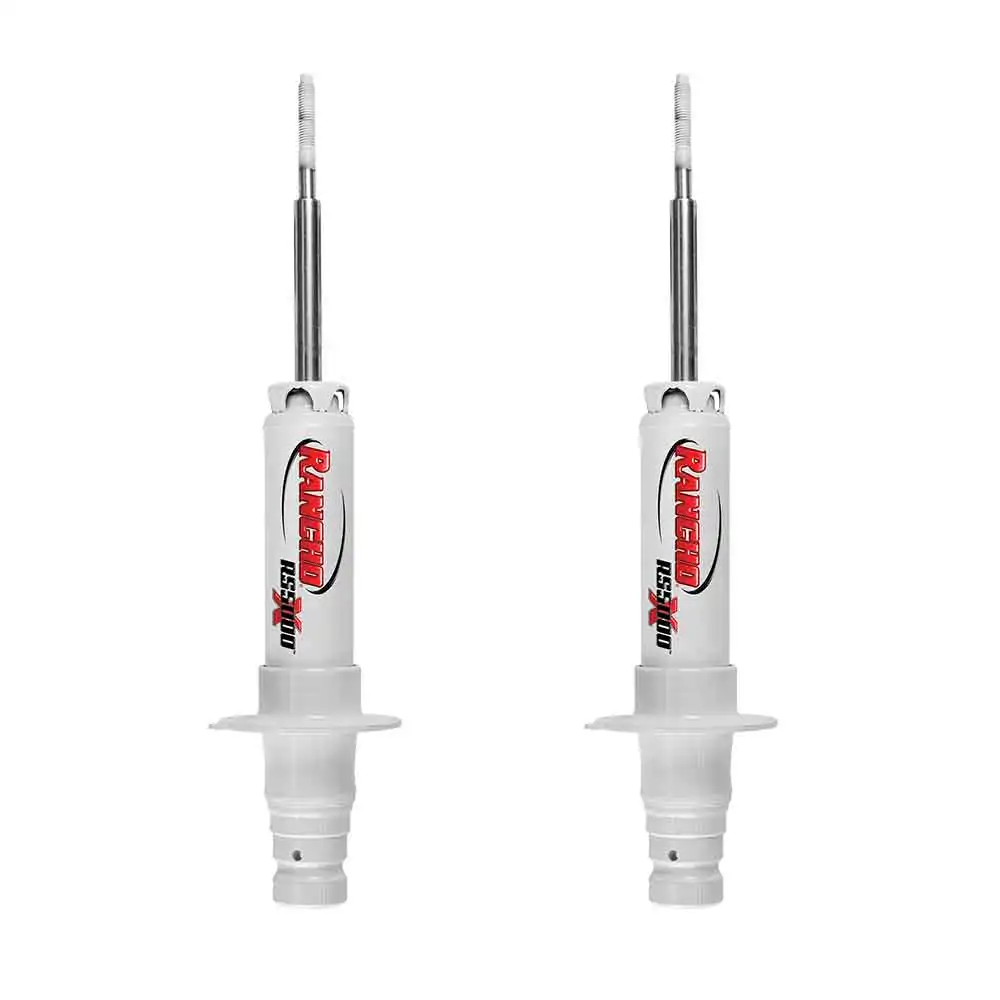

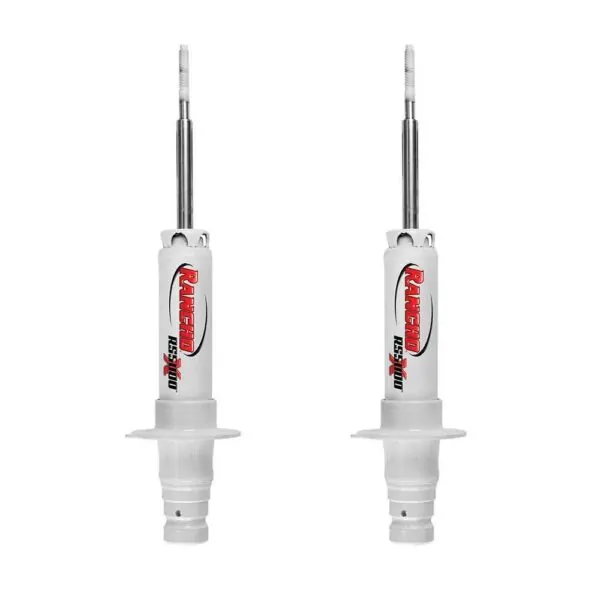

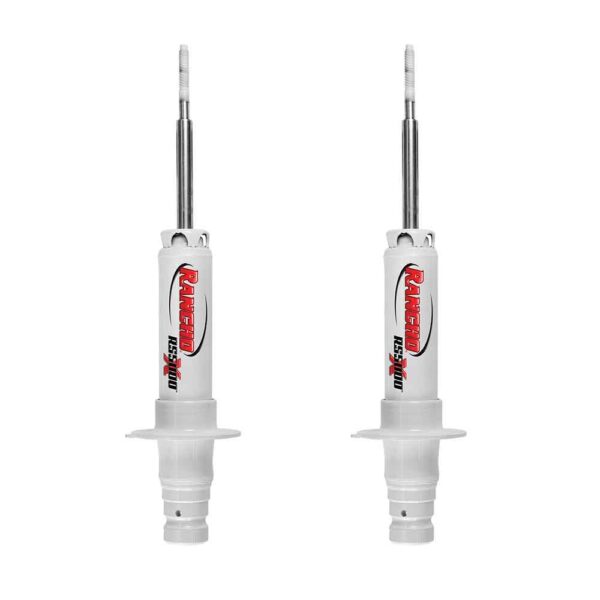

Rancho RS5000X 0″ Front Lift Shocks for 2002-2009 Chevy Trailblazer with Rear Coil Springs

SKU: 2xRS55817_n221
Sale!

Description

Rancho RS5000X 0″ Front Lift Shocks for 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Chevy Trailblazer Rear Coil Springs

Part: 2xRS55817_n221

Manufacturer’s Important Fitment Note: with Rear Coil Spring Suspension — Excluding SS model,

Includes: 2 Front Shocks

Front Shocks Specs:

Front Part: RS55817

Upper Mount type: B4
Lower Mount Type: Upper Mount type: ST_U
Compressed Length: 11.07
Extended Length: 16.08
Travel: 5.01



Description:

The Rancho RS5000X series design includes progressive rebound and compression discs. At lower speeds or in the earlier stages of the shock’s travel, an eccentric disc in the valve shim stacks will engage the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting a pothole, off-road trail obstacle or similar activity, Rancho’s Progressive Engagement Valving allows for early flow of fluid, helping to reduce harsh initial impacts and to control the flow of fluid in a progressive, gradual manner through the valving. During on- or off-road driving activities like washboarding or when travelling a rough fire road, the early flow of fluid helps to minimize a “rough” ride as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the Progressive Engagement Valving will further engage to maintain control and stability.

The Tuned Compression Control Valve is a custom-tuned, clamped disc base valve that regulates fluid transfer during the shock’s compression cycle to help absorb impacts without disc flutter and to help maintain vehicle control in virtually any environment. The precision-tuned shim stacked valving allows the motion of the shock to work in harmony with the vehicle during on- and off-road driving.

The RS5000X series features a 2-1/4-inch diameter shock body. A larger shock body allows for increased fluid capacity to operate cooler and to increase vehicle control and performance at varying speeds and terrains. The RS5000X series combines a larger shock body with all-weather fluid, allowing the shock to withstand internal temperatures between -40 and 248 degrees Fahrenheit.

Each RS5000X shock is gas pressurized to 150 PSI.* The twin tube, gas pressurized shock has a variety of advantages including minimizing air-to-oil mixture that can cause foaming and shock fade. Gas pressurization also provides a mild boost of spring rate to the vehicle.

The RS5000X’s 35 mm bore helps to provide heightened control of shock motion due largely to the expanded piston area. Full-displaced compression valving allows the piston to displace more fluid than traditional rod displaced valving.

The sintering process forms objects from powders using atomic diffusion. The powdered material is heated to just below its melting point, fusing all of the particles together to create the piston. This process brings increased structural conformity to each Rancho RS5000X piston.

Each RS5000X series shock has a high-strength, polyurethane bumper that helps control the rebound motion during harsh driving conditions. The rebound bumper greatly reduces wear and tear during on- and off-road driving. When your shock rebounds from an obstacle at an excessive rate, the polyurethane bumper dampens the piston rod cycle at its peak point of travel.

The bushings used on the Rancho RS5000X series shocks provide additional ride harshness absorption and reduce transmitted road noise and suspension vibration to result in a smoother ride and longer life for shocks and related suspension components.

The low-friction, self-lubricating seal included in the RS5000X shock retains gas and oil to help prolong performance and allow for quicker rebound and smoother compression during the shock cycle. This seals provides an extra layer of defense against dirt and debris.

The RS5000X composite piston band provides smoother piston travel and greater responsiveness to changing road conditions. Each glass-filled band offers incredibly smooth operation within the shock absorber cylinder due to Fluon, a slippery glass and plastic material.

Rancho engineers place extra emphasis on welded construction at stress areas – like mounting points – of the RS5000X shock. Each shock includes double-welded loops for added strength and durability.

*Rancho RS5000X series struts include 60PSI of gas pressurization.
