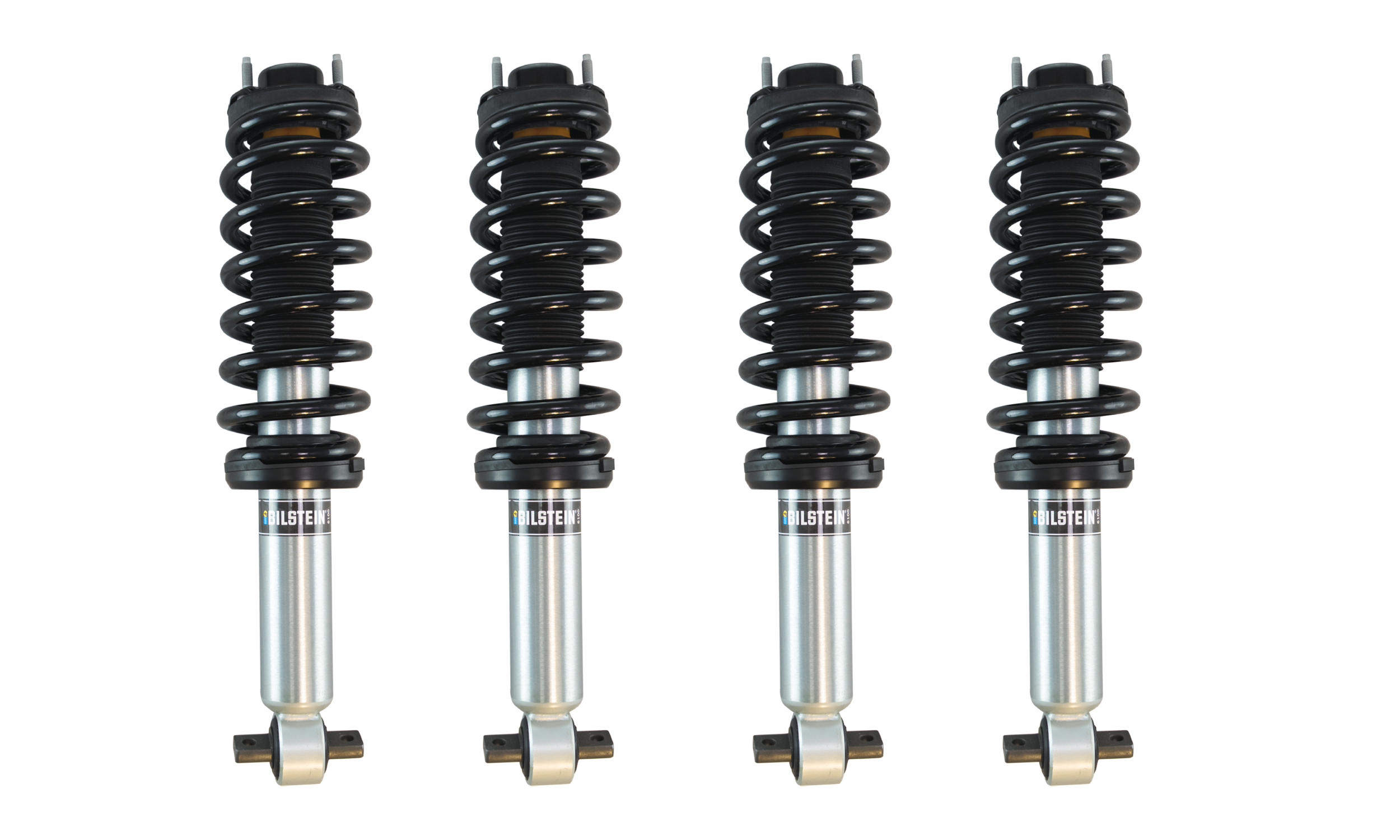

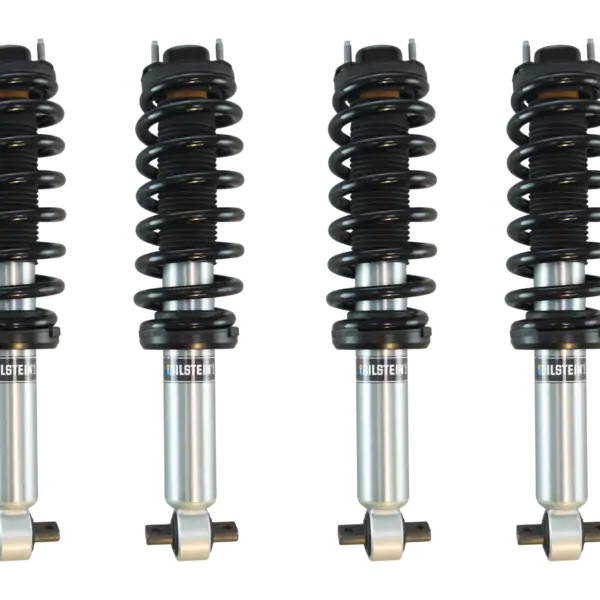

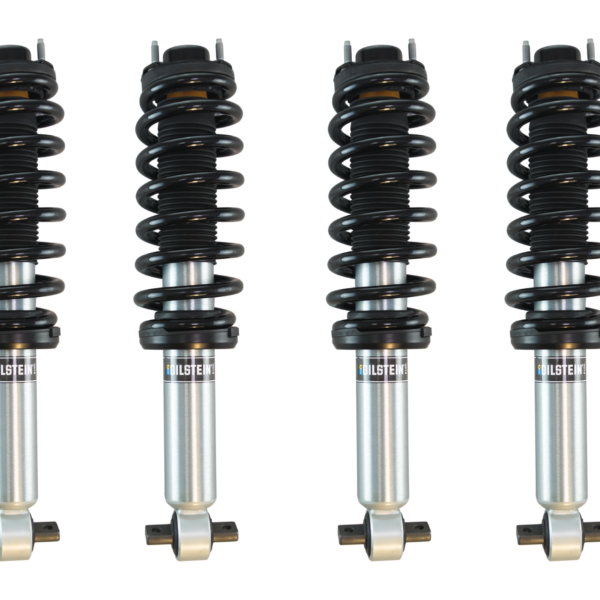

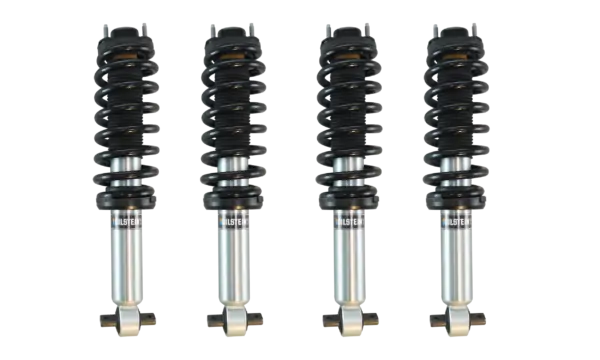

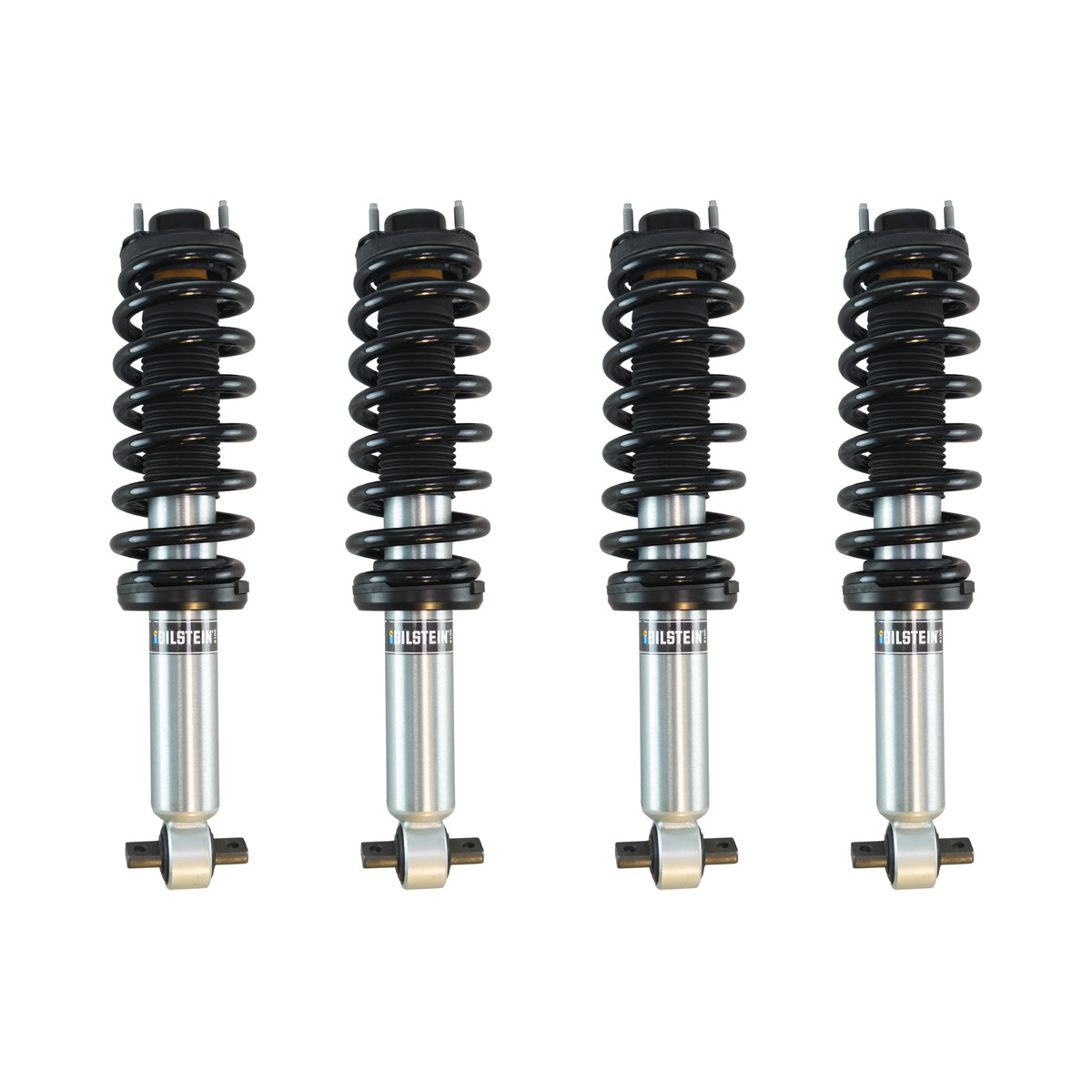

Bilstein 6112 0.8-2.8″ Front and 0.3-1.7″ Rear Lift Assembled Coilovers for 2021-2026 Ford Bronco 2-Door/4-Door

SKU: 6112Bronco-ASB
Sale!
Bilstein 6112 0.8-2.8 Front and 0.3-1.7 Rear Lift Assembled Coilovers for 2021-2023 Ford Bronco
Bilstein 6112 0.8-2.8 Front and 0.3-1.7 Rear Lift Assembled Coilovers for 2021-2023 Ford Bronco

Description
Bilstein 6112 0.8-2.8″ Front and 0.3-1.7″ Rear Lift Assembled Coilovers for 2021-2026 Ford Bronco 2-Door/4-Door

Bilstein 6112 0.8-2.8″ Front and 0.3-1.7″ Rear Lift Pre-Assembled Coilovers – 2021-2026 Ford Bronco 2Door and 4Door

Part #: 6112Bronco-ASB

What’s Included

  • Front coilovers: Bilstein B8 6112 kit 47-313996 (4 Door) or 47-325586 (2 Door) – 60 mm monotube shocks with matched lift springs and billet spring seats
  • Rear coilovers: Bilstein B8 6112 kit 47-314009 (4 Door) or 47-325593 (2 Door) – 60 mm monotube shocks with matched lift springs and billet spring seats
  • Pre-assembled with new top mounts, bushings, and hardware – no spring compressor needed

Adjustable Lift

  • Front: ~0.8 – 2.8″ via snap-ring spring perch positions
  • Rear: ~0.3 – 1.7″ via snap-ring spring perch positions
  • Actual height varies with trim, accessories, and spring condition.

Why 6112

  • Big-body control: 2.65″ OD body with a 60 mm digressive piston for increased damping authority and cooler operation
  • More clearance: level stance, room for larger tires, and increased usable wheel travel
  • Monotube consistency: fade-free performance on and off road
  • Bolt-in convenience: ships assembled to save time and avoid compressor risk

Specifications

Front 6112 Rear 6112
Series B8 6112 B8 6112
Body diameter (OD) 2.65 in. 2.65 in.
Piston diameter 60 mm 60 mm
Design Monotube – snap ring grooved body Monotube – snap ring grooved body
Reservoir No No
Damping Non-adjustable digressive Non-adjustable digressive
Finish Zinc plated dampers – black springs Zinc plated dampers – black springs
Replacement mount kit B4-KT1-Z471A00 B4-KT1-Z472A00

Fitment

  • Ford Bronco 2021, 2022, 2023, 2024, 2025, 2026
  • Front and rear coilover replacement – not for Bronco Sport

Optional Bilstein 11-344841 37-Inch Tire / Heavy-Load Kit

  • 37-inch tires without substantial added weight: one jounce spacer is installed at every corner; no spring-seat adapters are used. The jounce spacers limit upward travel to help prevent the tires from contacting the metal fenders.
  • Added constant weight and ride-height loss: one or two identical 10 mm spring-seat adapters may be installed per affected corner. Around 200 lb generally uses one adapter and around 400 lb generally uses two; the correct choice also depends on where the weight is located.
  • A jounce spacer is required on every corner that uses a spring-seat adapter.
  • One conversion kit is shared across the front and rear assemblies and is installed during assembly rather than shipped as a separate box.

Review the Bilstein 11-344841 installation instructions.

Install Notes

  • Choose desired circlip positions before installation to target your lift within the stated ranges

  • NOTE: In order to properly align vehicle, aftermarket upper control arms are recommended for lift height settings greater than 2.5”

  • Alignment required after installation

Experience the legendary Bilstein feel with increased ground clearance, confident handling, and a simple bolt-on install. Level up your Bronco with pre-assembled 6112 coilovers and hit the road or trail with confidence.

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein 6112 0.8-2.8″ Front and 0.3-1.7″ Rear Lift Assembled Coilovers for 2021-2026 Ford Bronco 2-Door/4-Door”

Add photos from your phone or computer. We’ll prepare them automatically. Up to 20 MB each.

    Questions and answers of the customers

      I have a 4 door Badlands Bronco (Non-SaS) with the 2.3lt engine. I want to run 35" tires for now with the ability to fit 37" later when my rig becomes a more dedicated off-roader. I wasn't clear on the exact lift this system provides to a badlands bronco that is already taller than other the base. It says 2.8/1.7 in the description, but I think that is for a Base Bronco, not Badlands. Do you know the lift this system provides to a Badlands (non-sas) Bronco? Will it clear 37s?
    1. 0 votes
      Q I have a 4 door Badlands Bronco (Non-SaS) with the 2.3lt engine. I want to run 35" tires for now ...... Read more
      A For a 4-door Badlands non-Sasquatch 2.3L, the advertised 2.8" front / 1.7" rear numbers are not what you should expect. Those are maximum lift figures relative to lower-trim Broncos, and actual lift depends heavily on the Bronco's starting ride height and spring rates. Owners and installers consistently report that a non-Sas Badlands starts higher than a Base or Big Bend, so the net gain is less
      2. I have a a 2026 ford bronco, outer banks non Sasquatch edition. What are the proper clip settings for the maximum height without new control arm?
    2. 0 votes
      Q I have a a 2026 ford bronco, outer banks non Sasquatch edition. What are the proper clip settings...... Read more
      A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
      3. Do these come with the boot covers or are they available separately?
    3. 0 votes
      Q Do these come with the boot covers or are they available separately?
      A come as pictured but we can sell boots
      4. What brand springs are on these?
    4. 0 votes
      Q What brand springs are on these?
      A

      The springs are Bilstein B8 6112 coil springs (front and rear) included with the Bilstein 6112 assembled coilovers.
      5. If installing on 2023 2dr Badlands SAS, at clip 6 F and R, will new control arms be required?
    5. 0 votes
      Q If installing on 2023 2dr Badlands SAS, at clip 6 F and R, will new control arms be required?
      A When installing Bilstein 6112 assembled coilovers on a 2023 2-door Ford Bronco Badlands with the Sasquatch package, and setting the circlip on position 6. Yes, upgraded UCAs are strongly recommended at clip 6. At 2.8″ of front lift, the stock UCAs may: Cause limited suspension travel Bind at full droop Result in poor alignment specs (especially caster)
      6. Hi, I have a 2023 Ford Bronco, Big Bend , 4 Door, 2.7 litre engine. Non Sasquatch edition. Will the Bilstein 6112 ‘s fit my car?
    6. 0 votes
      Q Hi, I have a 2023 Ford Bronco, Big Bend , 4 Door, 2.7 litre engine. Non Sasquatch edition. Will t...... Read more
      A Yes, the Bilstein 6112 front and rear coilover kits are compatible with your 2023 Ford Bronco Big Bend 4-door, 2.7L engine, non-Sasquatch edition.
