ReadyLift 4″ Coil Spring Lift Kit with Falcon Shocks for 2017-2022 Ford F-250/F-350 4WD

SKU: 49-27420


5 left in stock

5 left in stock

2-5 Day Transit Time

Price Match Request


ReadyLift 4″ Coil Spring Lift Kit with Falcon Shocks for 2017, 2018, 2019, 2020, 2021, 2022 Ford F-250/F-350 4WD Super Duty Diesel with Camper Spring Package

Part:  49-27420


  • Fits 2017-2022 Ford Super Duty Power Stroke 4WD
  • 4″ Coil Spring Lift Kit With (4) Falcon 1.1
  • Monotube Shocks
  • Bolt-on lift kit – no structural modifications required
  • Allows for up to 37″ tall tires on 9″ wide wheels with 0 offset
  • Diesel trucks single-wheel only
  • Fits F-350 and F-250 with Camper Spring package

ReadyLIFT Suspension is now offering our first 4″ Coil Spring Lift Kit fitting 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke® trucks. The 49-27420 includes front and rear Falcon 1.1 Monotube series performance shocks with our venerable front track bar relocation bracket, radius arm drop brackets, and rear fabricated blocks. This gives Super Duty owners an excellent alternative for lifting their trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance!  Many consider this lift height the ’sweet spot’ for Super Duty driving dynamics and maximum tire size while maintaining everyday usefulness.

This optimum lift height allows for up to 37″ tall tires. The coil spring kit delivers a great ride and handling performance! The key ingredients to improving your ride are the new specially engineered coil springs teamed with Falcon shocks and a track bar relocation! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road.

The ReadyLIFT 4″ Coil Spring lift kit system for 2017-2022 Ford Super Duty trucks also includes model-specific brake line extension brackets, our time-tested bump-stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar in the proper position. If you want tough looks and a smooth but controlled ride, then you want the new Super Duty 4” Coil Spring Suspension Kit System.


37×12.50 for no rub on a 9″ wide wheel with 0 offset

18″ – 37X12.5R18

20″ – 37X12.5R20

22″ – 325/60R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer’s construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

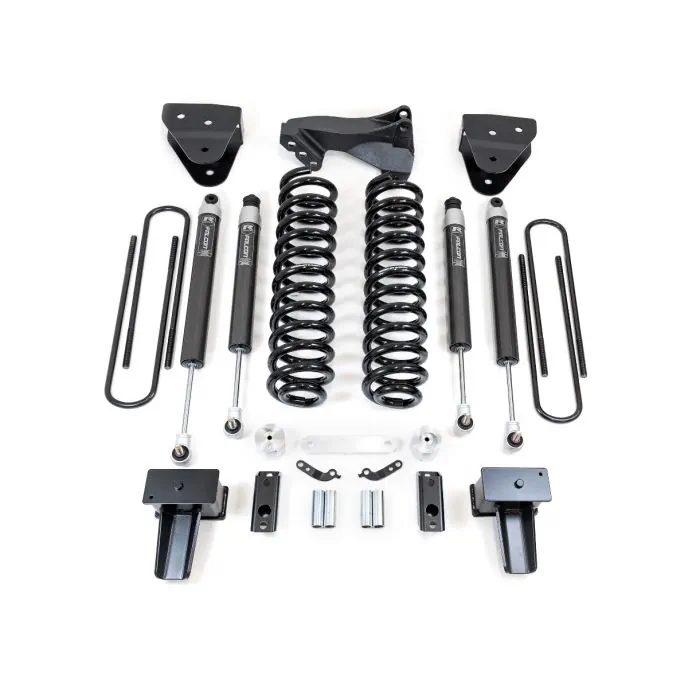

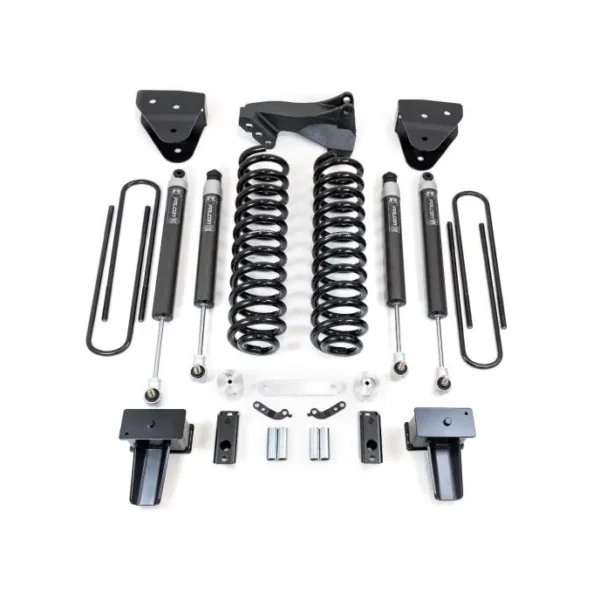

  • 4″ Lift Springs
  • Falcon 1.1 Monotube Front and Rear Shocks
  • Track Bar Relocation Bracket
  • Radius Arm Drops
  • Sway Bar Drops
  • Bump Stop Extensions
  • Carrier Bearing Drop
  • Front Brake Line Brackets
  • Fabricated Rear Lift Blocks
  • Hardware Pack


  • SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.


    Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

    Download Pdf Instructions
