ReadyLift 2.5″ Front Lift Kit for 2020-2022 Ford F-250 Super Duty Diesel 4WD Coil Spring

SKU: 46-20252
5 out of 5 based on 1 customer rating
(1 customer review)


ReadyLift 2.5″ Front Lift Kit for 2020′ 2021, 2022 Ford F-250 Super Duty Diesel 4WD Coil Spring

Part: 46-20252

ReadyLIFT Suspension offers a 2.5″ Lift Coil Spring Front Leveling Kit engineered exclusively to fit 2020-2022 MY Ford Super Duty F250/F350/F450 4WD diesel trucks. The 46-20252 is designed for those who wish to retain the factory shock performance which also includes our track bar relocation bracket.  A front coil spring leveling kit is a superior alternative for lifting the front of your truck. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance and a more commanding view of the road.The coil spring leveling kit delivers a great ride and handling performance and allows for 35” tall tires! This combination is more than just a leveling kit. This is a performance and ride-enhancing kit.  ReadyLIFT is confident you will be amazed at how well it rides and performs both on and off-road.The ReadyLIFT 2.5″ Coil Spring Front leveling kit system for 2020-2022 Ford Super Duty F250/F350/F450 trucks also included model-specific brake line extension brackets, our time-tested bump stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar where is supposed to be. If you want a rugged, leveled stance and a smooth but controlled ride, then you want the new Coil Spring Leveling Kit System. Your truck will thank you!NOTE:  Not recommended for TREMOR editions.

46-20252 – 2020-2022 FORD F250/F350 Diesel 4WD 2.5" Coil Spring Front Lift Kit with shock extensions and Rear Shocks and Front Track Bar Bracket.

Tire Information:


37 is possible but may require trimming.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer’s construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

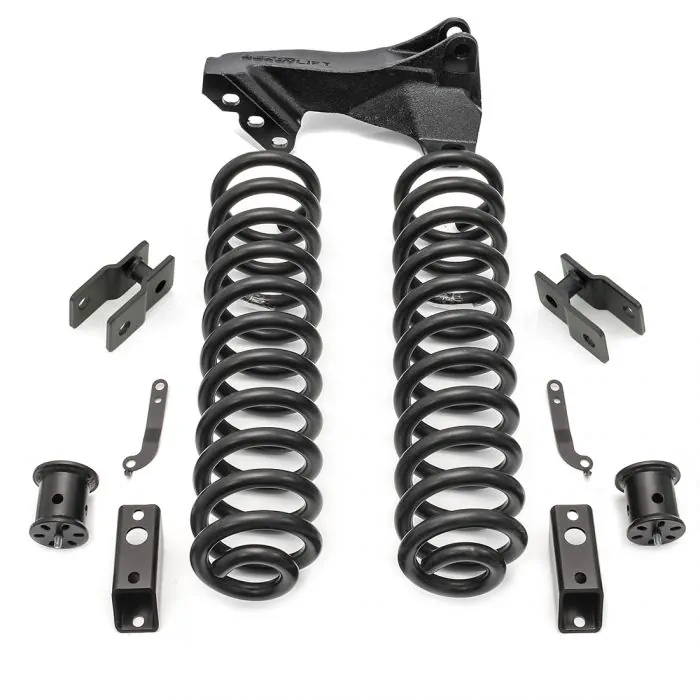

Kit Components:

  • 2.5″ lift front coil springs
  • Sway bar spacers
  • Brake line extensions
  • Front track bar relocation bracket
  • Shock extensions


  • SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may be handled differently than that factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
    Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)
