Bilstein 5100 1-2.5″ Front and 0-1″ Rear Lift Shocks for 2002-2012 Jeep Liberty

Description

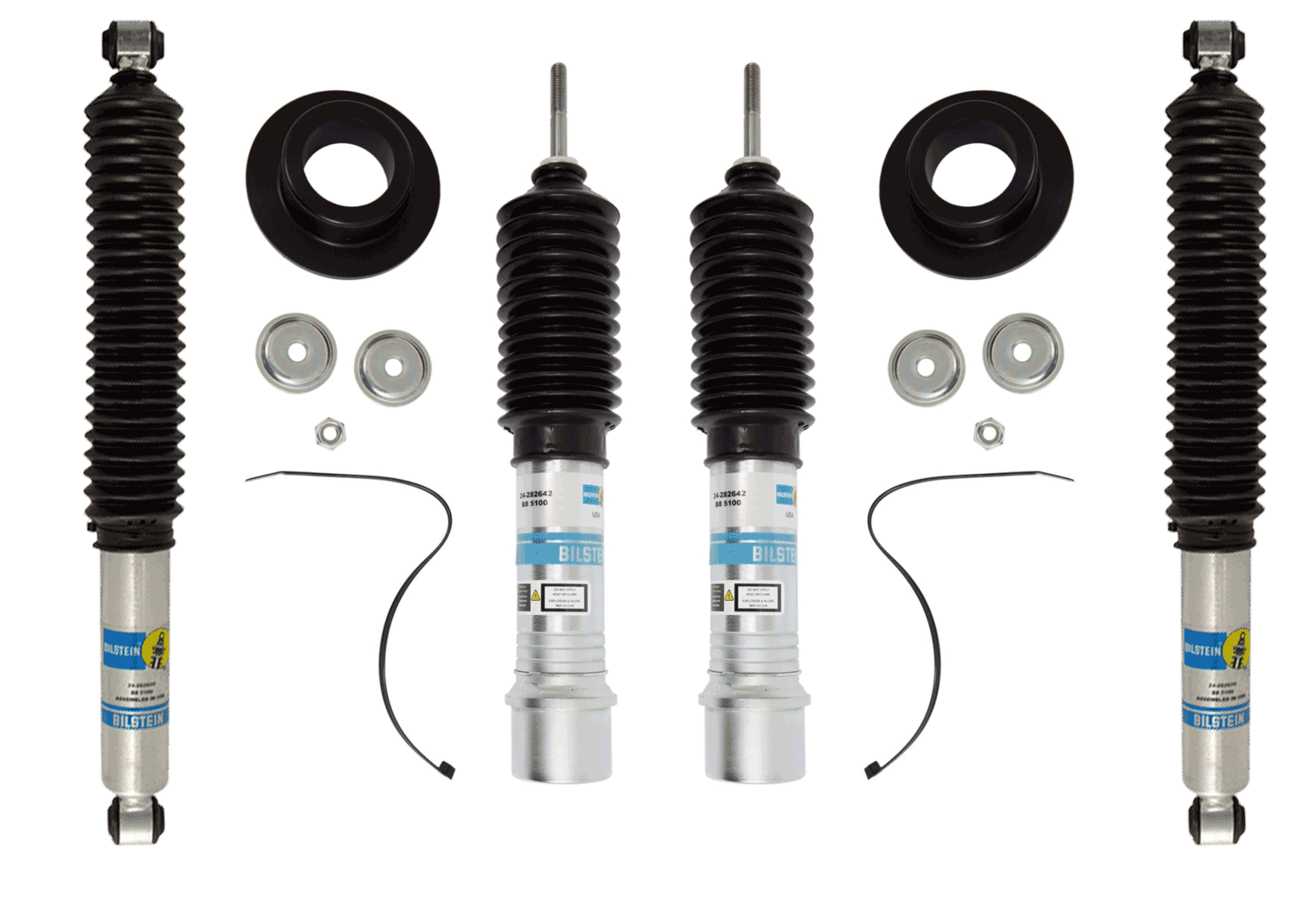

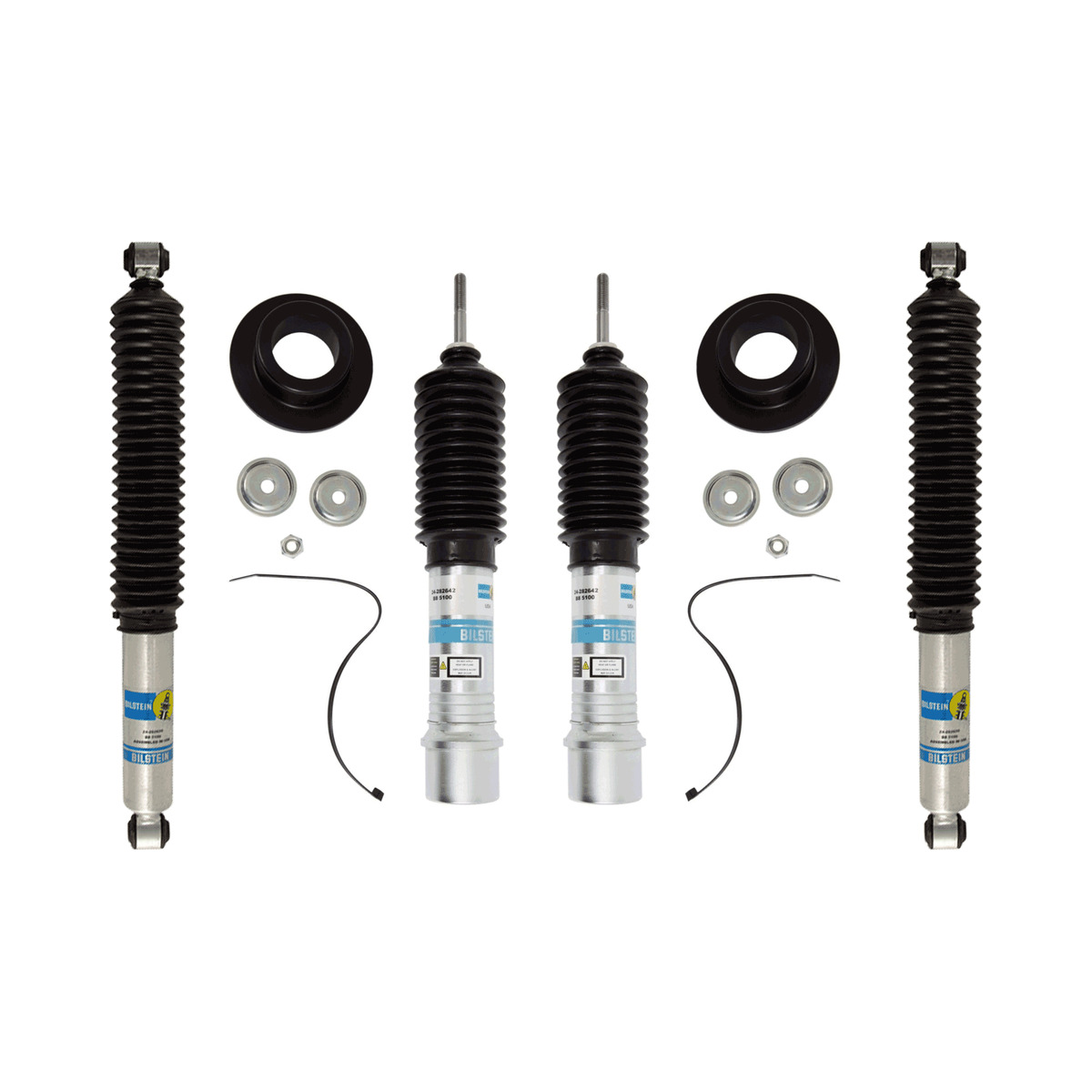

Bilstein 5100 1-2.5″ Front and 0-1″ Rear Lift Shocks for 2002-2012 Jeep Liberty

Bilstein B8 5100 Front & Rear Shocks for 2002-2012 Jeep Liberty

Upgrade all four corners of your Jeep Liberty with a matched Bilstein B8 5100 shock set. The front shocks use snap-ring-adjustable spring seats to provide 1-2.5 inches of front lift, while the rear shocks are matched to applications with 0-1 inch of rear lift. Bilstein’s vehicle-specific monotube tuning improves body control, handling, and comfort on pavement and uneven terrain.

Important: Front Shocks Are Unassembled

This package includes the front shocks and rear shocks only; the front units do not arrive as complete coilovers. Installation requires transferring the original front coil springs, lower spring isolators, and upper mounts/top plates onto the Bilstein shocks. Reused components should be inspected and replaced if worn.

Kit Highlights

• Complete four-shock set: two ride-height-adjustable front shocks and two rear shocks.
• Four front lift settings: select approximately 1, 1.5, 2, or 2.5 inches using the front shock circlip positions.
• 46 mm monotube construction: provides consistent, fade-resistant damping.
• Digressive valving: reacts quickly to changing road and trail conditions.
• Application-specific tuning: engineered for the 2002-2012 Jeep Liberty rather than supplied as a universal shock.
• Durable finish: zinc-plated shock bodies and protective black bellows help resist harsh road conditions.
• Bilstein coverage: backed by Bilstein’s limited lifetime warranty.

Vehicle Fitment

• 2002-2012 Jeep Liberty
• 4WD and 2WD models
• Front lift range: 1-2.5 inches
• Rear lift range: 0-1 inch

Front Ride-Height Settings

Actual ride height can vary with factory suspension condition, vehicle accessories, replacement springs, and other modifications.

What’s Included

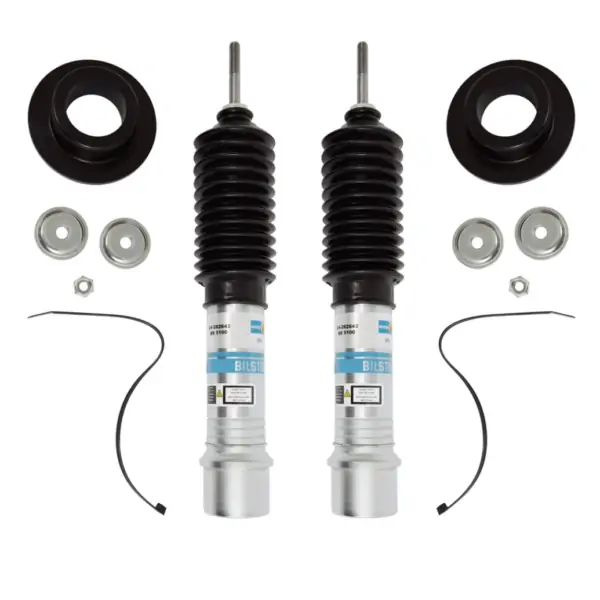

• 2 × Bilstein B8 5100 ride-height-adjustable front shocks — part number 24-282642
• 2 × Bilstein B8 5100 rear shocks — part number 24-282659
• 4 shocks total

Not included: front coil springs, lower spring isolators, and upper mounts/top plates.

Front & Rear Specifications

Installation Notes

• A proper spring compressor is required to transfer the original front springs and mounts.
• Bilstein recommends installation by a qualified suspension specialist.
• Check and adjust wheel alignment after installation.
• Do not use an impact wrench to tighten the front shock shaft nut.

Prefer Pre-Assembled Front Coilovers?

Skip the front spring and mount transfer with our matching assembled option: view the Bilstein 5100 assembled front coilover and rear shock kit.
