Rock Krawler LJ 5.5″ X Factor Long Arm Stg 1 Lift Kit w/ Coilover Shocks for 04-06 Jeep Wrangler LJ Unlimited



Rock Krawler LJ 5.5″ X Factor Long Arm Stg 1 Lift Kit w/ Coilover Shocks for 04-06 Jeep Wrangler LJ Unlimited

Part: LJ55COMP-S1

Comp 5.5 Inch Lift Kit with Coil Over Shocks Long Arm System Stage 1 04-06 Wrangler TJ Unlimited LJ
System Benefits:

  • Excellent Highway Ride and Handling
  • High Clearance Lower Control Arms
  • Massive 12 inch Travel 2.625 inch RRD Spec’d Prodigy Coil Overs
  • Sport Tuned 2.0 Rear RRD Spec’d Prodigy Shocks
  • Rear Long Travel Functional Multi Rate Coil Springs
  • Independent Front 3 Link Design
  • Triangulated Rear 4 Link Design
  • Pro Front Sway Bar Disconnects
  • Allows for up to 35 inch Tires with OEM Fenders
  • Allows for up to 37 inch Tires with Flat Fenders
  • Allows for up to 38 inch/40 inch Tires with High Line Fenders
  • Abuse Proof Lifetime Warranty on all Hard Parts
  • Upgradeable to Coil Overs

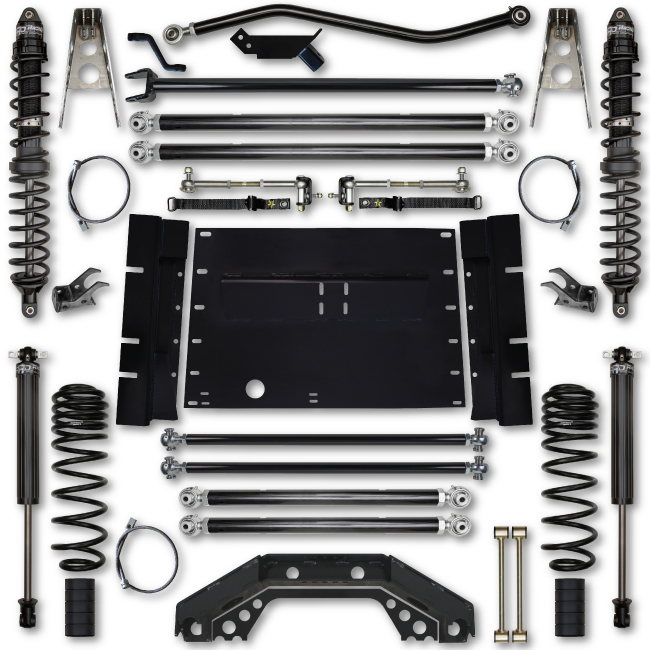

System Includes:

  • (2) Tuned 2.625 RRD coil over shock assemblies
  • (2) Tuned 2.0 RRD shock assemblies
  • (1) Pair of front coil over mounts
  • (2) Long travel functional multi rate coil springs
  • (4) High misalignment/adjustable lower long arms
  • (1) Adjustable front upper control arm
  • (1) High misalignment/adjustable front track bar
  • (2) Front adjustable sway bar disconnects
  • (2) Front sway bar link straps
  • (1) Skid plate and skid plate mounting brackets
  • (2) Rear upper triangulated 4 link arms
  • (1) Rear triangulated 4 link mounting cradle/axle truss
  • (1) Front track bar relocation bracket
  • (1) Drop pitman arm
  • (3) Extended stainless steel brake lines
  • (2) Extended rear sway bar links
  • (1) Pair of rear bump stops
  • includes hardware and detailed instructions.

1. Available for most common axle combinations (Dana 30, 44, 60, Ford 8.8, Dynatrac ProRoc’s). Can be adapted to fit Currie Rock Jock 60’s and Solid 60’s by rotating the rear cradle into the proper position instead of using the alignment tool provided.
2. Requires a SYE with C.V. Driveshaft.
3. With long rear uppers, a custom cat back exhaust is required.
4. Rubicon Edition TJ’s require a new rear driveshaft.
5. 2003 TJ’s equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel.
6. Requires removal of the OEM rear upper control arm mounts off the rear axle.
7. Recommend using rear shock relocation brackets or rear shock shifters for some applications.
8. Typical wheel fitment for a 12.5 wide tire is a 15 x 8 with 3 3/4 inch of back spacing.

YouTube video if available:

Country of Origin: USA

Lift Height (if applicable): 5.5 Inch

Location (if available): Front|Rear

Fitment Notes (if applicable):

Shocks Included (if applicable): Yes

Remote Reservoirs Included (if applicable):

Coilovers Included (if applicable):

Recommended Tire Size (if applicable): 37|38|40|35

Kit Components (if applicable):

RK05540 Coil Over Asm. 5.5 Inch Lift – 12 Inch Travel 2
RK00025 Triple Rate Coil Springs 1
RK00338 Bomb Proof Track Bar and Bracket for 5 Inch to 7 Inch of Lift 1
RK01345D Lower Control Arm 1
RK01345P Lower Control Arm 1
RK01348 Upper Long Arm 1
RK04049A Long Arm Bracket 1
RK04050A Long Arm Bracket 1
RK01307 Skid Plate 1
RK01350 Rear Lower Control Arm 2
RK04152 Rear Upper Control Arms 1
RK05016 Rear Cradle Kit 1
RK05031 X-Factor 5.5 Long Arm Kit 1
RK05564 Coil Over Mount Kit Box 1
RRD02053 2.0 Inch Emulsion Shock for 5.5 Inch Lift – Rear (10.5 Inch Travel) 2
RK03415 3 Inch Billet Aluminum Stackable Bump Stop 1
RK05563 2 Inch Poly Extended Bump Stops 1

Vehicle Fuel Type (if applicable):
