Rock Krawler TJ 3.5″ X Factor 5″ Stretch Stg 1 Lift Kit w/ Coilover Shocks for 03-06 Jeep Wrangler TJ

SKU: TJ35COMP-5S02S1

Description
Rock Krawler TJ 3.5″ X Factor 5″ Stretch Stg 1 Lift Kit w/ Coilover Shocks for 03-06 Jeep Wrangler TJ

Rock Krawler TJ 3.5″ X Factor 5″ Stretch Stg 1 Lift Kit w/ Coilover Shocks for 03-06 Jeep Wrangler TJ

Part: TJ35COMP-5S02S1

3.5 Inch Lift Kit With Coil Over Shocks 5 Inch Stretch X Factor Stg 1 03-06 Wrangler TJ from Rock Krawler.
System Benefits:

  • Excellent Highway Ride and Handling
  • 99 Inch Wheel Base (5 Inch Rear Stretch)
  • High Clearance Lower Control Arms
  • Massive 11 Inch Travel 2.625 Inch RRD Spec’d Prodigy Coil Overs
  • Sport Tuned 2.0 Rear RRD Spec’d Prodigy Shocks
  • Rear Long Travel Functional Multi Rate Coil Springs
  • Independent Front 3 Link Design
  • Triangulated Rear 4 Link Design
  • Pro Front Sway Bar Disconnects
  • Allows for up to 33 Inch/35 Inch Tires with OEM Fenders
  • Allows for up to 35 Inch/37 Inch Tires with Flat Fenders
  • Allows for up to 37 Inch/38 Inch Tires with High Line Fenders
  • Abuse Proof Lifetime Warranty on all Hard Parts
  • Upgradeable to Coil Overs

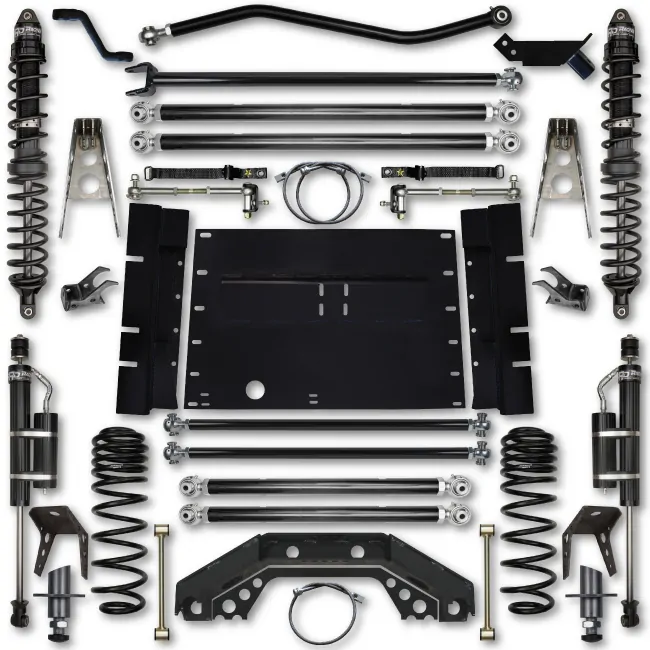

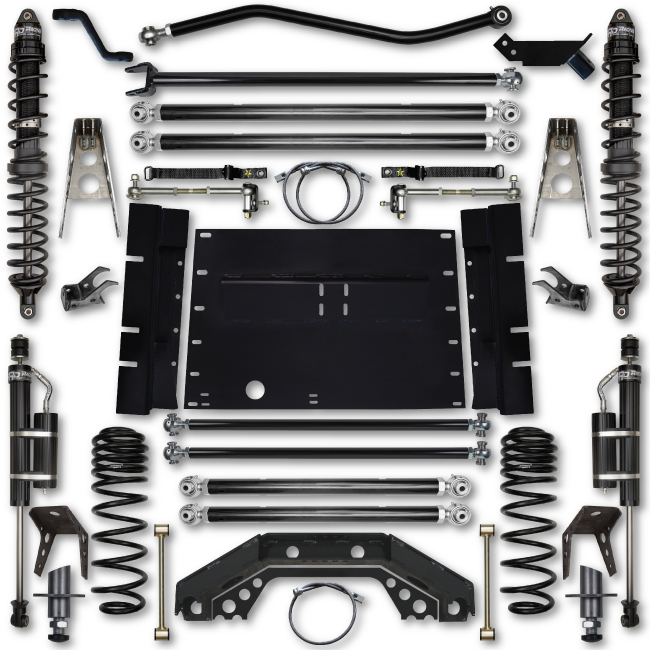

System Includes:
(2) Tuned 2.625 RRD coil over shock assemblies
(2) Tuned 2.0 RRD shock assemblies
(1) Pair of front coil over mounts
(2) Long travel functional multi rate coil springs
(4) High misalignment/adjustable lower long arms
(1) Adjustable front upper control arm
(1) High misalignment/adjustable front track bar
(2) Front adjustable sway bar disconnects
(2) Front sway bar link straps
(1) Skid plate and skid plate mounting brackets
(2) Rear upper triangulated 4 link arms
(1) Rear triangulated 4 link mounting cradle/axle truss
(3) Extended stainless steel brake lines
(2) Extended rear sway bar links
(1) Pair of new rear coil spring mounts with integrated bump stops
(1) Pair of rear upper shock mounts made from 1/4 Inch thick laser cut steel
Includes hardware and detailed instructions.
Notes:

  • Available for most common axle combinations (Dana 30, 44, 60, Ford 8.8, Dynatrac ProRoc’s). Can be adapted to fit Currie Rock Jock 60’s and Solid 60’s by rotating the rear cradle into the proper position instead of using the alignment tool provided.
  • Requires a SYE with C.V. Driveshaft.
  • With long rear uppers, a custom cat back exhaust is required.
  • Rubicon Edition TJ’s require a new rear driveshaft.
  • 2003 TJ’s equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel.
  • Requires removal of the OEM rear upper control arm mounts off the rear axle.
  • Choose your bump stop lengths after you choose your wheel/tire and fender combination.
  • Typical wheel fitment for a 12.5 wide tire is a 15 x 8 with 3 3/4 Inch of back spacing.

YouTube video if available: https://youtu.be/4m-7yvkqkvk

Country of Origin: USA

Lift Height (if applicable): 3.5 Inch

Location (if available): Front and Rear

Fitment Notes (if applicable): * Requires 65″ WMS or Greater Front and Rear Axles

Shocks Included (if applicable):

Remote Reservoirs Included (if applicable):

Coilovers Included (if applicable): Yes

Recommended Tire Size (if applicable): 33/35/37/38

Kit Components (if applicable):

Vehicle Fuel Type (if applicable):
