SuperLift 4″ Lift Kit for 1997-2002 Jeep TJ

Description
SuperLift 4″ Lift Kit for 1997-2002 Jeep TJ

SuperLift 4″ Lift Kit for 1997, 1998, 1999, 2000, 2001, 2002 Jeep TJ

Part: K842

• Longer front and rear anti-sway bar links prevent bar pre-load
• Compression travel stop extensions for front and rear prevent over-compression
• Tubular replacement front lower links restore caster
• Rear track bar bracket aligns body and rear axle
• Eccentric cam bolts and transfer case lowering kit corrects rear driveshaft angle
• Front / rear Superide shocks included
• Adjustable front and rear track bars available
• Optional front / rear anti-sway bar quick disconnects increase off-road articulation
• Lifetime Warranty
• Satisfaction Guarantee

Tire and Wheel Info

33 x 12.50″ tire on standard offset wheel

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate.

Actual dimensions of a given tire size can vary considerably from one brand to another.

Manufacturers’ wheel offset and backspacing measurement points are not always consistent.

Backspacing greatly impacts tire-to-fender clearance when turning.

Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent.

Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes

A small percentage of Jeeps with 4″ of lift (except Rubicon model) will require a Slip Yoke Eliminator (SLE) kit to reduce driveshaft angle / driveline vibration; this cannot be determined until the lift is installed, and the Jeep road tested. A SLE kit is required with lifts over 4″ (except Rubicon model).

Slip Yoke Eliminator (SLE) kit also requires a new, CV type rear driveshaft. Superlift does not offer these driveshafts due to the multitude of possible driveline configuration. Rubicon models do not require a SLE (they are factory equipped with a fixed-yoke), but Rubicon’s with 6″ of lift will require a CV type rear driveshaft. Contact your local driveshaft supplier or one of the national drivetrain specialists.

Installation Instructions

• 5064.pdf

Product Overview

The Superlift 4″ lift for the Jeep Wrangler TJ platform covers all the bases. Lift is achieved via coil springs that are pre-set (fully compressed and stressed) during the manufacturing process to minimize settling.

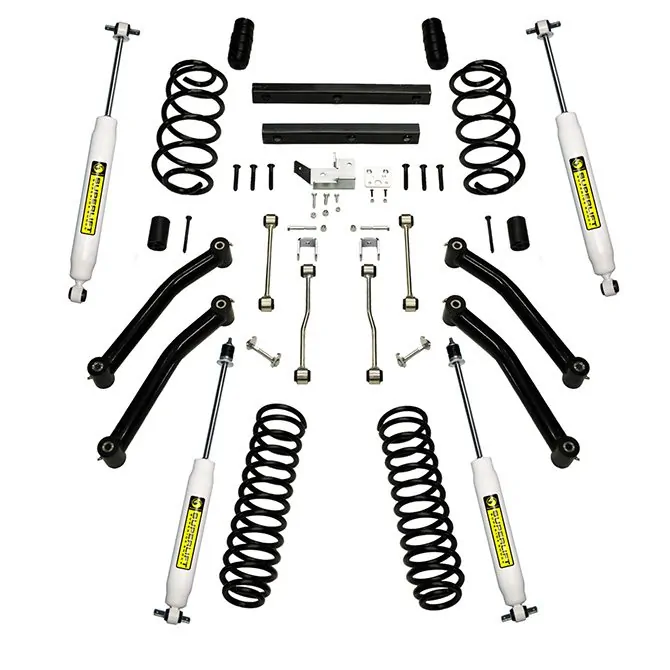

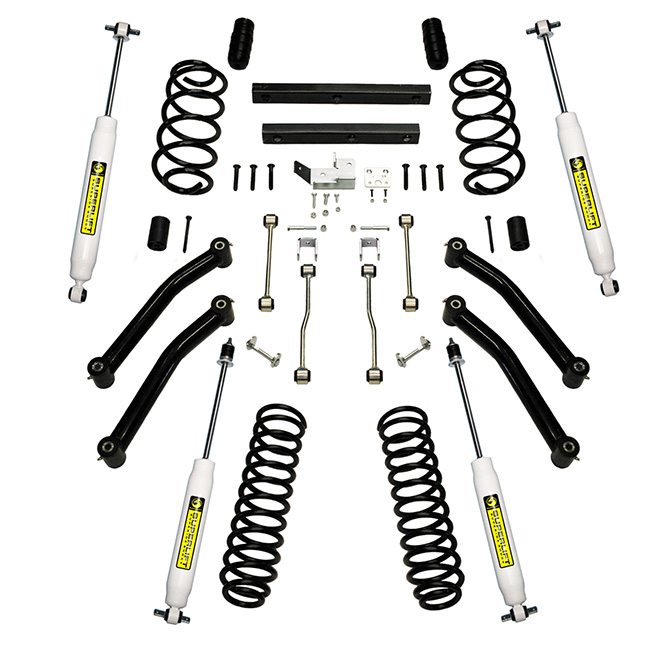

The system also includes front and rear anti-sway bar links, a rear track bar extension bracket, longer bump stop extensions, front and rear lower control arms, a transfer case lowering kit and Superlift Superide or Superide SS shocks by Bilstien.

Options include front and rear adjustable track bars, Rockrunner swivel-link control arms and quick-disconnect sway bar links. A steering stabilizer and eXtreme Ring differential protectors are available as well.

Fitment Table
