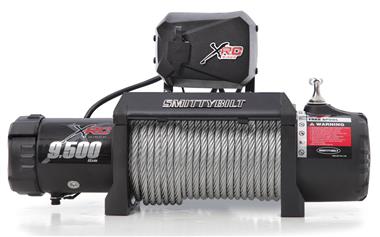

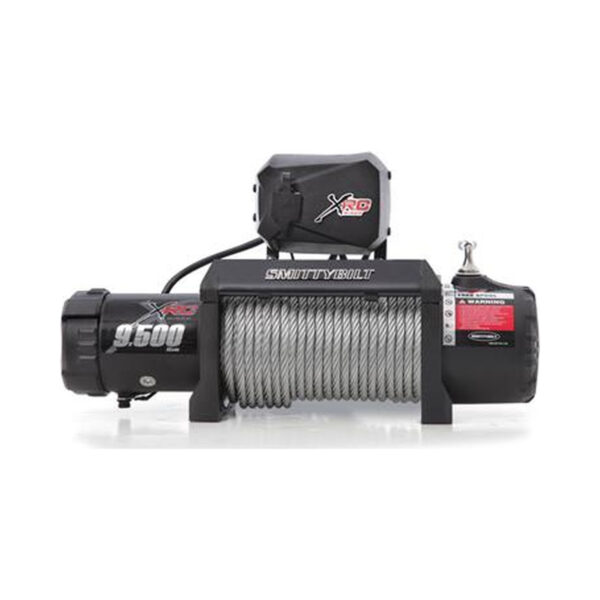

Smittybilt XRC-9500lb Waterproof Winch Gen2

Name: Smittybilt XRC-9500lb Waterproof Winch Gen2
Brand: Smittybilt
SKU: S/B97495
Availability: OutOfStock

SKU: S/B97495

Description

Smittybilt XRC-9500lb Waterproof Winch Gen2

Part Number: S/B97495 / 97495

Waterproofing: IP67 Rating
Fairlead: 4-Way Roller
Rated Line Pull: 9,500Lbs (4,309kgs) single-line

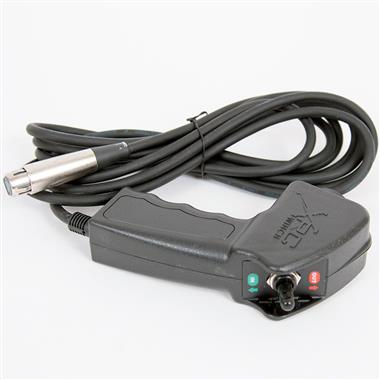

Remote Control: Included
Motor: 6.6hp Series Wound
Recommended Battery: 650CCA Minimum for Winching
Control: Remote Switch, 12’ (3.7m) lead
Battery Leads: 25mm, 72″ (1.83m)
Gear Train: 3-Stage Planetary
Gear Ratio: 161.28:1
Finish: Textured Black
Weight: 78.0 lbs (35.0 k)
Clutch: Sliding Ring Gear Mounting
Bolt Pattern: 10.0 ” x 4.5 “
Brake: Automatic In-Drum
Overall Dimensions (L x W x H): 22.3″ x 5.4″ x 9.4″
Drum Size: Diameter 2.5″
Cable Type: Wire Rope
Cable: 93.5’ 5/16″ Diameter

The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt’s XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is finished in a rugged UV-Resistant matte black coating with stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you’re looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation. Winch includes a Lifetime Mechanical Warranty and 3 Year Electrical Warranty.
