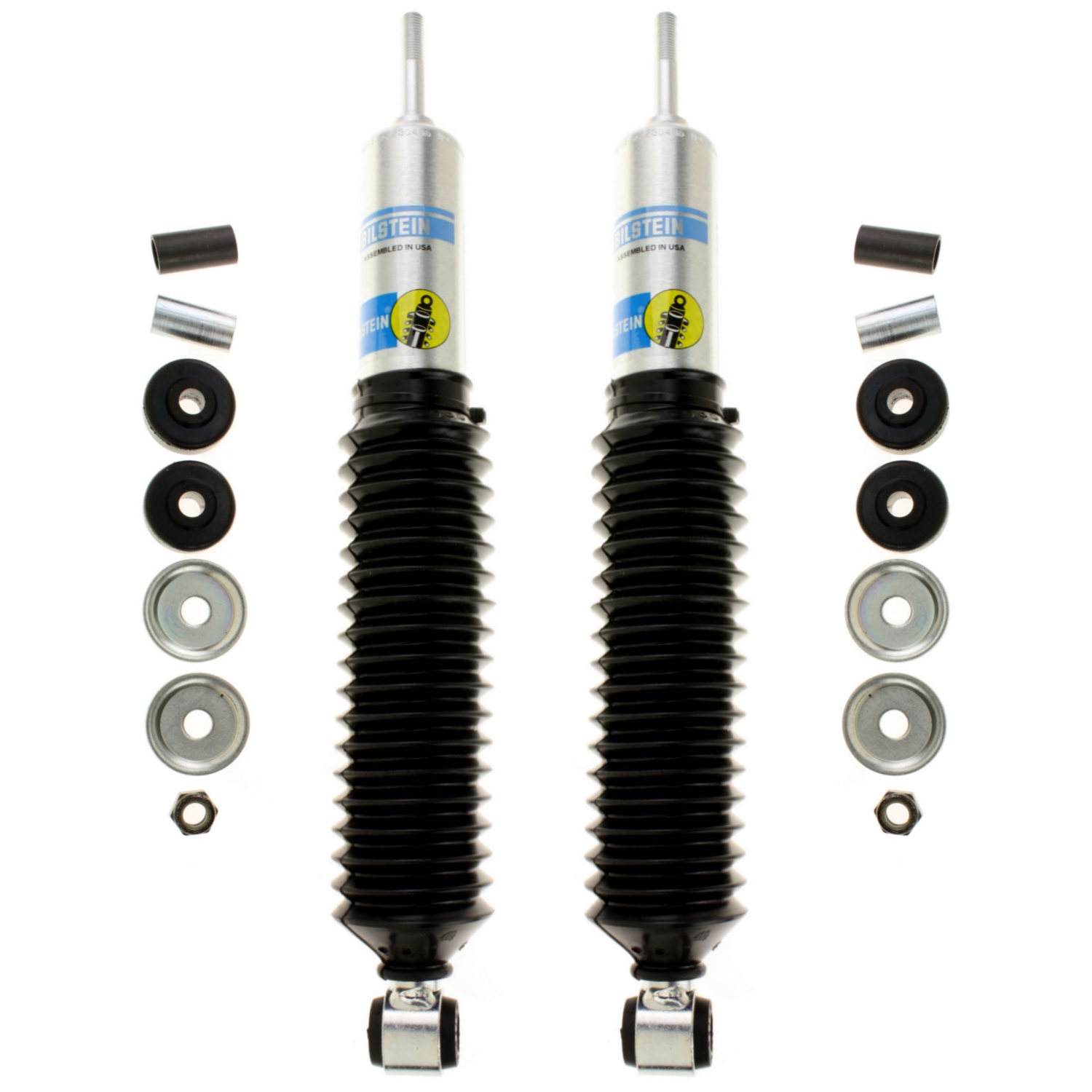

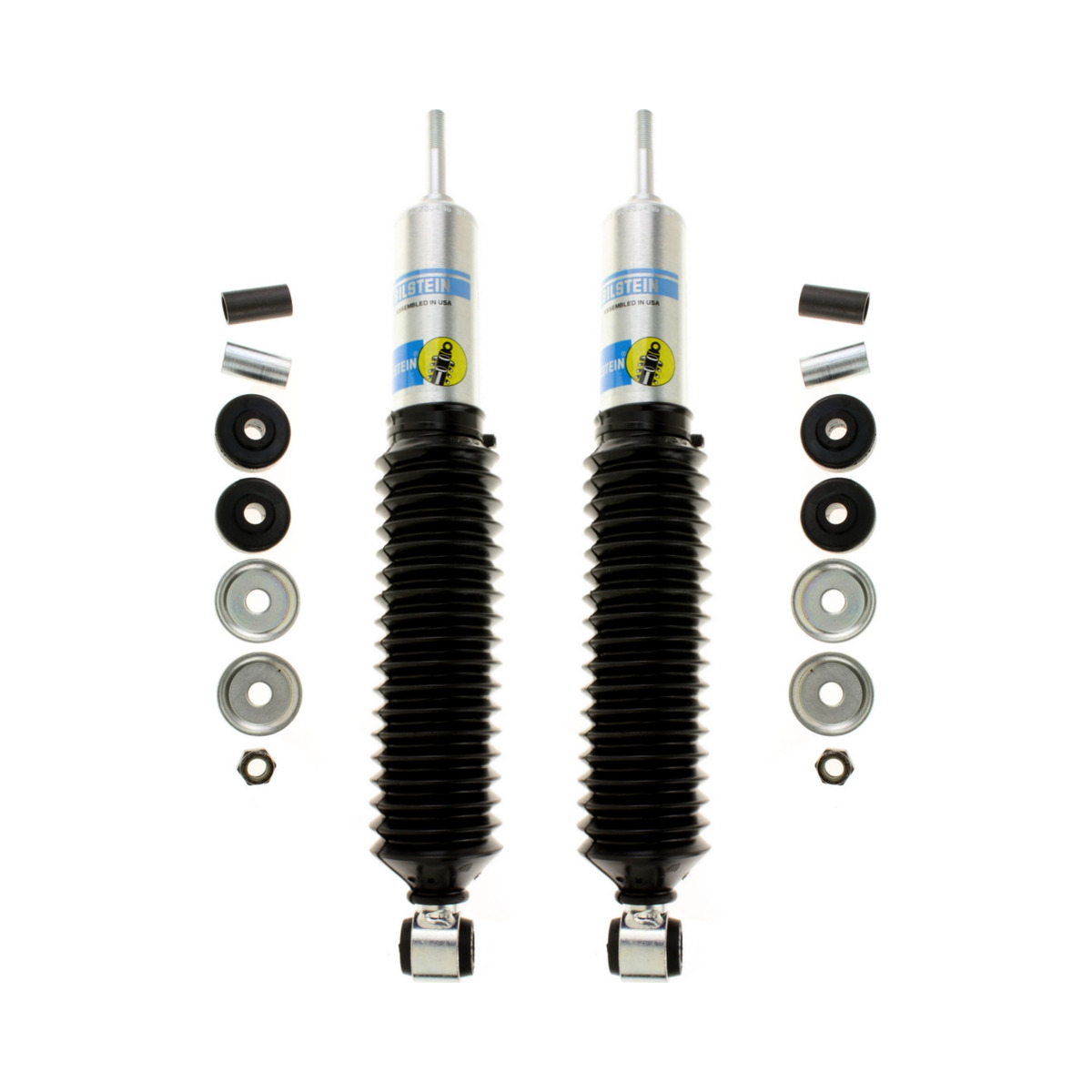

Bilstein 5125 Custom Fit Shocks Set 2 of 33-230405 16.4″ Extended, 10.75″ Collapsed (#33-230405)Sale!
Bilstein 5125 Custom Fit Shocks Set 2 of 33-230405 16.4″ Extended, 10.75″ Collapsed (#33-230405)
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Collapsed Length (IN): 10.75
Extended Length (IN): 16.4
Collapsed Length (MM): 273.0
Extended Length (MM): 416.5
Compression @0.52m/s: 840
Rebound @0.52m/s: 3695
Finish: Zinc Plated
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Replacement Mounting Kit: B4-KT1-Z103A02
