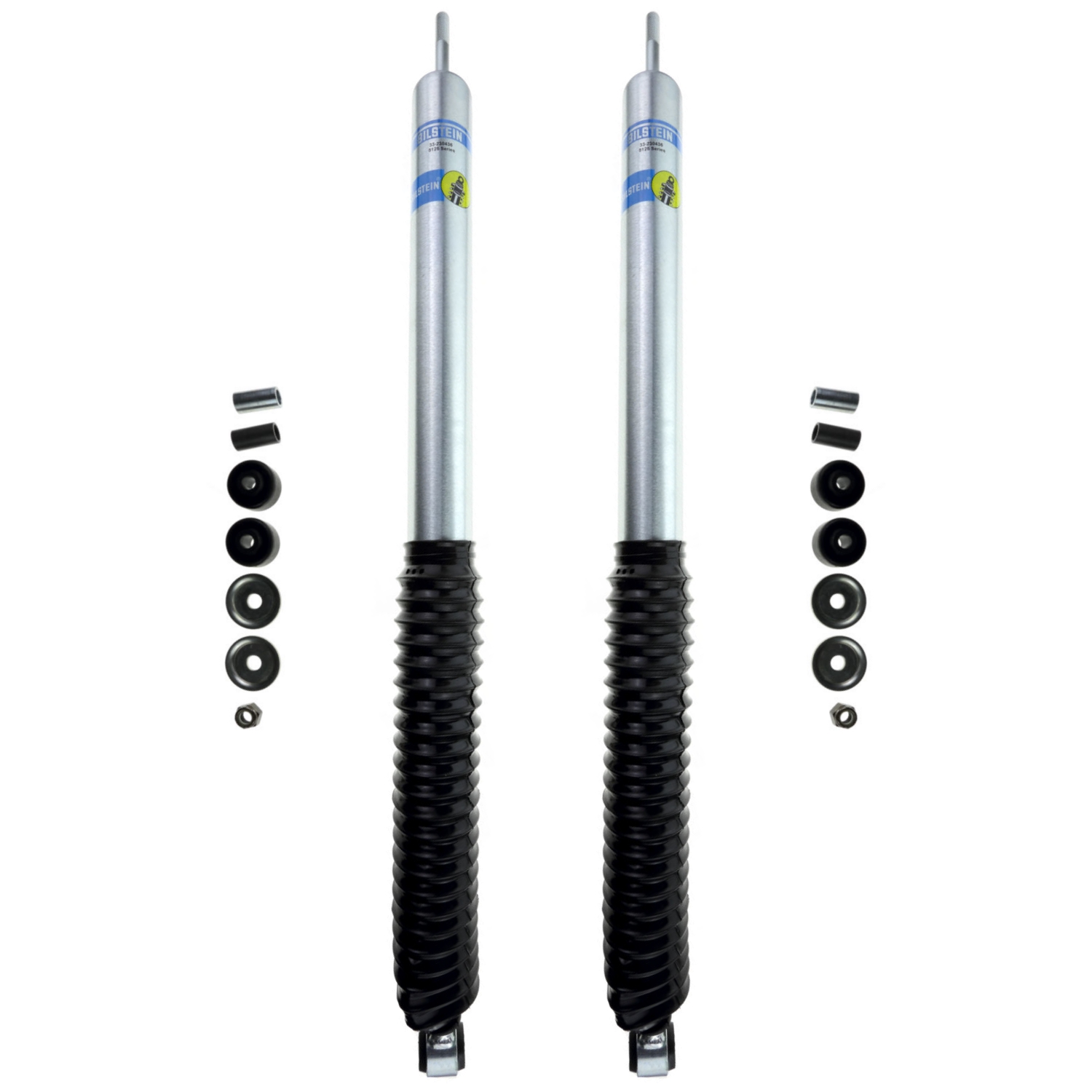

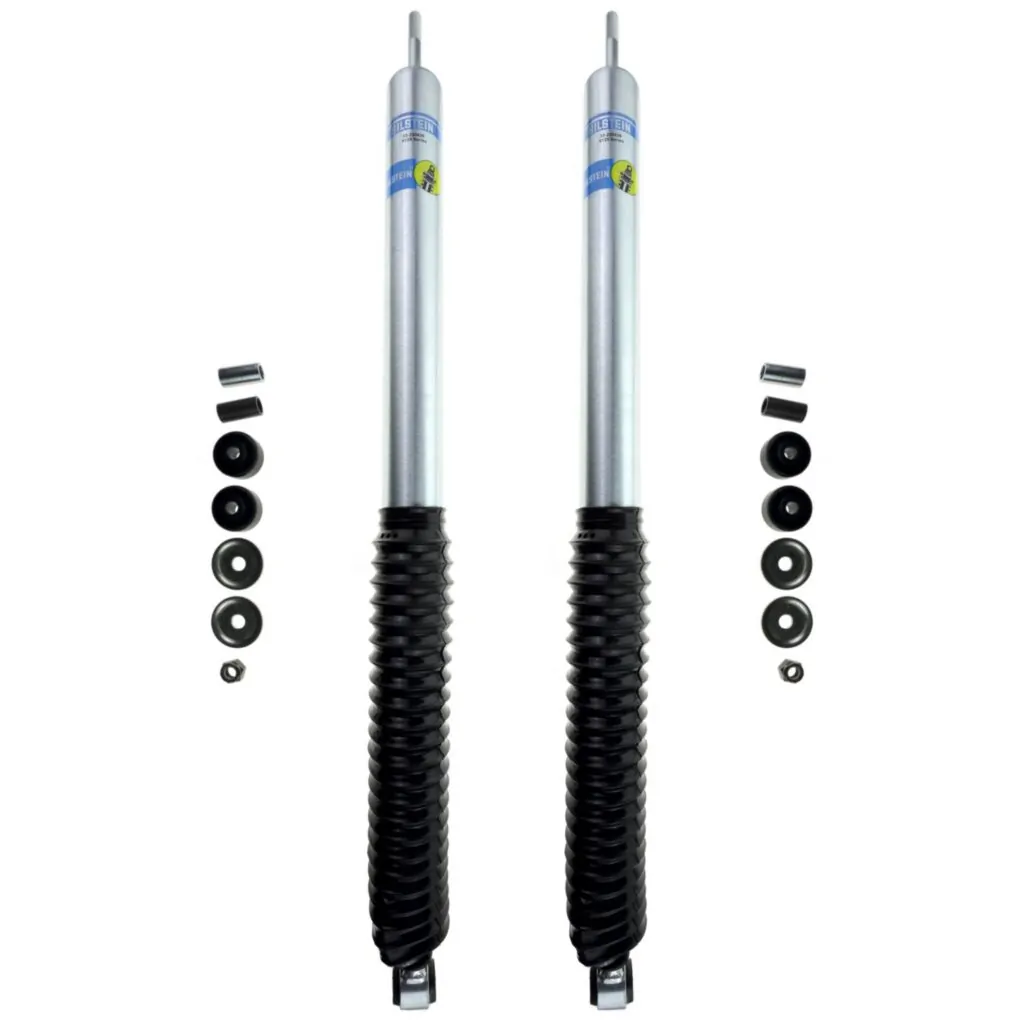

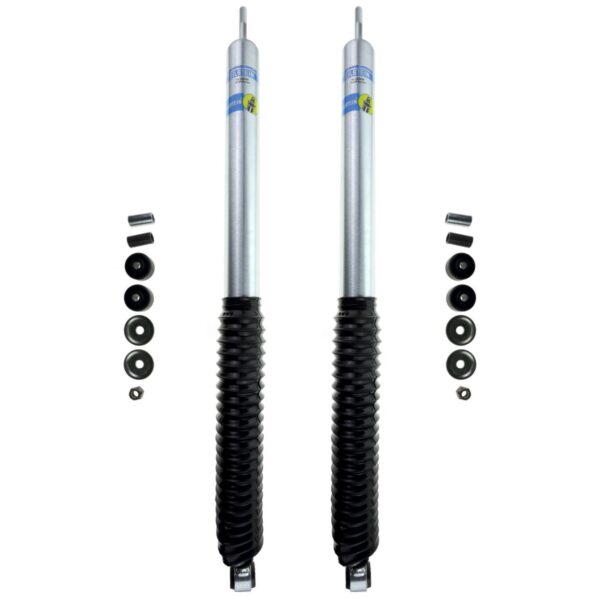

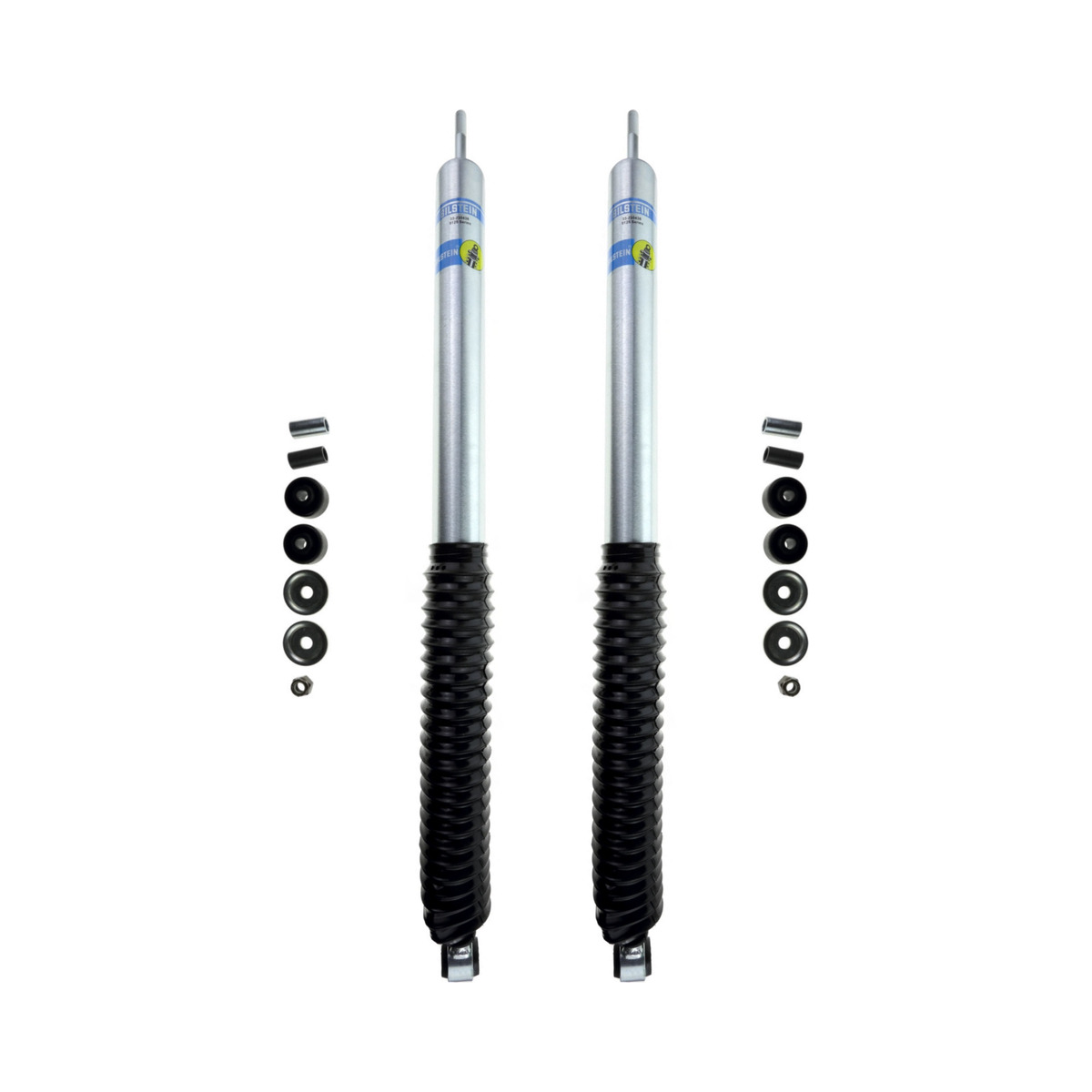

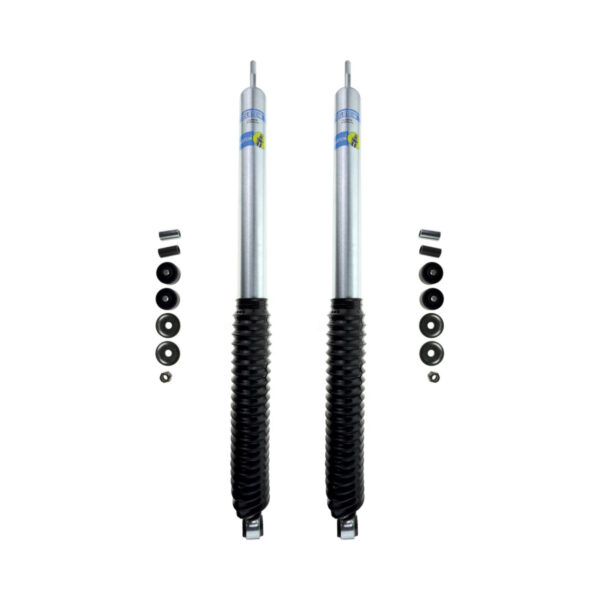

Bilstein 5125 Custom Fit Shocks Set 2 of 33-230436 30.88″ Extended, 18.74″ Collapsed (#33-230436)

Description

Bilstein 5125 Custom Fit Shocks Set 2 of 33-230436 30.88″ Extended, 18.74″ Collapsed (#33-230436)

Part: 2×33-230436

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Collapsed Length (IN): 18.74
Extended Length (IN): 30.88
Collapsed Length (MM): 475.9
Extended Length (MM): 784.4
Compression @0.52m/s: 650
Rebound @0.52m/s: 2500
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Replacement Mounting Kit: B4-KT1-Z103A02
