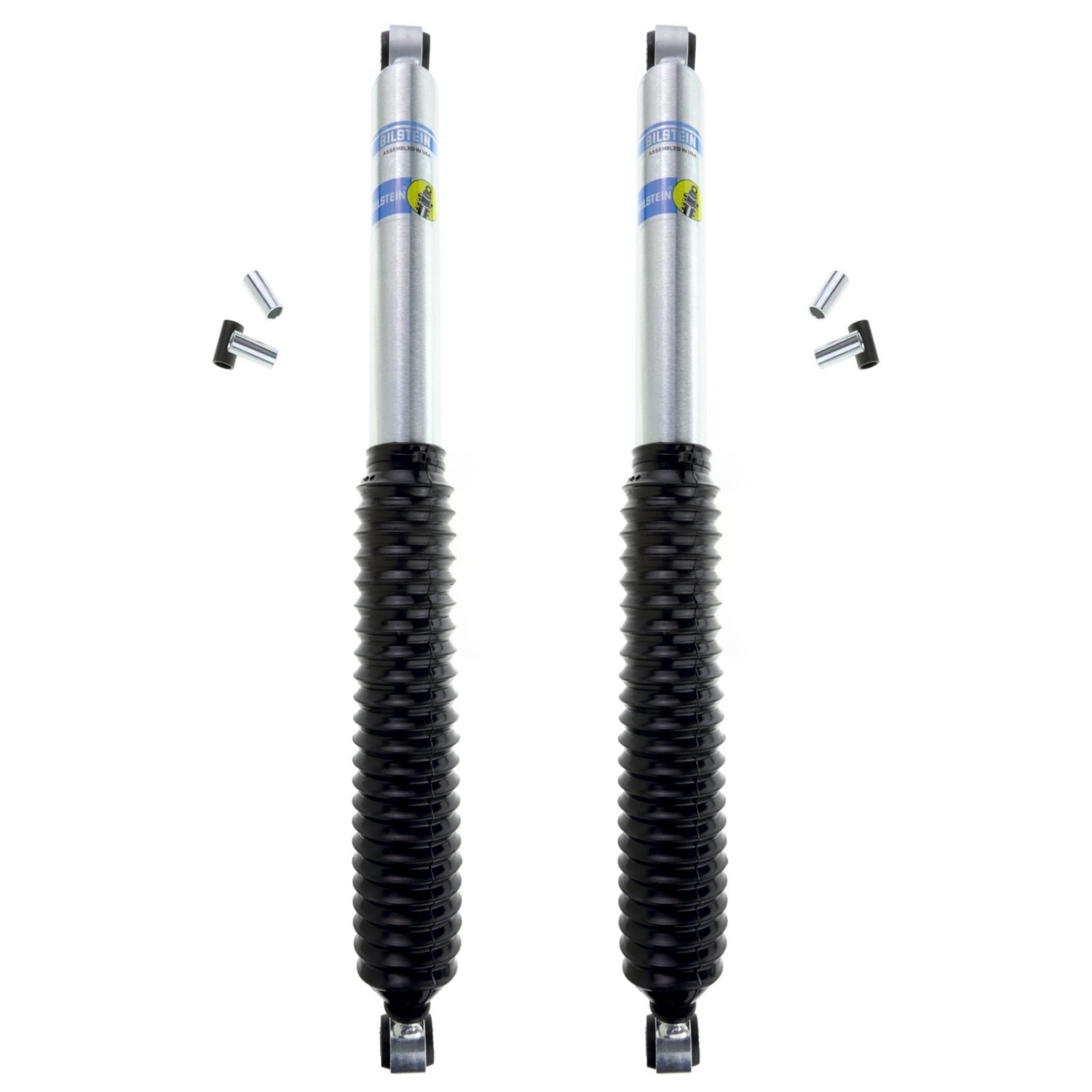

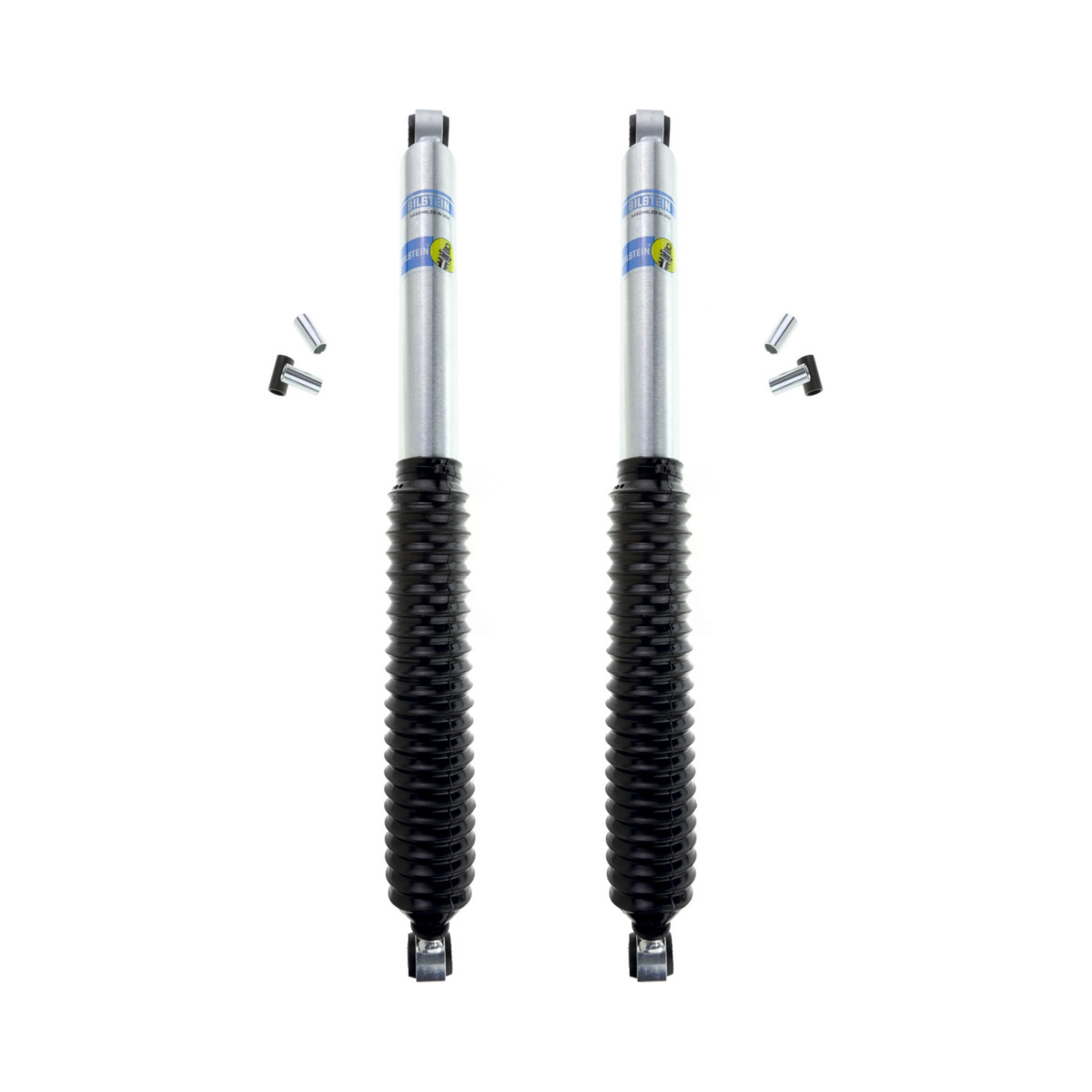

Bilstein B8 5125 Custom Fit Shocks Set 2 of 33-104652 28.00″ Extended, 17.01″ Collapsed

Description
Bilstein B8 5125 Custom Fit Shocks Set 2 of 33-104652 28.00″ Extended, 17.01″ Collapsed

Bilstein B8 5125 Custom Fit Shocks Set 2 of 33-104652 28.00″ Extended, 17.01″ Collapsed

Part: 2×33-104652_n5

Includes 2 Shocks

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Collapsed Length (IN): 17.01
Extended Length (IN): 28.00
Collapsed Length (MM): 432.0
Extended Length (MM): 711.2

Lower Mount: 5/8 inch Eye

Upper Mount: 5/8 inch Eye

Shaft Diameter: 14mm

Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Replacement Mounting Kit: B4-KT1-Z254A00
