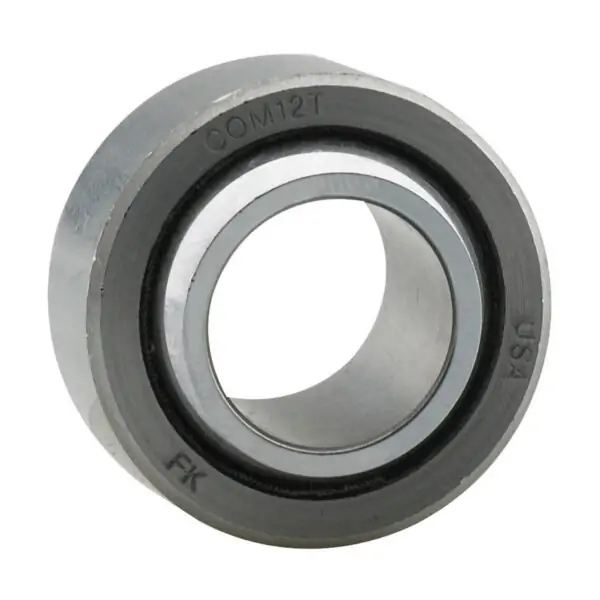

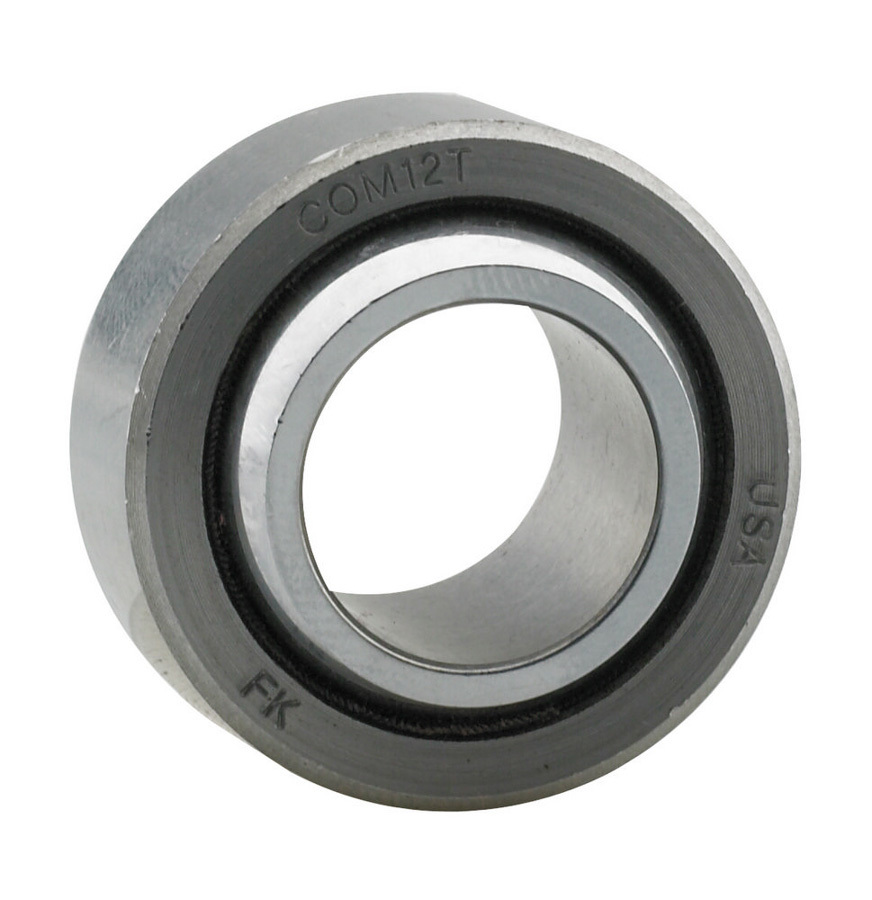

FK Bearings – Spherical Bearing, COM-T Series, 0.750 in ID, 1.438 in OD, 0.750 in Thick, PTFE Lined, Steel, Chrome, Each
Description
FK Bearings – Spherical Bearing, COM-T Series, 0.750 in ID, 1.438 in OD, 0.750 in Thick, PTFE Lined, Steel, Chrome, Each
Part: COM12T
|
Alternate Description
|
3/4 SPHERICAL BEARING W/ TEFLON COMMERICAL SERIES
|
||
|
Part Number
|
FKBCOM12T
|
||
|
Vendor Part Number
|
COM12T
|
||
|
UPC Code
|
800199611205
|
||
|
Package Weight
|
|
||
|
Package Length
|
|
||
|
Package Width
|
|
||
|
Package Height
|
|
| Attributes | |
|
Product Line
|
COM-T Series
|
|
Outside Diameter
|
1.4375 in
|
|
Bore Size
|
0.75 in
|
|
Thickness
|
0.75 in
|
|
Misalign Angle
|
9 degree
|
|
Lined
|
Yes
|
|
Lining Material
|
PTFE
|
|
Race Material
|
Steel
|
|
Material
|
Steel
|
|
Color
|
Chrome
|
|
Finish
|
Plated
|
|
Quantity
|
Each
|
- COMMERCIAL SERIES
- LUBRICATION GROOVES AND HOLES IN ID & OD OF RACE
- PTFE LINER AVAILABLE (ADD SUFFIX “T”)
- EXAMPLE: COM12T
- UNITS WITH PTFE LINER HAVE NO LUBRICATION GROOVES OR HOLES IN RACE
- BALL
- 52100 STEEL
- Rc 56 MIN
- HARD CHROME PLATED
- RACE
- LOW CARBON STEEL
- OIL COATED

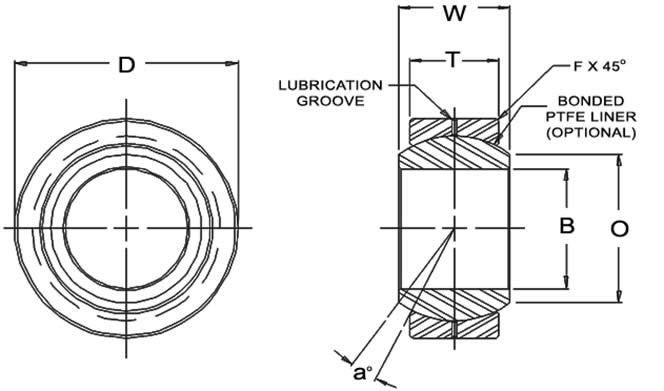

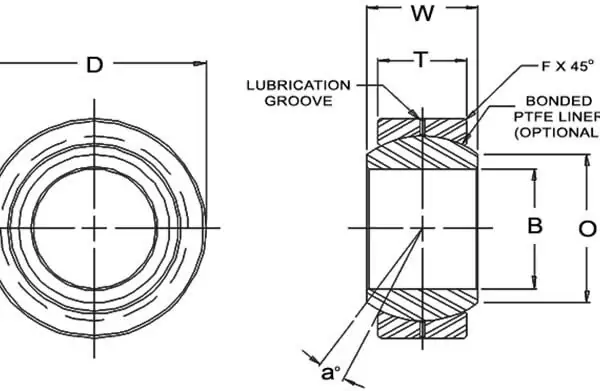

| BEARING PART NUMBER |
B DIA |
D DIA |
W WTH |
T WTH |
O DIA |
BALL DIA |
F CHAMFER |
a MIS ANGLE |
ULT STATIC RADIAL LOAD |
APPROX WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| +.0015 -.0005 |
+.0000 -.0007 |
+.005 -.005 |
+.005 -.005 |
REF | REF | REF | REF | (lbs) | (lbs) | |
| COM3 | .1900 | .5625 | .281 | .218 | .293 | .406 | .015 | 11 | 3,250 | .014 |
| COM4 | .2500 | .6562 | .343 | .250 | .364 | .500 | .022 | 13.5 | 4,950 | .022 |
| COM5 | .3125 | .7500 | .375 | .281 | .419 | .562 | .032 | 12 | 6,475 | .030 |
| COM6 | .3750 | .8125 | .406 | .312 | .516 | .656 | .032 | 10 | 8,400 | .038 |
| COM7 | .4375 | .9062 | .437 | .343 | .530 | .687 | .032 | 8 | 9,453 | .047 |
| COM8 | .5000 | 1.0000 | .500 | .390 | .600 | .781 | .032 | 9.5 | 13,250 | .065 |
| COM8-101 | .5000 | 1.0000 | 1.000 | .390 | .600 | .781 | .032 | 9.5 | 13,250 | .065 |
| COM8-103 | .5000 | 1.0000 | 1.500 | .390 | .600 | .781 | .032 | 9.5 | 13,250 | .065 |
| COM9 | .5625 | 1.0937 | .562 | .437 | .671 | .875 | .032 | 9.5 | 16,630 | .086 |
| COM10 | .6250 | 1.1875 | .625 | .500 | .739 | .968 | .032 | 8.5 | 21,280 | .110 |
| COM12 | .7500 | 1.4375 | .750 | .593 | .920 | 1.187 | .044 | 9 | 31,920 | .204 |
| COM12T-3R** | .7500 | 1.4375 | .750 | .593 | .920 | 1.187 | .044 | 9 | 31,920 | .204 |
| COM14 | .8750 | 1.5625 | .875 | .703 | .980 | 1.312 | .044 | 9.5 | 41,960 | .263 |
| COM16 | 1.0000 | 1.7500 | 1.000 | .797 | 1.118 | 1.500 | .044 | 10 | 55,200 | .386 |
| COMH16*** | 1.0000 | 2.0000 | 1.000 | .781 | 1.360 | 1.687 | .032 | 9 | 70,820 | .553 |
| COMH19*** | 1.1875 | 2.3750 | 1.187 | .937 | 1.610 | 2.000 | .032 | 8.5 | 100,730 | .895 |
| COMH20*** | 1.2500 | 2.3750 | 1.187 | .937 | 1.610 | 2.000 | .032 | 8.5 | 100,730 | .895 |
| COMH24*** | 1.5000 | 2.7500 | 1.375 | 1.094 | 1.860 | 2.312 | .032 | 8.5 | 135,950 | 1.358 |
| COMH28*** | 1.7500 | 3.1250 | 1.562 | 1.250 | 2.110 | 2.625 | .044 | 8 | 176,370 | 1.948 |
| COMH32*** | 2.0000 | 3.5000 | 1.750 | 1.375 | 2.360 | 2.937 | .044 | 8.5 | 217,060 | 2.650 |
