Zone Offroad 4″ Upper Strut Mounts Lift Kit 2012 Dodge Ram 1500

SKU: D20/D22


Zone Offroad 4″ Upper Strut Mounts Lift Kit 2012 Dodge Ram 1500

Part: D20/D22

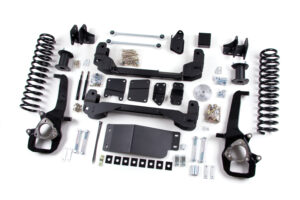

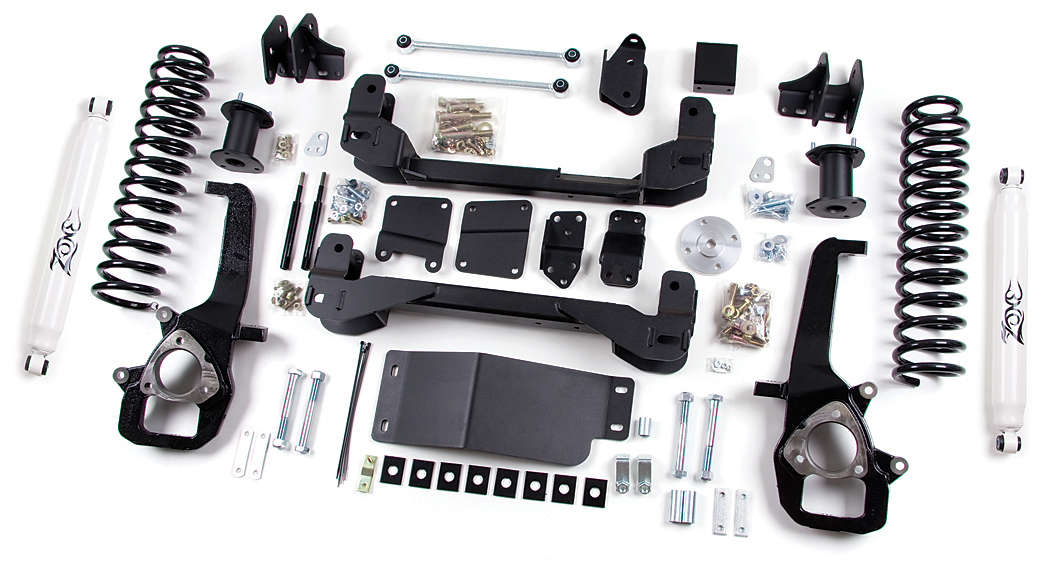

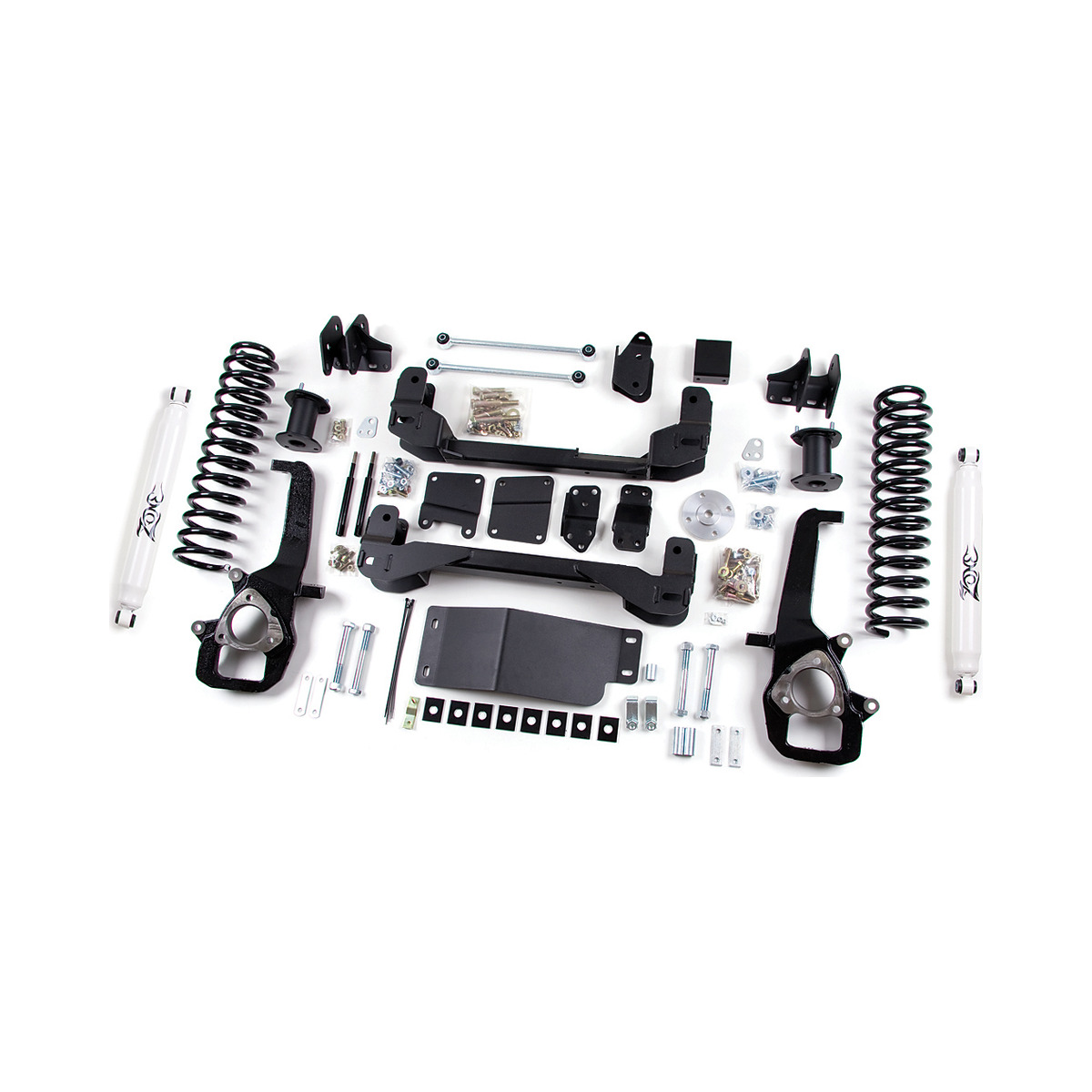

Zone Offroad 2012 Dodge 1500 4wd 4″ Lift System

The main components of the Zone Offroad 2012 Dodge 1500 4″ Suspension System are front and rear crossmembers, strut spacers, and sway bar links that work together with the new extended steering knuckles and replacements tie rod ends. These components are designed to maintain proper handling characteristics and work with the factory traction control system. Unique to this system from the 09-11 models is an all new differential relocation system specifically designed for 2012 front differential housing. A differential skid plate is included for added strength and protection for trips off the beaten path.

Since many of the vehicles tested by Zone Offroad had a significant tail high stance from the factory this 4″ system comes standard with 2″ rear coil spacers to help level the vehicle. Zone Offroad also offers 3″ rear coils springs depending on your desired stance. It’s best to measure your truck before ordering to determine how much rear lift is needed to give your truck the attitude you intend to. Both the 2 and 3 inch rear lift systems include upper control arm relocation brackets to avoid unwanted pinion movement under load.

Make your new 2012 Dodge stand out with a brand new quality, yet affordable suspension lift from Zone Offroad and be glad you did.

Featured Technology & Benefits

  • Front strut top spacer – no strut disassembly required
  • Maintains handling and ride characteristics and works with factory stability control
  • 3″ rear coil springs or 2″ coil spacers
  • Differential skid plate included
  • CNC machined steering knuckles

Important Notes!

  • Will not fit Mega Cab models.
  • Not recommended for AWD models.
  • TRX models require removal of the lower skid plate but it is replaced in our lift system.

This product fits the following applications:

  • 2012 Dodge/Ram Ram 1500 4WD

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: Upper Strut Mounts
  • Rear Lift Height: 2 or 3″
  • Rear Lift Method: Coil Spacer
  • Install Time Hrs: 8-10
  • Difficulty Level 1-5: 3
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5″
  • Max Tire Size: 35 x 12.50
  • Wheel Size: 18 x 9
  • Back Spacing: 5″
  • Max Tire Size: 35 x 12.50
  • Wheel Size: 20 x 9
  • Back Spacing: 5″
  • Max Tire Size: 35 x 12.50
