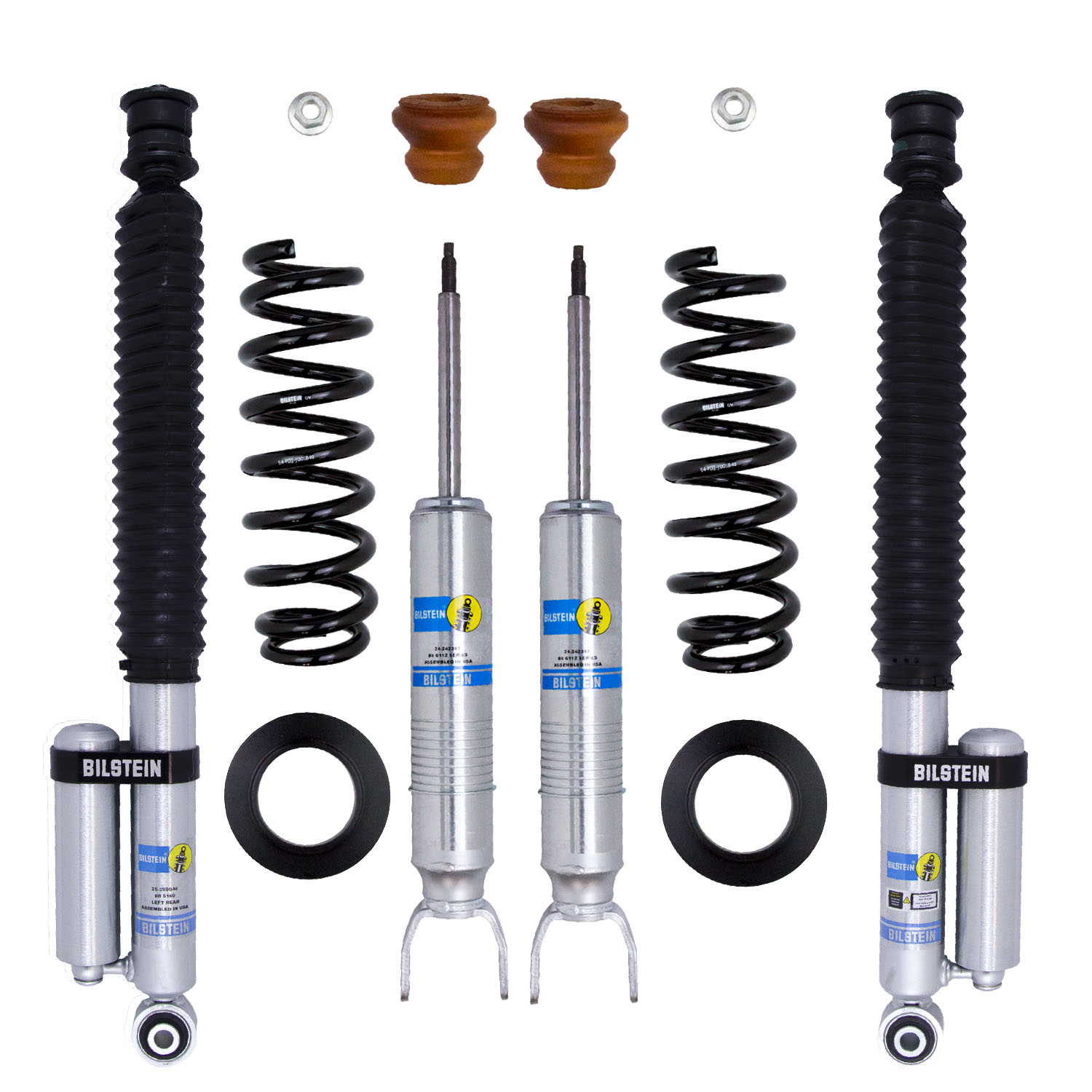

Bilstein 6112 0.6-2.6″ Front Lift Coilovers 0-2″ Rear 5160 New Shocks for 2019-2024 Ram 1500 2WD/4WD

SKU: 6112Ram19
Sale!

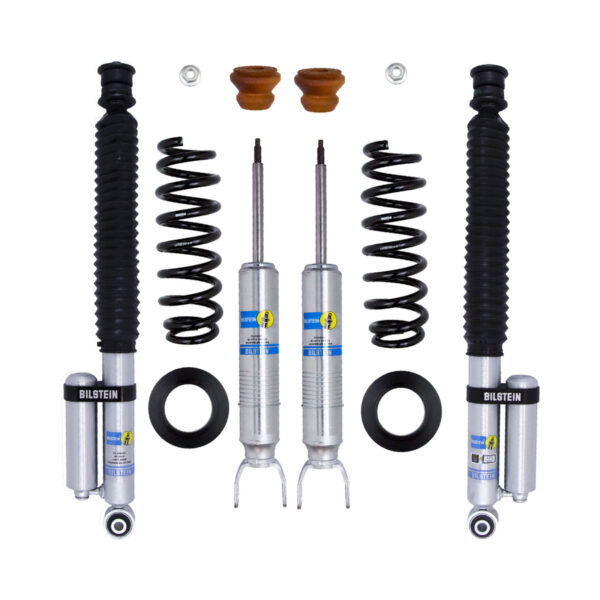

Bilstein 6112 0.6-2.6" Front Lift Coilovers 0-1" Rear Shocks for 2019-2020 Ram 1500 2WD/4WD
47-293540 ram 2019-2020 coilover clip settings

Description
Bilstein 6112 0.6-2.6″ Front Lift Coilovers 0-2″ Rear 5160 New Shocks for 2019-2024 Ram 1500 2WD/4WD

Bilstein 6112 0.6-2.6″ Front Lift Coilovers 0-2″ Rear 5160 New Version Shocks for 2019, 2020, 2022, 2023, 2024 Ram 1500 2WD/4WD

Part:  6112Ram19 (47-293540, 25-325102, 25-316919)

Need them Assembled?

Need rear coils?

Front Coilovers Description

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV

  • Finish: Dampers: Zinc Plated/Springs: Black
  • Reservoir: No
  • Aftermarket Upper Arms Required: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 60mm

Important fitment notes for coilovers:

-Front Lift Height: 0.6-2.6″ including factory Off-Road Package

-Without Air Suspension

Rear Shocks:

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Rear Shocks are newer version (not classic)

Important fitment notes for rear shocks:

-For Rear Lifted Height: 0-2″ without factory Off-Road Group

-For Rear Lifted Height: 0-1″ with factory Off-Road Group

-Without Air Suspension

Rear Right Specs:
  • Collapsed Length (IN): 15.69
  • Extended Length (IN): 25.75
  • Collapsed Length (MM): 398.5
  • Extended Length (MM): 654
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm
  • Replacement Mounting Kit: B4-KT1-Z223A01
Rear Left Specs:
  • Collapsed Length (IN): 15.69
  • Extended Length (IN): 25.75
  • Collapsed Length (MM): 398.5
  • Extended Length (MM): 654
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm
  • Replacement Mounting Kit: B4-KT1-Z223A01

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein 6112 0.6-2.6″ Front Lift Coilovers 0-2″ Rear 5160 New Shocks for 2019-2024 Ram 1500 2WD/4WD”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Does lifting take away droop travel?
    1. 0 votes
      QDoes lifting take away droop travel?answer now
      A Slightly
      2. Do I need new rear springs or a spacer to get the level, or do rear shocks them selfs make that happen?
    2. 0 votes
      QDo I need new rear springs or a spacer to get the level, or do rear shocks them selfs make that h...... Read more answer now
      A Rear shocks will not lift your truck by themselves - Rear shocks are only longer than the stock shocks - designed for use with the existing lift.
      3. What would be the max tire recommended?
    3. 0 votes
      QWhat would be the max tire recommended?answer now
      A 2'' higher than stock
      4. will i need new UCAs with this kit for my 2020 ram 1500 eco diesel?
    4. 0 votes
      Qwill i need new UCAs with this kit for my 2020 ram 1500 eco diesel?answer now
      A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
      5. Also, what is the difference between these coil springs and stock with off road package?
    5. 0 votes
      QAlso, what is the difference between these coil springs and stock with off road package?answer now
      A
      A Off Road packages have a taller spring that provides a 1" lift over the non-off road vehicles
      6. Can this be used in addition to a 2" top hat style spacer set at position # 4 or 5? I have a 2021 with the off road package and would plan to replace the UCA's. If not, how stiff is the ride at the highest setting? Thanks!
    6. 0 votes
      QCan this be used in addition to a 2" top hat style spacer set at position # 4 or 5? I have a 2021...... Read more answer now
      A These shocks cannot be used with spacers. These shocks can be adjusted in height only when using the springs that come with the kit The rigidity of the ride does not depend on the position of the ring on shock. The stiffness of the ride depends on the stiffness of the spring
      7. Does anyone have recommendations as to which after market UCA's will work best with this kit in a 2021 Ram?
    7. 0 votes
      QDoes anyone have recommendations as to which after market UCA's will work best with this kit in a...... Read more answer now
      A ICOn will be goodhttps://www.suspensionlifts.com/shop/dodge/09-12-dodge-ram-1500/2009-2010/upper-control-arms/icon-uniball-upper-control-arm-kit-2009-2017-dodge-ram-1500/
      8. Thanks for the response. Will this fit my 2021?
    8. 0 votes
      QThanks for the response. Will this fit my 2021?answer now
      A yes will fit 2021
      9. I have a 2021 Ram Laramie 4x4 with the off-road package which, from what I can tell does not include a factory 1” lift. It was the only way to get a locker in this trim. I don’t see anything from Ram on the window sticker or on their website when pricing/building to indicate the 2021 package includes a factory lift. It seems for 2021, you have to get a Rebel if you want the factory lift. Will this kit for my truck and do you recommend replacing the UCA’s? I would like to get a 2” lift upfront and add .75” inch spacers to the rear. Current amount of rake is basically 2.00”.
    9. 0 votes
      QI have a 2021 Ram Laramie 4x4 with the off-road package which, from what I can tell does not incl...... Read more answer now
      A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
      10. What circlip location would be best to use to clear 295/60R20 Nitto Ridgegrappler tires?
    10. 0 votes
      QWhat circlip location would be best to use to clear 295/60R20 Nitto Ridgegrappler tires?answer now
      A maybe the highest, don't know about wheels offset
      11. Hi, quick question. I have a 19 Laramie with the Off road package, will I still get the 2" lift with this kit? Should I replace the UCA? Also, will you ship to PR 00725? Thanks and HNY.
    11. 0 votes
      QHi, quick question. I have a 19 Laramie with the Off road package, will I still get the 2" lift w...... Read more answer now
      A yes we do ship to PRyou'll get additional liftUCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
      12. Also can you install a dual rate spring?
    12. 0 votes
      QAlso can you install a dual rate spring?answer now
      A No
      13. Can you install Mottfab 2” spacer at install? I want 4 in lift in front total for 35” trail grapplers.
    13. 0 votes
      QCan you install Mottfab 2” spacer at install? I want 4 in lift in front total for 35” trail grapp...... Read more answer now
      A No This cannot be done
      14. I have a 2020 ram rebel. Can I use spacers and ucas to get more of a lift in conjunction with these bilsteins? Can I use factory wheels?
    14. 0 votes
      QI have a 2020 ram rebel. Can I use spacers and ucas to get more of a lift in conjunction with the...... Read more answer now
      A you can use factory wheelsas your Rebel is already lifted from the factory - you may see no or little additional lift from these shocks
      15. How about the 2020 Ram Rebel ECODIESEL
    15. 0 votes
      QHow about the 2020 Ram Rebel ECODIESELanswer now
      A those will fit Rebel but officially it was not tested with Dieselhttps://www.suspensionlifts.com/shop/ram/1500-ram/2019-2020/shocks-2019-2020/bilstein-6112-0-6-2-6-front-lift-coilovers-for-2019-2020-ram-1500-2wd-4wd/
      16. Will it fit the 2wd model?
    16. 0 votes
      QWill it fit the 2wd model?answer now
      A It will fit on 2019-2020 Ram 1500 2WD/4WD.
      17. is this for the gen 5 ram?
    17. 0 votes
      Qis this for the gen 5 ram?answer now
      A yes, it's for 5th gen ( 2019 and newer)
