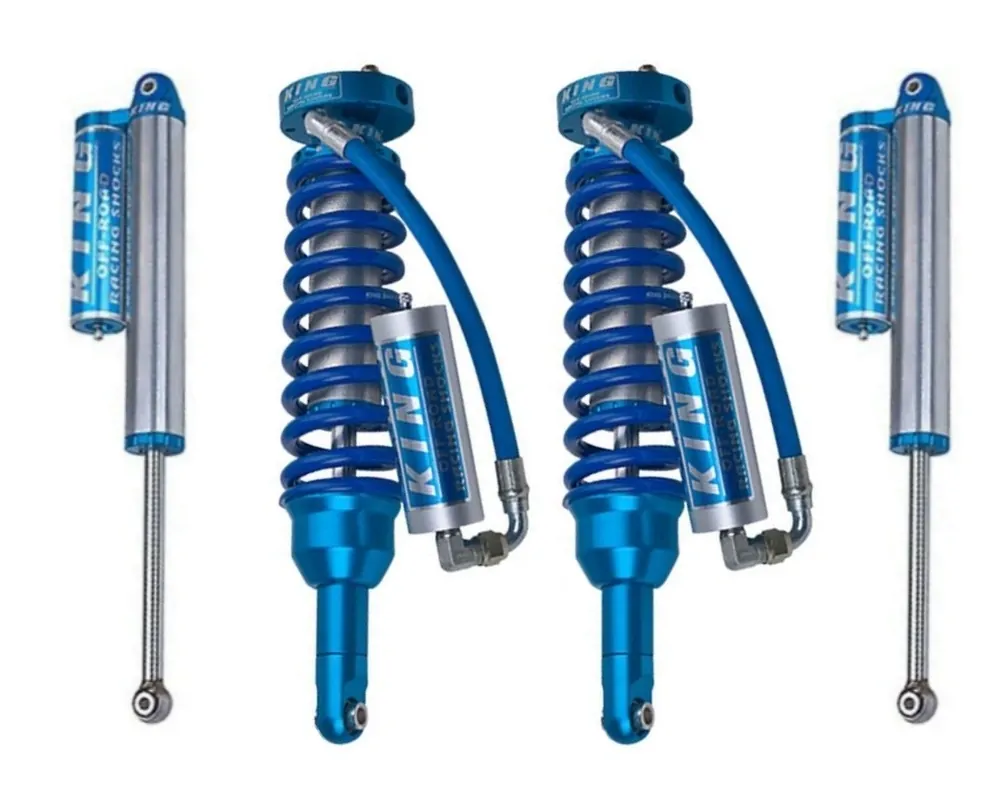

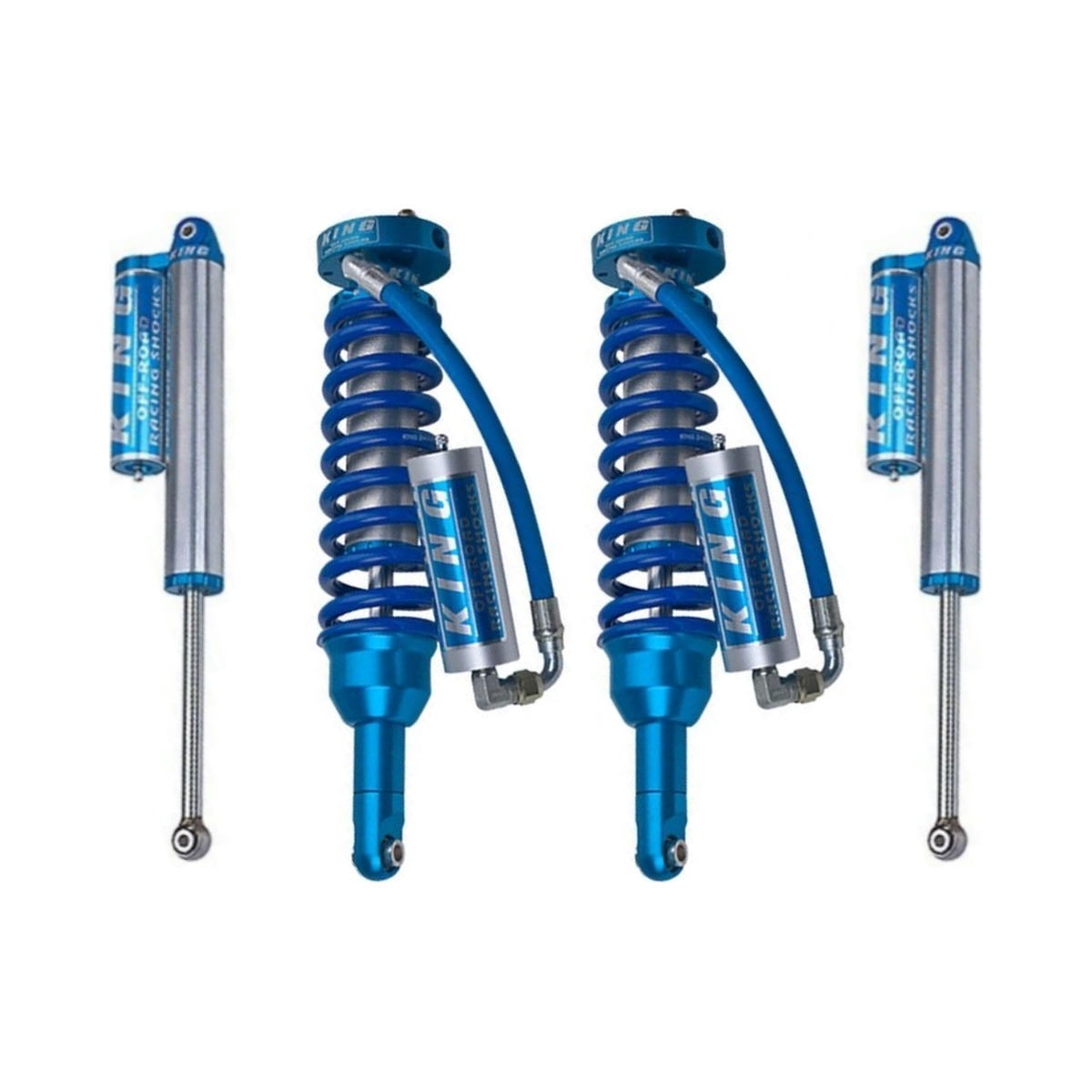

King Front 2.5 Dia RR Coilovers, Rear Shocks For 2019-2021 Ram 1500 4WD

Description
King Front 2.5 Dia RR Coilovers, Rear Shocks For 2019-2021 Ram 1500 4WD

What’s Included

• One King 25001-209 package containing 2 × front coilovers; 2 × reservoir brackets (25048-143/144); 4 × hose clamps (62032); 4 × CB4701 bolts; 2 × CB4702 bolts; and 6 × CW1701 washers
• One King 25001-210 package containing 2 × rear shocks

Front Suspension: King 25001-209

King identifies this as an application-tuned package, with damping selected for the listed vehicle and suspension position. King reports using vehicle testing to establish the damping curve and, where applicable, spring rate for this application.

• The remote-reservoir layout adds fluid volume and heat capacity to support consistent damping during repeated use.
• King reports using dynamometer development and real-world vehicle testing to develop the application-specific damping curve and spring rate.

Front Specifications

King documents stroke, extended length, compressed length, gas pressure, position, drivetrain for 25001-209. These exact values define the component configuration and should be checked against the intended vehicle and suspension setup before installation.

• Stroke: 5.159 in
• Extended length: 23.305 in
• Compressed length: 18.146 in
• Gas pressure: 200.000 psi
• Position: Front
• Drivetrain: 4WD

Rear Suspension: King 25001-210

King identifies this as an application-tuned package, with damping selected for the listed vehicle and suspension position. King reports using vehicle testing to establish the damping curve and, where applicable, spring rate for this application.

• The remote-reservoir layout adds fluid volume and heat capacity to support consistent damping during repeated use.
• King reports using dynamometer development and real-world vehicle testing to develop the application-specific damping curve.

Rear Specifications

King documents stroke, extended length, compressed length, gas pressure, position, drivetrain for 25001-210. These exact values define the component configuration and should be checked against the intended vehicle and suspension setup before installation.

• Stroke: 9.270 in
• Extended length: 26.330 in
• Compressed length: 17.060 in
• Gas pressure: 150.000 psi
• Position: Rear
• Drivetrain: 4WD

Matched Application

This front and rear package is matched to 2019-2021 Ram 1500; 4WD. Front specifications and features belong to King 25001-209; rear specifications and features belong to King 25001-210.

Installation

• King 25001-209 front installation instructions
• King 25001-210 rear installation instructions
