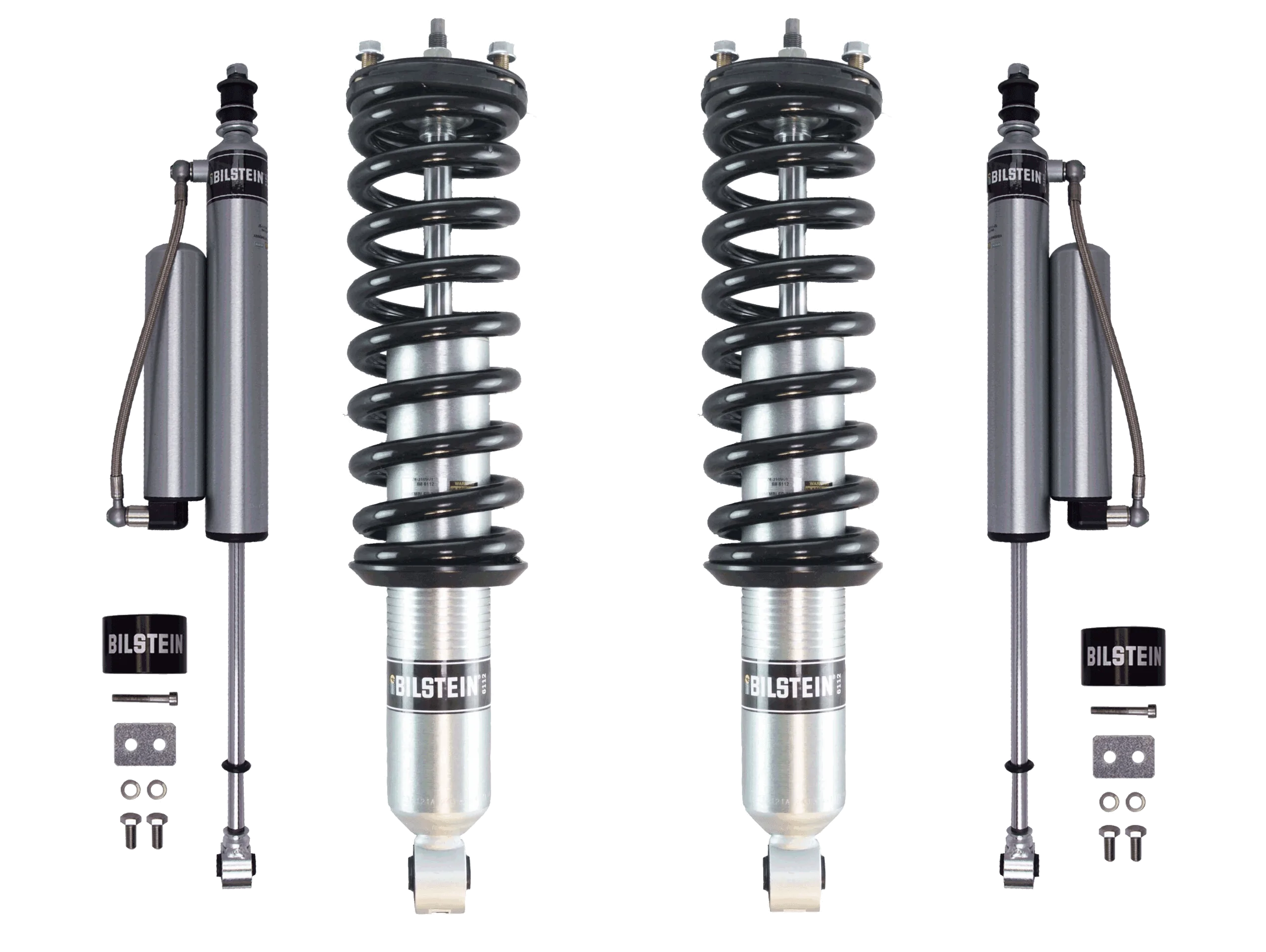

Bilstein 6112 0-3.5″ Front, 5160 0-2″ Rear Lift Shocks 2010-2023 Toyota 4Runner

SKU: 47-259768_25-227611
5 out of 5 based on 5 customer ratings
(5 customer reviews)
Bilstein 6112 0-3.5 Front, 5160 0-2 Rear Lift Shocks 2010-2023 Toyota 4Runner

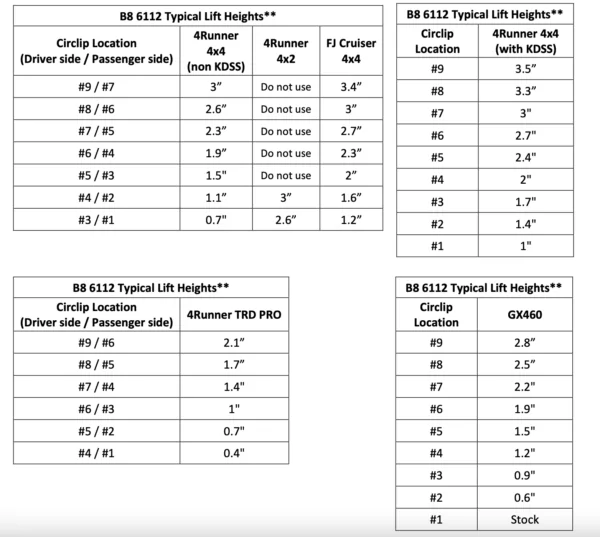

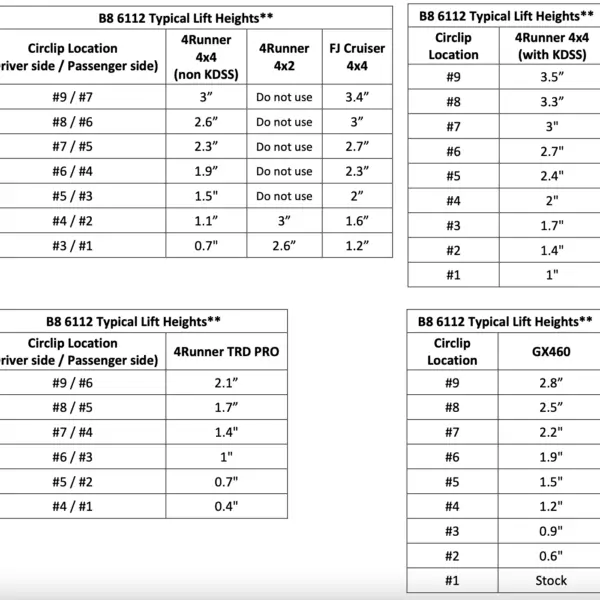

47-310025 clip settings

Description
Bilstein 6112 0-3.5″ Front, 5160 0-2″ Rear Lift Shocks 2010-2023 Toyota 4Runner

Bilstein 6112 0-3.5″ Front and 5160 0-2″ Rear Lift Shocks 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2021, 2022, 2023 Toyota 4-Runner 2WD/4WD

Front Shocks:

Series: 6112

Front Extended Length(in):

Front Collapsed Length(in):

Part Number: 47-310025 (old: 47-259768)

Front Shocks Fitment Notes:  Without XREAS Suspension

Front Shocks installation instruction

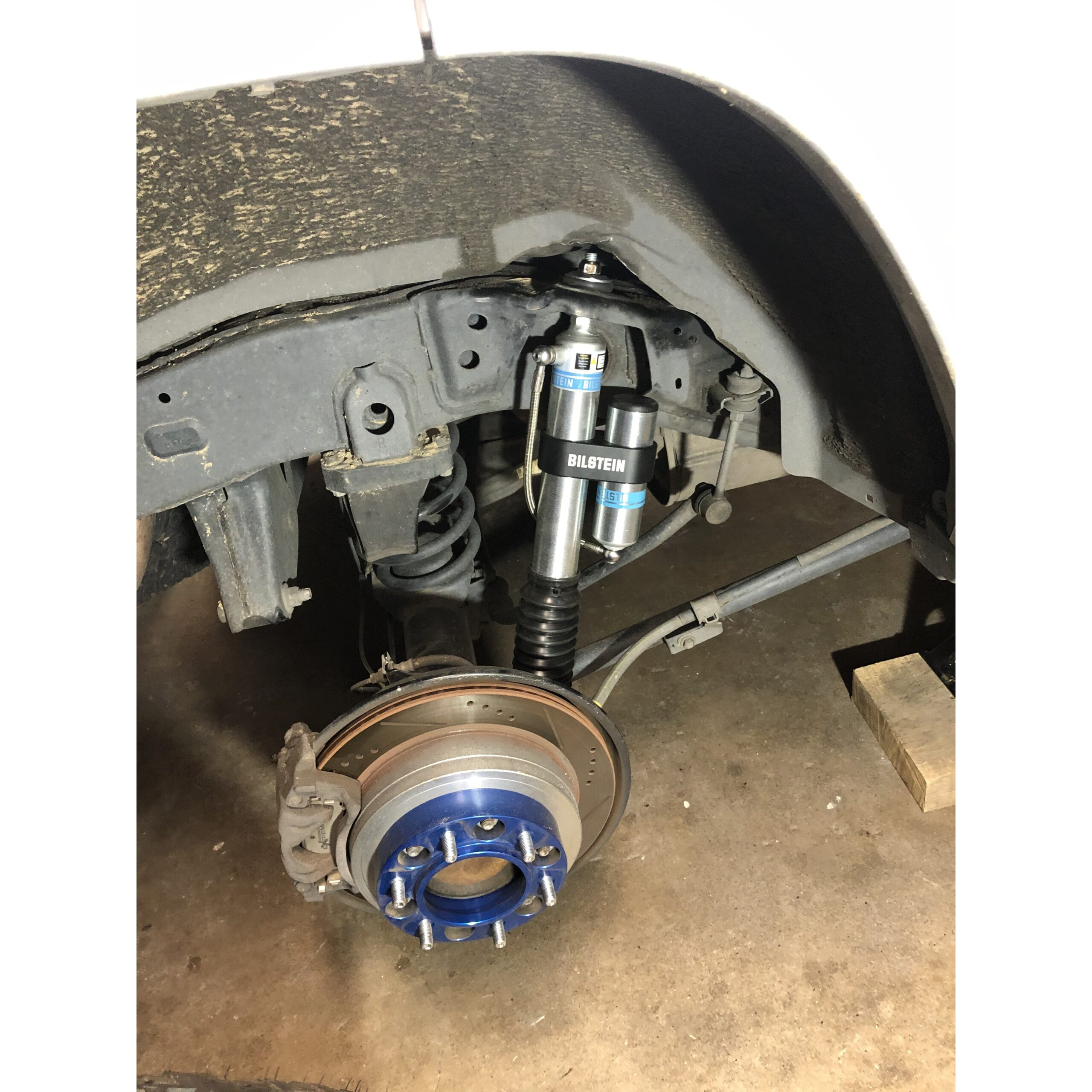

Rear Shocks (old part: 25-227611):

Series: 5160

Rear Right:

Collapsed Length (IN) 14.50
Extended Length (IN) 23.50

Part Number: 25-325096 (old: 25-313130)

Rear Left:

Collapsed Length (IN)14.50
Extended Length (IN)23.50

Part Number: 25-311211 (old: 25-313154)

Rear Shocks Fitment Notes: Without XREAS Suspension



Rear Bilstein Brand Coil Springs Option:
Rear Coil Springs 36-281817
4Runner 2WD – Rear Lift Height: 1.5″
4Runner 4WD – Rear Lift Height: 1″
or
Rear Coil Springs 36-281824
4Runner 2WD – Rear Lift Height: 2″
4Runner 4WD – Rear Lift Height: 1.5″
or
Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831
4Runner 2WD – Rear Lift Height: 2″
4Runner 4WD – Rear Lift Height: 1.5″



Fitment: Bilstein 6112 0-3.5″ Front and 5160 0-2″ Rear Lift Shocks 10-’20 Toyota 4-Runner 2WD/4WD

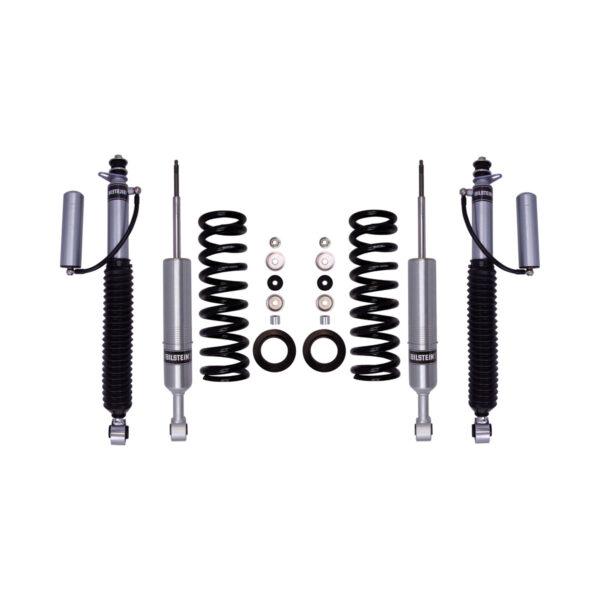

Includes Front Coils and 4 Shocks

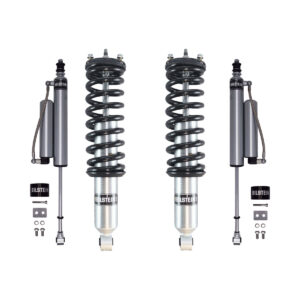

6112 Coilover includes Bilstein Coil and Qty 2 of 24-310031 Shocks

Need them assembled?

Customer reviews

Rated 5 out of 5 stars
5 reviews
5 stars 5 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

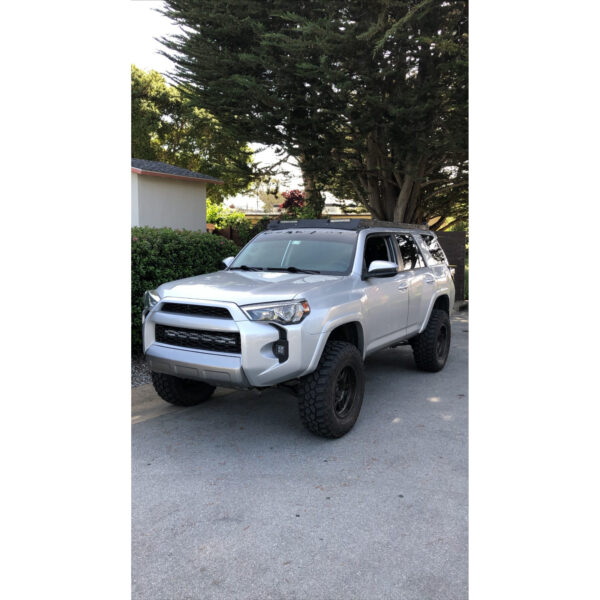

5 reviews for Bilstein 6112 0-3.5″ Front, 5160 0-2″ Rear Lift Shocks 2010-2023 Toyota 4Runner

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        I have a 2017 4R TRD PRO with the stock bilsteins and looking to refresh them with this kit. My question is, I want to keep the same front height as stock. Which number would I set the perch clips into driver and passenger? I know the driver has to be one higher then the pass side. Just looking to keep it stock height as to when my pro was new.
      1. 0 votes
        QI have a 2017 4R TRD PRO with the stock bilsteins and looking to refresh them with this kit. My q...... Read more answer now
        A If you have '2017 Toyota 4Runner TRD Pro 4WD we can offer Front https://www.suspensionlifts.com/shop/toyota-4runner/2010-2019/front-lifts-and-coilovers-2003-2019-toyota-4runner/bilstein-6112-1-5-3-2-heavy-lift-kit-for-2010-2019-toyota-4runner/ Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y586A00_3.pdf and rear https://www.suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/shocks/bilstein-5160-0-2-inch-rear-shocks-for-2003-2018-toyota-4runner-toyota-fj-cruiser/
        2. Can you use the stock oem coils in the rear or do I need new rear coils? I don’t want to raise the height in the back at all.
      2. 0 votes
        QCan you use the stock oem coils in the rear or do I need new rear coils? I don’t want to raise th...... Read more answer now
        A Yes, you can use stock coils with these rear shocks if you don't want to lift your rear
        3. Will this kit fit a 2019 Toyota Land Cruiser Prado 150 w/o kdss?
      3. 0 votes
        QWill this kit fit a 2019 Toyota Land Cruiser Prado 150 w/o kdss?answer now
        A yes, it will fit
        4. Will the 285/70/17 tire fit without rubbing with this set up ?
      4. 0 votes
        QWill the 285/70/17 tire fit without rubbing with this set up ?answer now
        A These wheels will fit without rubbing:Rim* 8"Tire Width* 12"Tire* 32.5"Backspace* 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
        5. Will 285/70/17 fit without rubbing ?
      5. 0 votes
        QWill 285/70/17 fit without rubbing ?answer now
        A These wheels will fit without rubbing: Rim* 8" Tire Width* 12" Tire* 32.5" Backspace* 4.5" Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
        6. I have a 2011 4Runner Limited 4wd with X-REAS. I'm just looking to replace the stock X-REAS and level the front. Will the BILSTEIN 6112 Front, 5160 Rear still be a good option for me? Removing stock XREAS is OK with me.
      6. 0 votes
        QI have a 2011 4Runner Limited 4wd with X-REAS. I'm just looking to replace the stock X-REAS and l...... Read more answer now
        A This kit will work. You are right, removing x-reas required
        7. I plan to buy this lift kit what do I need more in order to lift 3 inch in front and rear for 2013 Toyota. 4Runner 4x4 ?
      7. 0 votes
        QI plan to buy this lift kit what do I need more in order to lift 3 inch in front and rear for 201...... Read more answer now
        A Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.also you can purchase rear lift coils or keep the rear stock height
        A To get the rear lift you will need to either get spring spacers or rear lift springs . I went with the bilstein 2 inch rear lift coils.Also not 100 percent needed but I just purchased an adjustable rear panhard bar so I can re-center the rear end.To the topic of diff drop for the front end. I have read that on the 5th gen runner dropping the diff will cause the pinion bearing to wear faster for some reason. It is supposedly a 5th gen runner only issue. So I skipped that. Also if you plan on having an offroas bumper I would suggest the heavy weight coils for the fronts
        8. I have a 2018 trd off road premium with kdss. What spacers do I need to get to get me closer to 3” front and rear. I plan on getting the 2” lift springs in the back as well. Plus, I could not find your kdss sway bar relocation brackets. Will this be all I need?
      8. 0 votes
        QI have a 2018 trd off road premium with kdss. What spacers do I need to get to get me closer to 3...... Read more answer now
        A sway bar relocation is required only for height adjustable coilovers such as FOXthey are not needed for 6112for the rear we can offerhttps://www.suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-rear-lifts/rear-icon-coils-for-2007-and-up-toyota-fj-cruiser-and-03-and-up-4runner/
        9. Has anyone tried these with a 2011 GX 460? Will they work?
      9. 0 votes
        QHas anyone tried these with a 2011 GX 460? Will they work?answer now
        A no it will fit Toyota 4Runner 2020-2010
        10. With this lift kit are new bump stops required or recommended?
      10. 0 votes
        QWith this lift kit are new bump stops required or recommended?answer now
        A Yes, this kit fits 5th Gen Toyota 4Runner with KDSS.The front lift will be 2.5"for the stock front weight (no heavy bumper or winch)
        11. At the middle setting of 1.9, in the front and 5160’s at stock hight in the back whats the biggest tire size you can run without rubbing or issues on a 2019 4wd crewmax tundra? Thank you
      11. 0 votes
        QAt the middle setting of 1.9, in the front and 5160’s at stock hight in the back whats the bigges...... Read more answer now
        A Rim* - 8" Tire Width* - 12.5" Tire* - 33" Backspace* - 6"
        12. I have a 2019 TRD off road premium without KDSS. I want to lift it two inches in the front and one in the back. Will this kit do that? Is there anything else I need to buy? (UCA?)
      12. 0 votes
        QI have a 2019 TRD off road premium without KDSS. I want to lift it two inches in the front and on...... Read more answer now
        A Hello when using this set, you may need longer rear coils, as this set has 0-2 inch rear shocks https://www.suspensionlifts.com/shop/toyota-4runner/2010-2018/bilstein-b12-special-for-2003-18-toyota-4runner-1-5in-front-coil-springs-heavy-load-package/ https://www.suspensionlifts.com/shop/toyota-4runner/2010-2018/arb-old-man-emu-black-rear-springs-for-toyota-prado-120-150-fj-cruiser-4runner/ UCAs are always not a bad idea, but the lifts up to 3'' can go without UCAs.
        13. I plan to add a low profile winch bumper which weighs about 150lbs (bumper and winch). How much will the front springs sag?
      13. 0 votes
        QI plan to add a low profile winch bumper which weighs about 150lbs (bumper and winch). How much w...... Read more
        There are no answers for this question yet. Answer now
        14. Owner of a 2017 SR5. Which rear coils would be the best option if I were to set the front to 2" lift?
      14. 0 votes
        QOwner of a 2017 SR5. Which rear coils would be the best option if I were to set the front to 2" l...... Read more answer now
        A Hello, in order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
        15. I have 2019 4Runner TRD offroad with KDSS. I want to fit in 275/70/17 with mild lift. Do I need sway bar relocation kit? Do I need UCAs?
      15. 0 votes
        QI have 2019 4Runner TRD offroad with KDSS. I want to fit in 275/70/17 with mild lift. Do I need s...... Read more answer now
        A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.Rim* Tire Width* Tire* Backspace* such wheels will fit without rubbing. Bigger tires can require trimming. body lift kit can help to fit bigger tires https://www.suspensionlifts.com/shop/toyota-4runner/2010-2018/toytec-1-body-lift-kit-2010-2017-toyota-4runner/
        16. Does this lift come whith Bilstein billet aluminum mounting clamp? When will this kit be available again?
      16. 0 votes
        QDoes this lift come whith Bilstein billet aluminum mounting clamp? When will this kit be availabl...... Read more answer now
        A Internal ETA on 25-227611 is mid to late November. Optional aluminum clamp not included.
        17. I plan on doing this to my 2018 4Runner TRD OFF Road it has KDSS. Where can I get the front sway bar relocation cracket?
      17. 0 votes
        QI plan on doing this to my 2018 4Runner TRD OFF Road it has KDSS. Where can I get the front sway ...... Read more answer now
        A here it is, sir https://suspensionlifts.com/shop/toyota-fj-cruiser/front-swaybar-relocate-kit-for-2010-2015-4runner-fj-cruiser/
        18. Can I add a 3in lift coil to the front shocks?
      18. 0 votes
        QCan I add a 3in lift coil to the front shocks?
        There are no answers for this question yet. Answer now
        19. Hi. I'm planning on purchasing this kit for my 2017 4Runner Off Road without XREAS/KDSS. Do I need new UCAs for this kit?
      19. 0 votes
        QHi. I'm planning on purchasing this kit for my 2017 4Runner Off Road without XREAS/KDSS. Do I nee...... Read more
        There are no answers for this question yet. Answer now
        20. With this kit what accessory can I put to make it sit 3 inch high on the front and rear?
      20. 0 votes
        QWith this kit what accessory can I put to make it sit 3 inch high on the front and rear?answer now
        A We can offerFront will be lifted by 2.5'' for the front you can add only 0.5'' not to damage the suspension * * * https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/front-lifts-and-coilovers-95-04-tacoma/front-top-plate-spacer-one-14-inch/ * * *for the REAR: * * * https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/toytec-superflex-rear-coils-toyota-fj-cruiser-and-03-09-4runner/ * * * or * * * https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/rear-lifts/arb-ome-898-rear-2-5-3-inch-lift-heavy-coils-for-2010-fj4runner/ * * *
        21. Is a front swaybar relocation bracket required to clear these coilovers?
      21. 0 votes
        QIs a front swaybar relocation bracket required to clear these coilovers?answer now
        A It's needed if you have KDSS
        22. I'm ready to purchase this kit. Does the 6112 come pre-assembled?
      22. 0 votes
        QI'm ready to purchase this kit. Does the 6112 come pre-assembled?answer now
        A Front shtuts come not assembledPlease see the assembling instruction https://suspensionlifts.com/wp-content/uploads/2017/07/E4-WM5-Y506A00_1.pdf
        23. Hello. I was wondering if this kit comes with a mounting bracket for the rear shock reservoir.
      23. 0 votes
        QHello. I was wondering if this kit comes with a mounting bracket for the rear shock reservoir.answer now
        A Yes, mounting bracket for the rear shock reservoir is included
        24. I have a stock 2016 4Runner SR5 is this kit the only thing I need to raise it to inches is there extra parts that knee are needed to be bought?
      24. 0 votes
        QI have a stock 2016 4Runner SR5 is this kit the only thing I need to raise it to inches is there ...... Read more answer now
        A This kit will lift the front end. It offers also rear shocks longer then stock. You'll need to add rear coils if you need to lift the front end.https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/toytec-superflex-rear-coils-toyota-fj-cruiser-and-03-09-4runner/ * * * or * * * https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-rear-lifts/sway-way-1-5-rear-lift-coils-2003-2017-toyota-4runner-fj-cruiser/
        25. Does the kit include the 2 inch lift for the rear?
      25. 0 votes
        QDoes the kit include the 2 inch lift for the rear?answer now
        A The rear shocks will not lift the truck - they will not lift it. longer coils will be neededPlease see thishttps://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/rear-lifts/toytec-superflex-rear-coils-toyota-fj-cruiser-and-03-09-4runner/or thishttps://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/rear-lifts/toytec-superflex-heavy-duty-rear-coils-fj-cruiser-4runner-2003-2014/orhttps://suspensionlifts.com/shop/toyota-4runner/2010-2017/rear-lifts-2003-2012-toyota-4runner/sway-way-1-5-rear-lift-coils-2003-2017-toyota-4runner-fj-cruiser/orhttps://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/rear-lifts/arb-ome-889-rear-2-5-3-lift-medium-coils-2010-fj4runner/orhttps://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/rear-lifts/arb-ome-898-rear-2-5-3-inch-lift-heavy-coils-for-2010-fj4runner/
        26. Is the spring included in this kit? What is the weight rating of the spring? If so does the spring offer any lift or is all lift gained from adjusting the shock absorber.
      26. 0 votes
        QIs the spring included in this kit? What is the weight rating of the spring? If so does the sprin...... Read more answer now
        A Adjustment Range: 0 To 2-3/4 Inch Coil Spring Quantity: 2lift is done by shocks adjustmentMultiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats.https://cart.bilsteinus.com/pdfs/E4-WM5-Y506A00_1.pdf
