Bilstein 5100 Adjustable 0-2.5″ Lift shocks For 2010-2023 4Runner, FJ Cruiser
Sale!
Description
Bilstein 5100 Adjustable 0-2.5″ Lift shocks For 2010-2023 4Runner, FJ Cruiser
Bilstein 5100 Height Adjustable front 0-2.5″ and 0-2″ Rear shocks For 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 4Runner, FJ 4WD/RWD
Part: FJ4RBILK10
Need them assembled with OME coils?
-
Sale!
Bilstein/OME 2.5″ 5100 Assembled Coilovers with Rear Shocks for 2010-2024 Toyota 4Runner
(3 reviews)Original price was: $989.49.$937.95Current price is: $937.95.
Includes: 4 Shocks
The Bilstein 0-2.5″ Shocks Kit is the perfect solution for your 2010-2023 Toyota 4Runner/FJ Cruiser. This kit includes height adjustable 5100 shocks for the front (24-328258) and rear (33-313146) of your vehicle.
Bilstein 5100 Shocks:
The Bilstein 5100 shocks are height adjustable and provide a lift range of 0-2.5″ for the front of your vehicle, and work with 0-2″ lift in the rear. NOTE: Rear Shocks DO NOT lift the vehicle, they work with either stock height or existing lift. These shocks are engineered to provide superior handling, stability, and comfort, even under heavy loads or off-road conditions. The 5100 series shocks are made with the highest quality materials and are rigorously tested to ensure durability and long-lasting performance.
Front Shocks:
- Part Number: 24-328258
- Height Adjustable: 0-2.5″ Lift
- Extended Length: 22.48 Inch
- Compressed Length: 17.58 Inch
Rear Shocks:
- Part Number: 33-313146
- Height Adjustable: 0-2″ Lift
- Extended Length: 23-1/2 Inch
- Compressed Length: 14.91 Inch
- Rod Diameter: 1.81 Inch
- Upper Mounting Style: Stem
- Lower Mounting Style: Eyelet
If you need help installing these shocks yourself, we found this great channel & videos of the installation:
Rear lift options available:
Includes 4 Shocks
Questions and answers of the customers
-
If I were to buy the set with the 2.5 inch lift up front and 2.0 inch lift in the rear would i need to purchase new springs as well for my 2011 fj cruiser?
-
Q If I were to buy the set with the 2.5 inch lift up front and 2.0 inch lift in the rear would i ne...... Read moreThere are no answers for this question yet. Answer now
Is this kit compatible with KDSS system? Is there anything else needed such as UCA's or KDSS spacers?
-
Q Is this kit compatible with KDSS system? Is there anything else needed such as UCA's or KDSS spac...... Read more answer nowA Yes, will work with KDSS nothing more is needed. UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
will these work on a 2022 4Runner with the KDSS system?
-
Q will these work on a 2022 4Runner with the KDSS system?There are no answers for this question yet. Answer now
Will this kit fit my 2012 Toyota FJ Cruiser?
-
A yes, will fit
Do i need to use bottom washers on front shocks? I plan to use current top washers. I'm not sure if the bottom one are needed.
Thanks
-
Q Do i need to use bottom washers on front shocks? I plan to use current top washers. I'm not sure ...... Read moreThere are no answers for this question yet. Answer now
Will these fit a 2022 4Runner limited?
-
A yes
i haven't received my front shocks yet.
-
A coming separately from another warehouse
Will these shocks help with towing? I would set front shock at factory height.
-
Q Will these shocks help with towing? I would set front shock at factory height.There are no answers for this question yet. Answer now
Will this work with a 2016 trail edition 4Runner’s KDSS suspension?
-
A yes, will fit
Torque specs for front and rear
-
A manufacturer does not have this info please use OEM torque specs
I have a 2020 Toyota 4 runner trail, is this the best shock to raise/level out the front end & reduce the nose dive?
-
Q I have a 2020 Toyota 4 runner trail, is this the best shock to raise/level out the front end &...... Read more answer nowA yeah those will be good if having bumper/winch - stronger coils can be offered
Any idea on when the full kit will be available for a 2021 Toyota 4Runner Adventure Edition?
-
Q Any idea on when the full kit will be available for a 2021 Toyota 4Runner Adventure Edition? answer nowA these shocks will fit 2021
Hello Sir,
Can you please give me the full Lift kit set I need For my 4Runner SR5 4x2 2011. I’m planning to lift 3”. Would also like your advice if what size of tires and rim can I put. I want to buy bilstein for an affordable price. Thank you waiting for your advice..
-
Q Hello Sir, Can you please give me the full Lift kit set I need For my 4Runner SR5 4x2 2011. I’m p...... Read moreThere are no answers for this question yet. Answer now

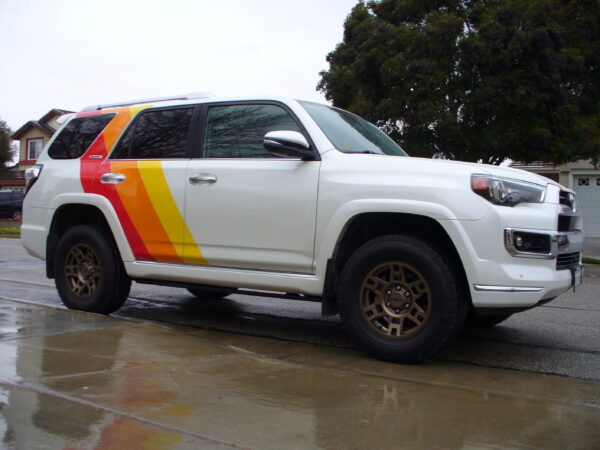

On the Black 4Runner in the product photos, what is the tire size? Is the rear lifted at all? If so, how much, and what height is the front adjusted to?
-
Q On the Black 4Runner in the product photos, what is the tire size? Is the rear lifted at all? If ...... Read moreThere are no answers for this question yet. Answer now
Do you know when the entire kit will be available again? And how long does it take to ship?
-
Q Do you know when the entire kit will be available again? And how long does it take to ship? answer nowA don't know the exact date unfortunately
When will these be back in stock?
-
A Rear shocks are in stock, and front shocks should soon appear in stock
Would this kit fit my 2007 Toyota 4Runner 2wd?
-
A Rear shock will do, but front shock will not We can offer you for 2007 Toyota 4Runner 2wd https://www.suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-shocks/bilstein-height-adjustable-front-and-matching-5100-rear-shocks/
I want to achieve 2 inches lift 4Runner 2003 sport edition v6. What’s is the set up? Do I rear spring for this ?
-
Q I want to achieve 2 inches lift 4Runner 2003 sport edition v6. What’s is the set up? Do I rear sp...... Read more answer nowA Would also like your advice if it’s necessary to go with 265/70/r17 or better to keeping the stock size tires 265/65/R 17. Do I rear spring or should keep stock?A Front shocks can be work with stock spring. Need to rearrange rings on shock Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y323A00.pdf For rear shock you need longer springs if you want 2 inches
I want to squat my 2020 4runner if I pull the blocks in the rear and I install this lift kit will i have a squat?
-
Q I want to squat my 2020 4runner if I pull the blocks in the rear and I install this lift kit will...... Read more answer nowA you can use rear lift coils or spacers with this kitA Don’t squat your brand new 4runnner, that’s shit is dumb and dangerous.
Will Bilsein adjustable shock kitshould I use for a 2018 Lexus GX460?
-
A It will fit Toyota 4Runner 2020-2010, FJ Cruiser 2014-2010
Does this work on a 2019 2r5 2wd
-
A yes
I have a 2016 4Runner Trail. I am interested in leveling it out mostly, but would consider a small lift. Can I do so without a spacer in the back? If i replace the suspension front and back do I get any lift in the back without the spacer? I'm thinking 2" in the front and 1" in the back of lift would level it out right? Is this achievable?
-
Q I have a 2016 4Runner Trail. I am interested in leveling it out mostly, but would consider a smal...... Read more answer nowA Front shocks can lift the truck by themselves rears will need spacers or rear coils to lift the rear In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
I want to use 285/70/17 toyo open country at2. If I use this kit can I fit those tires without any other issues. IE alignment, diff drop, sway bar.... in all I just want to for those tires and drive straight on them. I have a 2012 fj cruiser 4wd.
-
Q I want to use 285/70/17 toyo open country at2. If I use this kit can I fit those tires without an...... Read more answer nowA Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life. These wheels will fit without rubbing if you install 3'' lift: Rim* Tire Width* Tire* Backspace* 8" 12" 32.5" 4.5" Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
Hi im looking a shocks that can lift my 4runner 2.5” inches that i can put 285x70x17 no rubbing issue whats you good advise?
-
Q Hi im looking a shocks that can lift my 4runner 2.5” inches that i can put 285x70x17 no rubbing i...... Read more answer nowA I have the 5100s (set to 2.5") all around with no extra lift elements (no spacers and all stock springs). I run 285/70r17s KO2s with no rubbing at all at full lock both ways. (I did remove the front mud flaps and had to do the front fender liner mod.) I did have to use wheel spacers because I have the stock trail edition/TRDOR rims. I will say that the back definitely sags a bit as the rear shocks do not provide any extra lift. I plan on getting the Bilstein B12's 2" rear coils to fix this issue.
I have a 2010 Toyota 4Runner SR5
I would like to know if setting front shocks to 1.75” it will level out? And My other doubt is if I lift it with the 2.5” setting for leveling out the back I would need a 1.5” spring?
-
Q I have a 2010 Toyota 4Runner SR5 I would like to know if setting front shocks to 1.75” it will le...... Read more answer nowA Hi As for the front shocks, so that they can be adjusted between 0-2.5 ″ using different coils Here is the installation instructions below https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y323A00.pdf It is possible that you will need longer rear springs for leveling, if you adjust the front shocks to 2.5 But what kind of coils you need can be determined only after you install the front shocks and understand the position of your truck
i have 2015 4runner trail prem.with a 275/60r20 bf ko2 tires with fuel beast rims if i buy this what setting do i need to put the front shocks in order for it not to rub and what size spacer do i need to buy for the rear not to rub and to make the look of truck like stock.
-
Q i have 2015 4runner trail prem.with a 275/60r20 bf ko2 tires with fuel beast rims if i buy this w...... Read moreThere are no answers for this question yet. Answer now
Will they work on 2019 4runner with a leveling kit of 1.5"
-
A Yes, they will work. It's better to get rid of spacers and set front shocks on the middle clip setting for levelint
I have a 2010 4runner limited with xreas, which i plan to remove. However, will this setup work with stock coils?
-
Q I have a 2010 4runner limited with xreas, which i plan to remove. However, will this setup work w...... Read more answer nowA Yes It will work with stock coils? we send you the installation instructions so that you can do it yourself https://productdesk.cart.bilsteinus.com/media/products/bilstein/E4-WM5-Y323A00.pdfA Did you get it done ? Also did you have any kind of service lights come on the dash. I have a 2015 limited an wanna do it
I am installing a set of Bilstein 5100s on a 2015 Toy 4Runner. In order to level the vehicle what are the settings for the Front and Rear shocks? To get a leveled truck are the settings the same, front and back, or, does the front shock need to be adjusted higher than the rear to remove the natural rake?
-
Q I am installing a set of Bilstein 5100s on a 2015 Toy 4Runner. In order to level the vehicle what...... Read more answer nowA Hello, in order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png Rear shocks will not lift your truck by themselves - some lift kit options as longer coils or maybe spacers will be required for a lift. These shocks are only longer than the stock shocks - designed for use with the existing lift.
Do you need the spacer in the rear as well? 2014 4Runner SR5
-
A Rear shocks can be used with stock rear height or with https://www.suspensionlifts.com/shop/toyota-fj-cruiser/rear-1-5-inch-lift-black-spacers-poly-for-toyota-fj-cruiser-and-4runner/ or https://www.suspensionlifts.com/shop/toyota-fj-cruiser/toytec-superflex-rear-coils-toyota-fj-cruiser-and-03-09-4runner/
Can I still use my 265/70 r17 tires without it looking weird or should I go ahead and upgrade my tires to the 285/70 r17?
-
Q Can I still use my 265/70 r17 tires without it looking weird or should I go ahead and upgrade my ...... Read more answer nowA You can still use your tiresA With 1.75" up front and 1" spacer in rear, I put stock size Nitto Terra Grapplers 265/70R/17 and they look great, perform off road, and preserve factory mileage. BUT the 285s will look better! You may need to mod the front fender liner and remove the front mud flaps to prevent rubbing. I didn't want to deal with all that, but If you do it cleanly, it will look great. Lots of resources online to show how to do it.
Will this work on my 2017 4runner limited 2wd?
-
A Yes
Any idea if this kit will fit 4runner 2015 2wd
-
A Yes, it will fit - shock mountings are the same
I have a '15 4Runner SR5 4wd and would like to know how much longer these shocks are compared to OEM ones? Thanks
-
Q I have a '15 4Runner SR5 4wd and would like to know how much longer these shocks are compared to ...... Read more answer nowA We estimate that front shocks are about 0.59" longer than stock and rear shocks are about 1" longer than stock
Will lifting using this method (going to use new upper "A" arms also) effectively reduce my suspension droop? Or is the front shock also longer than the stock shock so it doesn't reduce droop when the collar is moved up? Thanks
-
Q Will lifting using this method (going to use new upper "A" arms also) effectively reduce my suspe...... Read more answer nowA Front 5100s are longer then stock and also improve ride quality. Suspension travel will not decrease in such a way as if using spacers
I have a 2018 trd off road 4Runner without the kdss
Will the front shocks get rid of the horrible nose dive under braking with the
factory springs? And the total lift is 2” or 2.5” ?
I also want to run my 7” x 17” trd pro wheels, with 285/70/17, will the inside side wall of the tire rub on the uca? Do I need new uca’s?
I also DO NOT want to run wheel spacers at all!
And how many miles do you think before the wheel bearings go bad?
-
Q I have a 2018 trd off road 4Runner without the kdss Will the front shocks get rid of the horrible...... Read more answer nowA UCA's are recommended but not require, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end. Front lift is 2,5'' by these shocks. Rear shocks are just longer then stock - if you want to lift the rear end you'll need rear coils Such tires will fit without rubbing, bigger tires may require some trimming. Also precise castercamber adjustment may help. Rim* Tire Width* Tire* Backspace* 8" 12" 32.5" 4.5" Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life.
Hi, do you know if this kit fit on my toyota fortuner 2006?, thabks
-
A We haven't tested it by ourselves but yes if it has the same suspension as FJ Cruiser and 4Runner
Does this kit come with all of the shock bushings or do I need to purchase them separately?
-
Q Does this kit come with all of the shock bushings or do I need to purchase them separately? answer nowA Comes as pictured - with rear shock bushings. Frontbushings can be purchased separately or old bushings can be reused if they are in a good shape * * * https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/front-shock-replacement-bushing-washer-kit/
Depending on the height you set the shocks at does it matter what size diff drop you need or is it one size for all 3 setting?
-
Q Depending on the height you set the shocks at does it matter what size diff drop you need or is i...... Read more answer nowA Diff drop kt is one and only - it is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life.
I have a 2018 Toyota 4 runner Sr5. If I purchase this kit and raise the front 2.5 inches and get a 1.5 rear spacer, would that be an even lift overall or would I still have the buggy look ha.
-
Q I have a 2018 Toyota 4 runner Sr5. If I purchase this kit and raise the front 2.5 inches and get ...... Read more answer nowA Hello, in order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://prntscr.com/gfgxwt The height is different on 4th gen 4Runners, some of them sit at 18 inches, some at 18.5 and some at 19 inches, the rear is 21 inches on these vehicles. So after 1,5'' raising the rear you'll still have front rake but it may be less then factory
I just bought a 2018 4Runner, SR5, Premium. I am not happy with the OEM suspension, I do not like the nose dive during hard braking, etc. First question will this kit work with my unit? Secondly, When I connect my pop-up trailer the rear end sags abt 2-3 inches. Suggestions?
-
Q I just bought a 2018 4Runner, SR5, Premium. I am not happy with the OEM suspension, I do not like...... Read more answer nowA Yes, it will work. We can offer https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/toytec-superflex-rear-coils-toyota-fj-cruiser-and-03-09-4runner/ and https://suspensionlifts.com/shop/toyota-fj-cruiser/firestone-rear-airbags/ for the rear
Will this fit as replacement shocks for a 2014 sr5 that has a leveling kit 3/2 if not adjusting the shocks for lift. Only asking as my husband did this on his Titan with a leveling kit and the ride is soo much better than stock.
-
Q Will this fit as replacement shocks for a 2014 sr5 that has a leveling kit 3/2 if not adjusting t...... Read more answer nowA Yes, it will fit
Will this kit work with the stock springs on my '08 FJ Cruiser and will I be able to reuse the OEM hardware... Also, will raising the front shocks 2.5" compromise the old springs?
-
Q Will this kit work with the stock springs on my '08 FJ Cruiser and will I be able to reuse the OE...... Read more answer nowA It was designed to work on stock coils .nIt will lift the front by shocks height adjustment
I have a 2018 4Runner TRD Off-Road Premium will I rub with 285/70/17?
-
A It will depend on springs condition and wheels offset Basicly 32'' tires will fit 2,5'' front lift without issues, for bigger tires you'll need some plastic trimming. Also precise castercamber adjustment may helpA I have the exact same vehicle with that tire size. It'll rub a bit at full turn in reverse
Does the black 4runner pictured have rear spacers/coils? Also do you know what size the Nitto Tera Grapplers are in that same photo? That is exactly the look I am going for and just want to confirm what I need to buy, any assistance would be appreciated it!
-
Q Does the black 4runner pictured have rear spacers/coils? Also do you know what size the Nitto Ter...... Read more answer nowA Can't say exactly about tires, as for rear lifted coils - yes, they are installed
Will this kit require any kind of dif drop for the 4x4 models? ('18 TRD Off Road)
-
A Diff drop kit is recommended for front lift mote then 1.5'' * * * https://suspensionlifts.com/shop/toyota-tacoma/2005-2015/front-differential-drop-kit/
I have a 2017 4runner, will the rear end be lifted at all with these rear shocks? or do these (33-187174) just replace the factory shock?
I just purchased aftermarket wheels and tires 285/70/R17 I'm wondering if they will fit in the rear with just these shocks? I'm noticing that a lot of people have the Rear 1.5" lift spacers is that combined with the shock or is it just the spacer?
-
Q I have a 2017 4runner, will the rear end be lifted at all with these rear shocks? or do these (33...... Read more answer nowA Rear shocks will not lift the truck bu themselves - they are just longer then stock. Rear spacers * * * https://suspensionlifts.com/shop/toyota-fj-cruiser/rear-1-5-inch-lift-black-spacers-poly-for-toyota-fj-cruiser-and-4runner/ * * * or better coils * * * https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/toytec-superflex-rear-coils-toyota-fj-cruiser-and-03-09-4runner/ * * * https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-rear-lifts/sway-way-1-5-rear-lift-coils-2003-2017-toyota-4runner-fj-cruiser/ * * * should be used
I have a 2011 4runner, will this lift the front with oem springs?
-
A You are quite right, front shocks are height adjustable and are able to lift the truck up to 2'' using stock coil springs
I want to lift my 2018 TRD Off Road 4Runner 2" in front and 1.5" in rear. Would this package provide that? Or would I need spacers for rear to get 1.5"?
-
Q I want to lift my 2018 TRD Off Road 4Runner 2" in front and 1.5" in rear. Would this package prov...... Read more answer nowA The front shocks are height adjustable and are able to lift the truck up to 2'' using stock coil springs. For the rear lift you'll need spacers or better - these coils * * * https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-rear-lifts/sway-way-1-5-rear-lift-coils-2003-2017-toyota-4runner-fj-cruiser/
Does this kit require new control arms? I am not lifting my '16 4Runner TRD Pro over the stock 1" lift, but leveling it once I add the winch up front.
-
Q Does this kit require new control arms? I am not lifting my '16 4Runner TRD Pro over the stock 1"...... Read more answer nowA UCAs are always not the bad idea, but this can work without UCAs
I have a 2014 FJCruiser Trail Teams edition, do these shocks work in conjunction with the stock 5100's rear shock reservoir and will these lift my truck w/o adding any other suspension mods
-
Q I have a 2014 FJCruiser Trail Teams edition, do these shocks work in conjunction with the stock 5...... Read more answer nowA The front shocks https://suspensionlifts.com/shop/toyota-4runner/2010-2017/shocks-2003-2012-toyota-4runner/front-0-2-5-adjustable-lift-shocks-2010-2016-toyota-4runnerfj-cruiser/ will fit. They are able to lift the front up to 2.5'' using stock coil springs. They may be used with stock or lifted rear - it does not matter
What size tires can be installed on a 2013 4runner after lift is installed?
-
A Rim* 8" Tire Width* 12" Tire* 32.5" Backspace* 4.5"
Will these fit an 2004 4runner?
-
Q Will these fit an 2004 4runner?There are no answers for this question yet. Answer now
Will this fit my 2015 4Runner SR5 4WD?
-
Q Will this fit my 2015 4Runner SR5 4WD?There are no answers for this question yet. Answer now
Do you make any height adjustable shocks for the 2017 4Runner TRD-off road with KDSS that will not disable the system. I just want to raise the front end about an inch and maintain all the goodies. If not, can you make a recommendation. Thank you
-
Q Do you make any height adjustable shocks for the 2017 4Runner TRD-off road with KDSS that will no...... Read moreThere are no answers for this question yet. Answer now
Will these fit and/or work with a 2016 Toyota 4Runner Trail Premium equipped with KDSS?
-
Q Will these fit and/or work with a 2016 Toyota 4Runner Trail Premium equipped with KDSS? answer nowA
It will fit, but the instalation of these shocks will disable the KDSS
A I don't think that is accurate. There is nothing shock-related with kdss. You may have confused it with xreas on the Limiteds.
Do I need buy springs for rear to lift it 2"?
-
A Yes, without higher rear springs the rear end will remain the stock height. Only front shocks provide more height on stock coils, rear shocks don't.A
Yes, if you want the rear end be lifted you will require maybe springs or some other rear lift options.
If you want your rear end remain the stock height, these rear shocks will fit without any lift option.
I have a rough country 3 inch leveling kit on my 2010 fj cruiser will these work for replacement shocks and with the bigger springs in the back
-
Q I have a rough country 3 inch leveling kit on my 2010 fj cruiser will these work for replacement ...... Read moreThere are no answers for this question yet. Answer now
Will these shocks fit with already installed Suspension Systems 2 inch rear/3 inch front lift? Will they add to the handling? It is the machined T6 aircraft billet with polyurethane leveling kit. Thanks
-
Q Will these shocks fit with already installed Suspension Systems 2 inch rear/3 inch front lift? Wi...... Read more answer nowA They will fit but the fronts would have to be at the lowest setting for it to lift.
Do these shocks work with a 2015 Trail Premium equipped with KDSS. Can I still use the KDSS.
-
Q Do these shocks work with a 2015 Trail Premium equipped with KDSS. Can I still use the KDSS.There are no answers for this question yet. Answer now
I have a 2016 4runner trail edition. will they have any effect on the kdss?
-
Q I have a 2016 4runner trail edition. will they have any effect on the kdss?There are no answers for this question yet. Answer now
I have a Tacoma TRD Sport, will this fit and also do I need new springs?
-
A
These shocks will work with stock coils.
Front shocks can be adjusted for a 0-2,5'' lift.
Rear can work with 0'' lift, they can't be adjusted. If you want to gain rear lift some rear lift options such as blocks or add a leafs will be needed.
Do I need to make any special mods to the OEM springs? I have 2011 4runner.
-
A No
i have a 2015 4 runner limited will this fit ?
-
A YesA Yes, it will fit. Please keep in mind that it will disable XREAS if it is installed.
does this item fits my 2017 sr5 4runner 4wd
-
A Yes
Will this fit onto an 07 FJ Cruiser Base model 2wd?
-
A
No, only rear shocks 33-187174 will fit the 2007 FJ 2WD
For the front shocks 24-239370 must be used.
Please buy this kit:
https://suspensionlifts.com/shop/toyota-fj-cruiser/2007-2009/fj-lift-kits/bilstein-height-adjustable-front-and-matching-5100-rear-shocks/
Do these fit the 2016 4Runner Limited with XREAS?
-
A These shocks will remove any XREAS that you have.
2014 Fj Cruiser: will these shocks work w aftermarket KYB springs used to level the front end (3/4" )
-
Q 2014 Fj Cruiser: will these shocks work w aftermarket KYB springs used to level the front end (3/...... Read more answer nowA Probably yes, but we haven't tested them
Will this fit base 2017 4runner sr5 using stock springs?
-
A Yes these will fit that vehicle with stock springs
Do these fit a Base 2010 Lexus GX460 using stock springs?
-
A
These do not.
