ARB/OME 2.5″ lift kit for 80 series 1991-1997 Toyota Land Cruiser
Sale!
Description
ARB/OME 2.5″ lift kit for 80 series 1991-1997 Toyota Land Cruiser
ARB/OME 2.5″ lift kit for 80 series 1991, 1992, 1993, 1994, 1995, 1996, 1997 Toyota Land Cruiser
Part: OME80S-KIT
Fits Toyota Land cruiser 80 series 1991, 1992, 1993, 1994, 1995, 1996, 1997

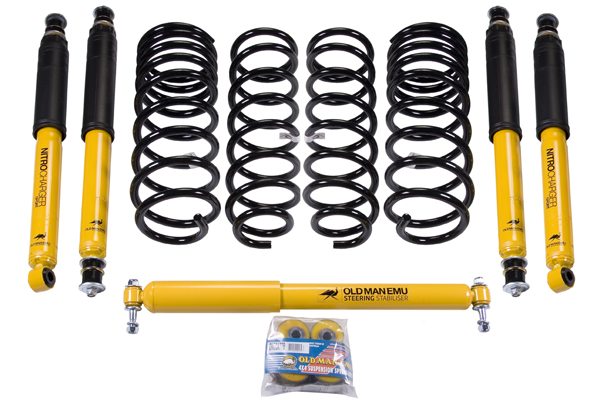

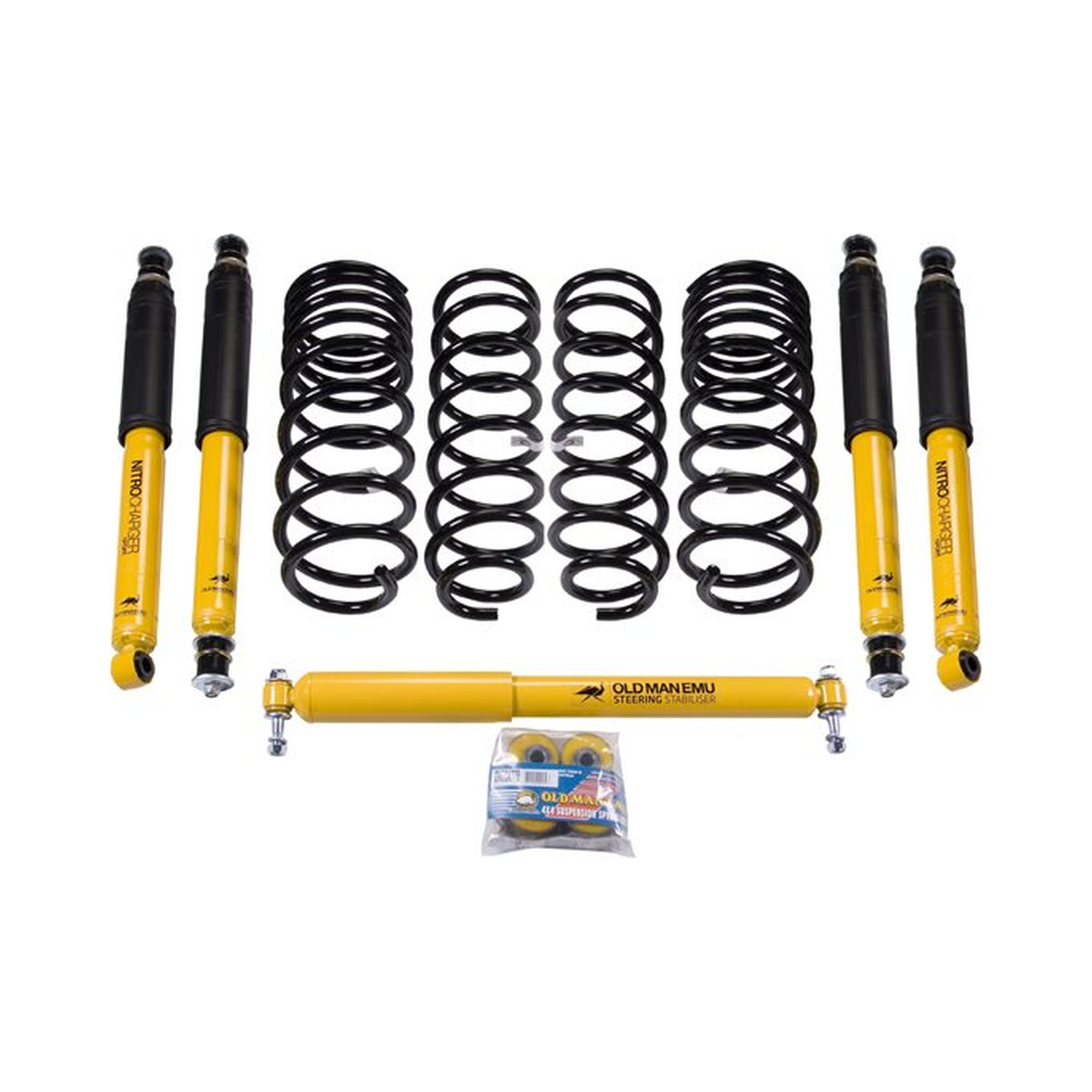

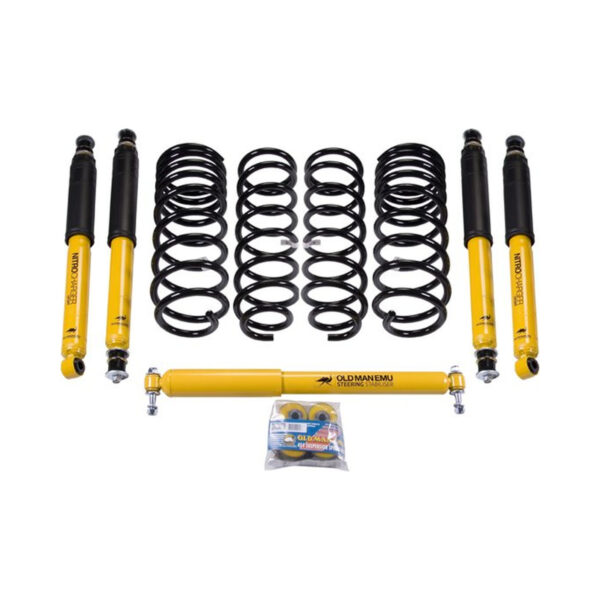

2 1/2″ lift kit for 80 Series cruiser includes:
- (2) OME front coil springs (2851 Medium, 2850 Heavy Coils (150 to 200lb additional weight) | 2850J Extended Length ships with 60070L Shocks)
- (2) OME 63018 Front shocks
- (2) OME rear springs (2860 Medium | 2863 Heavy load | 2863J Heavy coils ship with 60071L Shocks)
- (2) OME 63020 Rear shocks
- (1) OME SD 24 Steering dampener
- (1) OME CA 77B caster kit (Consists, 4 eccentric bushes which are pressed into the leading arms of the vehicle. This will induce positive caster into the front geometry)
Also available: 2850J & 2863J coils and longer L shocks for 3″ lift, they are the same price, select from options below. J coils will be shipped with extended length L shocks and 3.5 degree Caster correction bushings.
2850J/2863J COILS AND EXTENDED LENGTH SHOCKS SHOULD BE INSTALLED TOGETHER, ALTHOUGH THEY DO NOT COMPRISE A KIT. FITMENT OF EXTENDED LENGTH SHOCKS REQUIRES MANDATORY INSTALLATION OF .75″ (20MM) FRONT AND 1.25″ (30MM) REAR BUMP FROM BOTTOMING OUT UNDER FULL COMPRESSION. THESE BUMP STOP SPACERS ARE NOT AVAILABLE FROM OME AND WILL NEED TO BE SOURCED BY THE INSTALLER.
Questions and answers of the customers
-
Do I need adjustable panhard rods for the 3" lift?
- A Yes, If the J and L shocks and sprigs are selectedWill this fit a 97 Lexus lx 450?
- A Yes, if you have coil spring suspensionI have a 91 Toyota Land Cruiser and I want to use the 3” ARB/OME 3” kit
? Can I use a 35” tire without any rubbing of tire or do I use a 33” tire
- QI have a 91 Toyota Land Cruiser and I want to use the 3” ARB/OME 3” kit ? Can I use a 35” tire wi...... Read more answer nowA It likely requires minor trimming or a bump stop adjustment to fit a 35. These lift kits don't normally change the bump stop location so full stuff is the same as before. The ride height and the droop are usually changed. This is generally a good thing since you want flex, but you may need to make a minor adjustment to the bump stop in order to keep the 35 from hitting the inside of the wheel well.I'm about to go to 35s on mine with a similar setup, and I expect to put a 1" or 2" spacer on my rear bump stop. The front may not need any bump stop adjustment. I'll trim the wheel well or do a body lift later to regain the maximum potential flex.What else I need to buy to intall the 3" kit in my land cruiser ?
- A It's a complete kitI'm confused on rear spring selection for a 97' land cruiser. I gave ordered heavy duty for the front, allowing for the weight of an Rb bumper. The question; do I order "heavy load" option, or "heavy spring" option if I'm planing for a ARB rear? Additionally, you provided me a veterans code once, and I misplaced it. Could you resubmit please, and thank you for the discount.
- QI'm confused on rear spring selection for a 97' land cruiser. I gave ordered heavy duty for the f...... Read more answer nowA Hello The choice of the spring depends on your current loads, both in front and on the rear If you have a heavy bumper or winch, then you should consider their weight and take stronger coils. The same approach is used for rear. If you carry trailers, or if you have additional elements in the baggage compartment or there is a roof baggage compartment, then you need stronger springs Yes, we offer military discount. Please use coupon code during checkout: "USAArmy1" Thanks!I will be ordering your 2.5 lift kit for 97' toyota land cruiser. Curious as to whether your lift will level the cruiser? If not, what is your recommendation to achieve that end result? I prefer it level, not it's "bow down" stance. Thank you!!
- QI will be ordering your 2.5 lift kit for 97' toyota land cruiser. Curious as to whether your lift...... Read moreThere are no answers for this question yet. Answer nowI noticed a customer mentioned a veteran discount. Does this apply to Vietnam era gets, and if so how do I take advantage? Thank you!
- QI noticed a customer mentioned a veteran discount. Does this apply to Vietnam era gets, and if so...... Read moreThere are no answers for this question yet. Answer nowIs there an A and B marked on the 851 coils at front? Which letter goes what side of vehicle? Thanks
- QIs there an A and B marked on the 851 coils at front? Which letter goes what side of vehicle? ThanksThere are no answers for this question yet. Answer nowWhat height trim packer comes with this kit?
- A No trim packer in this kit.Can be ordered separately https://suspensionlifts.com/?s=trim&post_type=productWhat size tire can you run with this 2 1/2 lift?
- A about 1-1.25'' bigger then stockWill this kit fit a 1990 JDM Toyota Landcruiser Turbo Diesel righthand drive 81 series ?
- A Please see the mountings on photo - if your old shocks have the same mountingsFRONT: Extended Length (IN): 24.29 Inch Compressed Length (IN): 14.13 Inch Rod Diameter (IN): 0.7 InchREAR: Extended Length (IN): 24.60 Inch Compressed Length (IN): 14.88 Inch Rod Diameter (IN): 0.7 InchHow do I tell if it's a 2 1/2 or 3 inch lift I measure on the shackles the raising of like the torsion bar I guess I don't that's right but those aluminum spacers are in there is that what determines that the left
- QHow do I tell if it's a 2 1/2 or 3 inch lift I measure on the shackles the raising of like the to...... Read moreThere are no answers for this question yet. Answer nowDoes the OME 805 kit sit level ?
- QDoes the OME 805 kit sit level ?There are no answers for this question yet. Answer nowwill this fit a 1997 lx450?
- A Yes, this lift kit will fit the 1st gen Lexus LX 450.
