ICON Rear Multi-Rate RXT Leaf Spring Kit for 2005-2023 Toyota Tacoma

SKU: 51101
3.6666666666667 out of 5 based on 3 customer ratings
(3 customer reviews)

Description
ICON Rear Multi-Rate RXT Leaf Spring Kit for 2005-2023 Toyota Tacoma

ICON Rear Multi-Rate RXT Leaf Spring Kit for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota Tacoma

Part: 51101

To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. To increase the ride quality of the truck and gain additional droop travel, the spring rate has been lowered slightly. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more “outfitted” vehicles.

KEY FEATURES:

  • 3 user-adjustable spring rates for unique vehicle configurations
  • Military wrap front eyelet for increased durability
  • Galvanized leaf separators reduce friction and aid in corrosion resistance
  • Leaf tip inserts reduce noise and increase ride comfort
  • Potential for increased wheel travel (when used with RXT shock) without sacrificing up-travel
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Direct bolt-in to OEM spring location makes for an easy install

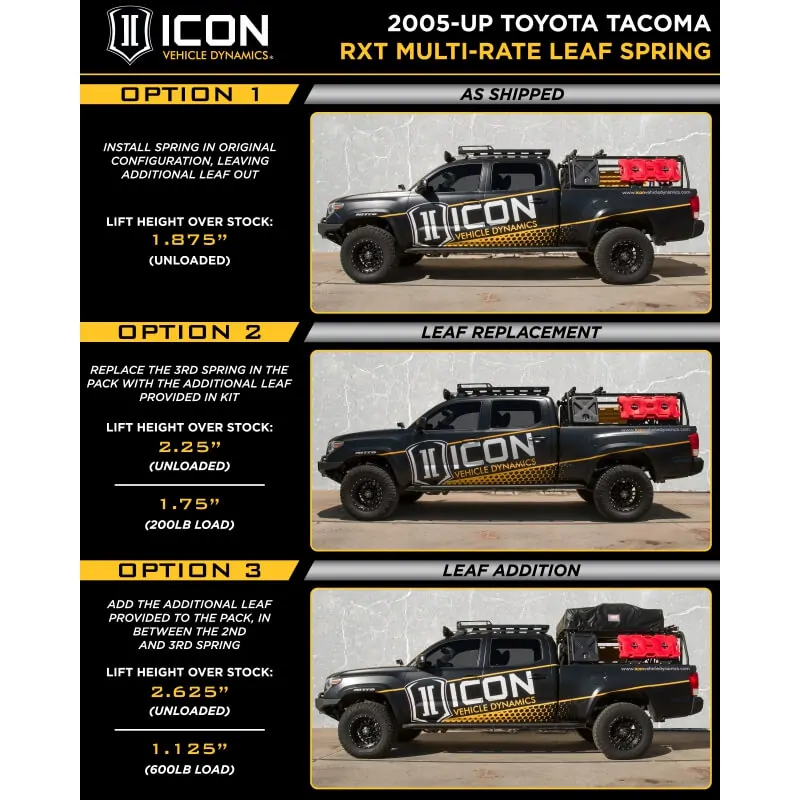

The Icon RXT leaf spring is modular, meaning that you can configure the spring pack to your desired setting from these available options: option #1 – the spring is shipped at this setting (lightest spring rate). Option #2 – replace the 3rd spring (counting from the top down) with the additional leaf. Option #3 – place the additional leaf between the 2nd and 3rd spring (counting from the top down). Do not remove leaf from spring pack. icon’s measured specs from our test truck (2016 4WD dclb tacoma): option #1 – lift height over stock: + 1.875″ (unloaded). Option #2 – lift height over stock + 2.25″ (unloaded). lift height over stock with 200lbs in bed: + 1.75″. Option #3 – lift height over stock: + 2.625″ (unloaded). Lift height over stock with 600lbs in bed: + 1.125″. Lift height over stock with 1200lbs in bed: – 0.125″.

SYSTEM COMPONENTS

52050 (QTY.1) | Toyota REAR 8″ U-BOLT KIT

158505 (QTY.2) | TACOMA LEAF PACK W/ADD IN LEAF

Customer reviews

Rated 3.6666666666667 out of 5 stars
3 reviews
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %

3 reviews for ICON Rear Multi-Rate RXT Leaf Spring Kit for 2005-2023 Toyota Tacoma

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        Will these work with the factory Fox Shocks on the TRD Pro?
      1. 0 votes
        QWill these work with the factory Fox Shocks on the TRD Pro?
        There are no answers for this question yet. Answer now
      2. Does this come with new bushings?
      3. 0 votes
        QDoes this come with new bushings?answer now
        A Yes mine did
        A as pictured
      4. Will these change drive line angles at all and require a diff height change?
      5. 0 votes
        QWill these change drive line angles at all and require a diff height change?answer now
        A no, will not requireusually, driveshaft angle correction can be recommended only when lifted more than 3'' and not always
      6. I have a 2021 sr5 toyota tacoma double cab long bed with camper top on the bed also a bed mat that is about 70lbs and a jack that is 70lbs so total i have around 450 lbs that ill be carrying around all the time what is the best option my truck is still factory on suspention
      7. 0 votes
        QI have a 2021 sr5 toyota tacoma double cab long bed with camper top on the bed also a bed mat tha...... Read more answer now
        A those will be good, just add longer rear shocks
      8. If I have the 5100 bilstein In the rear and want to install the option #3: Could I do it to my 2020 Tacoma?
      9. 0 votes
        QIf I have the 5100 bilstein In the rear and want to install the option #3: Could I do it to my 20...... Read more answer now
        A better to use longer shocks or shock extenders with option 3 if ao additional constant load carried (as 2020 Tacoma already sits higher than 2015 from the factory)
      10. Does this add any rear lift when installed?
      11. 0 votes
        QDoes this add any rear lift when installed?answer now
        A It depends on application - it is for use with ICON kit
        A option #1 – the spring is shipped at this setting (lightest spring rate). Option #2 – replace the 3rd spring (counting from the top down) with the additional leaf. Option #3 – place the additional leaf between the 2nd and 3rd spring (counting from the top down). Do not remove leaf from spring pack. icon’s measured specs from our test truck (2016 4WD dclb tacoma): option #1 – lift height over stock: + 1.875″ (unloaded). Option #2 – lift height over stock + 2.25″ (unloaded). lift height over stock with 200lbs in bed: + 1.75″. Option #3 – lift height over stock: + 2.625″ (unloaded). Lift height over stock with 600lbs in bed: + 1.125″. Lift height over stock with 1200lbs in bed: – 0.125″.
