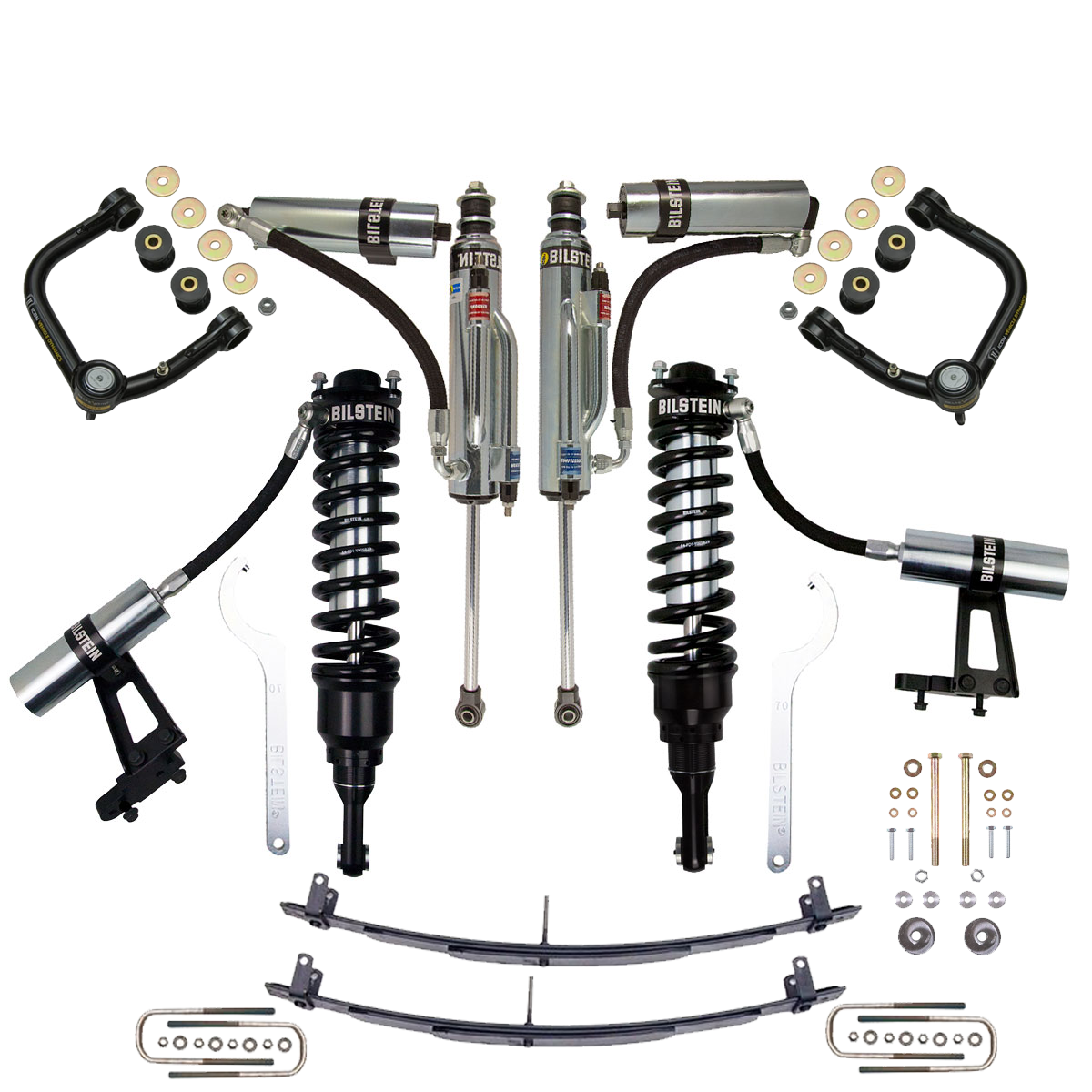

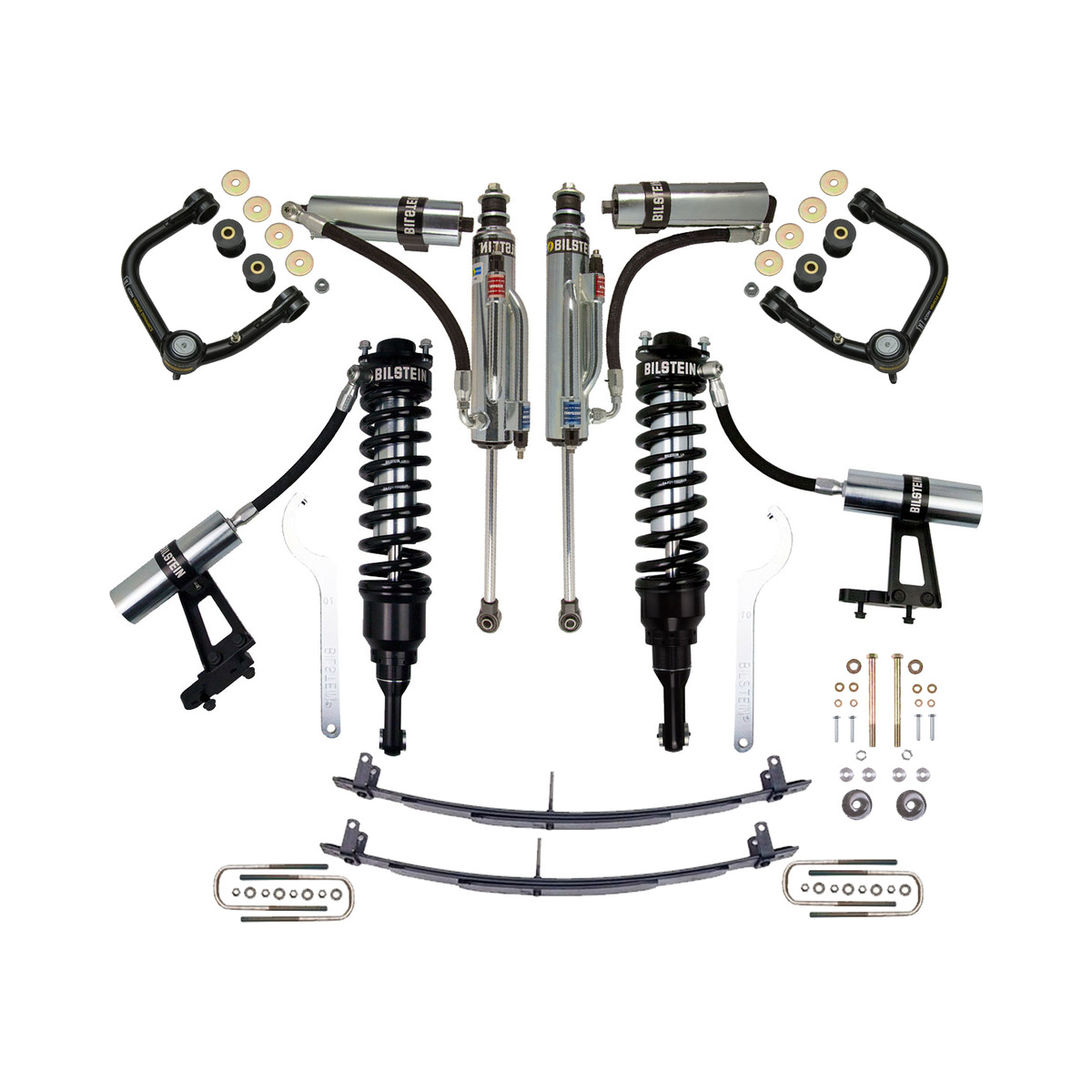

Bilstein B8 8112 0.6-2.5″ Complete Lift Kit for 2005-2022 Toyota Tacoma

SKU: 8112TCC


3 left in stock

3 left in stock

2-5 Day Transit Time

Price Match Request


Bilstein B8 8112 0.6-2.5″ Complete Lift Kit for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 Toyota Tacoma

Part: 8112TCC


Front Coilovers BILSTEIN B8 8112 Series

Part: 41-269282 and 41-269299 (old:47-269279)

BILSTEIN B8 8112 (ZoneControl CR) is a direct fit coilover kit designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0.5-2.5″. The damper is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl CR) position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Preset Lift Heights:

4WD V6, Double Cab, 6’ Bed 2016+  1.4” lift and 2005-2015 1.9” lift
4WD V6, Double Cab, 5’ Bed 2016+  1.5” lift and 2005-2015 2.2” lift
4WD V6, Access Cab 2016+  1.6” lift and 2005-2015 2.1” lift
4WD 4cyl, Access Cab 2016+ 1.6” lift
RWD, 6 lug, V6, Double Cab, 6’ Bed 2016+ 1.7” lift and 2005-2015 2.1” lift
RWD, 6 lug, V6, Double Cab, 5’ Bed 2016+ 2” lift and 2005-2015 2.3” lift
RWD, 6 lug, V6, Access Cab 2016+ 2.2” lift and 2005-2015 2.6” lift
RWD, 6 lug, 4cyl, Access Cab 2016+ Do not use – the pre-set lift height is too high and must be adjusted before installing on vehicle. Proceed to Step D for instructions on how to lower spring seat.

Rear Bypass Shocks B8 8100 Series

Part: 25-269802-25-269819

BILSTEIN B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Rear ICON 1.5″ Add a Leaf Kit

This 3 Leaf Progressive Add a Leaf Kit comes complete with U-bolts and Center pins for an easy install. This add a leaf kit will give your Tacoma

ICON Tubular UCAs with Delta Joint

These upper control arms feature ICON’s patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Differential Drop Kit

This kit allows you to drop the front differential reducing the angles on your c.v. axles and boots which can help prolong the life of these components!


Download installation instructions:

Bilstein B8 8112 Series 0.6-2.5 inch Lift Kit for 2005-2019 Toyota Tacoma installation instructions E4-WM5-Y542A00_0
