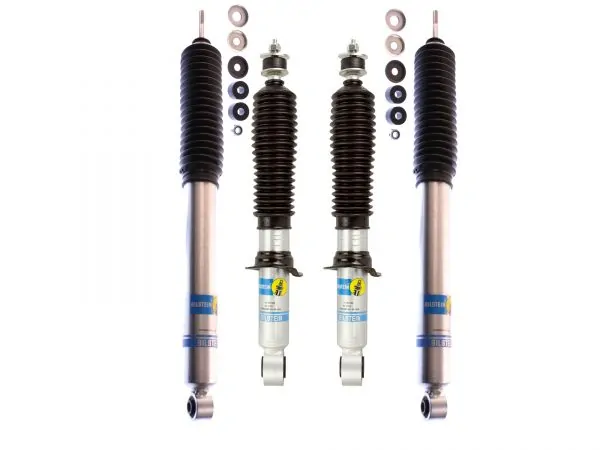

Bilstein 5100 0-2.5″ lift front, 0-2″ rear shocks 00-’06 Toyota Tundra

SKU: 00TUNBILK
4.55 out of 5 based on 20 customer ratings
(20 customer reviews)
Sale!
Bilstein 5100 Height adjustable 0-2.5" lift front, 0-2" rear shocks for 2000-2006 Toyota Tundra

Description
Bilstein 5100 0-2.5″ lift front, 0-2″ rear shocks 00-’06 Toyota Tundra

Bilstein 5100 Height adjustable 0-2.5″ lift front, 0-2″ rear shocks for 2000, 2001, 2002, 2003, 2004, 2005, 2006 Toyota Tundra

Part: 00TUNBILK

Need them assembled?

Bilstein front and rear shocks

24-261425 (old: 24-188265)
24-100144

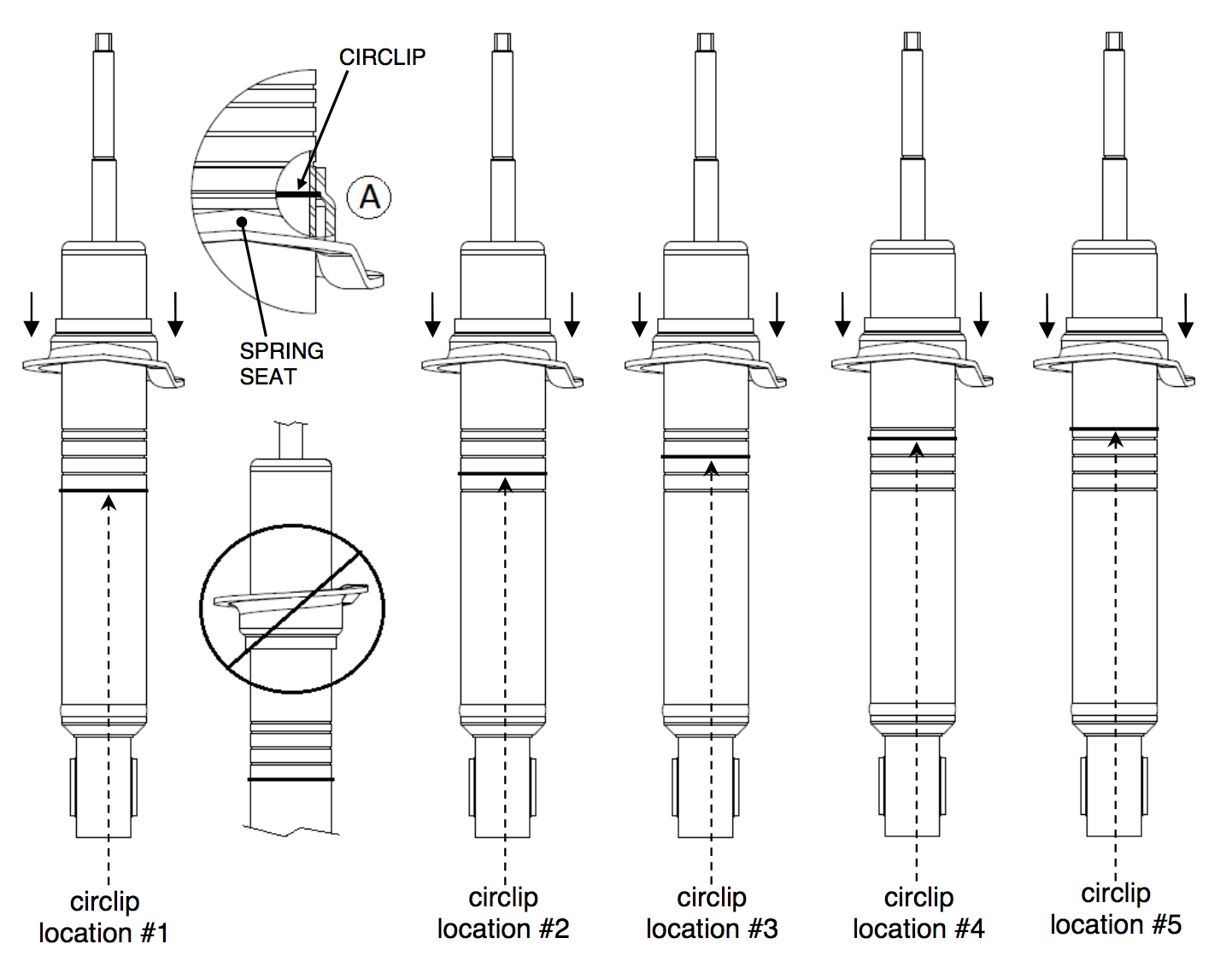

Front 5100 Height adjustable front shocks provide various lift:

width=
Typical Front Lift Height**
circlip
location #		crew cab
4×4		access cab
4×4		crew cab
4×2		access cab
4×2
1stockstockstockstock
20.53″0.53″0.63″0.66″
31.07″1.05″1.25″1.33″
41.6″Do NOT use1.88″2.00″
5Do NOT useDo NOT use2.50″2.65″

On Crew Cab 4×4 models, do not use circlip location #5.
On Access Cab 4×4 models, do not use circlip locations #4 or #5.

** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc. Modifying/lifting the suspension to your vehicle may raise its center of gravity and may make it more susceptible to loss of control and/or rollover, which may result in death or serious injury. We strongly recommend that you offset the loss of rollover resistance as much as possible by increasing tire track width, and that you equip the vehicle with a functional roll bar and cage system. Wear seat belts and shoulder harnesses at all times, and avoid situations where a side rollover may occur.

Rear 5100 shocks work with 0 to 2″ lift

Kit includes 4 shocks

Need a full kit?

Customer reviews

Rated 4.55 out of 5 stars
20 reviews
5 stars 16 80 %
4 stars 2 10 %
3 stars 0 0 %
2 stars 1 5 %
1 star 1 5 %

20 reviews for Bilstein 5100 0-2.5″ lift front, 0-2″ rear shocks 00-’06 Toyota Tundra

    Load more

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        I have 24-100144 bilstein 5100 on the back And bilstein B8 5100 24-261425 on the front of my access cab 2001 tundra. This causes it to rack toward the front can you tell me why and what I need to change?
      1. 0 votes
        QI have 24-100144 bilstein 5100 on the back And bilstein B8 5100 24-261425 on the front of my acce...... Read more answer now
        A you can either lift the front or lower the reaDiff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.
        2. Why is the 5th circlip not recommended for the double cab 4wd
      2. 0 votes
        QWhy is the 5th circlip not recommended for the double cab 4wdanswer now
        A Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.
        3. I have a stock 2004 tundra dc 4wd. I’m looking for a 3 inch lift for both front and rear to keep the factory rake. Can I use these 5100s to achieve that with an aftermarket spring? (I would be buying the diff drop and add a leafs)
      3. 0 votes
        QI have a stock 2004 tundra dc 4wd. I’m looking for a 3 inch lift for both front and rear to keep ...... Read more answer now
        A front 5100s will be good. For the rear you'll need blocks or add a leafs
        4. Hi, I have an 06 Access Cab Limited, and I just installed the front bilsteins on the 2nd setting - .5 inches. It appears the actual lift is approx 1.6-1.8 inches. Is there any reason for this increase? I really only wanted a small lift, and now I have something close to no rake. Sorta unhappy.
      4. 0 votes
        QHi, I have an 06 Access Cab Limited, and I just installed the front bilsteins on the 2nd setting ...... Read more answer now
        A Front shocks must be used with stock coils. What front coil are you using?
        5. I have a 2005 tundra crew cab 2wd. what setting is suggested to just level the stance on the truck #3 or#4. also it says no tax even in cali
      5. 0 votes
        QI have a 2005 tundra crew cab 2wd. what setting is suggested to just level the stance on the truc...... Read more answer now
        A yes reight no sales taxusually 3rd notch but depends on you springs saggingIn order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
        6. I have a stock ‘06 Tundra Crew Cab 4X4 that needs new shocks front and rear. I’d like to lift the front end 2.5” as well as leveling the truck. What parts would I need to accomplish this, and can I reuse the stock coils? Thank you.
      6. 0 votes
        QI have a stock ‘06 Tundra Crew Cab 4X4 that needs new shocks front and rear. I’d like to lift the...... Read more answer now
        A oem coils are reused, nothing more needed
        A We can offer https://www.suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/front-lifts-and-coilovers-00-06-toyota-tundra/bilstein-height-adjustable-5100-shocks-for-2000-2006-toyota-tundra/ Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y517A00_1.pdf You can use stock coils On rear we can offer https://www.suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/shocks-00-06-toyota-tundra/bilstein-4600-rear-shocks-00-06-toyota-tundra-4wd/ Or you can use https://www.suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/complete-lift-kits-00-06-toyota-tundra/bilstein-5100-height-adjustable-front-rear-shocks-for-2000-2006-toyota-tundra/
        7. I have a 2001 4.7 v8 access cab(suicide doors) 4wd. I already have a 1 inch differential drop down and will have jba upper control arms. What is the highest setting I can set mine to?
      7. 0 votes
        QI have a 2001 4.7 v8 access cab(suicide doors) 4wd. I already have a 1 inch differential drop dow...... Read more
        There are no answers for this question yet. Answer now
        8. What is the best coil over to pair with this?
      8. 0 votes
        QWhat is the best coil over to pair with this?
        There are no answers for this question yet. Answer now
        9. Do the front ones go inside the stock coil over spring or they don’t require the spring? If they do is their a coil over to pair with them?
      9. 0 votes
        QDo the front ones go inside the stock coil over spring or they don’t require the spring? If they ...... Read more answer now
        A front shocks can be used with OEM coils
        10. What is the travel length of the front shocks? And I have a 4x4 tundra, could I use the 2.5” setting with aftermarket upper control arms?
      10. 0 votes
        QWhat is the travel length of the front shocks? And I have a 4x4 tundra, could I use the 2.5” sett...... Read more answer now
        A I just recently purchased the 5100's and used the setting suggested by Bilsteins. No compromise what so ever..... Perfect match.
        A travel length is 5.2''Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.
        11. Will these fit a 2005 2wd, regular cab, long bed Toyota Tundra?
      11. 0 votes
        QWill these fit a 2005 2wd, regular cab, long bed Toyota Tundra?
        There are no answers for this question yet. Answer now
        12. Because it provides a 2.5 inch lift in the front and 0.2 inch lift on the rear, does it make the truck level? What leaf springs would you recommend with these? Could I do an add-a-leaf? Thanks
      12. 0 votes
        QBecause it provides a 2.5 inch lift in the front and 0.2 inch lift on the rear, does it make the ...... Read more answer now
        A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.pngRear shocks will not lift your truck by themselves - some lift kit options as add-a-leafs or rear blocks will be required for a lift. Rear shocks are only longer than the stock shocks - designed for use with the existing lift.
        A If you put the front at the 3rd ring and leave the rear alone (no blocks or leafs) the truck will be level because of the factory rake. This setup will give you a 1.5 lift in front making the truck completely level. This is from Mike, install tech division at Bilstein USA
        13. Can I use OME 890 rear coils or some other 3 inch lift coil spring?
      13. 0 votes
        QCan I use OME 890 rear coils or some other 3 inch lift coil spring?answer now
        A Please compare the length to your old shocks.We haven't tested it by ourselves so can't tell for sure
        14. Is it possible to use this to mount on a Titan Swapped Xterra as it will provide longer travel?
      14. 1 vote
        QIs it possible to use this to mount on a Titan Swapped Xterra as it will provide longer travel?answer now
        A We haven't tested it by ourselves, can't tell for sure.
        15. Have a Stock 02 limited TRD 4x4. What notches on the 5100s on the front and back do I want to make the truck level? (With everything being mechanicals sound)
      15. 0 votes
        QHave a Stock 02 limited TRD 4x4. What notches on the 5100s on the front and back do I want to mak...... Read more answer now
        A Hello, in order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
        16. I currently have a 3” strut spacers on my 04 tundra so if I buy this kit would i have to get rid of my strut spacers or would the kit raise it higher?
      16. 0 votes
        QI currently have a 3” strut spacers on my 04 tundra so if I buy this kit would i have to get rid ...... Read more answer now
        A It is not recommended to stack lifts and have more than 3'' of suspension lift.These shocks replace spacers
        17. Confused by specs and the answers to questions on the 5100’s.. What is the max height setting for a 2005 Tundra Double Cab, TRB off road package, stock.
      17. 0 votes
        QConfused by specs and the answers to questions on the 5100’s.. What is the max height setting for...... Read more answer now
        A For double cab highest notch (5th) will give you 2.5''Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.
        18. Can I use clip position #5 on 2012 Double Cab 4x4 if I use 1" diff drop kit? Also, will ride be extremely stiff or rough?
      18. 0 votes
        QCan I use clip position #5 on 2012 Double Cab 4x4 if I use 1" diff drop kit? Also, will ride be e...... Read more answer now
        A Will be stiffer but not in a great way. You can use higher notches as long as you don't exceed 3'' of front lift
        19. I would like to replace the stock shocks on my 02 tundra. Is there anything else needed that's not in this kit other then the coil springs? Is the coil springs available with this kit?
      19. 1 vote
        QI would like to replace the stock shocks on my 02 tundra. Is there anything else needed that's no...... Read more answer now
        A for 5100 front shocks we recommend this coils https://suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/front-lifts-and-coilovers-00-06-toyota-tundra/eibach-pro-lift-coil-springs-00-06-toyota-tundra/ Provides approximately 2.5″ of average lift on the bottom clip setting and 3.2″ of average lift on the 2nd clip setting. Having more than 3.2” of lift is not recommended Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life. https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/front-differential-drop-kit-1995-2004-toyota-tacoma-02-4runner-06-tundra-sequoia-4x4/
        20. Do I need any type of lift blocks, spacers, or any addicional parts to install this shocks in my 2002 Toyota tundra 2wd?
      20. 1 vote
        QDo I need any type of lift blocks, spacers, or any addicional parts to install this shocks in my ...... Read more answer now
        A These shocks can be installed without any additional blocks, but only the front shocks are height adjustable and will lift the front by themselves.Rear shocks will not lift your truck by themselves - some lift kit options as add-a-leafs or longer coils or maybe spacers will be required for a lift. These shocks are only longer then the stock shock - designed for use with the existing lift or with stock rear height.
        21. I have a 06 Tundra Double Cab 4x4. Do you recommend any additional spacers, equipment, etc.. if clip setting #4 vs #3?
      21. 1 vote
        QI have a 06 Tundra Double Cab 4x4. Do you recommend any additional spacers, equipment, etc.. if c...... Read more answer now
        A Diff drop kt is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.Spacers are not needed, you can use 0,5'' spacers but please note hat having more then 3'' of front lift is strictly not recommended
        22. I got these 5100 on my 04’ DC 4x2 tundra but the stock springs are dead. Will the eibach pro springs E30-82-066-04-20 work? Thinking of placing it on the second notch 0.63”
      22. 1 vote
        QI got these 5100 on my 04’ DC 4x2 tundra but the stock springs are dead. Will the eibach pro spri...... Read more answer now
        A These springs can be used https://suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/front-lifts-and-coilovers-00-06-toyota-tundra/eibach-pro-lift-coil-springs-00-06-toyota-tundra/Provides approximately 2.5″ of average lift on the bottom clip setting and 3.2″ of average lift on the 2nd clip setting.
        23. I have a 2005 4x4 Tundra Double Cab that is currently all stock - I am trying to level out the truck with 2.5” in the front and nothing in the back. If I get this kit and coil spacers, will that work? If not, what do I need?
      23. 0 votes
        QI have a 2005 4x4 Tundra Double Cab that is currently all stock - I am trying to level out the tr...... Read more answer now
        A Yes, it will work even without coil spacers.Front shocsk are height adjustable and are able to lift the front up to 2.5'' higher then stock using stock front coils.Please note that it is not recommended to lift the front hightr then 3'' if trying to add spacers
        24. I have a 2000 tundra access cab 4x4. I want to lift the rear and front 2". Looking at the diagram above is it saying I'm not able to lift the front above 1.05"?
      24. 1 vote
        QI have a 2000 tundra access cab 4x4. I want to lift the rear and front 2". Looking at the diagram...... Read more answer now
        A It is possible, but highly not recommended - with light acess cab it can lead to bottoming out and harm for the the shocks
        A Coilovers with stronger coils can be recommended * * * https://suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/front-lifts-and-coilovers-00-06-toyota-tundra/ome-2-5-lift-front-coilovers-2000-2006-toyota-tundra/ * * * and please don't forget about diff drop kit * * * https://suspensionlifts.com/shop/toyota-4runner/1996-2002/front-differential-drop-kit-1995-2004-toyota-tacoma-02-4runner-06-tundra-sequoia-4x4/
        25. I have a 2000 Toyota tundra Access Cab, if I leave my truck with the 5100s am I going to need bigger tires on the front?
      25. 1 vote
        QI have a 2000 Toyota tundra Access Cab, if I leave my truck with the 5100s am I going to need big...... Read more answer now
        A You may install bigger wheels if using some front lift shock adjustments, but if you want you may stay on your old wheels
        26. As long as I use a 1" differential drop kit, what is the highest level I can use on a 4wd access cab? And how many inches of lift would that level translate to given the access cab model is lighter?
      26. 1 vote
        QAs long as I use a 1" differential drop kit, what is the highest level I can use on a 4wd access ...... Read more answer now
        A The highest notch will give you about 2,5'' - depending on your stock springs condition. Diff drop kit will be recommended if having more then 1,5'' of lift
        27. Would I be able to use levels 4 and 5 on a 4wd access cab, as long as I also use a 1" differential drop spacer kit?
      27. 0 votes
        QWould I be able to use levels 4 and 5 on a 4wd access cab, as long as I also use a 1" differentia...... Read more answer now
        A Yes, you will be able to do it on stock springs.
        28. Will this kit work for a 2005 toyota sequoia
      28. 1 vote
        QWill this kit work for a 2005 toyota sequoiaanswer now
        A These shocks are for Tundra - please compare the mpuntings to your old shocks:FRONT: Extended Length (IN): 18.35 Inch Compressed Length (IN): 13.23 Inch Upper Mounting Style: Stem Lower Mounting Style: EyeletREAR: Extended Length (IN): 22.4 Inch Compressed Length (IN): 13.84 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: EyeletHere are the shocsk for Sequiola: https://suspensionlifts.com/shop/toyota-sequoia/00-07-toyota-sequoia/bilstein-4600-replacement-shocks-2001-2007-toyota-sequoia/
        29. Will this kit work on a 2001 Tundra v6 2wd base cab? I see the guide only shows access cab and crew cab.
      29. 1 vote
        QWill this kit work on a 2001 Tundra v6 2wd base cab? I see the guide only shows access cab and cr...... Read more answer now
        A Yes, it will work.As base can is lighter, each clip may give you more lift then on the access cab then on other cabs if you don't have additional front weight.
        30. how much lift will this provide on a 2002 sr5 4runner
      30. 0 votes
        Qhow much lift will this provide on a 2002 sr5 4runneranswer now
        A It wont work on a 4Runner, you need, these: https://suspensionlifts.com/shop/toyota-4runner/1996-2002/shocks-96-02-toyota-4runner/bilstein-5100-0-2-3-lift-front-rear-shocks-1996-2002-toyota-4runner-4wd/ they provide about 2.3" lift
        31. I ordered these to replace 3" strut extensions but didn't realize that because I have a 2004 Tundra 4x4 double cab I can't get that much height out of them I have them installed on the fourth notch right now but the truck is sitting 1.5" lower than before If I have already installed a diff drop would I be able to put them in the highest notch
      31. 0 votes
        QI ordered these to replace 3" strut extensions but didn't realize that because I have a 2004 Tund...... Read more
        There are no answers for this question yet. Answer now
        32. I have a 2004 Sequoia limited 4x4 will this kit work on it?
      32. 0 votes
        QI have a 2004 Sequoia limited 4x4 will this kit work on it?answer now
        A Sorry, we do not have Bilstein 5100 shocks for that vehicle
        33. Why can't I use level 4 or 5 on a 2002 4wd access cab tundra.
      33. 0 votes
        QWhy can't I use level 4 or 5 on a 2002 4wd access cab tundra.answer now
        A

        Because the front end is too light in the access cab models, and you'll gain more then 3'' lift on the 4 and 5 clip, that may do harm to the suspension without applying other modifications and to the CV axles, if you have the 4WD truck

        A I have a 2001 4x4 Access Cab and I have them on level 5 and haven't had any issues. I definitely got more than 3" lift in the front with them on level 5".
        34. I would like a replacement dust boots for the rear shocks, are these available separately? is there a part number? (Mine were damaged by the installer :-/).
      34. 0 votes
        QI would like a replacement dust boots for the rear shocks, are these available separately? is the...... Read more
        There are no answers for this question yet. Answer now
        35. If I want a 1-1/2" lift in the front what blocks do you recommend to level out the rear (or do I not need blocks)?
      35. 0 votes
        QIf I want a 1-1/2" lift in the front what blocks do you recommend to level out the rear (or do I ...... Read more answer now
        A For front lift height 1-1,5'' no rear lift level is needed, because rear end usually sits slightly higher then the front.Using rear lift blocks https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/1-inch-rear-blocks-without-u-bolts/ or add a leaf https://suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/icon-1-5-lift-rear-expansion-pack-add-leaf-00-06-toyota-tundra/ will not level, but will make your trucks rear again sit higher then your ftont end (when the truck is not loaded).
        36. Without wheel spacers what is the largest size tire that an 01' tundra 4x4 can accommodate if lifter fully in front and add a leaf is added to rear?
      36. 0 votes
        QWithout wheel spacers what is the largest size tire that an 01' tundra 4x4 can accommodate if lif...... Read more answer now
        A We do not guarantee any tire/ wheel fitment due to variations between different tire and wheel manufacturers specs. The new wheel size is not recommended to exceed the half of a lift amount greatly. We recommend ""test fitting"" any wheel tire/wheel combination you are considering.
        37. I currently have a 2" front lift with stock struts, coils and a spacer. Will this work with the stock coils? If not, what coils do you suggest.
      37. 0 votes
        QI currently have a 2" front lift with stock struts, coils and a spacer. Will this work with the s...... Read more answer now
        A

        This kit will work with stock coils

        38. When will you restock the add a leaf?
      38. 0 votes
        QWhen will you restock the add a leaf?answer now
        A Looks likeit was a delay with updating it, it is in stock now.
        39. What hardware does it include?
      39. 0 votes
        QWhat hardware does it include?answer now
        A

        It includes everything that is pictured. New version (that is shown & being sold now) of the front shocks comes with the boot and bushings.
