Bilstein 6112 0.75-2.5″ Front and 5160 Rear 0-1″ lift kit for 2007-2021 Toyota TundraSale!
Bilstein 6112 0.75-2.5″ Front and 5160 0-1″ Rear lift kit for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2018, 2019, 2020, 2021 Toyota Tundra
Part: 1 x 46-206084 – 2 x 25-237429
If you need coilovers assembled:
Designed for the serious off-road adventure seeker, the all new BILSTEIN 6112 Series Kit is the ultimate suspension solution. The 6112 Series optimizes off-road and on-road capabilities with a 60mm digressive piston for increased damping control. This kit features specially designed cold wound springs and an adjustable spring seat which allows for vehicle leveling, larger tires, and increased ground clearance. The kit comes with (2) 60mm shocks (2) springs and (2) billet spring seats. The 6112 is a direct bolt on application for late model half-ton trucks and SUVs which utilize a factory coilover suspension. The 6112 kit is for front applications and reuses the OEM top mount and spring isolators. To maximize performance, Bilstein recommends a 5160 Series remote reservoir shock for the rear
46-206084 uses a 650 lbs/in. springs.
Collapsed Length (IN): 15.22
Extended Length (IN): 25.69
Bilstein B8 5160 remote reservoir shock absorbers are direct-fit to each specific vehicle application, avoiding the fabrication generally associated with being able to run a high performance reservoir shock. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel.

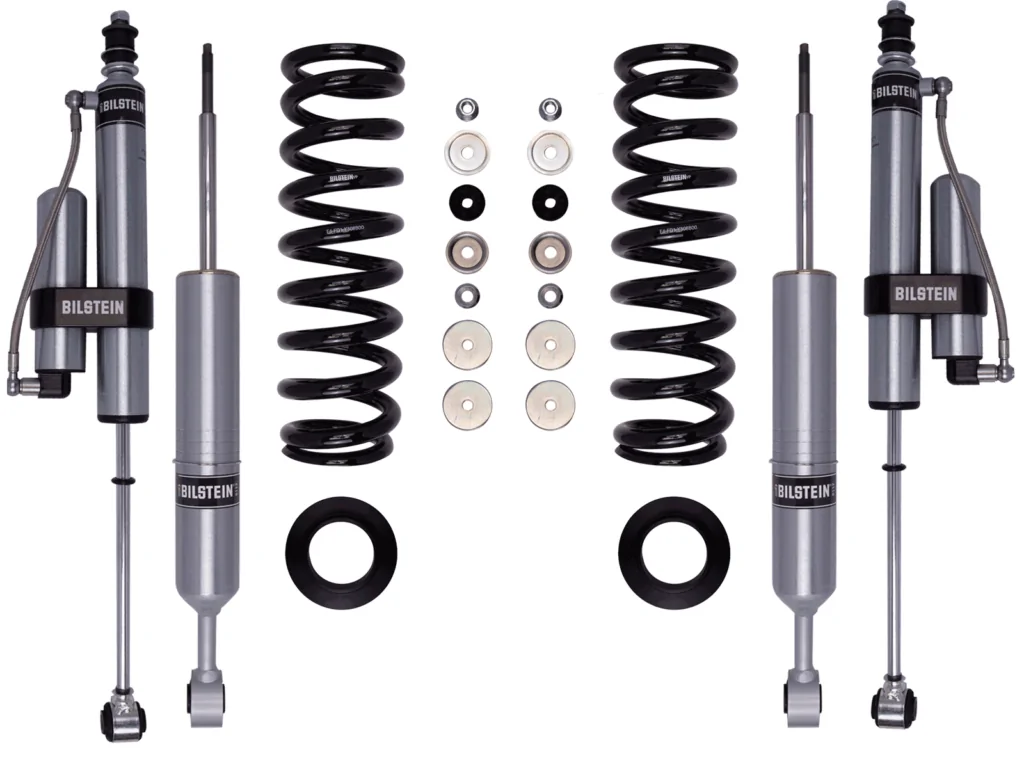

This item Includes: Front Coils and Shocks and 2 Rear Remote Reservoir Shocks
Includes Front Coils and 4 Shocks
Questions and answers of the customers
Is the kit assembled when shipped?
Q Is the kit assembled when shipped? answer nowA Not But we can assemble it This will cost an additional 199 $ and in time 7-10 days
I keep seeing the b8 designation which is for lowered vehicles i just want to level my truck so would i find a set without the b8 designation or what?
Q I keep seeing the b8 designation which is for lowered vehicles i just want to level my truck so w...... Read more answer nowA Please send us complete info about your truck as follows: Year Model Sub-model (1500 / 1500HD / etc.) Drivetrain (4WD / 2WD) Engine (displacement, fuel: gas/diesel) Cab (regular, crew, extended) Lift height (front and rear lift amount if applicable) Lift type (spacers, spring coils or specify if anything else was applied for the lift) and we'll try our best to find the proper shocks for your vehicle.A The b8 doesn’t mean it is for lowered vehicles with these shocks. These shocks are for lifted or leveled according to bilstein website.
Will this fit a 2WD 2018 Tundra Crewmax?
Q Will this fit a 2WD 2018 Tundra Crewmax?
So this kit doesn't not include the diff drop I am reading and provides no rear lift. Would you recommend shackles or block, I need to lift the rear an inch to keep the rake.
Is the OFF/ ON performance significantly improved in your opinion ?
- Is this applicable for toyota hilux 2015-onwards?
Q Is this applicable for toyota hilux 2015-onwards? answer nowA No, they are for Tundra, sir
Are these in stock right now?
Q Are these in stock right now? answer nowA As of 26 Dec 2018 we have plenty in stock, can ship and deliver ASAPA Hello yes, it is in stock
what is the coil weight rating?
Q what is the coil weight rating? answer nowA The manufacturer does not provide such info. We can say that it is approximately 10% stronger then stock
Do you have two kits in stock? Thank you.
Q Do you have two kits in stock? Thank you. answer nowA
Yes, we have it in stock and ready to be shipped.
I recently purchased this kit from this site.Where do I find installation instructions
Q I recently purchased this kit from this site.Where do I find installation instructions answer nowA Here they are * * * https://bilsteinlifts.com/wp-content/uploads/2016/10/E4-WM5-Y446A00.pdf * * * https://bilsteinlifts.com/wp-content/uploads/2016/10/E4-WM5-Y448A00.pdf
I have a 2018 tundra and planning to install the 6112. What are the different height settings on the front shocks? Do you sell any differential drop kits? Are the 6112 no longer sold without the rear shock? Everywhere I look they say they are on backorder

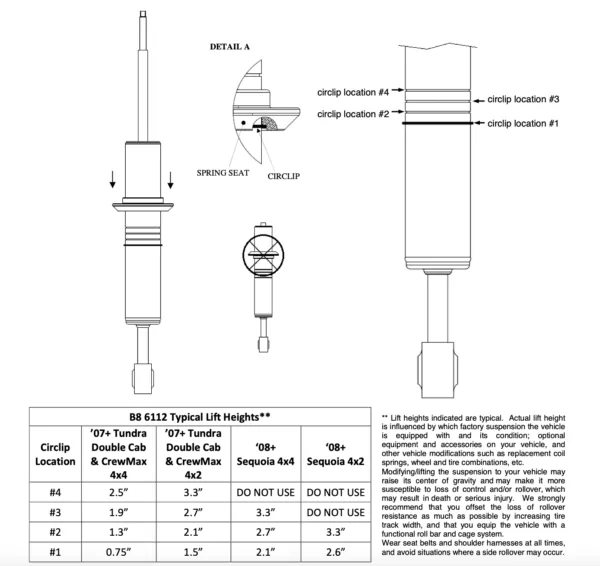

Q I have a 2018 tundra and planning to install the 6112. What are the different height settings on ...... Read more answer nowA Here is diff drop kit. https://bilsteinlifts.com/shop/toyota-sequoia/08-and-up-sequoia/front-differential-drop-kit-for-2007-toyota-tundra-4x4-and-2008-toyota-sequoia/ These front shocks have lowest (stock height setting)? highest (2.5'') and two middle clip settings
I have a 2014 crew max with 6" lift (spacer and spindle on the front. rancho N2.0 on back). will this kit still work on my truck? I need them bad. I have the same shocks on my FJ and they are awesome
- Hi. Is this in stock and how soon would you ship if I was to purchase today? Looks like they are on backorder at a lot of places. Thank you.
- Does this require a diff drop kit on 4x4? I noticed most other sets included it as an option but this one does not.
Q Does this require a diff drop kit on 4x4? I noticed most other sets included it as an option but ...... Read more answer nowA Diff drop kit is recommended for lifts at 1,5'' and higher. Basicly tou can go without it and have little more ground clearance, but cv axles life will be longer wen using diff drop kit.
How much do you charge to mount the springs on the strut?
Q How much do you charge to mount the springs on the strut? answer nowA Unfortunatelly this kit does not offer the assembling option
Are there different coils for lift like on the 5100's.I am looking for a 2.5 or 3" lift coil with zero preload for the 6112 and cant find it.
Q Are there different coils for lift like on the 5100's.I am looking for a 2.5 or 3" lift coil with...... Read more answer nowA For Tundra we can offer only coils with shocks togrther or coilovers assembled * * * https://bilsteinlifts.com/product-category/toyota-tundra/07-and-up-toyota-tundra/front-lifts-and-coilovers-07-and-up-toyota-tundra/?orderby=price-desc
How does it lift the rear of the truck 1", I don't see any blocks pictured?
Q How does it lift the rear of the truck 1", I don't see any blocks pictured? answer nowA This kit will not lift the rear - it will fit both the stock rear lift and 1'' of rear lift if some additional rear lift means used.
