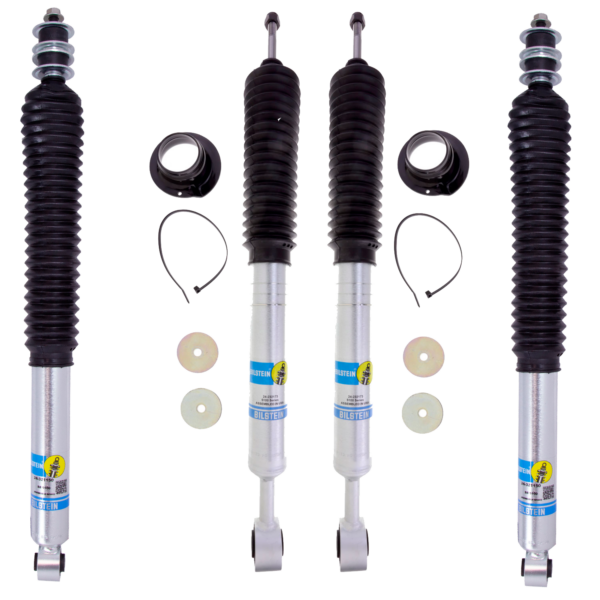

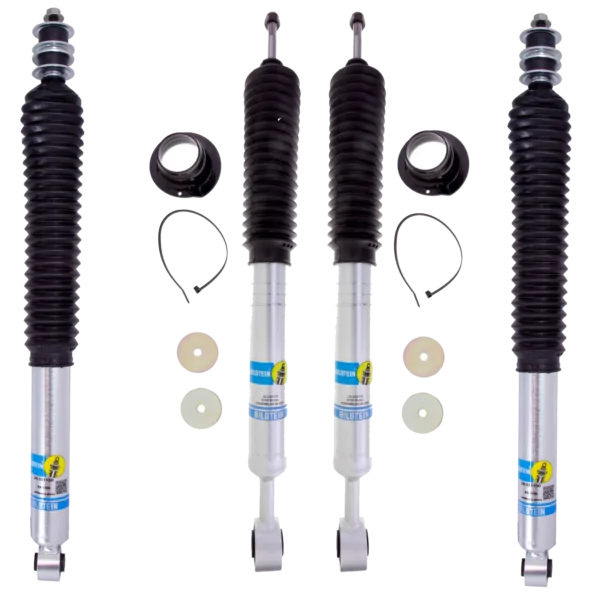

Bilstein 5100 0.87-2.28″ adjustable front 0-1″ rear lift shocks for 2007-2021 Toyota Tundra

SKU: 07TUNBILK
4.1428571428571 out of 5 based on 14 customer ratings
(14 customer reviews)
Sale!
Bilstein 5100 0.87-2.28" adjustable front 0-1" rear lift shocks for 2007-2021 Toyota Tundra

Description

Bilstein 5100 Height adjustable front and 5100 rear shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Tundra

07TUNBILK

Need them assembled with ARB coils?

Front 5100 Height adjustable front shocks adjustable with 3 different lift settings- .87″, 1.57″, and 2.28″

Rear 5100 shocks work with 0 to 1″ lift

Includes:

  • Front Shocks: 2 x 24-232173
Extended Length (IN): 24.12 Inch
Compressed Length (IN): 17.77 Inch
Upper Mounting Style: Bar Pin
Lower Mounting Style: Loop
  • Rear Shocks: 2 x 24-321150
Extended Length (IN): 24.8 Inch
Compressed Length (IN): 15.33 Inch
Upper Mounting Style: Stem
Lower Mounting Style: Eyelet

Kit includes 4 shocks, add rear lift options below.

WILL NOT FIT TRD PRO MODEL

Recommended rear lift products:



Questions and Answers

-I have a 2007 Toyota Tundra. Does the boot go up or down when mounting?

-The boot goes up in the rear.
Includes 4 Shocks

Customer reviews

Rated 4.1428571428571 out of 5 stars
14 reviews
5 stars 10 71 %
4 stars 0 0 %
3 stars 1 7 %
2 stars 2 14 %
1 star 1 7 %

14 reviews for Bilstein 5100 0.87-2.28″ adjustable front 0-1″ rear lift shocks for 2007-2021 Toyota Tundra

Load more

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      It looks like one of the clips did not hold for the front shocks. How do I order replacement clips.
    1. 0 votes
      Q It looks like one of the clips did not hold for the front shocks. How do I order replacement clips. answer now
      A https://www.suspensionlifts.com/shop/toyota-4runner/1984-1985-toyota-4runner/other-suspension-parts-1984-1985-toyota-4runner/bilstein-snap-c-ring-for-a-5100-series-shock-46mm-diameter-replacement/
      2. will these rear shocks work with a 4" lift?
    2. 0 votes
      Q will these rear shocks work with a 4" lift? answer now
      A we'd recommend those https://www.suspensionlifts.com/shop/toyota-tundra/2007-2019-toyota-tundra/shocks-07-and-up-toyota-tundra/rear-4-lift-bilstein-shocks-for-2007-2015-toyota-tundra/
      3. I have a 2016 Tundra SR5 TRD 4x4 Crew Max. Will these set level my truck to fit 295/70/18?
    3. 0 votes
      Q I have a 2016 Tundra SR5 TRD 4x4 Crew Max. Will these set level my truck to fit 295/70/18? answer now
      A These wheels will fit without rubbing: Rim*  8" Tire Width*  12.5" Tire*  35"  Backspace*  6" Bigger tires may require some trimming.  Also precise caster/camber adjustment and body lift may help
      4. Will these shocks fit a 2001 Tundra 2 wheel drive SR5 extended cab
    4. 0 votes
      Q Will these shocks fit a 2001 Tundra 2 wheel drive SR5 extended cab answer now
      A No on 2001 Toyota Tundra SR5 RWD Extended Cab Pickup we can offer https://www.suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/complete-lift-kits-00-06-toyota-tundra/bilstein-5100-height-adjustable-front-rear-shocks-for-2000-2006-toyota-tundra/
      5. I recently purchased a 2020 tundra from the dealer with this kit installed, I would like to get a manual for this for my records, where can I get all of the product details and specs so I can adjust the lift height?
    5. 0 votes
      Q I recently purchased a 2020 tundra from the dealer with this kit installed, I would like to get a...... Read more
      There are no answers for this question yet. Answer now
      6. I have a leveling kit on my 2016 tundra. Would I be able to fit these?
    6. 0 votes
      Q I have a leveling kit on my 2016 tundra. Would I be able to fit these?
      There are no answers for this question yet. Answer now
      7. I have a 2010 Tundra SR5 TRD off Road. Will this kit fit ? and will it fit using the coils already on the TRD off road package? Thanks.
    7. 0 votes
      Q I have a 2010 Tundra SR5 TRD off Road. Will this kit fit ? and will it fit using the coils alread...... Read more answer now
      A Yes, it will fit your coils
      8. If I add the 5100's to the front at 2.28" and in the rear at 1" do I need any other equipment or parts to finish the job? My intentions are to level the front and go up one or two tire sizes from stock. 2018 Tundra double cab SR5
    8. 0 votes
      Q If I add the 5100's to the front at 2.28" and in the rear at 1" do I need any other equipment or ...... Read more
      There are no answers for this question yet. Answer now
      9. I have a 2019 Toyota Tundra crewmax TRD off road 2wd. If I buy this kit and install with nothing else, will I be able to get the front end higher than factory to match stock rear height? What settings would I need to use for front and rear?.... is this kit all I need to theoretically lift the front end 1" higher than factory? Everything is completely original and stock/factory on our tundra. Thank you!
    9. 0 votes
      Q I have a 2019 Toyota Tundra crewmax TRD off road 2wd. If I buy this kit and install with nothing ...... Read more answer now
      A Hi Front shocks can be adjusted between 0.87-2.28 "and can work with stock springs installation instructions below https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y337A02.pdf
      10. What is the Warranty? Do you recommend a diff drop kit with 2nd ring?
    10. 0 votes
      Q What is the Warranty? Do you recommend a diff drop kit with 2nd ring? answer now
      A Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.   Bilstein shocks are under warranty. Signs of misuse or abuse will void your warranty. Minor leaks are not considered a warranty issue. More info about Bilstein USA Warranty on 5100, 5125, and 5160 shocks can be found here: https://us.bilstein.com/en/blog/understanding-bilstein-warranty-procedures-policy/
      11. I have been looking at lifting my 2007 Tundra Crew Max a little bit to get more clearance and maintain (if not improve) ride quality. It seems like the popular way to do this is with 5100's and then either a block or the ToyTec Lift Adjustable Shackles in the rear (1-1.5"). Would you recommend going with the shackles over the blocks? Thank you!
    11. 0 votes
      Q I have been looking at lifting my 2007 Tundra Crew Max a little bit to get more clearance and mai...... Read more answer now
      A You may do it but the lift amount will be summarized
      12. I have 2008 Toyota tundra 2wd crew cab with 5100, front set at the highest and installed a 295/65/20 tires. My BIG problem is the front tires are rubbing please HELP on what to install to make this work..
    12. 0 votes
      Q I have 2008 Toyota tundra 2wd crew cab with 5100, front set at the highest and installed a 295/65...... Read more answer now
      A The tires are too big, either wheel spacers or maybe body lift may help
      13. Will this kit allow you to run 33" tires?
    13. 0 votes
      Q Will this kit allow you to run 33" tires? answer now
      A Rim* 8" Tire Width* 12.5" Tire* 35" Backspace* 6" can be used with 2.5'' front lift and 1.5'' rear lift. So lifting front 2'' and rear 1'' with blocks will allow using 33'' tires.
      14. Why does this kit not fit the TRD Pro?
    14. 0 votes
      Q Why does this kit not fit the TRD Pro? answer now
      A TRD PRO has very soft coils and these shocks will give you only stock height on the highest setting.
      15. I have a 3" leveling kit with 1" block in the rear. Will these work? It says adjustable
    15. 0 votes
      Q I have a 3" leveling kit with 1" block in the rear. Will these work? It says adjustable answer now
      A This kit was designed to be installed instead of leveling kit - it uses stock coil springs and allows to choos the front height with 3 different lift settings- .87″, 1.57″, and 2.28″ Stacking lifts is not recommended, because more then 3'' of lift can do harm to other suspension parts. If you need longer then stock shocks please specify if you have 2WD or 4WD Tundra and we'll offer you the shocks https://suspensionlifts.com/shop/toyota-tundra/07-and-up-toyota-tundra/shocks-07-and-up-toyota-tundra/pro-comp-height-adjustable-pro-runner-ss-front-shocks-07-15-tundra/ https://suspensionlifts.com/product-category/toyota-tundra/07-and-up-toyota-tundra/shocks-07-and-up-toyota-tundra/?orderby=price
      A Awesome. I have a 2014 4x4 tundra 1794 edition.. would love to get some better longer shocks.
      16. Does this kit come with new bushings for the front?
    16. 0 votes
      Q Does this kit come with new bushings for the front?
      There are no answers for this question yet. Answer now
      17. I have a 14 Tundra, and I was curious what I would need to make sure the truck is level. Just the 4 shocks, or would I need to get a rear block also?
    17. 0 votes
      Q I have a 14 Tundra, and I was curious what I would need to make sure the truck is level. Just the...... Read more answer now
      A

      This kit allows to make the front higher with 3 different lift settings- .87″, 1.71″, and 2.56″

      If you have stock height rear end please try using 2nd clip.

      If you'll get your rear end higher with some other rear lift options such as blocks or add a leafs then the 3rd clip can be used on the front.
      18. Will my truck sit level with this kit?
    18. 0 votes
      Q Will my truck sit level with this kit?
      There are no answers for this question yet. Answer now
      19. Does the rear lift nlocks come with new u bolts?
    19. 0 votes
      Q Does the rear lift nlocks come with new u bolts? answer now
      A Yes, lift block kit does come with UBolts
      20. I want to level my truck. If I buy this kit, do I need to purchase new springs? If not, do I need to add a spring compressing spacer?
    20. 0 votes
      Q I want to level my truck. If I buy this kit, do I need to purchase new springs? If not, do I need...... Read more answer now
      A

      Front is height adjustable with just shocks. No other parts necessary. Rear is not height adjustable
      A I have a 2014 Tundra SR5 Crew Max, have Ride Right air bags on the rear suspension, what clip would you recommend so the truck will sit level, inherently Toyota Tundra sits lower in the front. Thank You
      A I have a stock 2012 Tundra 4WD crewmax. If I set front shocks to 1.57" middle slot, what's needed for real to level? ...a 1" block kit? And is a front diff drop really needed for a 1.57" lift?
