Zone Offroad 4″ Coil Springs Lift Kit 1999, 2000, 2001, 2002, 2003, 2004 Jeep Grand Cherokee WJ 4WD

Part: J17

This 4″ WJ system offers dramatic improvement in both ground clearance as well as wheel travel. The system uses made in the USA coils springs that are designed not to sag. The new massive lower control arms not only correct front alignment but include factory like rubber bushing to absorb the road. This system comes with a small transfer case drop to correct driveline angles. A heavy duty front adjustable track bar is used to center the front axle. The rear used an upper A-arm spacer to ensure the factory joint does not get maxed out through wheel travel. Check out some of our competitors and you will find that most don’t include both lower control arms and the rear a-arm spacer at the price offered by Zone Offroad. With 4″ of lift, you can clear those 31’s with room to twist as well as use your Jeep for a daily driver. The system is available with Zone hydro or nitrogen charged shocks.

Featured Technology & Benefits

  • Four new Zone coils are included that are capable of being fully smashed down and they will always come back to their original height.
  • Rear extended sway bar links are included. These links come with urethane bushings to increase performance and reduce body roll.
  • A front adjustable track bar is included to properly center the front axle.
  • A rear upper tri-link spacer is included
  • A minimal transfer case drop is supplied to correct the driveline angle while maintaining as much ground clearance as possible.
  • 2″ bump stop extensions are included to protect your vehicle while still greatly increasing wheel travel
  • New massive front lower control arms with factory like rubber bushings
  • The system is completed with 4 new Zone shocks that are specifically valved for your WJ to perform well both on and off road.

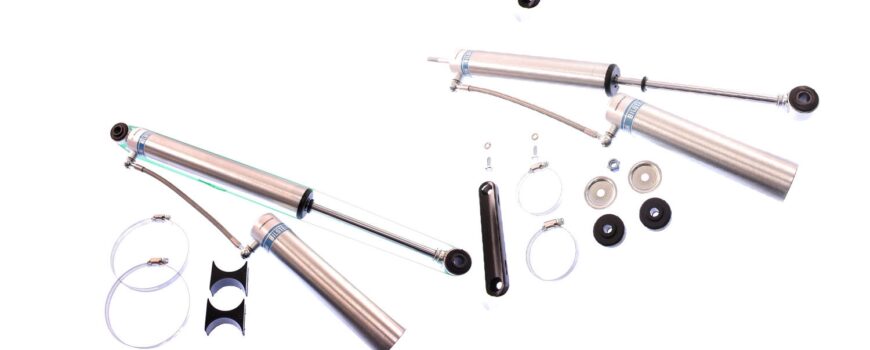

  • Option to get the kit with Bilstein 5100 Shocks Front and Rear

Important Notes!

  • Vehicles equipped with V8 may not achieve stated lift height.
  • AWD models may require front drive line modification.
  • Some vehicles may experience front wheel shimmy that is attributable to the OE design. Specific tire and wheel combinations may induce steering shimmy. In most cases, alignment and/or tire and wheel changes will correct this problem. Zone Offroad assumes no incurred expenses associated with the correction of this problem.

This product fits the following applications:

  • 1999 Jeep Grand Cherokee WJ 4WD Gas
  • 2000 Jeep Grand Cherokee WJ 4WD Gas
  • 2001 Jeep Grand Cherokee WJ 4WD Gas
  • 2002 Jeep Grand Cherokee WJ 4WD Gas
  • 2003 Jeep Grand Cherokee WJ 4WD Gas
  • 2004 Jeep Grand Cherokee WJ 4WD Gas

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: Coil Springs
  • Rear Lift Height: 3-1/2″
  • Rear Lift Method: Coil Springs
  • Install Time Hrs: 4
  • Difficulty Level 1-5: 3
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5 – 6″
  • Max Tire Size: 31″ x 10.50″
10006

on

Zone Offroad 4″ Strut Spacers Lift Kit 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 Toyota Tacoma 4WD

Part: T4

This Zone Offroad 2005-2015 Toyota Tacoma 4wd 4″ Suspension System gives current model owners a complete and affordable system to clear up to 33″ tires. The system is built off stout 1/4″ thick front and rear crossmembers that incorporate all of the front differential mounting points to utilize the factory mounting brackets.

This setup maintains the factory rubber differential mounts for an easier installation. After being relocated, the differential is then completely protected by a full-width belly pan. The new crossmembers also relocate the lower control arms to match perfectly with the new extended-length ductile iron steering knuckles. The knuckles dwarf the factory components, adding strength and durability to the entire system. The factory geometry and traction control settings are considered and incorporated into the new knuckles. This provides precise and compliant handling characteristics for stock-like feel and function.

This complete system includes all of the necessary details like bump stop extensions, sway bar relocation, strut extensions, and brake line relocation brackets. A 3″ block kit is used in the back to give the lift needed to match the front. Detailed instructions are included, including the trimming steps required for 33″ tire clearance.
Choose your Tacoma suspension lift from Zone Offroad simply because it provides the best parts for the least amount of your hard earned cash with excellent customer service to back it up.

Featured Technology & Benefits

  • Heavy duty 1/4″ boxed front and rear crossmembers
  • Full width belly pan for differential protection and a strong sub-frame
  • Solid extended ductile iron steering knuckles
  • Strut spacers to maintain factory struts and OE ride.
  • Black powder coat finish
  • Over 90% made in the USA

Important Notes!

  • Minor welding required (steering stops)
  • Requires frame bracket modification
  • Stock wheels cannot be reinstalled. 18″ or larger wheels must be used.
  • System will work on 2wd PreRunner models
  • 33×12.50 tires require trimming

This product fits the following applications:

  • 2005 Toyota Tacoma 4WD
  • 2006 Toyota Tacoma 4WD
  • 2007 Toyota Tacoma 4WD
  • 2008 Toyota Tacoma 4WD
  • 2009 Toyota Tacoma 4WD
  • 2010 Toyota Tacoma 4WD
  • 2011 Toyota Tacoma 4WD
  • 2012 Toyota Tacoma 4WD
  • 2013 Toyota Tacoma 4WD
  • 2014 Toyota Tacoma 4WD
  • 2015 Toyota Tacoma 4WD

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: Strut Spacers
  • Rear Lift Height: 3″
  • Rear Lift Method: Block Kit
  • Install Time Hrs: 6-8
  • Difficulty Level 1-5: 4
  • Wheel Size: 18×9 min.
  • Back Spacing: 4.5″
  • Max Tire Size: 33×12.50 *notes
2873

on

Zone Offroad 4″ Coil Springs Lift Kit 2011, 2012, 2013, 2014, 2015, 2016 Ford F250/F350

Part: F16/F17/F18/F19

The revolutionary new Zone 4″ system features new front coil springs that are designed to not only ride great, but will hold up over the long haul. A 1-1/2″ solid steel track bar is included to properly center the axle after lifting. This track bar features new oversized, high-durometer urethane bushings for long term performance. Optional shocks were custom valved to work perfectly with the new Zone coil springs to increase off road performance while still offering unmatched on road ride quality. The rear kit comes with 5″ blocks to replace your factory blocks so there is not stacking of blocks when you are in the Zone. This reduces rear axle wrap compared to other similar systems on the market. With the front replacement track bar and the rear block kit, this system is one of the easiest installations on the market for a 4″ system.

Featured Technology & Benefits

  • New front coil springs capable of full coil bind offering off-road performance and great ride qualtiy
  • Radius arm drop brackets included to properly rotate the front axle
  • 1-1/2″ Solid steel track bar with urethane mounts to properly center the axle
  • New rear U-bolt with high nuts & washers
  • Rear 5″ Block kit to eliminate the factory block – NO stacking blocks!
  • Performance custom valved Zone Shocks are optional – choose from drop down menu.

Important Notes!

  • Removal of the factory rear block is required. Net rear height gain will vary based on size of the factory block, but will result in a level stance.
  • If equipped with a 2-piece rear drive shaft, then a carrier bearing drop kit may be required. It is available in the optional accessories (part # F5401).
  • Although extremely rare, front and/or rear drive line vibration may occur.
  • Rear box kit not designed for dually models.
  • Front exhaust modification may be required to clear the front driveshaft on gas models.

This product fits the following applications:

  • 2011 Ford F250 4WD
  • 2012 Ford F250 4WD
  • 2013 Ford F250 4WD
  • 2014 Ford F250 4WD
  • 2015 Ford F250 4WD
  • 2016 Ford F250 4WD
  • 2011 Ford F350 4WD
  • 2012 Ford F350 4WD
  • 2013 Ford F350 4WD
  • 2014 Ford F350 4WD
  • 2015 Ford F350 4WD
  • 2016 Ford F350 4WD

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: Coil Springs
  • Rear Lift Height: 3″
  • Rear Lift Method: Block Kit
  • Install Time Hrs: 6
  • Difficulty Level 1-5: 2
  • Wheel Size: 17 & up
  • Back Spacing: 4.5″
  • Max Tire Size: 35 X 12.50
4056

on

Zone Offroad 4″ HD Replacement Radius Arms Lift Kit 2013, 2014, 2015, 2016, 2017 Ram 3500 (GAS)

Part: D65

Zone Offroad 2013-17 Ram 3500 (Gas, Including 6.4L Models) 4″ Radius Arm Suspension Lift System. The new Ram 3500 gives new meaning to “Heavy-Duty”.

Holding true to that we have developed a lift system centered around two new massive radius arms to replacement the factory arms. The new arms are fully boxed, internally gusseted and designed to bolt in the factory location while adjusting the suspension geometry for 4″ of lift.

The arms utilize extra large, greaseable bushings at the frame and are designed to use the factory alignment cams at the axle. They are formed for maximum tire clearance. Lastly, they just flat-out look cool and are a nice upgrade from the standard radius arm drop systems.

In addition to the new radius arms, like our other new Ram kits, this system gets progressive rate front coils, track bar relocation and steering correction. Out back there is a lift block and u-bolts to level everything out. Standard or Nitro shocks are available.

Featured Technology & Benefits

  • Heavy Duty Internally Gusseted Radius Arms
  • Progressive Rate Front Coil Springs
  • Correct Suspension Geometry

Important Notes!

  • *Kit images show upgraded Nitro (black) shocks*
  • Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
  • Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5405.
  • Not designed for dually models.
  • Not designed for factory rear airbag suspension models.
  • Fits 6.4L Gas Engine Models.

This product fits the following applications:

  • 2013 Dodge/Ram Ram 3500 4WD Gas
  • 2014 Dodge/Ram Ram 3500 4WD Gas
  • 2015 Dodge/Ram Ram 3500 4WD Gas
  • 2016 Dodge/Ram Ram 3500 4WD Gas
  • 2017 Dodge/Ram Ram 3500 4WD Gas

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: HD Replacement Radius Arms
  • Rear Lift Height: 3
  • Rear Lift Method: Block
  • Install Time Hrs: 6
  • Difficulty Level 1-5: 3
  • Wheel Size: 17×9+
  • Back Spacing: 4.5″
  • Max Tire Size: 35 X 12.50
  • Wheel Size: 17×9+
  • Back Spacing: 5.625″
  • Max Tire Size: 37 X 12.50
1302
