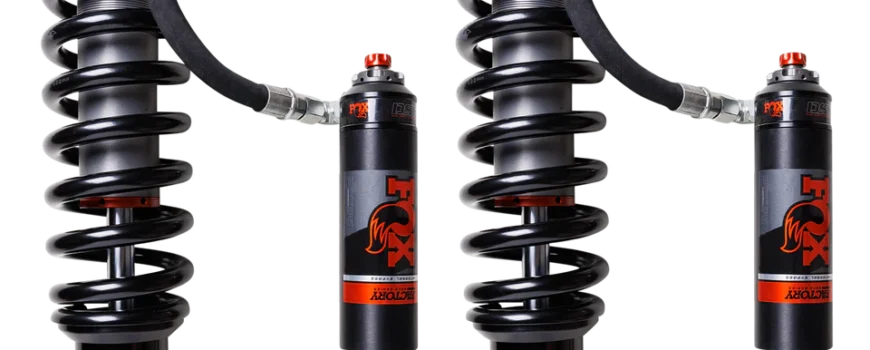

FOX Factory Race Series 2.5 Internal Bypass 2-3″ Front Lift Shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Toyota FJ Cruiser 2WD/4WD

Part: 883-06-227

FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota FJ Cruiser deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Type III anodization prevents corrosion and wear of the 2.5-inch diameter aluminum bodies. Dial in your FJ Cruiser for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.

Experience the support and confidence of FOX Internal Bypass shocks you need while driving high-speed through rugged terrain.

FEATURES 2.5″ impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body

Patented, internal bypass design

Application-specific springs

7/8″ hard chromed steel shafts

Vehicle-specific tuning maximizes performance

Redundant sealing pack system: main seal, wiper seal, scraper seal

External reservoir, with DSC adjuster
SERIES Factory Race
TRAVEL 5.29
BODY 2.5″ impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
BODY PLATING Hard-anodized for a durable finish
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
EXTENDED LENGTH 22.48
COMPRESSED LENGTH 17.19
TOP MOUNT OEM
BOTTOM MOUNT Eyelet
FITMENT NOTES Requires Upper Control Arm
5

on

FOX Factory Race Series 2.5 Internal Bypass 2-3″ Front Lift Shocks for 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Toyota 4Runner 2WD/4WD

Part: 883-06-227

FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota 4Runner deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Type III anodization prevents corrosion and wear of the 2.5-inch diameter aluminum bodies. Dial in your 4Runner for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.

Experience the support and confidence of FOX Internal Bypass shocks you need while driving high-speed through rugged terrain.

FEATURES 2.5″ impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body

Patented, internal bypass design

Application-specific springs

7/8″ hard chromed steel shafts

Vehicle-specific tuning maximizes performance

Redundant sealing pack system: main seal, wiper seal, scraper seal

External reservoir, with DSC adjuster
SERIES Factory Race
TRAVEL 5.29
BODY 2.5″ impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
BODY PLATING Hard-anodized for a durable finish
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
EXTENDED LENGTH 22.48
COMPRESSED LENGTH 17.19
TOP MOUNT OEM
BOTTOM MOUNT Eyelet
FITMENT NOTES Requires Upper Control Arm
3

on

Bilstein B8 5160 4-6″ Front Lift Shocks for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 GMC Sierra 3500 HD

Part: 25-312027

Notes:

  • Fits Vehicles With 4-6″ Front Lift
  • Stock mounting points only
  • Not compatible with lower control arm torsion bar relocation bracket

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Collapsed Length (in) :15.53

Extended Length (in) :24.22

Collapsed Length (mm) :394.5

Extended Length (mm) :615.2

Finish :Zinc Plated

Reservoir :Yes

Body Design :Smooth Body (Non-Coilover)

Body Diameter (id) :46mm

Spring Seat Included :No

Billet Reservoir Clamp Included :No

Adjustable Damping :Non-Adjustable

8

on

Bilstein B8 5160 4-6″ Front Lift Shocks for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 GMC Sierra 2500 HD

Part: 25-312027

Notes:

  • Fits Vehicles With 4-6″ Front Lift
  • Stock mounting points only
  • Not compatible with lower control arm torsion bar relocation bracket

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Collapsed Length (in) :15.53

Extended Length (in) :24.22

Collapsed Length (mm) :394.5

Extended Length (mm) :615.2

Finish :Zinc Plated

Reservoir :Yes

Body Design :Smooth Body (Non-Coilover)

Body Diameter (id) :46mm

Spring Seat Included :No

Billet Reservoir Clamp Included :No

Adjustable Damping :Non-Adjustable
