Bilstein B8 8112 Black Hawk 1-2.25″ Front Lift Coilovers for 2022, 2023, 2024, 2025 Toyota Tundra

Part: 41-332245 and 41-332238

Notes: Aftermarket Upper Control Arms required

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound.  Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option.  The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

Collapsed Length (in): 16.80

Extended Length (in): 21.83

Collapsed Length (mm): 426.8

Extended Length (mm): 554.4

Lower Mount Type: Eye 19.05mm

Upper Mount Type: Eye 12mm

Internal Design: Monotube

Finish: Dampers: Zinc Plated/Springs: Black

Reservoir: Yes – Finned Aluminum

Body Design: Smooth Body (Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Body Material: Aluminum

Boot Included: No

Spring Seat Included: Yes

Front Main Spring Rate (lbs/in): 600 lbs

Shaft Diameter (mm): 22.0

Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)

28

on

Bilstein B6 Performance Front Shocks for 1998, 1999, 2000 Volkswagen Passat

Part: 24-020794

Bilstein B6 Performance dampers are a performance upgrade to OE dampers designed to be paired with the OE factory spring. These dampers offer application specific valve settings with a monotube design to bring out the best handling performance of a vehicle. Each damper is rigorously tested for quality that meets or exceeds OE standards. B6 Performance dampers will provide improved safety and handling performance with the added benefit of world-famous Bilstein quality.

Collapsed Length (in): 17.05

Extended Length (in): 23.41

Collapsed Length (mm): 433.0

Extended Length (mm): 594.5

Lower Mount Type: Clevis

Upper Mount Type: Stem

Internal Design: Monotube

Finish: Yellow Paint

Boot Included: No

Spring Seat Included: No – Reuse OEM

14

on


Way Ahead

BILSTEIN B8 8112 & 8100 Black Hawk

Three-way adjustable coilovers and shocks engineered for the ’22–’25 Toyota Tundra with ZoneControl® precision and the ultimate ride quality on- and off-road.

See Applications

Bilstein Black Hawk coilovers and shocks

Next-Level Damping Technology

BILSTEIN B8 8112 Black Hawk coilovers and B8 8100 Black Hawk shocks are direct-fit upgrades featuring 2.65" aluminum bodies and proprietary finned remote reservoirs. ZoneControl® position-sensitive damping virtually eliminates hard bottoming while retaining a smooth ride over smaller inputs. Three external adjusters provide independent tuning for high/low-speed compression plus JCO internal hydraulic bump stop control, so you can dial in your perfect Tundra setup.

8112 Front Coilover Benefits

  • ZoneControl® CR: Dual-speed compression adjustability with telescoping internal compression stop (no external bump stop needed).
  • Secondary rebound stop: Eliminates harsh top-out; no external limit straps.
  • Triple-piston comfort: Smooth daily drivability with aggressive control on big hits.
  • Clickers: Independent low-/high-speed compression + JCO bump zone adjustability.
  • Finned reservoir: 60 mm ID aluminum canister for increased oil capacity and cooling.
  • Serviceable: Type III hard-anodized, rebuildable & revalvable, limited 2‑year warranty.

8100 Rear Shock Highlights

  • Integrated debris shield to protect the shaft in harsh conditions.
  • OE-grade vulcanized bushings for quiet, durable, direct-fit mounting.
  • Direct-fit valving & travel optimized for the Tundra platform.

ZoneControl® Cutaway

Dual-Stage Damping Mastery

Inside each 8112 is a triple-piston arrangement that blends comfort with race-proven control. The internal compression stop (JCO) and secondary rebound stop manage massive hits without the harshness of typical aftermarket setups.

ZoneControl internal damping diagram

’22–’25 Toyota Tundra Applications

Model Years Front Lift Rear Lift Front Part # Front Series Front Notes Rear Part # Rear Series Rear Notes
Tundra 4WD ’22–’25 0" 0" 24-329156 4600 8 24-329163 4600 8
0–2.3" 0–1" 24-329200 5100 RHA 8 24-329217 5100 8
0–2.3" 0–1" 24-329200 5100 RHA 8 24-332903 5100 8, 14
0–3.1" 0–1" 47-329232 6112 8 24-329248 6100 8
0–3.1" 0–1" 47-329232 6112 8 24-332958 6100 8, 14
1–2.25" 0–1" 41-332245 / 41-332238 8112 Black Hawk – 25-332315 / 25-352016 8100 Black Hawk 8
Coil Spring Upgrade ~1" – 53-332356 B12 Special (Coil Spring) 8 53-329257 B12 Special (Coil Spring Pair) 8, 14

Footnotes: 4 = Aftermarket upper control arms required. 8 = Without X‑REAS, Adaptive Variable Suspension (AVS), or rear air suspension. 14 = Heavy load option recommended for ~500 lb constant rear weight.

Black Hawk Visuals

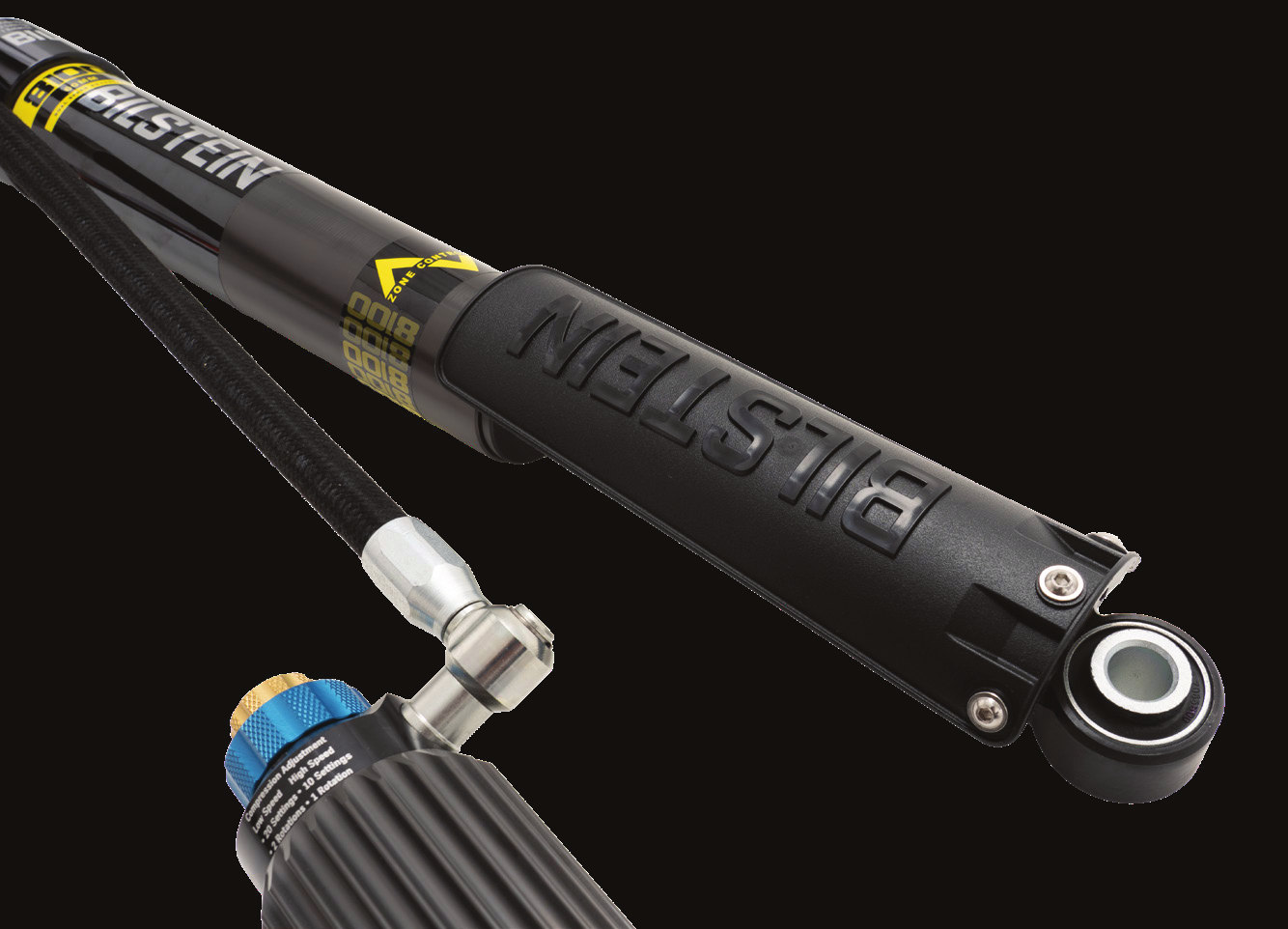

Toyota Tundra equipped with Bilstein Black Hawk
Bilstein Black Hawk product lineup

Explore the entire Bilstein Black Hawk range →



7

on

Bilstein 5100 Height Adjustable front 0-2.5″ and 0-2″ Rear shocks For 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Lexus GX460 4WD/RWD

Part: FJ4RBILK10

Need them assembled with OME coils?

Includes: 4 Shocks

The Bilstein 0-2.5″ Shocks Kit is the perfect solution for your 2010-2024 Toyota 4Runner/FJ Cruiser. This kit includes height adjustable 5100 shocks for the front (24-328258) and rear (33-313146) of your vehicle.

*Bilstein 5100 Shocks:*

The Bilstein 5100 shocks are height adjustable and provide a lift range of 0-2.5″ for the front of your vehicle, and work with 0-2″ lift in the rear. NOTE: Rear Shocks DO NOT lift the vehicle, they work with either stock height or existing lift. These shocks are engineered to provide superior handling, stability, and comfort, even under heavy loads or off-road conditions. The 5100 series shocks are made with the highest quality materials and are rigorously tested to ensure durability and long-lasting performance.

Front Shocks:

  • Part Number: 24-328258
  • Height Adjustable: 0-2.5″ Lift
  • Extended Length: 22.48 Inch
  • Compressed Length: 17.58 Inch

Rear Shocks:

  • Part Number: 33-313146
  • Height Adjustable: 0-2″ Lift
  • Extended Length: 23-1/2 Inch
  • Compressed Length: 14.91 Inch
  • Rod Diameter: 1.81 Inch
  • Upper Mounting Style: Stem
  • Lower Mounting Style: Eyelet
If you need help installing these shocks yourself, we found this great channel & videos of the installation:

Rear lift options available:

Includes 4 Shocks
