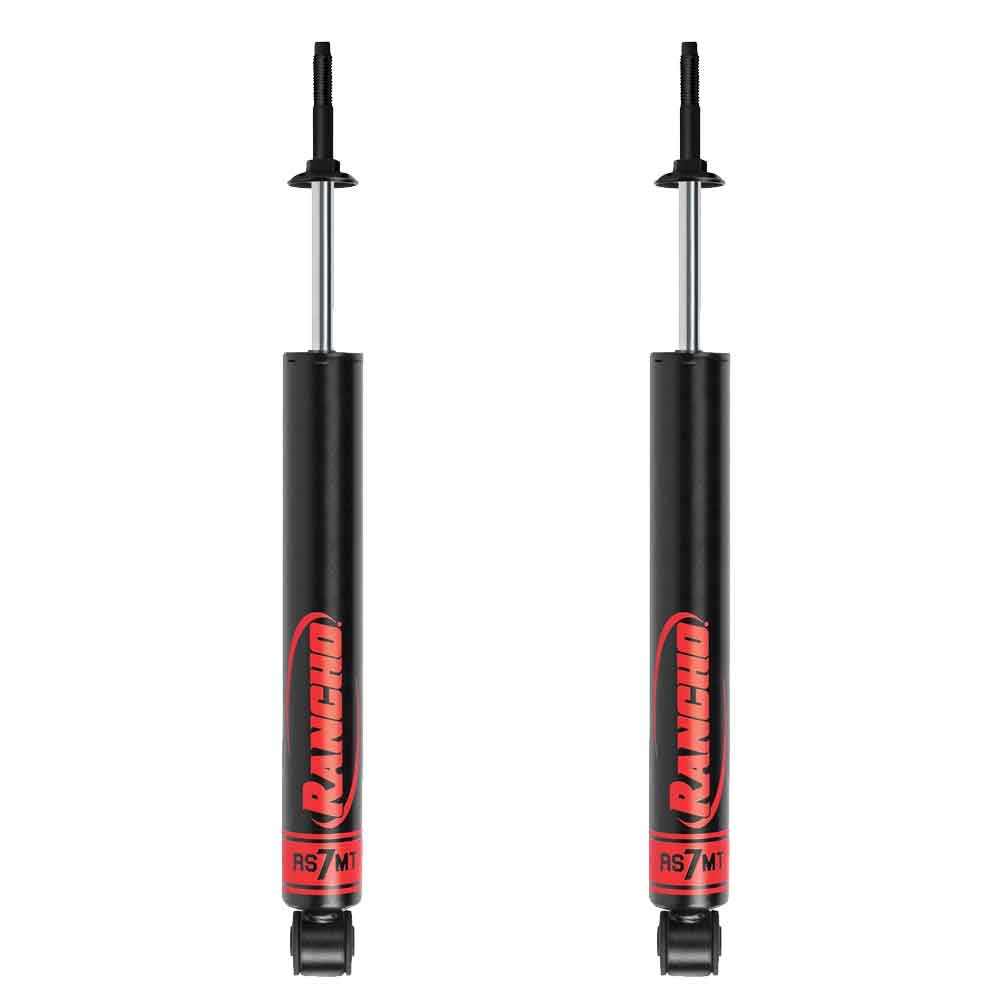

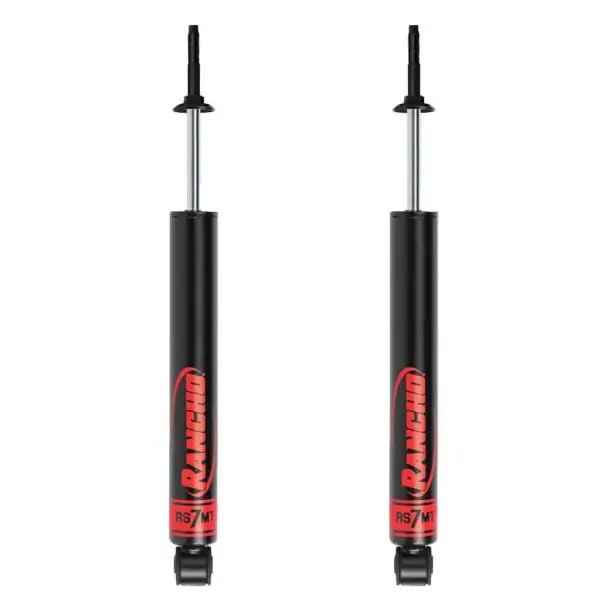

Rancho RS7MT 5-6″ Front Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

Description
Rancho RS7MT 5-6″ Front Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

Rancho RS7MT 5-6″ Front Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

Part Number: RS77055

Summary: The Rancho RS7MT series is engineered for high-performance handling and rapid heat dissipation on lifted GM 2500 platforms. Utilizing a sophisticated monotube design with a nitrogen gas charge, these shocks eliminate oil foaming and aeration during aggressive driving. Configured for 5-6 inches of front lift, they provide the precise damping control required to stabilize larger tire and wheel combinations on the Chevy Avalanche and Yukon XL 2500.

Features

• Monotube Construction: A high-pressure nitrogen gas charge provides a consistent, fade-free damping response to ensure stability across varied terrain.
• Internal Floating Piston (IFP): The physical separation of gas and oil provides rapid response to surface irregularities to ensure maximum tire-to-ground contact.
• Hardened Nitro-Churyl Rod: A 14mm heavy-duty piston rod provides superior tensile strength and corrosion resistance to ensure long-term seal integrity.
• Application-Specific Valving: Custom-tuned shim stacks provide optimized rebound and compression cycles to ensure a controlled ride on lifted heavy-duty trucks.

Technical Specifications

Fitment

• 2002-2006 Chevy Avalanche 2500 4WD
• 2000-2006 GMC Yukon XL 2500
• 2007-2014 GMC Yukon XL 2500
• Note: Excluding Electronic Suspension (Z55), Magnetic Ride Control (Z95) & Quadrasteer Package.

What’s Included

• Includes 2 Shocks (Pair)
• Protective Dust Boots
• Necessary Bushings and Hardware

Why Choose This Product?

• Engineering Advantage: The monotube design offers superior cooling efficiency compared to standard twin-tube shocks, making it ideal for heavy-duty towing and off-road use.
• Performance Benefit: Drivers experience reduced body roll and improved steering feedback, providing confidence when navigating technical trails or highway curves.

Related Products

Rear Only (Same Series):
Rancho RS7MT 5-6" Rear Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

RS90000XL (Front):
Rancho RS90000XL 5-6" Front Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

RS90000XL (Rear):
Rancho RS90000XL 5-6" Rear Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

RS90000XL (Kit):
Rancho RS90000XL 5-6" Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

RS7MT (Kit):
Rancho RS7MT 5-6" Lift Shocks for 2002-2006 Chevy Avalanche 2500 4WD

Frequently Asked Questions

Will these shocks lift my truck?
No, these shocks do not create lift. They are specifically lengthened and valved to be compatible with vehicles already equipped with a 5-6 inch lift kit.

Do these shocks work with Autoride or Magnetic Ride Control?
No, these are designed for standard suspension systems and are not compatible with Z55 Electronic Suspension or Z95 Magnetic Ride Control packages.

What is the benefit of the Monotube design?
The monotube design allows for a larger piston and better heat dissipation, which prevents the shock from becoming “mushy” or losing damping power during heavy use.
