Rancho RS90000XL 0″ Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157″ W.B.

Description
Rancho RS90000XL 0″ Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157″ W.B.

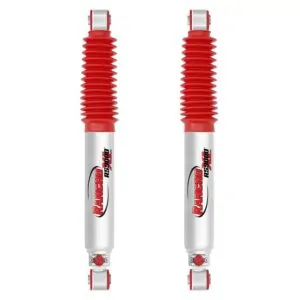

Rancho RS9000XL 0″ Lift Shocks for 1967-1972 Chevy C30 2WD

Part Number: RS999120

Summary: The Rancho RS9000XL series provides industry-leading versatility for the 1967-1972 Chevy C30, featuring a globally recognized 9-position manual tuning knob. This Tier 2 adjustable system allows drivers to instantly toggle between a soft street ride and a firm setting for heavy hauling or towing. Designed specifically for 2WD models with rear coil springs and a 157-inch wheelbase, these shocks solve the compromise between empty-bed comfort and loaded stability.

Features

• 9-Position Tuning Knob: A manual adjustment dial provides nine distinct levels of damping force to ensure the perfect ride quality for any load or terrain.
• Large Shock Body: A 2.75-inch diameter reserve tube provides increased oil capacity to ensure cooler operating temperatures during heavy-duty use.
• Nitrogen Gas Charged: High-pressure gas optimization provides consistent valving response to ensure zero aeration and reduced fade.
• Protective Boot: A heavy-duty red polyvinyl accordion boot provides a physical barrier for the piston rod to ensure long-term seal integrity.

Technical Specifications

Fitment

• 1967-1972 Chevy C30 2WD (Rear Coils, 157″ Wheelbase)
• Note: Designed for vehicles at factory height (0″ Lift).

What’s Included

• Includes Full Set (See Below)
• (2) RS999120 Rear Shocks
• (2) RS999113 Front Shocks
• Protective Red Dust Boots

Why Choose This Product?

• Engineering Advantage: Unlike “one-size-fits-all” shocks, the RS9000XL uses a tri-tube design that allows for manual bypass adjustment, giving the user mechanical control over rebound and compression.
• Performance Benefit: Eliminates the harsh “empty truck” bounce by allowing you to dial down the firmness when unladen, while maintaining the ability to stiffen the suspension for maximum towing control.

Related Products

RS5000X (Rear):
Rancho RS5000X 0" Rear Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157" W.B.
Rancho RS5000X 0" Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157" W.B.

RS5000X Full Kit:
Rancho RS5000X 0" Front Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157" W.B.

RS7MT (Rear):
Rancho RS7MT 0" Rear Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157" W.B.

RS90000XL (Rear) – Alternative:
Rancho RS90000XL 0" Rear Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157" W.B.

Full Kit (Same Series):
Rancho RS90000XL 0" Front Lift Shocks for 1967-1972 Chevy C30 2WD with Rear Coils, 157" W.B.

Frequently Asked Questions

How do I adjust the firmness of these shocks?
Simply turn the 9-position knob located at the base of the shock body. Level 1 is the softest for street comfort, while Level 9 is the firmest for towing and hauling.

Do these shocks require any special tools for installation?
No, these are a direct bolt-on replacement for your factory shocks and utilize the original mounting locations.

Will these shocks lift my Chevy C30?
No, these shocks are configured for a 0-inch lift and are designed to work with your vehicle’s factory ride height.
