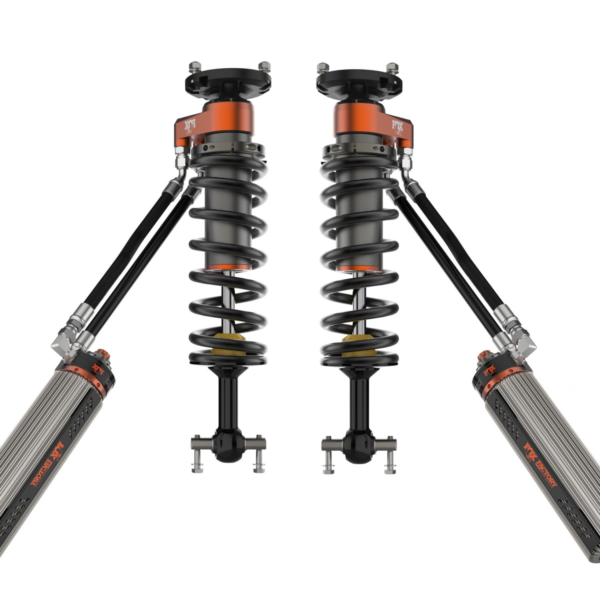

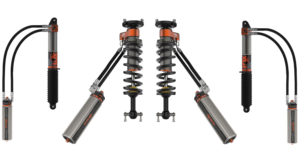

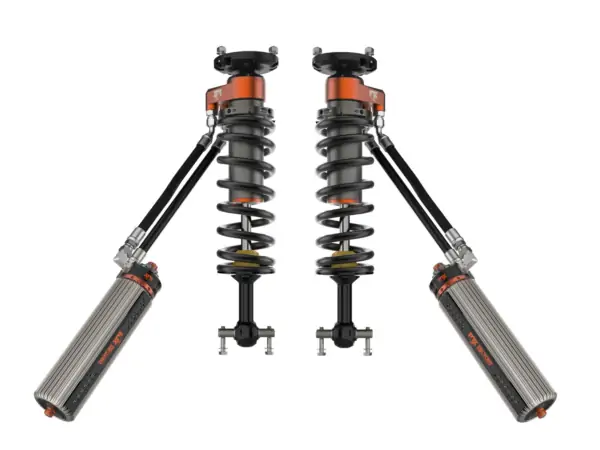

Fox Factory Race Series 3.0 Internal Bypass 3″ Front Lift Adjustable Coilovers for 2019-2025 GMC Sierra 1500 2WD/4WD

Description
Fox Factory Race Series 3.0 Internal Bypass 3″ Front Lift Adjustable Coilovers for 2019-2025 GMC Sierra 1500 2WD/4WD

Fox Factory Race Series 3.0 Internal Bypass 3 inches Front Lift Adjustable Coilovers for 2019-2025 GMC Sierra 1500 2WD/4WD

Part Number: 883-06-175

Summary: The FOX Factory Race Series 3.0 Internal Bypass coilovers provide the ultimate high-speed ready performance for the GMC Sierra 1500. Utilizing patented Internal Bypass technology, these shocks offer position-sensitive damping that adapts to the terrain, ensuring a comfortable ride on-road and aggressive bottom-out control off-road. Equipped with Dual Speed Compression (DSC) adjusters and a recirculating reservoir bridge, these coilovers are engineered to maintain cool operating temperatures and consistent damping during sustained high-performance use.

Features

• Internal Bypass Technology: Patented position-sensitive damping provides multiple zones of control to ensure a comfortable initial ride followed by progressive force to prevent hard bottom-outs.
• Dual Speed Compression (DSC) Adjuster: A manual tuning dial allows for precise adjustment of high and low-speed compression to ensure the vehicle is dialed in for specific loads and environments.
• Recirculating Reservoir Bridge: A checked-port system enables continuous fluid exchange between the finned external reservoir and the body to ensure shock temperatures remain cool for better performance.
• Aluminum Body: The 3.0-inch 6061-T6 hard-anodized aluminum body provides superior heat dissipation and corrosion resistance to ensure long-term durability in harsh conditions.
• Hard Chrome Plated Shaft: A 7/8 inches heat-treated alloy steel shaft provides increased strength and durability to ensure reliable operation under extreme stress.

Technical Specifications

Fitment

• 2019-2025 GMC Sierra 1500 (2WD/4WD)
• Note: Requires Upper Control Arm. Includes Reservoir Bracket. Excludes ZR2 Models. Trail Boss Models Fit 1 inches Lift.

What’s Included

• Sold Individually
• Reservoir Bracket

Why Choose This Product?

• Engineering Advantage: The Internal Bypass design allows fluid to bypass the main piston through bleed holes in the ride zone, only forcing fluid through the piston as the shock extends past the zone for maximum control during impacts.
• Performance Benefit: Drivers experience race-bred performance with the ability to manually tune the suspension for different driving styles and environments via the DSC adjuster.

Frequently Asked Questions

What does the Internal Bypass technology do?
It allows for multiple zones of damping control, providing a comfortable ride in the initial travel zone and increasing damping force progressively to prevent harsh bottom-outs or top-outs.

How does the DSC adjuster work?
The Dual Speed Compression (DSC) adjuster allows you to manually dial in your suspension settings to account for different loads, environments, and driving styles.

Are these coilovers compatible with all GMC Sierra 1500 models?
These fit 2019-2025 GMC Sierra 1500 2WD/4WD models, excluding ZR2 models. Note that Trail Boss models will see 1 inches of lift and an aftermarket Upper Control Arm is required.
