Fox Factory Race Series 3.0 Internal Bypass 3″ Front Lift Adj Coilovers with 2-3″ Rear Lift Adj Shocks for 2019-2025 GMC Sierra 1500

Description
Fox Factory Race Series 3.0 Internal Bypass 3″ Front Lift Adj Coilovers with 2-3″ Rear Lift Adj Shocks for 2019-2025 GMC Sierra 1500

Fox Factory Race Series 3.0 Internal Bypass 3 inches Front Lift Adjustable Coilovers with 2-3 inches Rear Lift Adjustable Shocks for 2019-2025 GMC Sierra 1500 2WD/4WD

Part Number: 883-06-175

Summary: The FOX Factory Race Series 3.0 Internal Bypass system provides a comprehensive suspension upgrade for the GMC Sierra 1500, delivering position-sensitive damping technology and high-speed performance. By utilizing patented Internal Bypass technology, these shocks offer multiple zones of damping control to manage hard bottom-outs and prevent harsh top-outs during off-road use. The system features 3-inch hard-anodized aluminum bodies and Dual Speed Compression (DSC) adjusters, allowing drivers to tune their vehicle for specific loads and environments while maintaining race-bred performance.

Features

• Internal Bypass Technology: Patented internal bypass design provides multiple zones of damping control to ensure a comfortable ride with increased force through rough terrain.
• Dual Speed Compression (DSC): Tool-free DSC adjusters provide high and low-speed compression adjustment to ensure the vehicle is dialed in for specific loads and driving styles.
• Recirculating Reservoir Bridge: A specialized bridge and finned external reservoir provide continuous fluid exchange to ensure shock temperatures remain cool for better performance.
• Hard-Anodized Aluminum Body: 3.0 inches impact extruded and CNC machined 6061-T6 aluminum body provides corrosion resistance and reduced weight to ensure long-term durability.
• High-Flow Piston: Race-developed piston design provides application-specific valving to ensure maximized performance in off-road conditions.

Technical Specifications

Fitment

• 2019-2025 GMC Sierra 1500
• Note: Requires Upper Control Arm. Includes Reservoir Bracket. Excludes ZR2 Models. Trail Boss Models Fit 1 inches Lift.

What’s Included

• Includes Full Set (See Below)

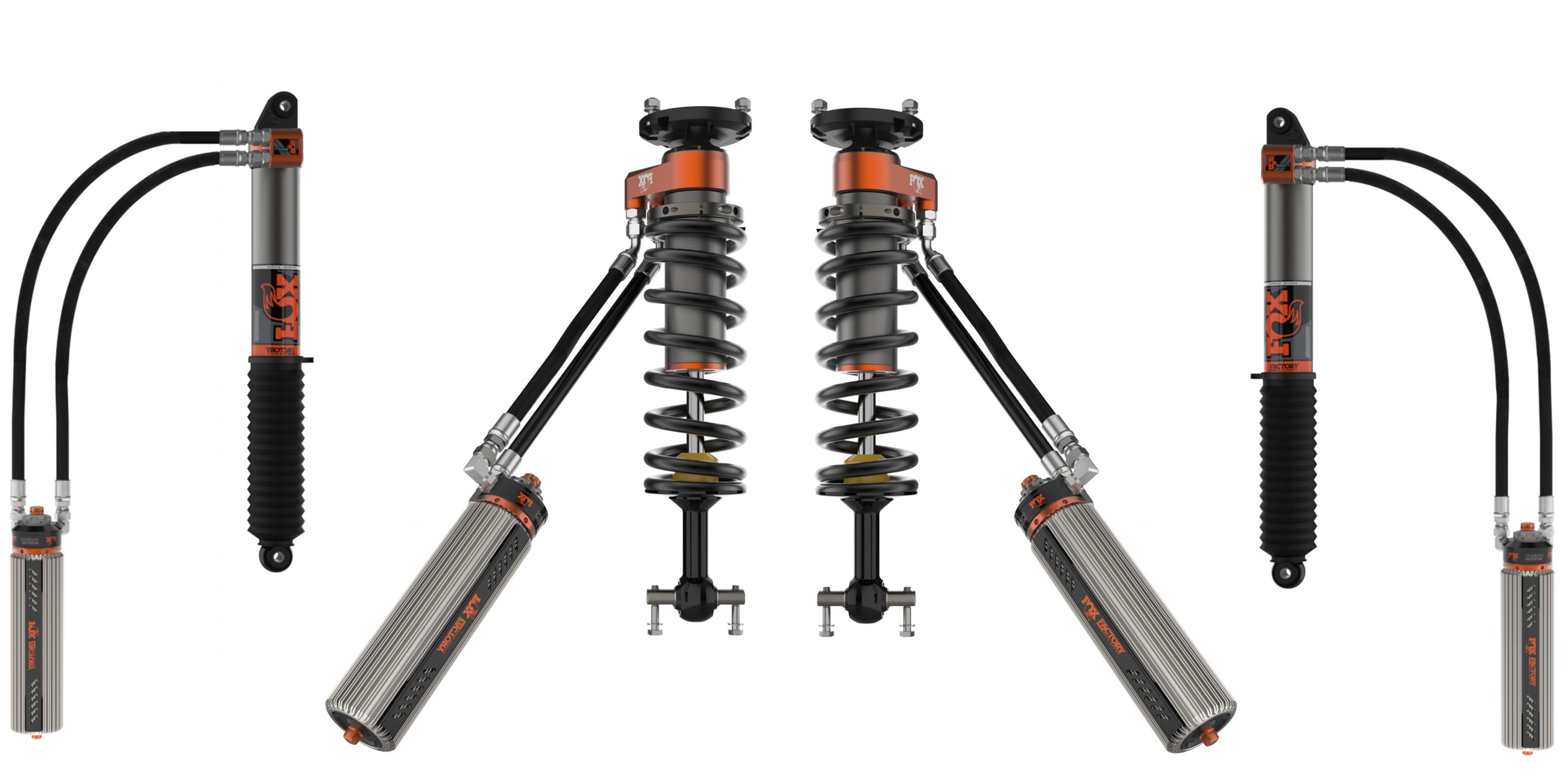

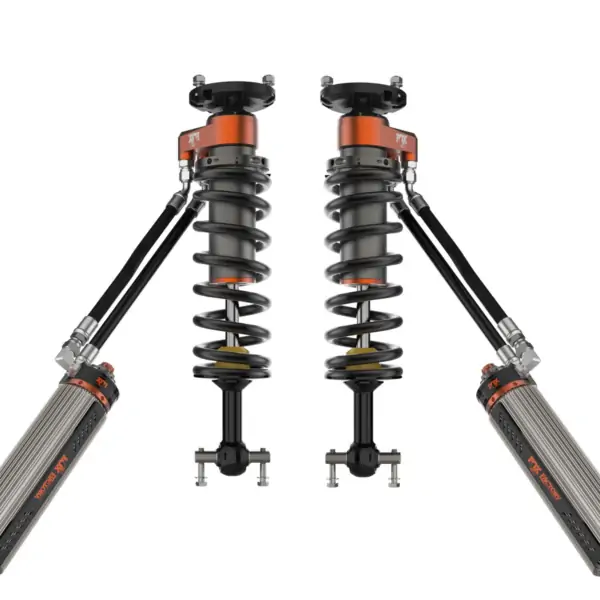

• Front 3.0 Internal Bypass Coilovers
• Rear Adjustable Shocks
• Reservoir Brackets

Why Choose This Product?

• Engineering Advantage: The use of Internal Bypass technology allows fluid to bypass the main piston through bleed holes in the ride zone, only forcing fluid through the main piston as the shock extends past that zone for progressive bottom-out control.
• Performance Benefit: Drivers gain the ability to manually tune their suspension for different environments using the DSC clickers, resulting in a vehicle that is equally capable of high-speed off-road operation and controlled street driving.

Frequently Asked Questions

What is the benefit of the Internal Bypass design?
The patented Internal Bypass technology allows for position-sensitive damping, producing more force progressively to control hard bottom-outs and prevent harsh top-outs while maintaining a comfortable ride in the initial ride zone.

Can I adjust these shocks without tools?
Yes, the Dual Speed Compression (DSC) adjusters allow for tool-free high and low-speed compression adjustment to match your driving style or load requirements.

Does this kit require any additional components?
Yes, the source data indicates that this system requires the use of an Upper Control Arm for proper installation and operation.
