Rancho RS5000X 1.5″ Lift Shocks for 1973-1990 Chevy G20

Description
Rancho RS5000X 1.5″ Lift Shocks for 1973-1990 Chevy G20

Rancho RS5000X 1.5″ Lift Shocks for 1973-1990 Chevy G20

Part Number: RS55120

Summary: The Rancho RS5000X series utilizes a cross-tuned twin-tube design to deliver improved handling and comfort for your Chevy G20. These shocks are specifically configured for a 1.5-inch lift, providing a balanced solution for drivers seeking both off-road durability and smooth highway manners. By utilizing a progressive engagement valving system, these shocks minimize harsh impacts while maintaining excellent control over uneven terrain.

Features

• Progressive Engagement Valving: Custom-tuned compression and rebound discs provide a smooth transition between low and high-speed damping to ensure a comfortable ride on any surface.
• Gas Pressurized Design: High-pressure nitrogen gas charge reduces aeration and foaming provides consistent performance to ensure fade-free operation during heavy use.
• Large Shock Body: A 2.25-inch reserve tube provides increased oil capacity and heat dissipation to ensure the shock remains cool under load.
• Nitro-Carburized Piston Rod: Heavy-duty 16mm rod construction provides superior corrosion resistance and strength to ensure long-term durability in harsh environments.

Technical Specifications

Fitment

• 1973-1990 Chevy G20
• 1963-1983 Jeep Wagoneer
• Note: Configured for vehicles with 1.5″ of suspension lift.

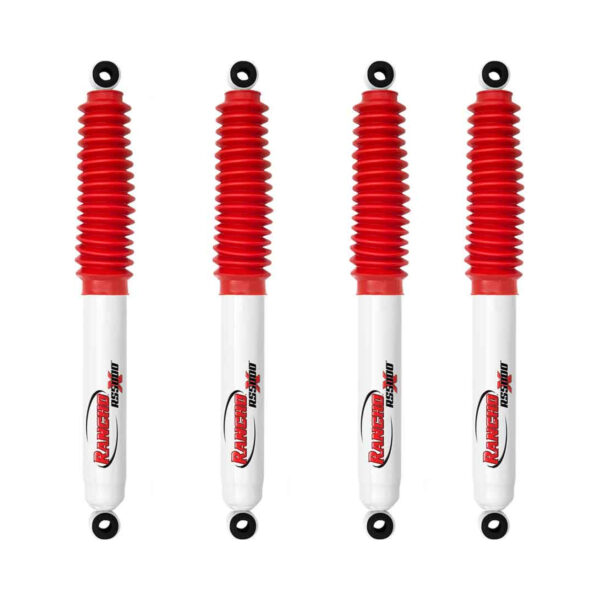

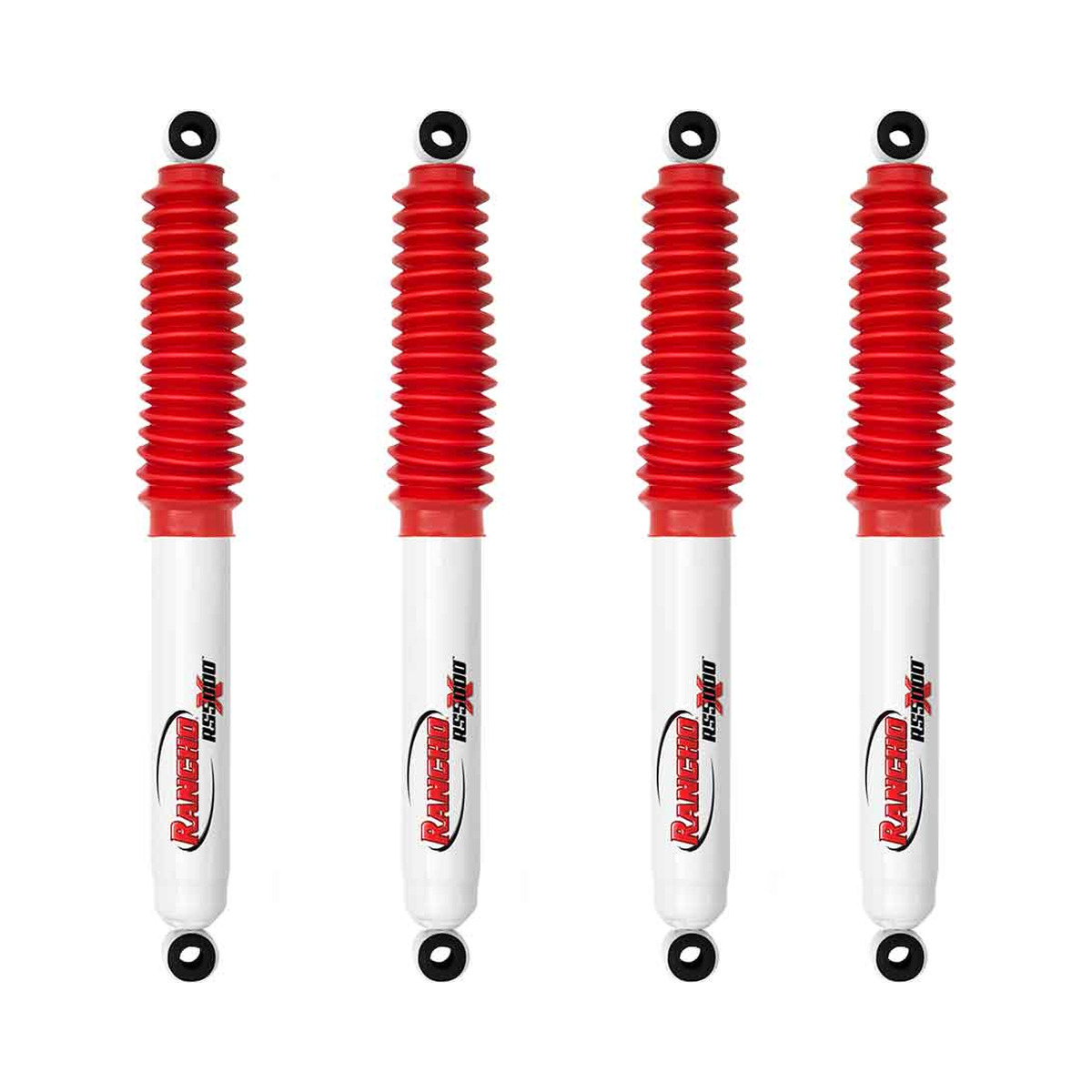

What’s Included

• Includes Full Set (See Below)
• (2) RS55120 Front Shocks
• (2) RS55118 Rear Shocks
• All Necessary Bushings and Hardware
• Protective Red Dust Boots

Why Choose This Product?

• Engineering Advantage: Rancho’s patented cross-tuning technology allows the shock to adapt to varied terrain without the need for manual adjustment.
• Performance Benefit: The twin-tube design offers exceptional dent resistance, meaning the shock will continue to function even if the outer tube is damaged during off-road use.

Related Products

RS5000X (Rear):
Rancho RS5000X 1.5" Rear Lift Shocks for 1973-1990 Chevy G20

RS5000X (Front):
Rancho RS5000X 1.5" Front Lift Shocks for 1973-1990 Chevy G20

RS7MT (Rear):
Rancho RS7MT 1.5" Rear Lift Shocks for 1973-1990 Chevy G20

RS90000XL (Front):
Rancho RS90000XL 1.5" Front Lift Shocks for 1973-1990 Chevy G20

RS90000XL (Rear):
Rancho RS90000XL 1.5" Rear Lift Shocks for 1973-1990 Chevy G20

RS90000XL (Kit):
Rancho RS90000XL 1.5" Lift Shocks for 1973-1990 Chevy G20

Frequently Asked Questions

Will these shocks lift my vehicle?
No, these shocks do not create lift. They are specifically configured for vehicles that already have 1.5 inches of suspension lift installed.

Are the dust boots included?
Yes, this set includes Rancho’s signature red protective dust boots to keep debris away from the piston seals.

How does the RS5000X differ from the original RS5000?
The RS5000X features an improved “Cross-Tuned” valving system that provides a much more refined ride quality over both small bumps and large impacts compared to the original design.
