Fox Elite Series 2.5 3.5″ Lift Reservoir Coilovers, 0-2″ Rear Adjust Shocks For GMC Sierra 1500 2019-2025

Description
Fox Elite Series 2.5 3.5″ Lift Reservoir Coilovers, 0-2″ Rear Adjust Shocks For GMC Sierra 1500 2019-2025

Fox Elite Series 2.5 3.5 inches Lift Reservoir Coilovers, 0-2 inches Rear Adjust Shocks For GMC Sierra 1500 2019-2026

Part Number: 883-06-162

Summary: The FOX Performance Elite Series provides a professional-grade suspension solution for the GMC Sierra 1500. This system features 2.5-inch smooth bore and honed seamless alloy reservoirs designed to increase oil capacity for superior heat management during aggressive use. By utilizing race-proven technology, these bolt-on coilovers and shocks deliver precise control and improved damping across any terrain while maintaining consistent performance under high-demand conditions.

Features

• Reservoir: 2.5 inches Smooth bore and honed seamless alloy reservoir provides increased cooling capacity to ensure sustained off-road performance and fade resistance.
• Body Construction: 2.5 inches Impact extruded and CNC machined 6061-T6 hard anodized aluminum body provides rust resistance to ensure long-term durability in harsh environments.
• Internal Piston: 6061-T6 hard-anodized, high flow aluminum piston provides optimized fluid flow to ensure consistent damping response.
• Springs: Adjustable 3.0 Eibach® racing springs provide customizable preload to ensure proper ride height and vehicle leveling.
• Shaft: 7/8 inches hard chrome plated steel shafts provide high tensile strength to ensure resistance to bending or damage.

Technical Specifications

Fitment

• 2019-2026 GMC Sierra 1500
• Note: Requires Upper Control Arm. Includes Universal Bracket. AT4 Model Fits 1.5 inches Lift Only.

What’s Included

• Includes Full Set (See Below)

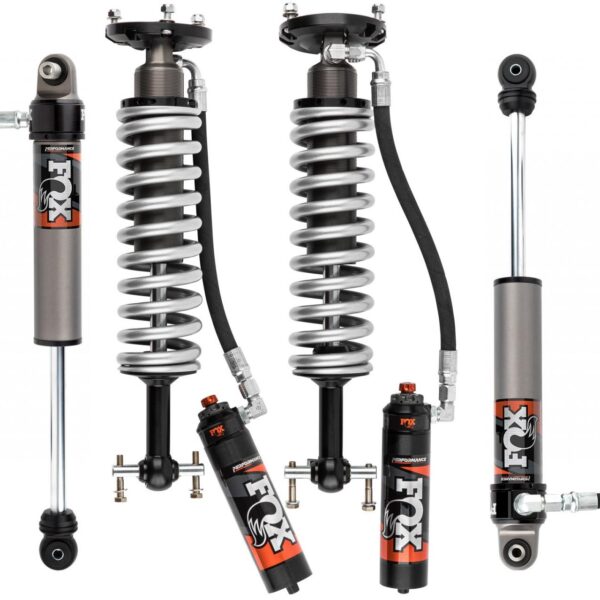

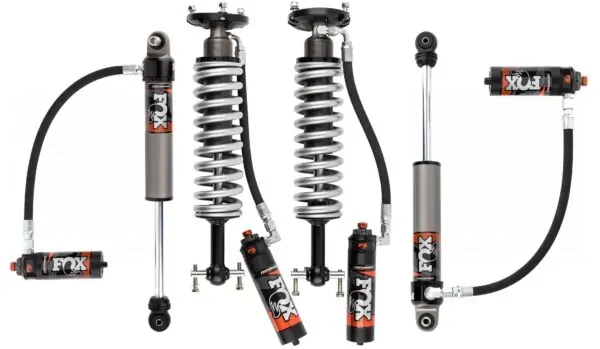

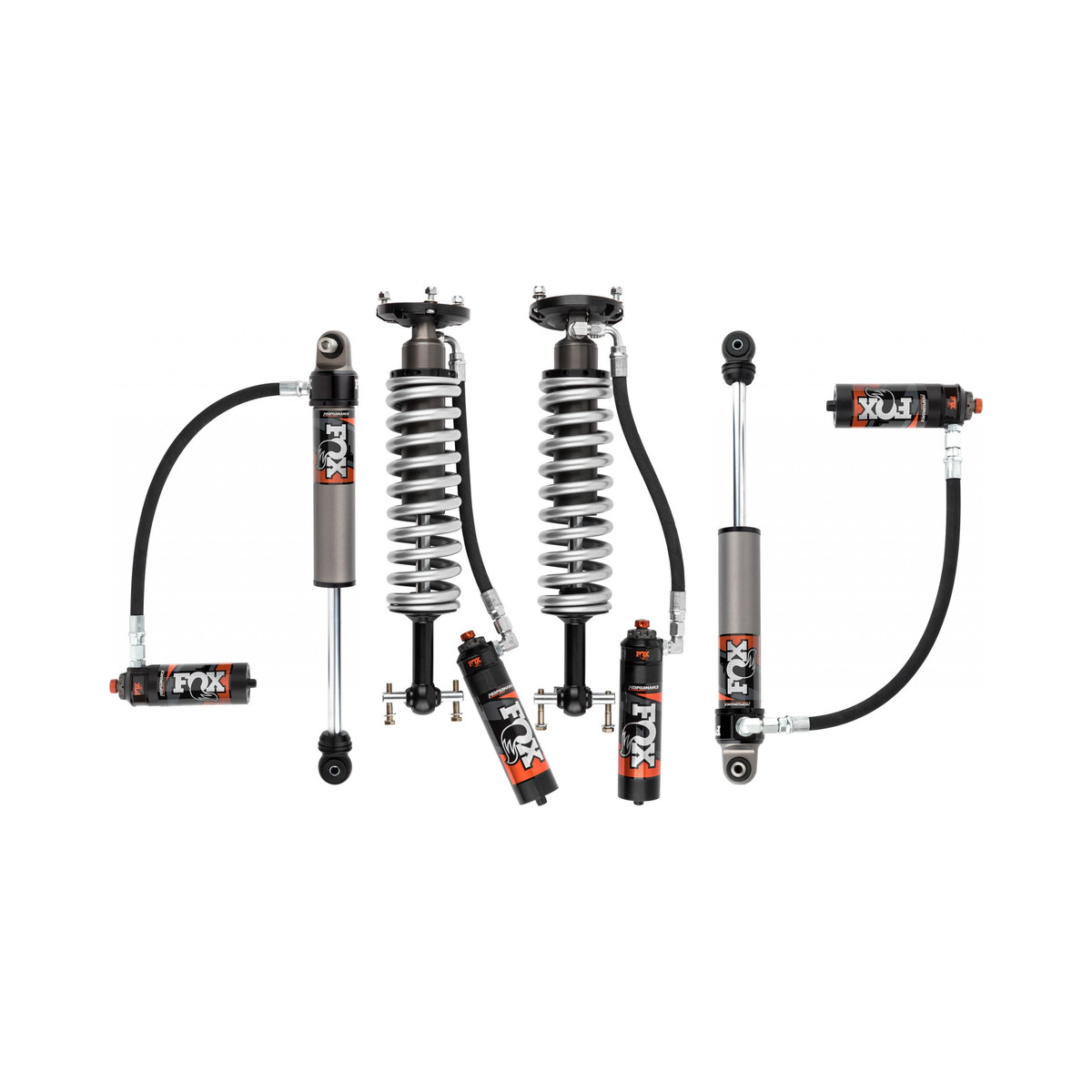

• 2.5 inches Reservoir Coilovers (Front)
• Rear Shocks
• Universal Mounting Brackets

Why Choose This Product?

• Engineering Advantage: The use of 6061-T6 hard-anodized aluminum and external reservoirs allows for superior heat dissipation compared to standard internal-piston designs.
• Performance Benefit: Drivers experience race-proven damping control that remains consistent over long periods of off-road operation without performance fade.

Frequently Asked Questions

What is the benefit of the external reservoir?
The 2.5-inch alloy reservoir increases the total oil capacity of the shock, which improves heat management and prevents damping fade during sustained off-road use.

Can I adjust the ride height on these coilovers?
Yes, the integrated ride height preload ring allows for adjustment of the Eibach racing springs to level your vehicle or set a specific height.

Are there specific requirements for installation?
Yes, this system requires the use of an aftermarket Upper Control Arm (UCA) for proper geometry and includes a universal bracket for the reservoir.
