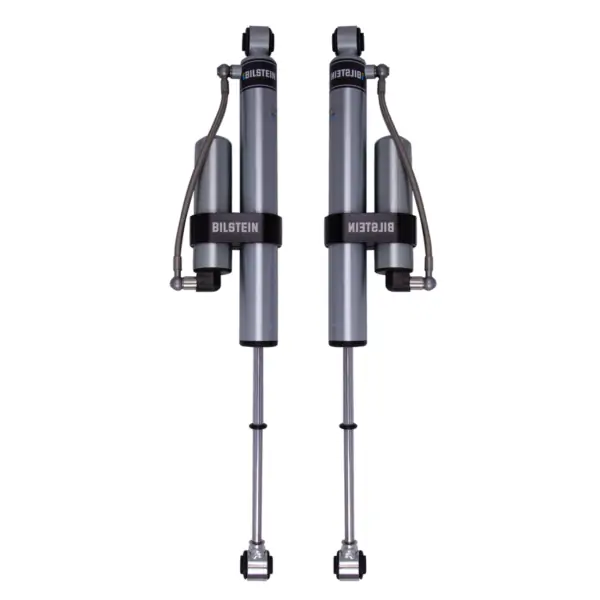

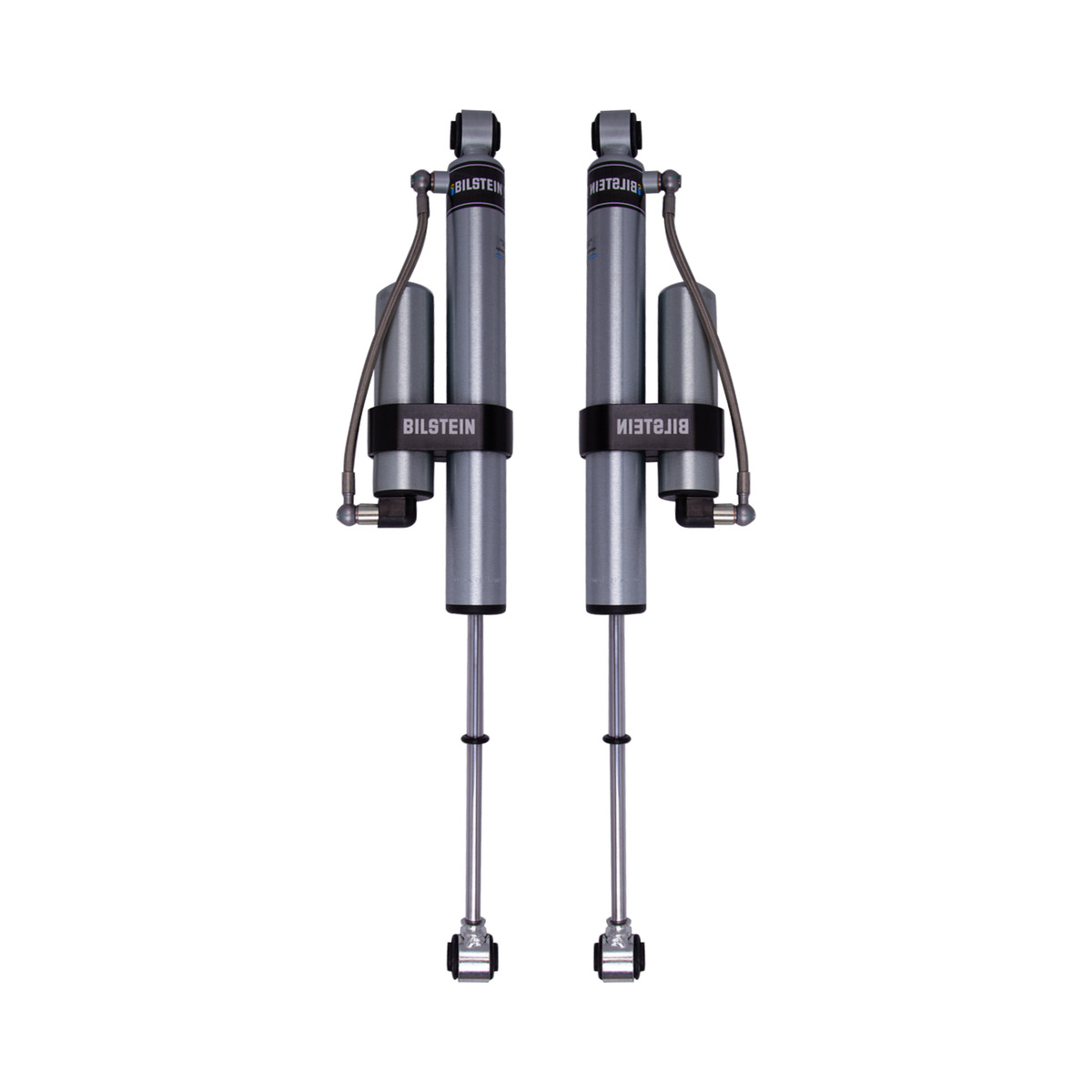

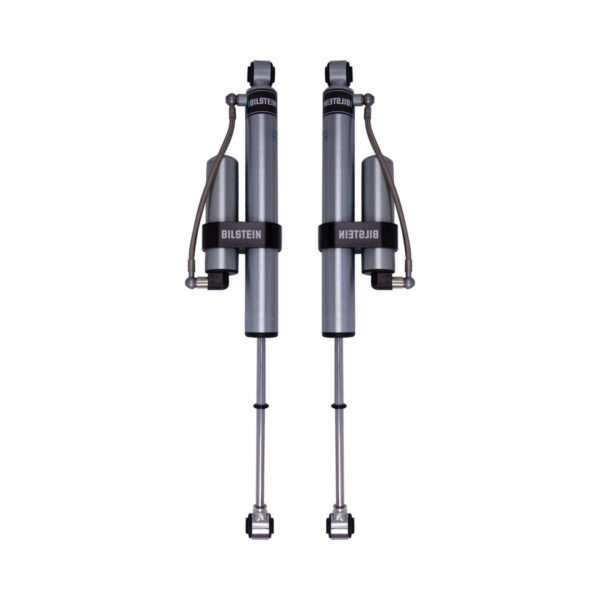

Bilstein B8 5160 RR 0-1″ Rear Lift Shocks For 2019-2025 GMC Sierra 1500 (AT4 Only)

Description
Bilstein B8 5160 RR 0-1″ Rear Lift Shocks For 2019-2025 GMC Sierra 1500 (AT4 Only)

Bilstein B8 5160 RR 0-1″ Rear Lift Shocks For 2019, 2020, 2021, 2022, 2023, 2024, 2025 GMC Sierra 1500 (AT4)

2-3” rear lift for all other trims (not TrailBoss / AT4)

Part: 2 x 25-316964 (old: 25-309546)

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Collapsed Length: 17.40″
Extended Length: 27.61″
Collapsed Length (MM): 442.0
Extended Length (MM): 701.2
Finish: Zinc Plated
Reservoir: Yes
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm

Notes:

Only for AT4 and Trail Boss submodels
