Fox Elite Series 2.5 3.5″ Lift Reservoir Coilovers, 0-2″ Rear Adjust Shocks For Chevy Silverado 1500 2019-2026

Description
Fox Elite Series 2.5 3.5″ Lift Reservoir Coilovers, 0-2″ Rear Adjust Shocks For Chevy Silverado 1500 2019-2026

Fox Elite Series 2.5 3.5 inches Lift Reservoir Coilovers, 0-2 inches Rear Adjust Shocks For Chevy Silverado 1500 2019-2026

Part Number: 883-06-162

Summary: The FOX Performance Elite Series provides a complete suspension solution for the Chevy Silverado 1500, featuring 2.5-inch diameter bodies for increased oil capacity and thermal management. This system utilizes an External Reservoir design to separate shock oil from the high-pressure nitrogen charge, significantly reducing fade during sustained off-road use. Engineered for precise control, these bolt-on components are designed to improve damping across varied terrain while maintaining vehicle stability.

Features

• External Reservoir: 2.5 inches Smooth bore and honed seamless alloy reservoir provides increased oil and nitrogen capacity to ensure fade resistance during high-speed operation.
• Aluminum Body: 2.5 inches Impact extruded and CNC machined 6061-T6 hard anodized aluminum provides rust resistance to ensure long-term durability in harsh environments.
• High Flow Piston: 6061-T6 hard-anodized aluminum piston provides application-specific valving to ensure maximized performance and precise damping control.
• Adjustable Racing Springs: Application-specific 3.0 Eibach® springs provide adjustable preload to ensure the vehicle achieves the desired ride height and level stance.
• Redundant Sealing Pack: Main seal, wiper seal, and scraper seal system provides multi-layer protection to ensure internal fluid integrity against contaminants.

Technical Specifications

Fitment

• 2019-2026 Chevy Silverado 1500
• Note: Requires Upper Control Arm. Includes Reservoir Bracket. Trail Boss Models Fit 1.5 inches Lift Only.

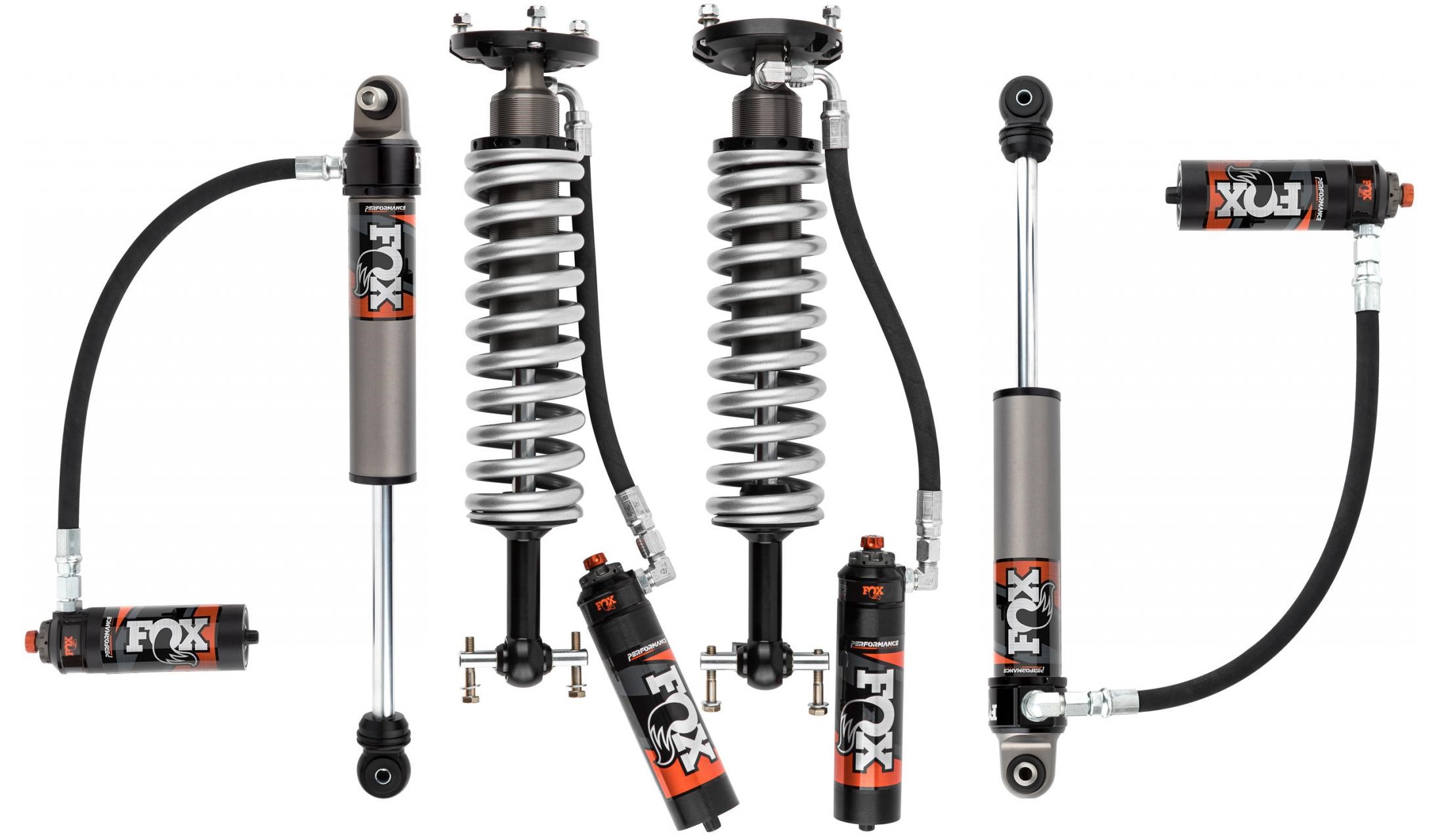

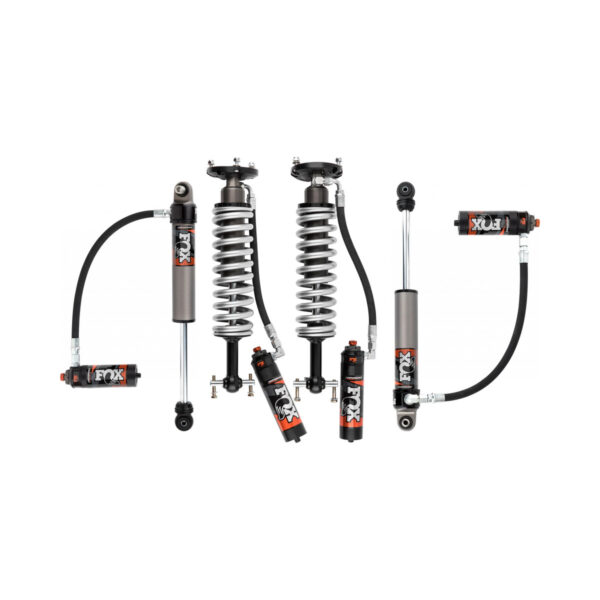

What’s Included

• Includes Full Set (See Below)
• Front Elite Series 2.5 Reservoir Coilovers
• Rear Elite Series 2.5 Reservoir Adjustable Shocks
• Reservoir Mounting Brackets

Why Choose This Product?

• Engineering Advantage: The use of 6061-T6 hard-anodized aluminum and external reservoirs allows for superior heat dissipation compared to traditional steel-body shocks.
• Performance Benefit: Drivers experience more consistent damping and precise steering control, especially when navigating terrain that subjects the suspension to repeated, high-frequency impacts.

Frequently Asked Questions

What is the benefit of the External Reservoir?
The external reservoir increases the total oil and nitrogen capacity of the shock, which helps lower operating temperatures and prevents performance fade during aggressive off-road use.

Does this kit require any additional modifications?
Yes, according to the fitment notes, this system requires the installation of an Upper Control Arm and includes specific reservoir mounting brackets.

Can the ride height be adjusted?
Yes, the front coilovers feature an adjustable preload ring and 3.0 Eibach® racing springs to allow for ride height tuning.
