Bilstein 5100 0-1.8″ Front Lift Assembled Coilovers with OE Replacement coils for 2007-2014 Chevy/GMC Suburban

Description
Bilstein 5100 0-1.8″ Front Lift Assembled Coilovers with OE Replacement coils for 2007-2014 Chevy/GMC Suburban

Bilstein 5100 0-1.8″ Front Lift Pre-Assembled Coilovers for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Chevy/GMC Suburban

Part: 5100BILGS07S-FRONT

Level your Chevy/GMC Suburban with pre-assembled front coilovers. The front Bilstein 5100 coilovers arrive fully assembled with OE-style coils and new top mounts, so you skip the spring compressor and get a clean, fast install.

What’s Included

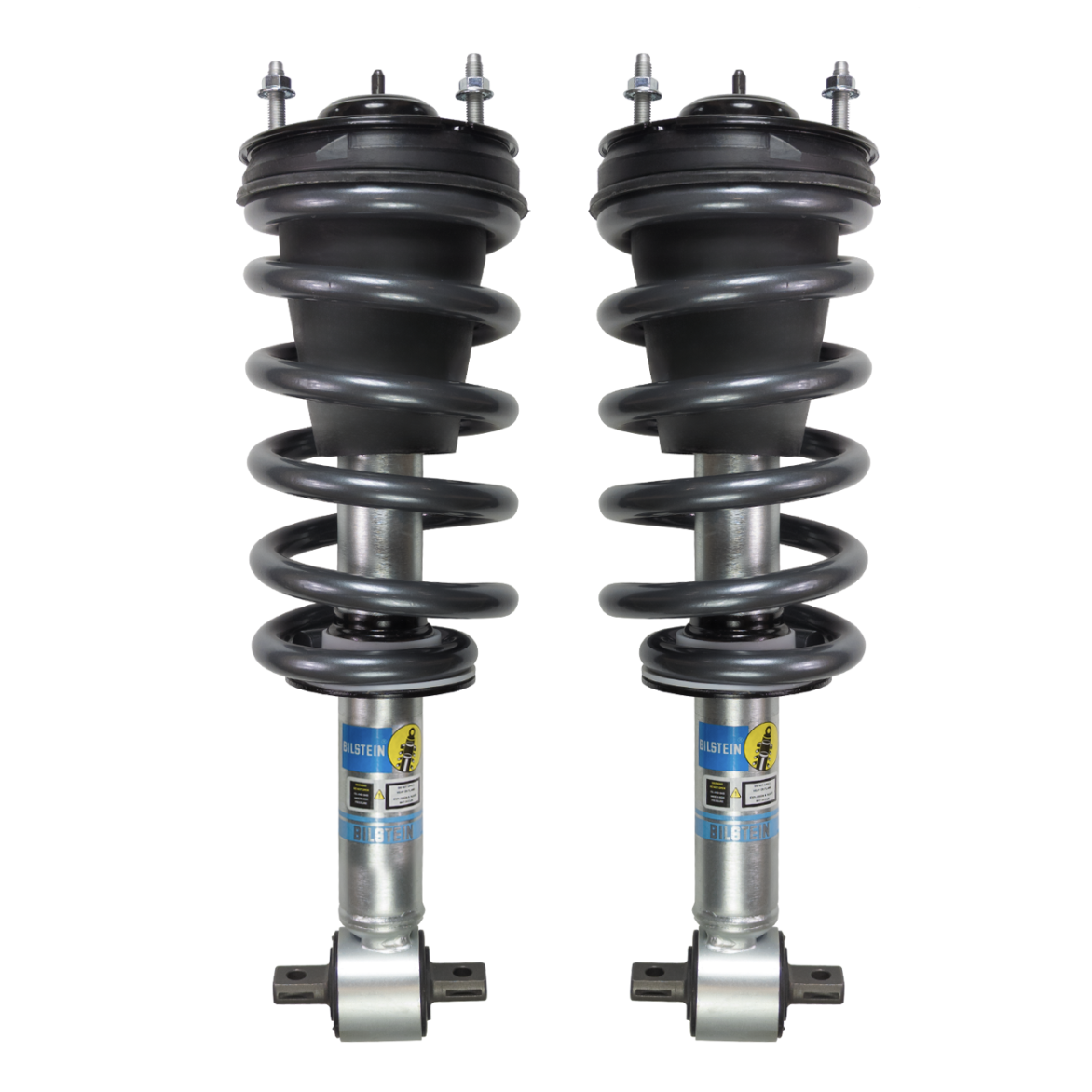

• Front (pre-assembled): 2 x Bilstein 5100 ride-height-adjustable struts 24-317818 (old 24-186940) with OE/OEM-style replacement coils, new top mounts, isolators, dust covers, and hardware

Front perch settings (clip positions)

• Clip 4: ~1.77″ lift
• Clip 3: ~1.18″ lift
• Clip 2: ~0.59″ lift
• Clip 1: 0″ stock

Actual lift varies with bumper/winch weight, accessories, and spring condition.

Why you’ll like it

• No spring compressor needed – fronts come fully assembled
• Adjustable 0-1.8″ front lift – set a level stance or mild lift for tire clearance
• Bilstein 5100 control – 46 mm monotube, digressive valving for consistent, fade-resistant damping
• OE-style comfort – tighter body control while keeping daily ride quality

Fitment

• Vehicles: Chevy/GMC Suburban 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
• Drivetrain: 2WD or 4WD
• Front lift: adjustable 0-1.8″

Technical notes

• Snap-ring grooves set front spring seat height within the stated range
• Monotube, nitrogen gas-charged, 46 mm piston
• Alignment is required after installation
• Coilover assembly time: 3-10 business days

FAQ

Do these come assembled? Yes. New coils, mounts, and hardware are installed up front.

Which clip should I choose? Start at Clip 2 or 3 for a typical level; adjust for added front weight or preferred rake.

Need rear shocks too? We also offer the full kit with 0-1″ rear shocks for a matched front and rear setup.
