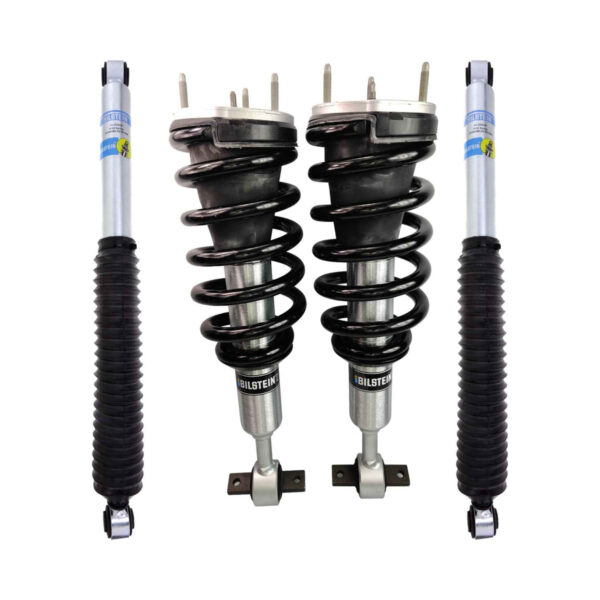

Bilstein 6112 1.85-2.75″ Front Assembled Coilovers with Rear 5100 Shocks for 2014-2018 Chevy Silverado 1500 4WD

Description
Bilstein 6112 1.85-2.75″ Front Assembled Coilovers with Rear 5100 Shocks for 2014-2018 Chevy Silverado 1500 4WD

Bilstein 6112 1.85-2.75″ Front Assembled Coilovers with Rear Shocks Bilstein 5100 – 2014-2018 Chevy Silverado 1500 4WD

Part: 47-325753-ASBK

Give your 2014-2018 Silverado 1500 4WD a proper leveling and front suspension upgrade with Bilstein B8 6112 big body assembled coilovers and your choice of Bilstein 5100 or 5160 rear shocks.
The 6112s use a massive 60 mm body and matched lift coils to deliver more control, more travel, and a true 1.85-2.75″ front lift when paired with the correct upper control arms.

What The Bilstein 6112 System Does

Bilstein B8 6112 leveling kits are designed to increase ground clearance, allow larger tires, and improve wheel travel.

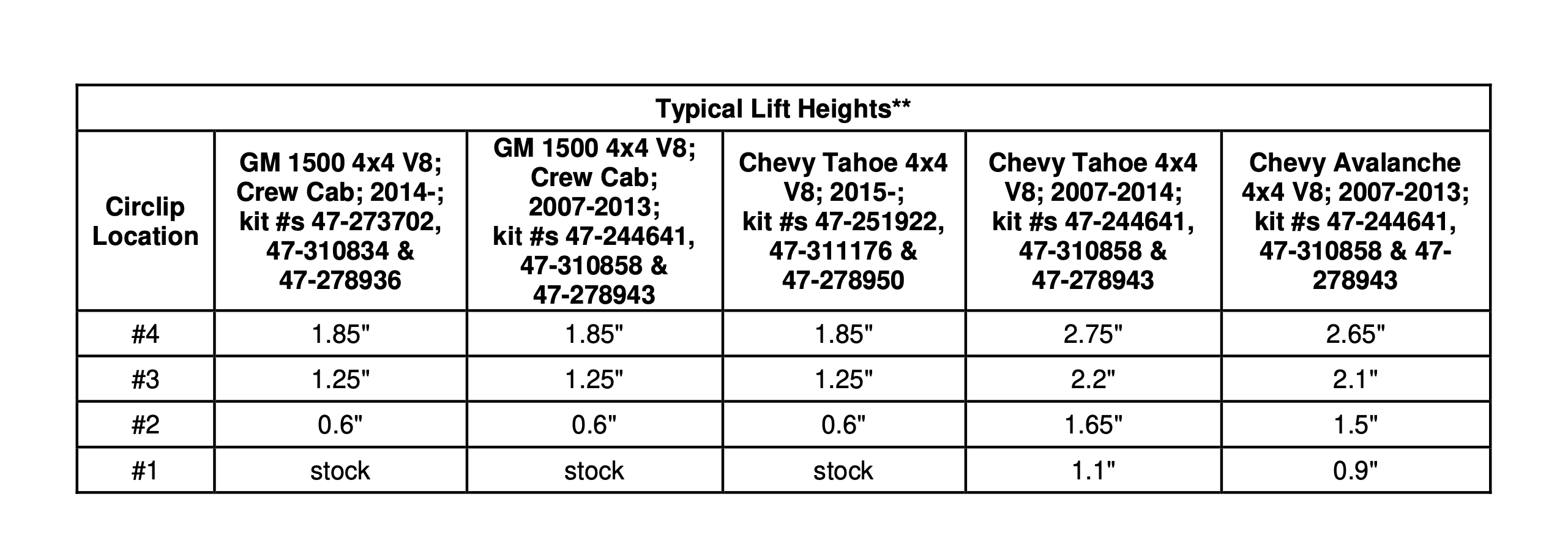

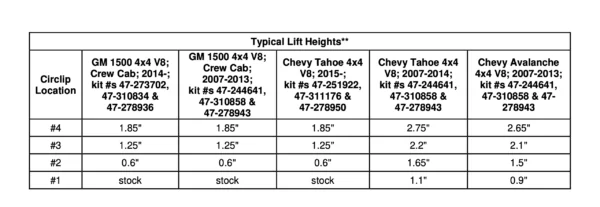

Multiple snap-ring grooves on the shock body let you move the spring seat and fine tune ride height. The system uses:

• (2) 60 mm monotube shock absorbers with large digressive pistons
• (2) custom matched cold wound coil springs
• (2) billet aluminum spring seats

The large piston and monotube construction give you strong damping control on and off road, resisting fade on washboard, towing, and longer dirt sections far better than stock struts or spacer-only kits.

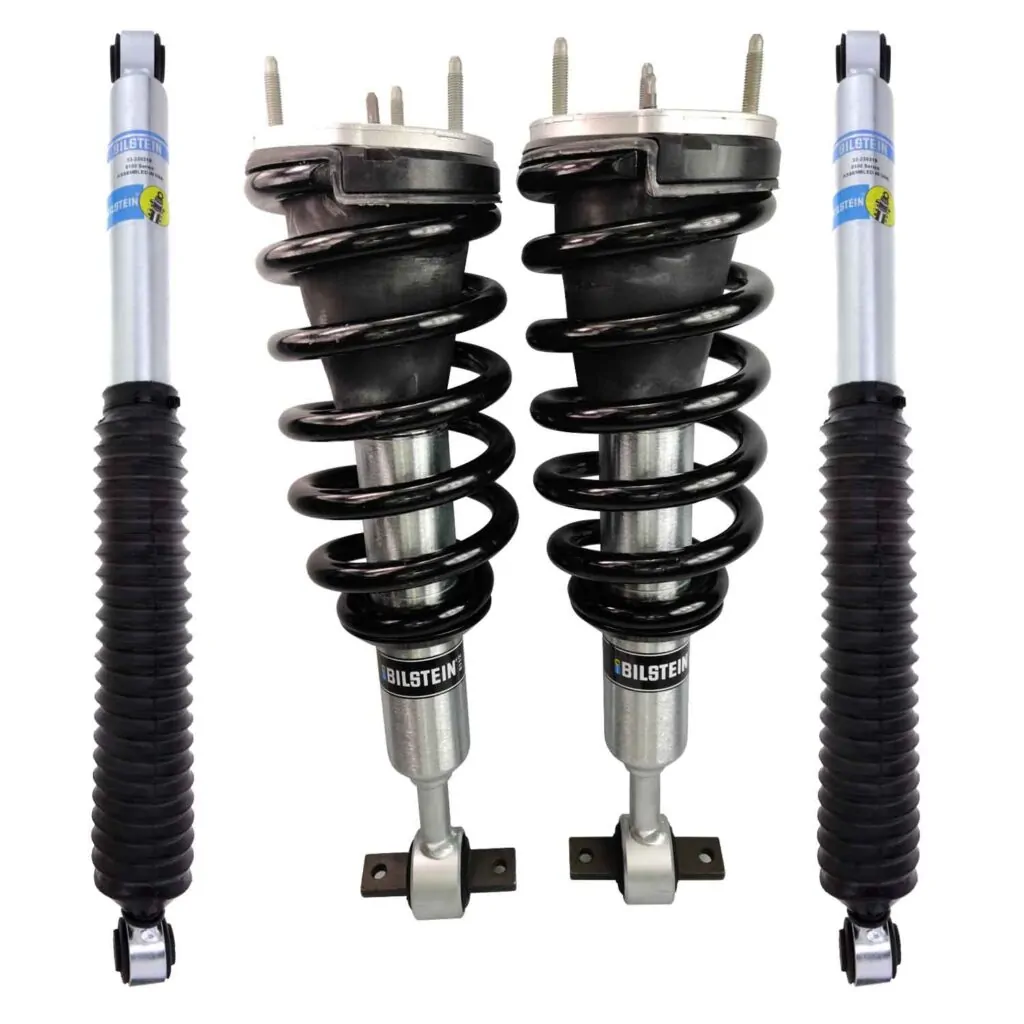

What’s Included In This Assembled Kit

• Front (pre-assembled coilovers):
  • Bilstein B8 6112 60 mm front struts with Bilstein lift springs and billet spring seats
  • ASSEMBLED with new top mounts, bushings, isolators, and hardware
  • Snap-ring adjustable spring perch, set up for approximately 1.85-2.75″ front lift (position and load dependent)
  • No spring compressor needed – true bolt-in coilovers
• Rear shocks:
  • Your choice of Bilstein 5100 rear shocks for 0-1″ lift, or
  • Bilstein 5160 remote reservoir rear shocks for extra cooling and control

Aftermarket Upper Control Arms Required

• Aftermarket upper control arms are required with this 1.85-2.75″ 6112 setup.

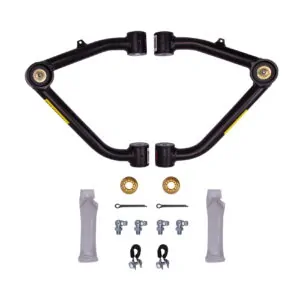

• Bilstein recommends the B8 Control Arm Kit for correct ball joint angle and down travel:
  •

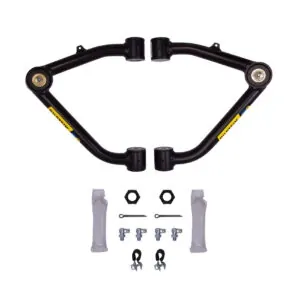

    Bilstein B8 Upper Control Arm Kit for 2007-2016 Chevrolet Silverado 1500

  •
    Bilstein B8 Upper Control Arm Kit for 2014-2018 Chevrolet Silverado 1500 with Aluminum or Stamped Steel UCAs


Why You’ll Like This Kit

• Real performance front end – 60 mm 6112 struts with matched coils outclass spacer lifts and small body shocks
• More ground clearance – 1.85-2.75″ front lift range supports larger tires and a more aggressive stance
• Pre-assembled coilovers – safer, faster install with no spring compressor
• Matched rear shocks – choose 5100 for a clean, simple setup or 5160 reservoirs for harder off road use
• Monotube, digressive valving – consistent, fade-resistant damping on rough pavement, towing, and dirt

Fitment

• Vehicle: Chevy Silverado 1500
• Model years: 2014, 2015, 2016, 2017, 2018
• Drivetrain: 4WD only
• Front lift range: approximately 1.85-2.75″ with correct snap-ring position and upper control arms
• Rear: Bilstein 5100 or 5160 shocks matched to your rear height (typically stock to mild lift, depending on option)

Install Notes

• You must run aftermarket upper control arms with this 6112 lift range for proper ball joint angle and droop
• Set front snap-ring position before installation based on desired ride height and weight (bumper, winch, etc.)
• Professional alignment is required after installation
• Verify tire clearance with your specific wheel width and offset once installed
