Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils and Rear Shocks for 2002-2009 GMC Envoy

Description
Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils and Rear Shocks for 2002-2009 GMC Envoy

Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils and Rear Shocks for 2002-2009 GMC Envoy (Non-SS)
Part Number: BIL460GE02S
Front Shocks: 24-103336 (assembled)
Rear Shocks: 24-103350 (pair)

Refresh the ride on your 2002-2009 GMC Envoy with a complete, bolt-on Bilstein 4600 shock and coilover package. This kit combines pre-assembled Bilstein 4600 front coilovers with quality OE-spec replacement coils (such as Moog or equivalent) and matching rear 4600 shocks to restore control, comfort, and confidence without lifting the vehicle.

What’s Included

• (2) Front Bilstein 4600 shocks – 24-103336, pre-assembled with:
  • OE replacement coil springs (such as Moog or equivalent, depending on availability)
  • New top mounts, bushings, and hardware
  • Dust boots and spring seats installed
• (2) Rear Bilstein 4600 shocks – 24-103350 (pair)
• Direct bolt-on replacement for stock-height 2002-2009 GMC Envoy (excluding SS)

Why Choose Bilstein 4600 for Your GMC Envoy

• Stock-height upgrade: Designed as a direct-fit replacement for factory shocks – no lift required, no guessing on ride height.
• Monotube performance: High-pressure nitrogen gas and monotube design provide consistent, fade-free damping even on rough roads and long highway drives.
• Digressive piston valving: Bilstein’s velocity-sensitive, digressive valving reacts instantly to bumps and potholes for a controlled, planted feel without beating you up.
• Improved ride & handling: Sharper steering response, reduced body roll, and much better stability with passengers, cargo, or gear in the back.
• Better control under load: Keeps the vehicle composed when towing light trailers, hauling family, or carrying work equipment.
• Long service life: One of the most cost-effective upgrades to extend the life and road manners of a high-mileage Envoy.
• Iconic Bilstein look: Durable yellow shock bodies with a clean, OE-style appearance.

Front Assembled Coilover Details – 24-103336

• Position: Front (left & right), coil spring over shock
• Design: Nitrogen gas-charged monotube
• Adjustable: No – fixed valving tuned specifically for GMC Envoy
• Extended length: 16.96″
• Compressed length: 12.13″
• Rod diameter: 1.81″
• Upper mount: Stem
• Lower mount: Base cup
• Valving: Deflective disc, velocity-sensitive
• Rod material / finish: Steel, polished
• Body color: Yellow
• Reservoir: None
• Includes: New top mounts, hardware, dust boots – pre-assembled, no spring compressor needed
• Quantity: Pair (2 front complete assemblies)

Rear Shock Details – 24-103350

• Position: Rear (left & right)
• Suspension type: Rear coil spring with separate shock
• Design: Nitrogen gas-charged monotube
• Adjustable: No
• Extended length: 23.35″
• Compressed length: 14.86″
• Rod diameter: 1.81″
• Upper / lower mount: Eyelet / eyelet
• Valving: Deflective disc valving tuned for Envoy rear axle
• Rod material / finish: Steel, polished
• Body color: Yellow
• Reservoir: None
• Includes dust boot: Yes
• Includes hardware: No (reuses factory mounting bolts)
• Quantity: Pair (2 rear shocks)

Fitment

• Vehicle: GMC Envoy
• Model years: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
• Ride height: Stock height (no lift)
• Excludes: WILL NOT FIT Envoy SS submodel
• Suspension type: Front coil / rear coil

Installation & Alignment

• Front coilovers arrive fully assembled – simply remove the old assemblies and bolt these in their place.
• No spring compressor required; ideal for DIY installs or shops that want to save time.
• We strongly recommend a professional alignment after any front suspension work to ensure proper tire wear and handling.

Warranty & Notes

• Warranty: Limited 90-day warranty (see manufacturer terms for details).

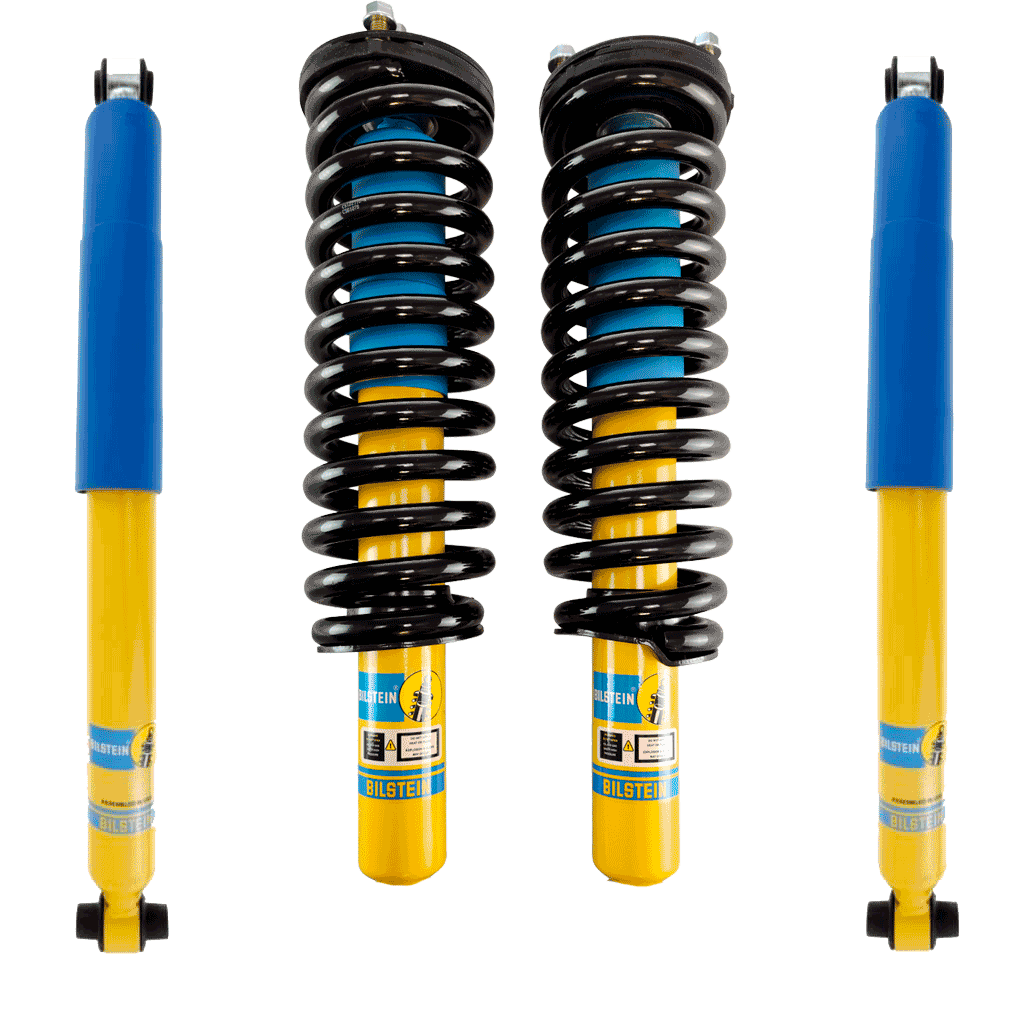

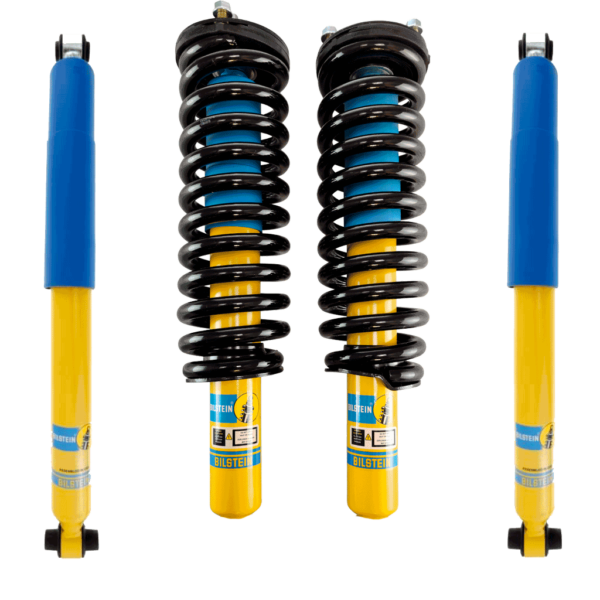

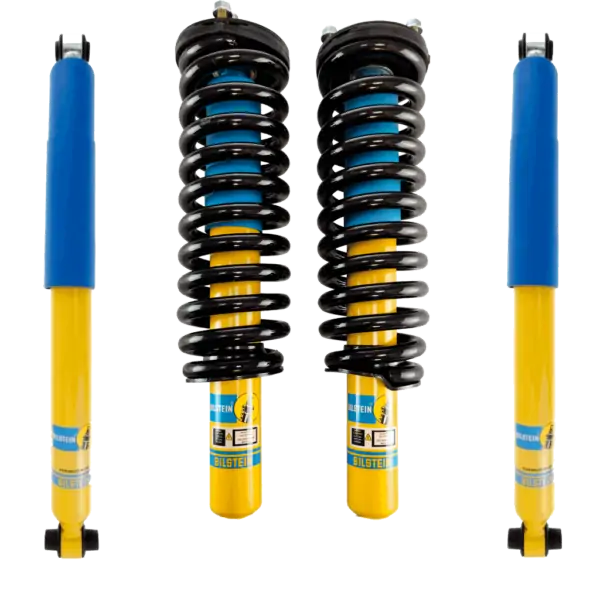

• Includes shocks and coilover assemblies exactly as pictured.
• OE replacement coils are high-quality aftermarket springs (such as Moog or similar) chosen to match stock ride height and load rating.

If your Envoy feels floaty, bouncy, or unstable, this Bilstein 4600 kit is a proven, stock-height solution that brings back confident, controlled ride quality on pavement, gravel, and everything in between.
