Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils for 2002-2009 GMC Envoy

Description
Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils for 2002-2009 GMC Envoy

Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils for 2002–2009 GMC Envoy (Non-SS)

Part: BIL460GE02

Need a complete front & rear shock kit?

Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils and Rear Shocks for 2002–2009 GMC Envoy

Need a full kit with front and rear coils?

Bilstein 4600 Front Assembled Coilovers, OE Replacement Coils with Rear Shocks and Rear Coils for 2002–2009 GMC Envoy

Complete Front Coilover Upgrade for Your GMC Envoy

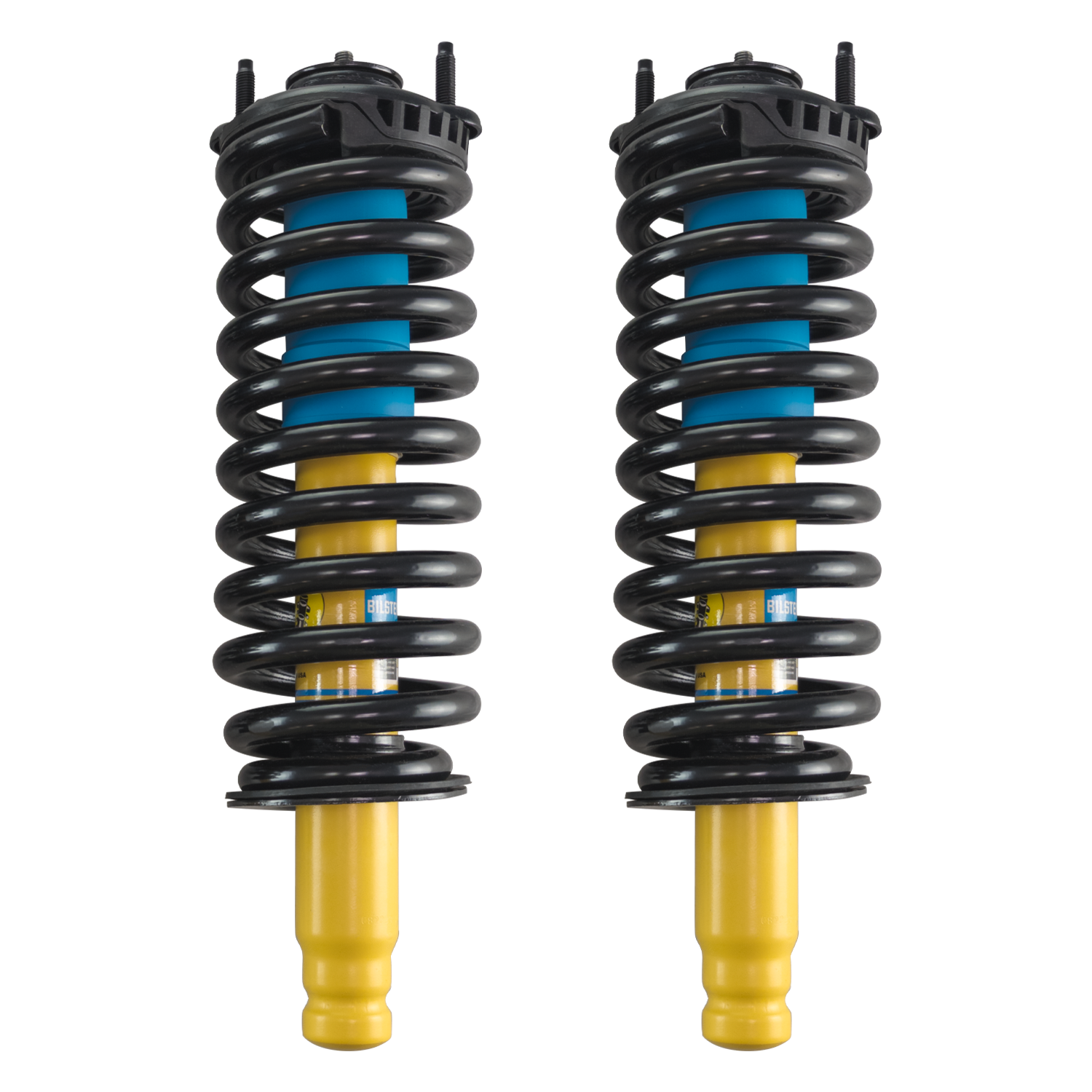

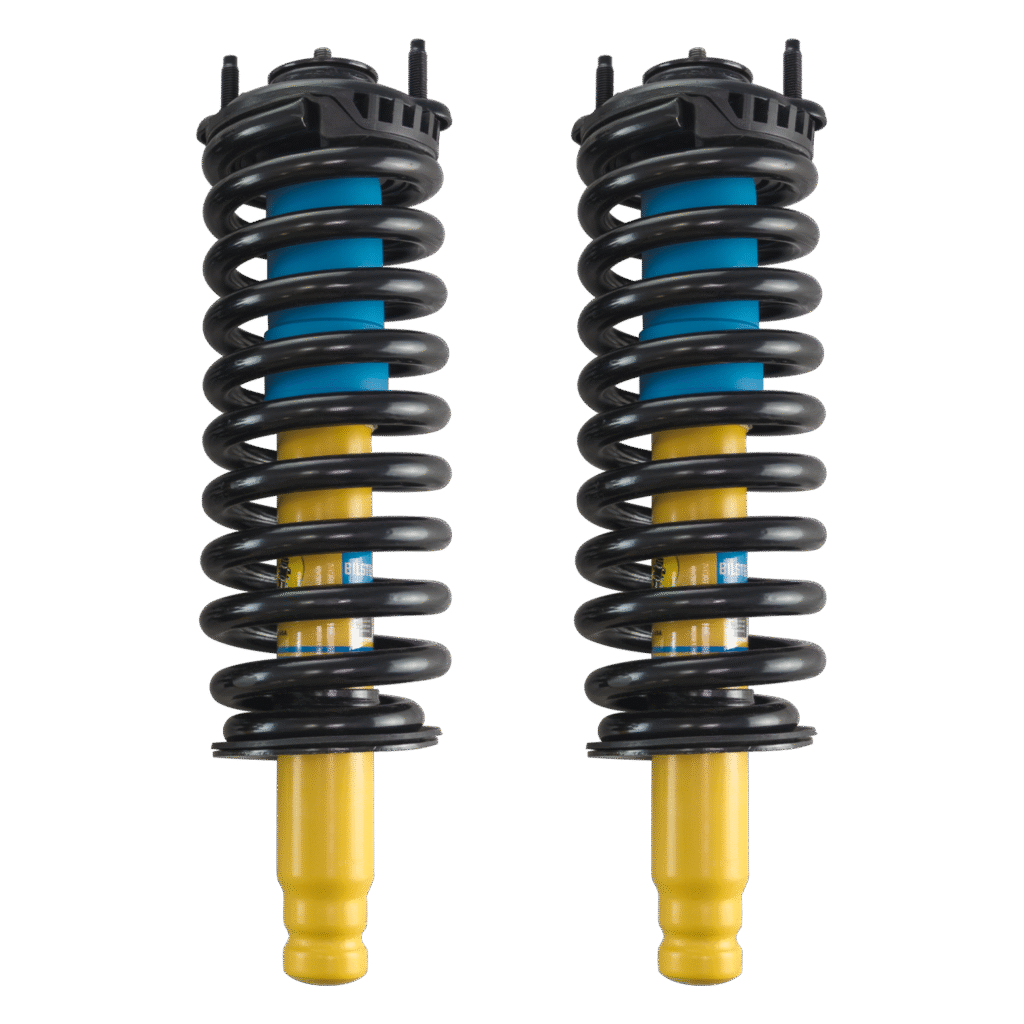

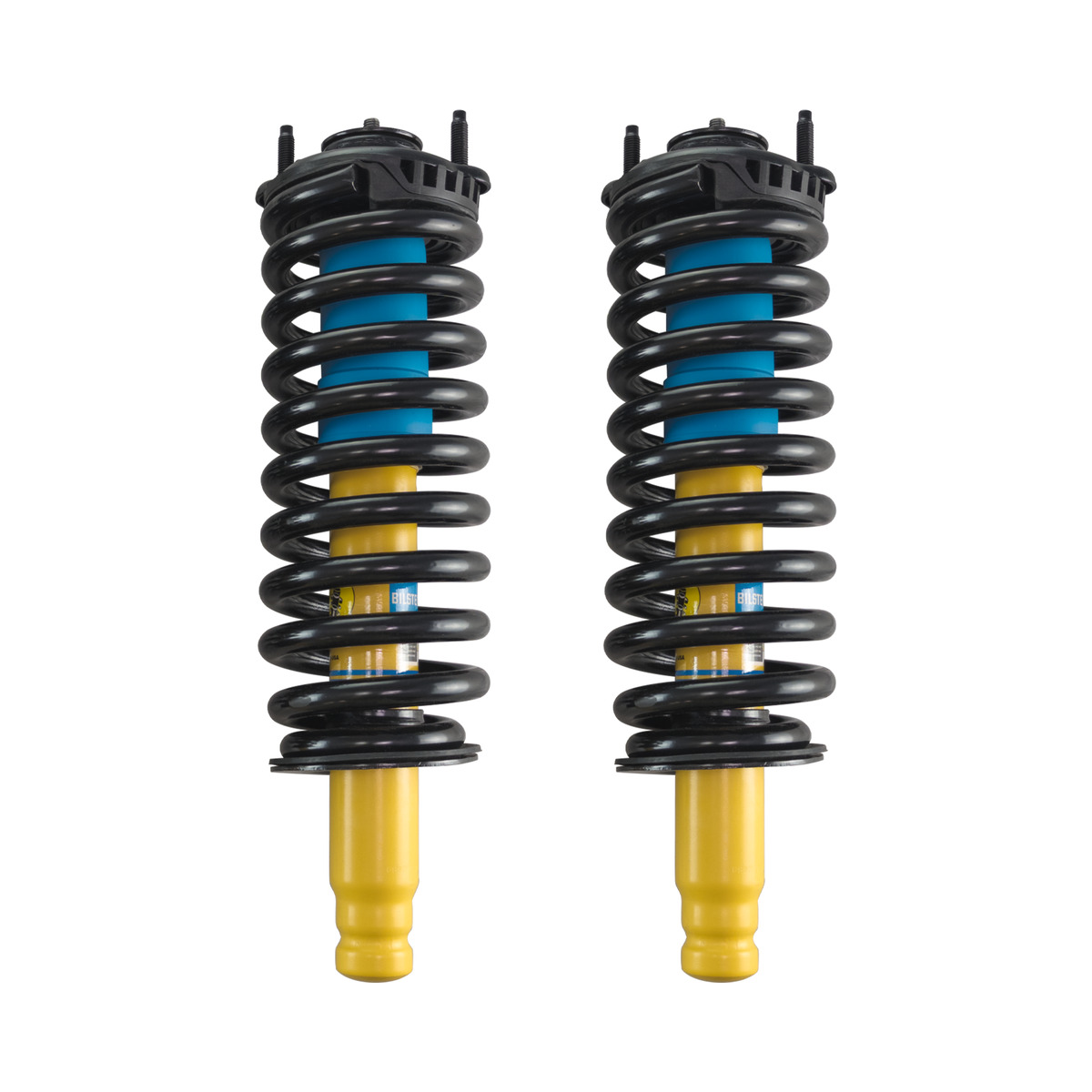

These Bilstein 4600 front assembled coilovers are a direct-fit, stock-height upgrade for your 2002–2009 GMC Envoy.
Each assembly pairs a Bilstein 4600 front shock with a high-quality OE replacement coil spring (such as Moog or equivalent), pre-assembled with new top mounts and hardware.
The result is a tighter, more controlled ride with better stability and comfort compared to tired factory struts.

What’s Included

• (2) Front Bilstein 4600 shocks – 24-103336 (left & right)
• Pre-assembled with OE replacement coil springs (such as Moog or equivalent)
• New top mounts, bushings, spring seats, and hardware installed
• Dust boots included – bolt-on assemblies, no spring compressor required

Why Choose Bilstein 4600 for Your Envoy

• Direct replacement at stock height: Designed specifically for 2002–2009 GMC Envoy front coil suspension (no lift, no drop).
• Monotube performance: High-pressure gas monotube design keeps damping consistent and fade-free, even on rough roads.
• Digressive piston valving: Velocity-sensitive, digressive valving reacts quickly to bumps and potholes for a controlled, confident feel.
• Improved ride & handling: Reduces front-end float, nose dive, and body roll while maintaining everyday comfort.
• Great for daily driving & highway use: Ideal for high-mileage Envoys that need a real upgrade over generic replacement struts.
• Time-saving assemblies: Coils and mounts are already installed – swap out your old units and bolt these in.

Fitment notes: WILL NOT FIT Envoy SS submodel

Suspension type: Front: Coil    Rear: Coil

Front Coilover / Shock Specifications – 24-103336

• Position: Front (driver & passenger)
• Type: Nitrogen gas charged
• Internal design: Monotube
• Adjustable: No
• Extended length: 16.96″
• Compressed length: 12.13″
• Rod diameter: 1.81″
• Upper mounting style: Stem
• Lower mounting style: Base cup
• Valving type: Deflective disc valving (digressive)
• Rod finish: Polished
• Rod material: Steel
• Body color: Yellow
• With reservoir: No
• Includes dust shield: No
• Includes hardware: Yes
• Includes boot: Yes
• Quantity: Pair (2 front assemblies)

Ride & Installation Notes

• Designed for stock-height GMC Envoy – does not provide lift.
• Front assemblies arrive fully built – no need to disassemble springs or rent a compressor.
• An alignment is strongly recommended after replacing front coilovers to ensure proper tire wear and handling.
• OE replacement coils are high-quality aftermarket springs (e.g., Moog or equivalent), matched to stock ride height and load rating.

If your Envoy feels bouncy, loose, or unstable in the front, this Bilstein 4600 assembled coilover set is a proven way to restore control and comfort with a simple, bolt-on upgrade.
