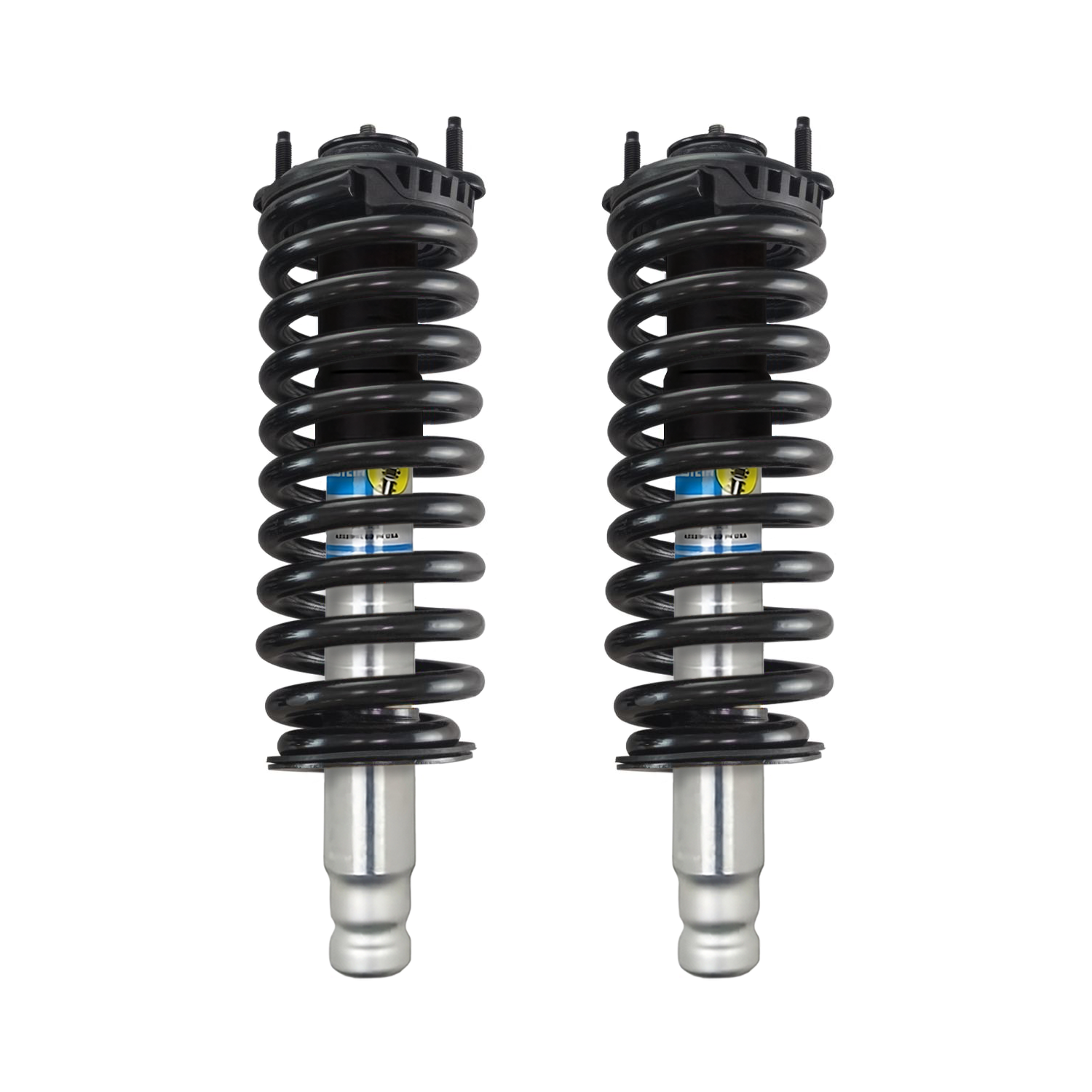

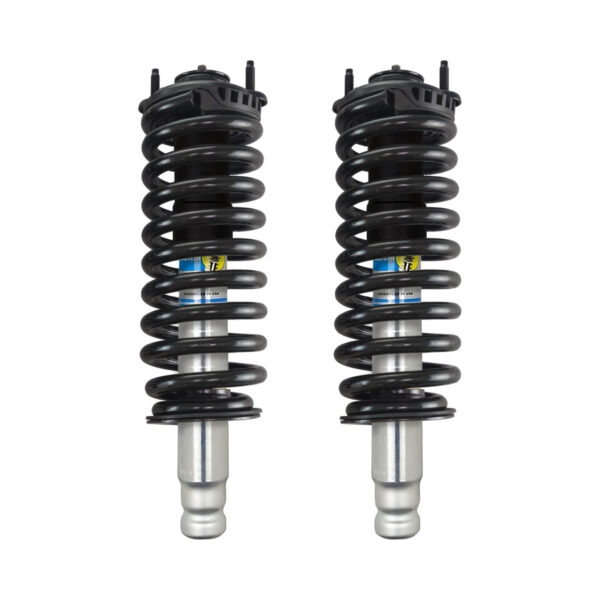

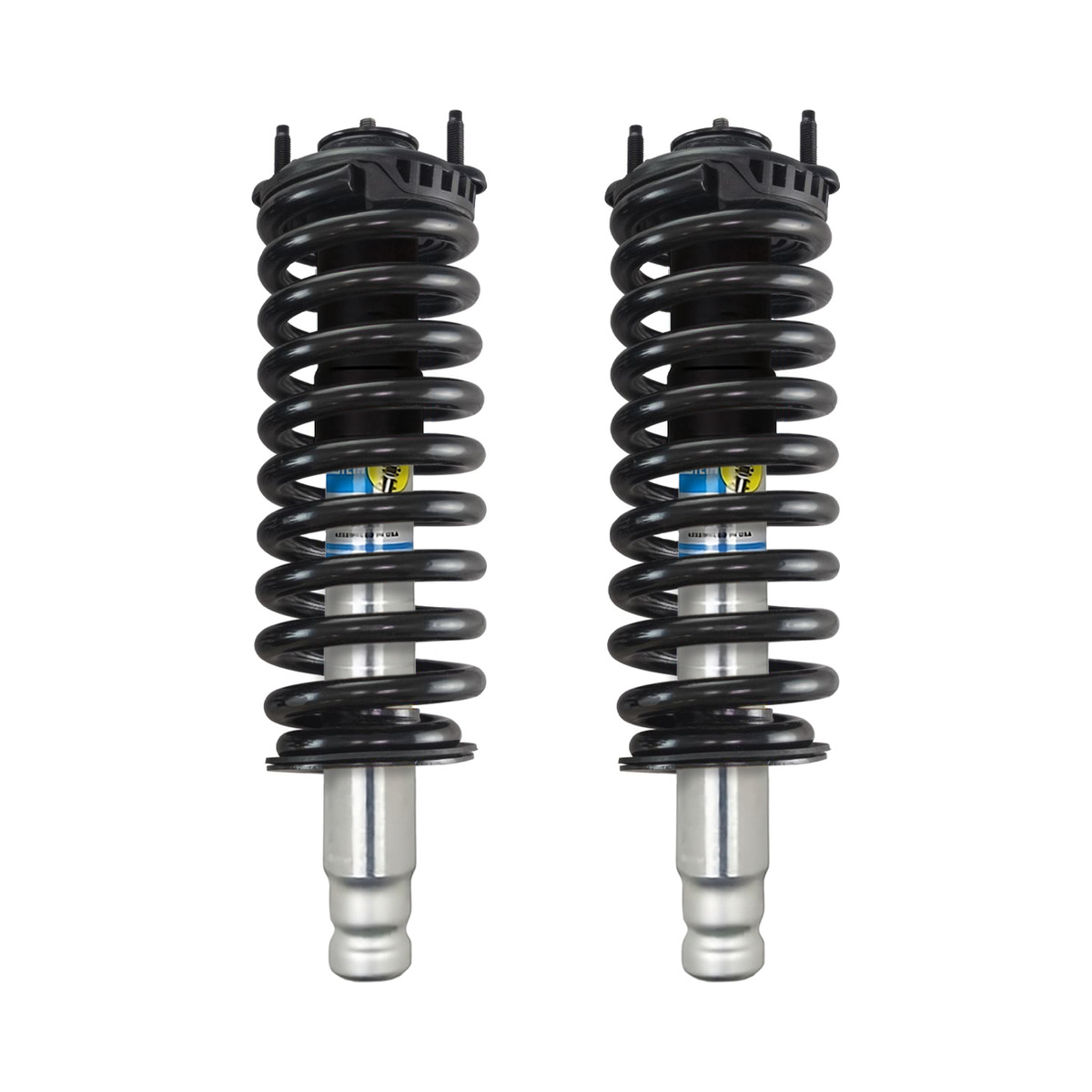

Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers For 2002-2009 Chevrolet Trailblazer

Description
Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers For 2002-2009 Chevrolet Trailblazer

Bilstein 5100 0–2.25″ Front Lift Assembled Coilovers for 2002–2009 Chevrolet Trailblazer

Part Number: 2×24-267014_ASB

Summary: The Bilstein B8 5100 front assembled coilover package is designed to improve ride quality, handling, and front-end stance on 2002–2009 Chevrolet Trailblazer models. Featuring Bilstein’s ride-height adjustable 5100 series shocks, this setup allows for up to 2.25 inches of front lift while maintaining factory ride comfort and control. These coilovers come fully assembled and ready to install, making them an ideal solution for leveling the vehicle or replacing worn factory suspension components.

Looking for a complete front and rear setup?

Bilstein 5100 0–2.25″ Front Lift Assembled Coilovers with 0–1″ Rear Lift Shocks for 2002–2009 Chevrolet Trailblazer

Front Coilovers

The Bilstein B8 5100 (Part #24-267014) is a ride-height adjustable monotube shock designed for vehicles equipped with a front coilover-style suspension. Multiple snap-ring grooves allow the spring perch to be positioned for up to 2.25 inches of front lift, providing an easy and reliable way to level the vehicle or improve suspension performance.

• Monotube Design: Provides consistent damping and fade-free performance.
• Adjustable Ride Height: Multiple snap-ring positions allow lift up to 2.25 inches.
• Digressive Valving: Reacts to road conditions for improved control and comfort.
• OE Spring Compatible: Utilizes factory coil springs and mounting hardware.
• Pre-Assembled: Ready to install with no spring compressor required.

Technical Specifications

• Suspension Type: Front Coilover
• Shock Series: Bilstein B8 5100
• Adjustable: Yes
• Internal Design: Monotube
• Gas Type: Nitrogen Gas Charged
• Rod Finish: Zinc Plated
• Body Color: Silver
• Body Diameter: 46mm
• Collapsed Length: 11.26 in (286.1 mm)
• Extended Length: 16.41 in (416.9 mm)
• Includes Boot: Yes

Fitment

• 2002–2009 Chevrolet Trailblazer
• Front suspension only
• Compatible with factory coil springs
• Provides 0–2.25 inches of front lift

What’s Included

• 2 x Bilstein 5100 Front Shock Assemblies
• Pre-installed spring perches
• All required mounting hardware

Why Choose This Product?

• Simple Lift Solution: Adjusts ride height without spacers or custom fabrication.
• Improved Handling: Reduced body roll and improved control over stock suspension.
• Bilstein Quality: Proven monotube technology trusted worldwide.
• Daily Driver Friendly: Maintains factory ride comfort with improved stability.
