How much lift can I get from these Bilstein 5100 assembled coilovers on my Envoy?

These Bilstein B8 5100 front coilovers use multiple snap-ring positions on the body to move the spring seat and typically provide between 0 and 2.25 inches of front lift on a 2002-2009 GMC Envoy, depending on clip position and vehicle weight. They are designed primarily to level the front of the SUV.

Do these Bilstein 5100 coilovers come with springs, or do I reuse my stock coils?

For this assembled product, the Bilstein 5100 height adjustable shocks are built into complete coilovers with OE-style replacement coil springs, new top mounts, bump stops, and hardware. You do not reuse your original front coils or mounts.

Do I need a spring compressor to install these Bilstein 5100 coilovers?

No. These Bilstein 5100 units are supplied as fully assembled coilovers. The coils, top mounts, bump stops, and hardware are already installed, so you do not need a spring compressor during installation.

Will these Bilstein 5100 assembled coilovers fit the Envoy SS?

No. This part is designed for 2002-2009 GMC Envoy models with standard front coil suspension and does not fit the Envoy SS submodel, which uses a different suspension setup.

Do I need an alignment after installing Bilstein 5100 coilovers on my Envoy?

Yes. Any time you change front ride height or replace front coilovers, a professional alignment is strongly recommended. Correct camber, caster, and toe settings help your Envoy track straight and protect your tires from uneven wear.

Are Bilstein 5100 coilovers good for daily driving as well as light off road use?

Yes. Bilstein B8 5100 shocks are tuned to balance on road comfort with improved control over rough pavement, gravel, and light trails. They are one of the most popular leveling options for GM midsize SUVs because they ride well on the street while providing better damping and travel than spacer-only kits.

Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers For 2002-2009 GMC Envoy

SKU: BIL5100GE09

Sale!

Description

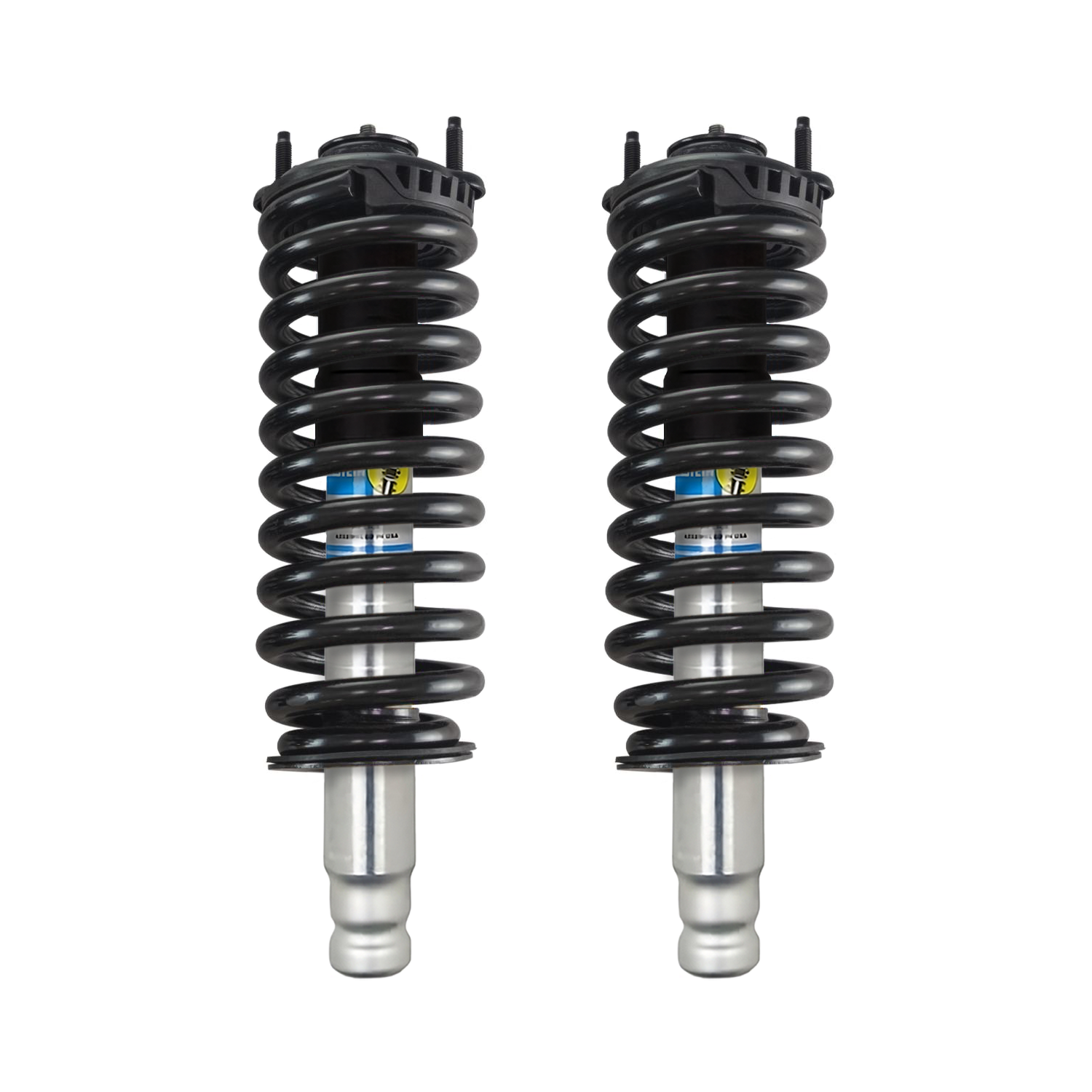

Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers For 2002-2009 GMC Envoy

Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers for 2002-2009 GMC Envoy
Part: BIL5100GE09

Need the full front assembled + rear shocks package?
Click here for the complete kit .

Level and Upgrade Your Envoy The Right Way

Give your 2002-2009 GMC Envoy a proper leveling upgrade with these Bilstein B8 5100 0-2.25″ front assembled coilovers. Built for SUVs with front coilover suspension, the Bilstein 5100 uses a snap-ring grooved body to raise the spring seat and provide up to 2.25″ of front lift (application-dependent) with the control and ride quality Bilstein is known for.

For this product, we take the Bilstein 5100 height-adjustable shocks and assemble them as complete coilovers using OE-style replacement coil springs, new top mounts, bump stops, and hardware. That means no spring compressor needed and a faster, cleaner install with guaranteed fitment.

What Is Included

(2) Front Bilstein B8 5100 shocks – 24-267014 (left and right)
Assembled with OE-style replacement coil springs
New top mounts, bushings, and mounting hardware pre-installed
New bump stops and dust boots installed
Ready-to-bolt-in coilover assemblies – no need to disassemble your old struts

Suspension & Shock Specs

Suspension: Front: Coil – Rear: Coil

Type: Nitrogen gas charged

Internal design: Monotube

Adjustable: Yes (multiple snap-ring positions)

Rod finish: Zinc plated

Body color: Silver

With reservoir: No

Includes boot: Yes

Quantity: Pair

Collapsed length (IN): 11.26

Extended length (IN): 16.41

Collapsed length (MM): 286.1

Extended length (MM): 416.9

Body design: Snap-ring grooved body (coilover)

Body diameter: 46 mm

Features:

46 mm monotube design for consistent, fade-free performance
Snap-ring adjustable spring perch provides approximately 0-2.25″ of front lift
Levels the front of your Envoy without cheap spacer kits
Increases usable suspension travel compared to spacer-only solutions
Vehicle-specific valving for ideal control and comfort on and off road
Assembled with new coils, top mounts, and hardware – no spring compressor required
Limited lifetime warranty from Bilstein (see manufacturer terms)

Fitment: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 GMC Envoy with front coil suspension. Recommended for stock or near-stock front weight. Does not fit Envoy SS.

Includes: Assembled front coilovers exactly as pictured.

Ride & Installation Notes

Ideal if you want to level the front of your Envoy and improve ride at the same time.
Choose your clip position to fine tune front lift height (within the 0-2.25″ range).
We strongly recommend a professional alignment after installation.
