Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers with 0-1″ Rear Lift Shocks For 2002-2009 GMC Envoy

SKU: 2x24-267014-ASBS_n1
Sale!
Bilstein 5100 0-2.25 Front Lift Assembled Coilovers with 0-1 Rear Lift Shocks For 2002-2009 GMC Envoy
Bilstein 5100 0-2.25 Front Lift Assembled Coilovers with 0-1 Rear Lift Shocks For 2002-2009 GMC Envoy

Description
Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers with 0-1″ Rear Lift Shocks For 2002-2009 GMC Envoy

Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers with 0-1″ Rear Lift Shocks For 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 GMC Envoy

Part: 2×24-267014_ASBS_n1

Upgrade the ride and stance of your 2002–2009 GMC Envoy with this Bilstein 5100 Series Lift Kit, featuring pre-assembled front coilovers (part number 24-267014) and rear monotube shocks. Engineered for improved handling, added ground clearance, and enhanced control, this system delivers a factory ride feel with off-road-ready performance.

Whether you’re looking to level your SUV, fit larger tires, or improve off-pavement capability, this Bilstein 5100 kit offers the perfect balance of comfort and durability—backed by one of the most trusted names in suspension.

Key Benefits:

  • Improved Ride Quality – Monotube gas pressure design offers consistent, fade-free damping

  • Factory-Matched Comfort – Smooth on-road manners with better control over rough surfaces

  • Increased Front Ground Clearance – Easily fit larger tires and level the front stance

  • Bolt-On Installation – Direct-fit with no spring compressor needed (front pre-assembled)

  • Versatile Performance – Ideal for daily driving, mild off-roading, and towing

Performance Specs:

  • Front Lift Height: 0 to 2.25 inches (adjustable)

  • Rear Lift Compatibility: 0 to 1 inch

  • Application-tuned valving for 2002–2009 GMC Envoy

  • Heavy-duty zinc-plated finish for corrosion resistance

  • Long-lasting digressive valving for off-road support

Enhance your Envoy’s suspension performance, appearance, and ride quality with a trusted solution from Bilstein. This 5100 Series kit is the perfect upgrade for SUV owners who want lift without compromise.
Lift it right—lift it with Bilstein.

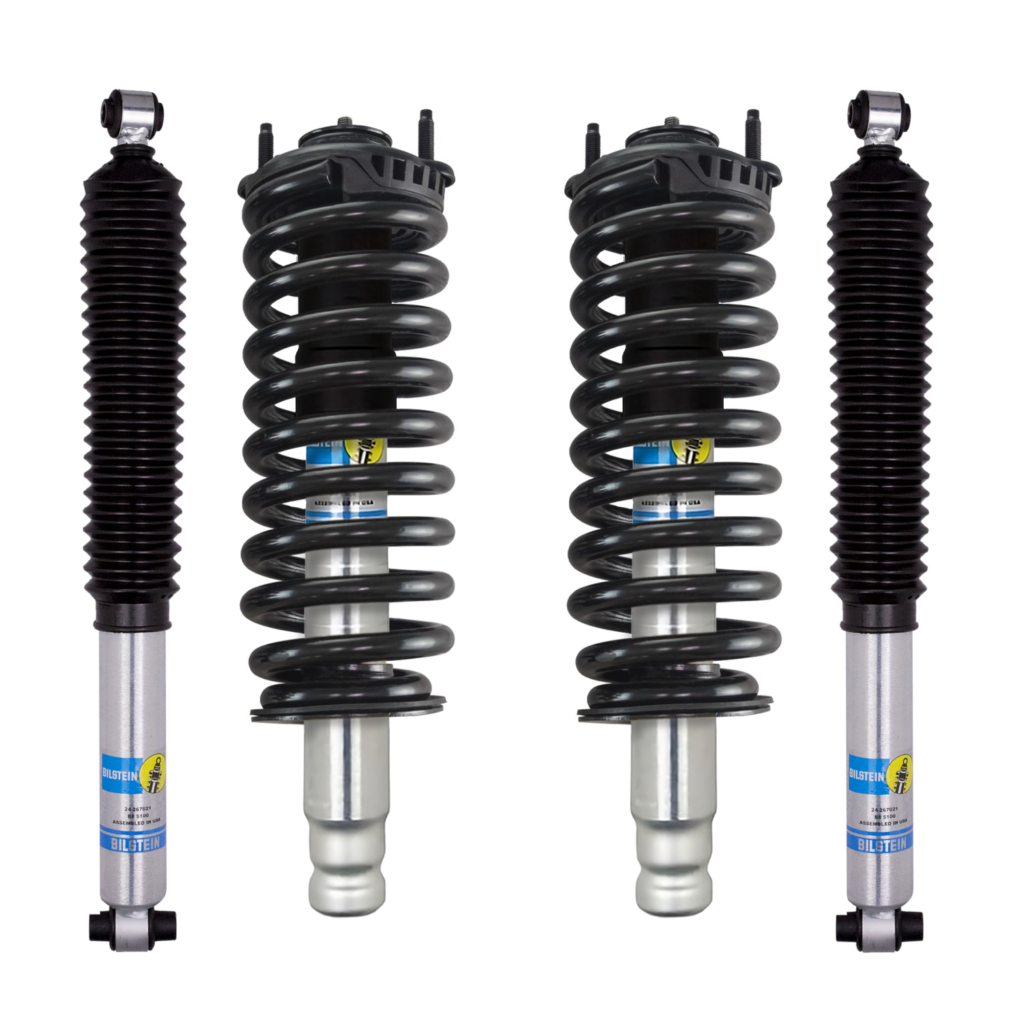

Includes Shocks exactly as pictured

Rear Shocks:

Part: Qty 2 of 24-267021

Product Description:

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Suspension: Front: Coil Rear: Coil
Collapsed Length: (IN)14.63
Extended Length: (IN)23.3
Collapsed Length: (MM)371.5
Extended Length: (MM)591.7
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Type: Gas Charged
Internal Design: Monotube
Adjustable: No
Upper Mounting Style: Loop
Lower Mounting Style: Loop
Body Color: Silver
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Quantity: Pair
Features:
  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Patented Digressive Valving Instantly Reacts To Changing Surface Conditions
  • OEM Certified Mounting Hardware Allows For Easy Installation
  • Zinc Plated For Resistance Against Harsh Elements
  • Durable Vulcanized Neoprene Rubber Bushings
  • Limited Lifetime Warranty

Includes Shocks exactly as pictured
