Bilstein 6112 0-1.85″ Front Lift Assembled Coilovers for 2015-2020 Chevy Yukon 2WD/4WD

Description
Bilstein 6112 0-1.85″ Front Lift Assembled Coilovers for 2015-2020 Chevy Yukon 2WD/4WD

Bilstein 6112 0-1.6″ Front Lift Assembled Coilovers for 2015-2020 Chevy Yukon 2WD/4WD
Part: 47-310834-ASB-1 (previous: 47-311176-ASB-1, 47-251922)

Upgrade the front suspension of your 2015-2020 Chevy Yukon with Bilstein B8 6112 big-body assembled coilovers, engineered to level the stance, improve control, and support larger tires without sacrificing daily comfort.

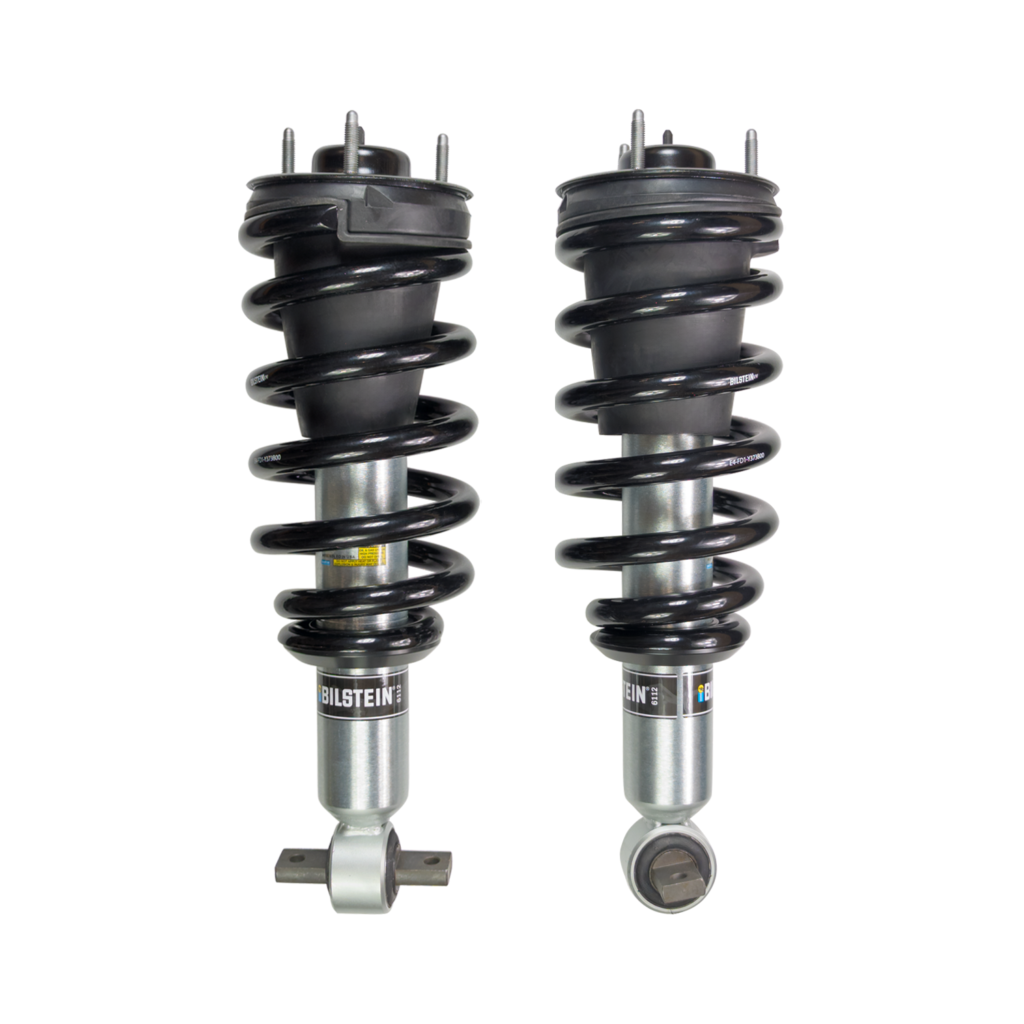

This package uses the current 47-310834 Bilstein 6112 kit, which consists of Bilstein lift coil springs paired with (2) Bilstein 60 mm shocks 24-310840, professionally assembled with new top mounts, bushings, isolators, and hardware for a true bolt-in installation.

Front ride height is adjustable within an effective range of approximately 0-1.6″ for the Yukon chassis, allowing you to reduce factory rake or compensate for mild front-end weight while maintaining proper suspension geometry.

Fitment note: Will not fit LTZ or Police Package models.

What’s Included

• Front (pre-assembled coilovers):
  • 2 x Bilstein B8 6112 front shocks 24-310840
  • Bilstein matched cold-wound lift coil springs
  • Billet aluminum spring seats
  • ASSEMBLED with new top mounts, rubber isolators, bushings, and mounting hardware
  • Snap-ring adjustable spring perch
  • No spring compressor required

Bilstein B8 6112 Technology

Bilstein B8 6112 leveling kits are designed to provide additional ground clearance, improved wheel travel, and superior damping control compared to factory struts or spacer lifts.
The large 60 mm monotube body houses a digressive piston that delivers firm control during cornering, braking, and towing while remaining compliant over rough pavement and uneven terrain.

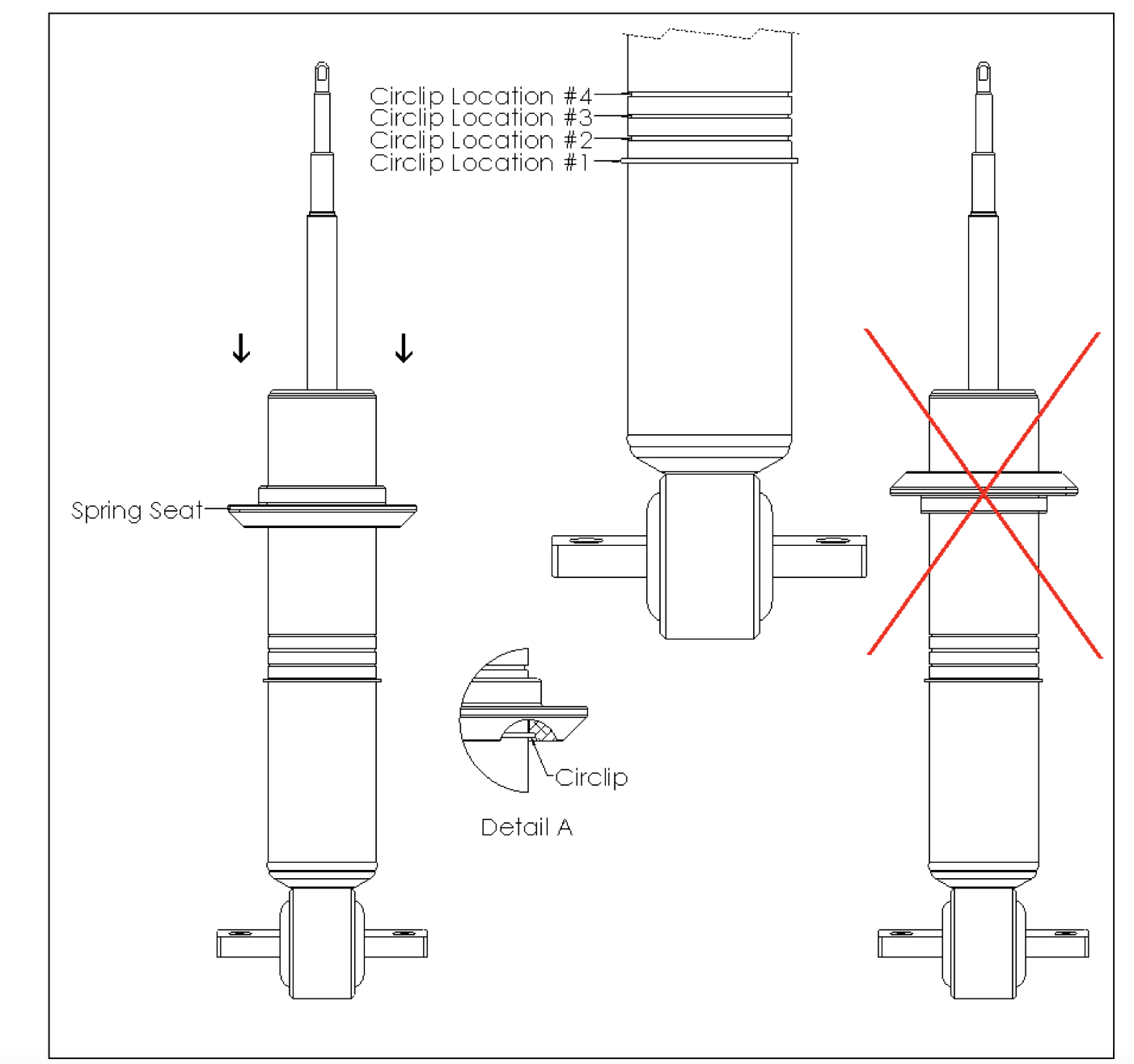

Multiple snap-ring grooves allow the spring seat height to be adjusted. On the 2015-2020 Yukon platform, this setup supports an effective 0-1.6″ front lift range, depending on clip position, trim level, and added accessories.

Specifications

• Front shock series: Bilstein B8 6112
• Body diameter: 60 mm
• Body design: Snap-ring grooved body (coilover)
• Finish: Zinc-plated dampers / black springs
• Reservoir: No
• Adjustable damping: No (vehicle-specific digressive valving)
• Ride height: Adjustable via snap-ring perch

Fitment

• Vehicle: Chevy Yukon
• Model years: 2015, 2016, 2017, 2018, 2019, 2020
• Drivetrain: 2WD or 4WD
• Front lift range: approximately 0-1.6″
• Exclusions: does not fit LTZ or Police Package models

Why You’ll Like This Setup

• Big-body 6112 control – significantly more damping authority than stock or spacer-only lifts
• Pre-assembled convenience – arrives ready to install with new mounts and hardware
• Clean leveling solution – levels factory rake without compromising ride quality
• Bilstein durability – monotube design resists fade and performs consistently under load

Install Notes

• Select your desired snap-ring position before installation
• Alignment is required after changing front ride height
• Actual lift varies with trim level, engine, and added front-end weight
