Bilstein 5100 0-2.75″ Front Assembled Coilovers 2009-2010 Dodge Ram 1500 4WD

Description
Bilstein 5100 0-2.75″ Front Assembled Coilovers 2009-2010 Dodge Ram 1500 4WD

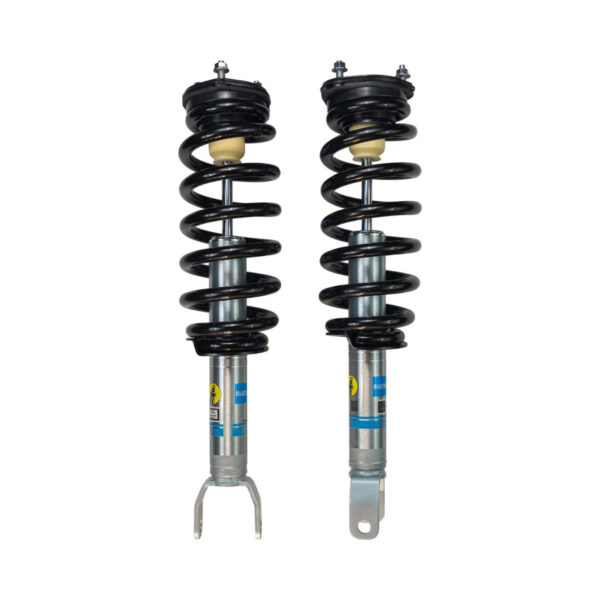

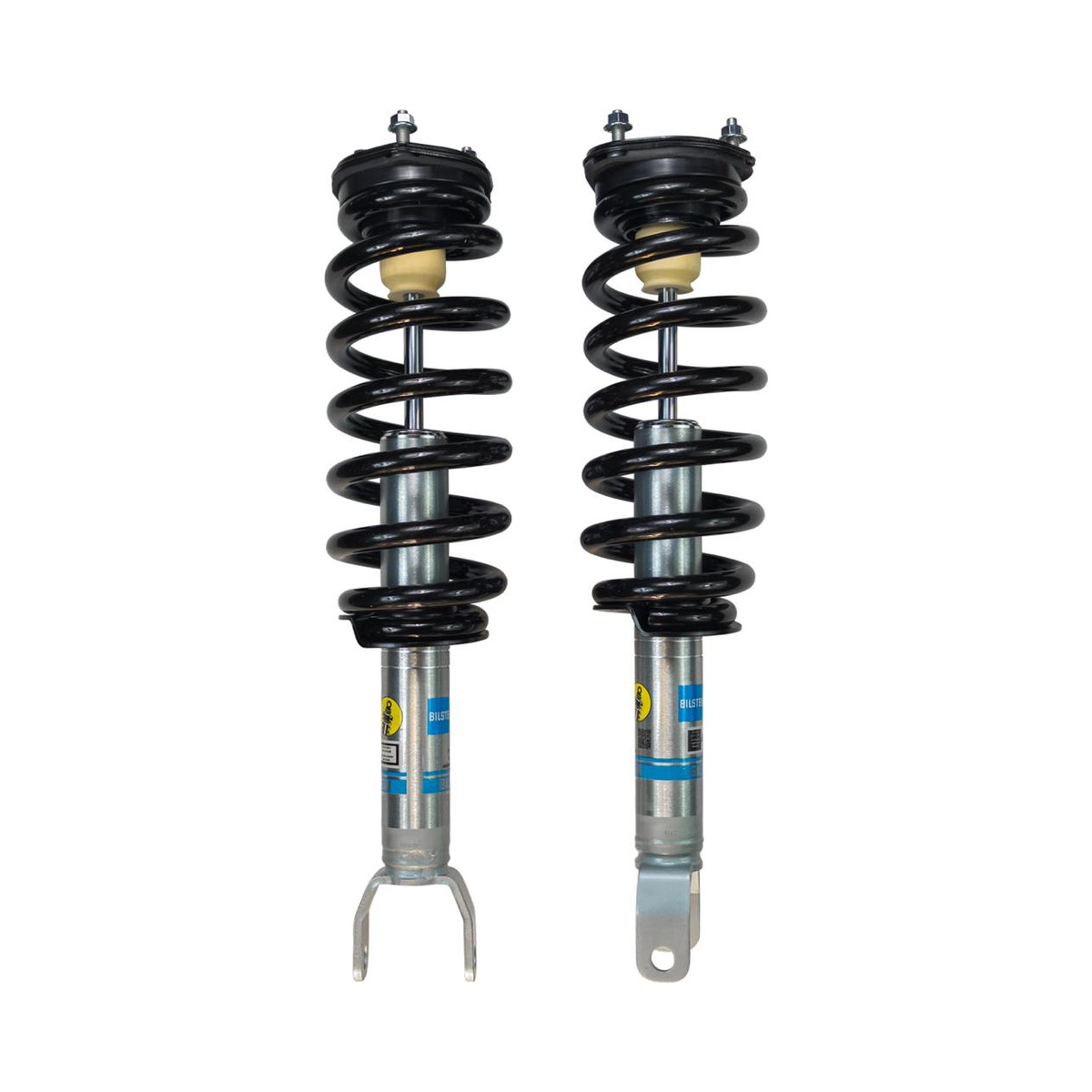

Bilstein 5100 0-2.75″ Front Lift Pre-Assembled Coilovers – 2009-2010 Dodge Ram 1500 4WD

Part: 5100R1500B

Level your RAM 1500 with a bolt-on front suspension upgrade that blends control, comfort, and durability. These Bilstein B8 5100 coilovers arrive fully assembled with OE-style replacement coils, new top mounts, and hardware, so you skip the spring compressor and get a faster, safer install. Height is adjustable within the 0-2.75″ range via snap-ring perch positions on the shock body.

Need a kit with rear shocks?

What’s Included

• 2 x Bilstein 5100 front ride-height-adjustable struts (24-317887)
• 2 x OE-style replacement front coil springs
• New top mounts, isolators, dust covers, and hardware
• Professionally pre-assembled coilover units – ready to install

Why You’ll Like It

• No spring compressor needed – pre-assembled for a clean, quick install
• Adjustable 0-2.75″ front lift – dial in a level stance or mild lift to clear larger tires
• Bilstein 5100 control – monotube design with 46 mm digressive piston for consistent, fade-resistant damping
• OE-style comfort – factory-like ride with tighter body control

Front Shock Specs (24-317887)

• Series – 5100
• Extended length – 21.40 in
• Collapsed length – 15.12 in

Coil Option

• OE Replacement only – generic OE-style coils included

Fitment

• Vehicle – RAM 1500 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
• Drivetrain – 4WD only
• Exclusions – will not work on trucks with the TRX package

Technical Notes

• Snap-ring grooved body sets spring seat height within the stated range
• Monotube, nitrogen gas-charged, 46 mm digressive piston
• Alignment is required after installation
• Tire clearance depends on wheel width and offset – verify after install

FAQ

Do these come assembled? Yes – new coils, mounts, and hardware are installed. No spring compressor needed.

Do they lift the rear? No – this is a front-only package. For a matched front/rear kit, see

Will this fit my TRX? No – not compatible with TRX package trucks.
