Bilstein 4600 Front Coilovers with OE Replacement Coils and Rear Shocks for 2011-2015 Dodge Durango
Description
Bilstein 4600 Front Coilovers with OE Replacement Coils and Rear Shocks for 2011-2015 Dodge Durango
Bilstein 4600 Front OE Replacement Coilovers with OE Replacement Coils and Rear Shocks for 2011-2015 Dodge Durango
Part Number: 4600BKDD10 (Front: 24-225410 | Rear: 24-225427)
Summary: The Bilstein B6 4600 Front and Rear Suspension Kit is an OE-replacement shock and coilover solution engineered by Bilstein for stock-height 2011-2015 Dodge Durango applications. This system targets factory ride softness, brake dive, and inconsistent handling by pairing Bilstein’s monotube 4600 dampers with fully assembled front coilovers using OE replacement springs. Featuring velocity-sensitive digressive valving, the kit delivers fade-free performance and improved control while maintaining factory ride height and suspension geometry.
Features
- 46mm Monotube Shock Design: High-pressure monotube construction increases oil volume and heat dissipation, preventing damping fade during extended driving.
- Digressive Valving Technology: Velocity-sensitive piston responds instantly to road inputs, improving body control under braking and cornering while preserving ride comfort.
- Fully Assembled Front Coilovers: Front shocks are pre-assembled with OE replacement coils, new spring seats, top mounts, bushings, and hardware to eliminate spring compressor use.
- Application-Specific Valving: Each shock is tuned specifically for the Dodge Durango platform to deliver predictable handling and balanced ride quality.
- Stock-Height Replacement: Designed for factory ride height, restoring original stance while improving stability and control.
Technical Specifications
| Specification | Value |
|---|---|
| Front Coilovers (24-225410) | |
| Internal Design | Monotube |
| Collapsed Length | 26.28 in (667.6 mm) |
| Extended Length | 31.48 in (799.6 mm) |
| Lower Mount Type | Clevis |
| Upper Mount Type | Stem |
| Body Diameter | 2.0 in |
| Finish | Yellow Paint |
| Spring Seat Included | Yes |
| Shaft Diameter | 14mm |
| Adjustable Damping | Non-Adjustable |
| Replacement Mounting Kit | B4-KT1-Z294A00 |
| Rear Shocks (24-225427) | |
| Internal Design | Monotube |
| Collapsed Length | 16.02 in (407.0 mm) |
| Extended Length | 22.34 in (567.5 mm) |
| Lower Mount Type | Clevis |
| Upper Mount Type | Stem |
| Body Diameter | 2.0 in |
| Piston Diameter | 46mm |
| Finish | Yellow Paint |
| Spring Seat Included | No |
| Shaft Diameter | 14mm |
| Adjustable Damping | Non-Adjustable |
| Replacement Mounting Kit | B4-KT1-Z295A00 |
Fitment
- 2011-2015 Dodge Durango
What’s Included

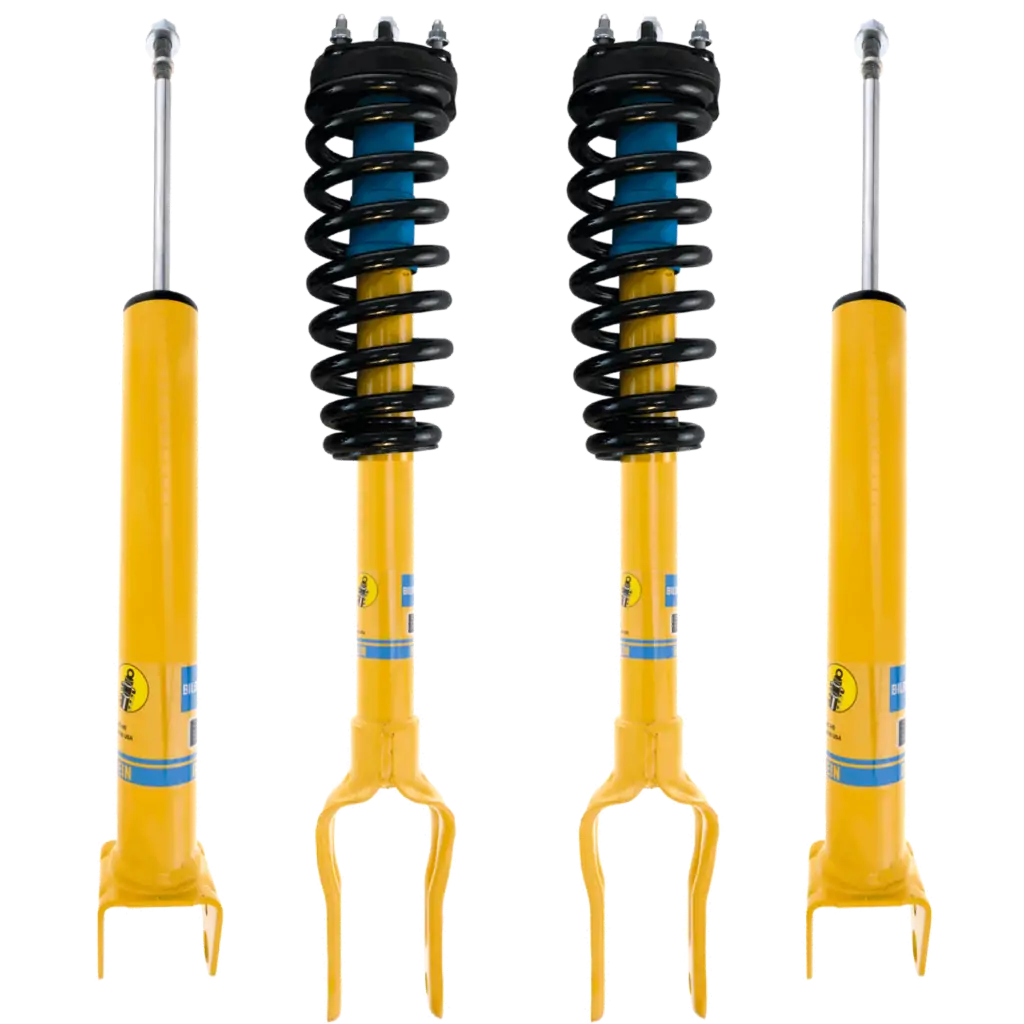

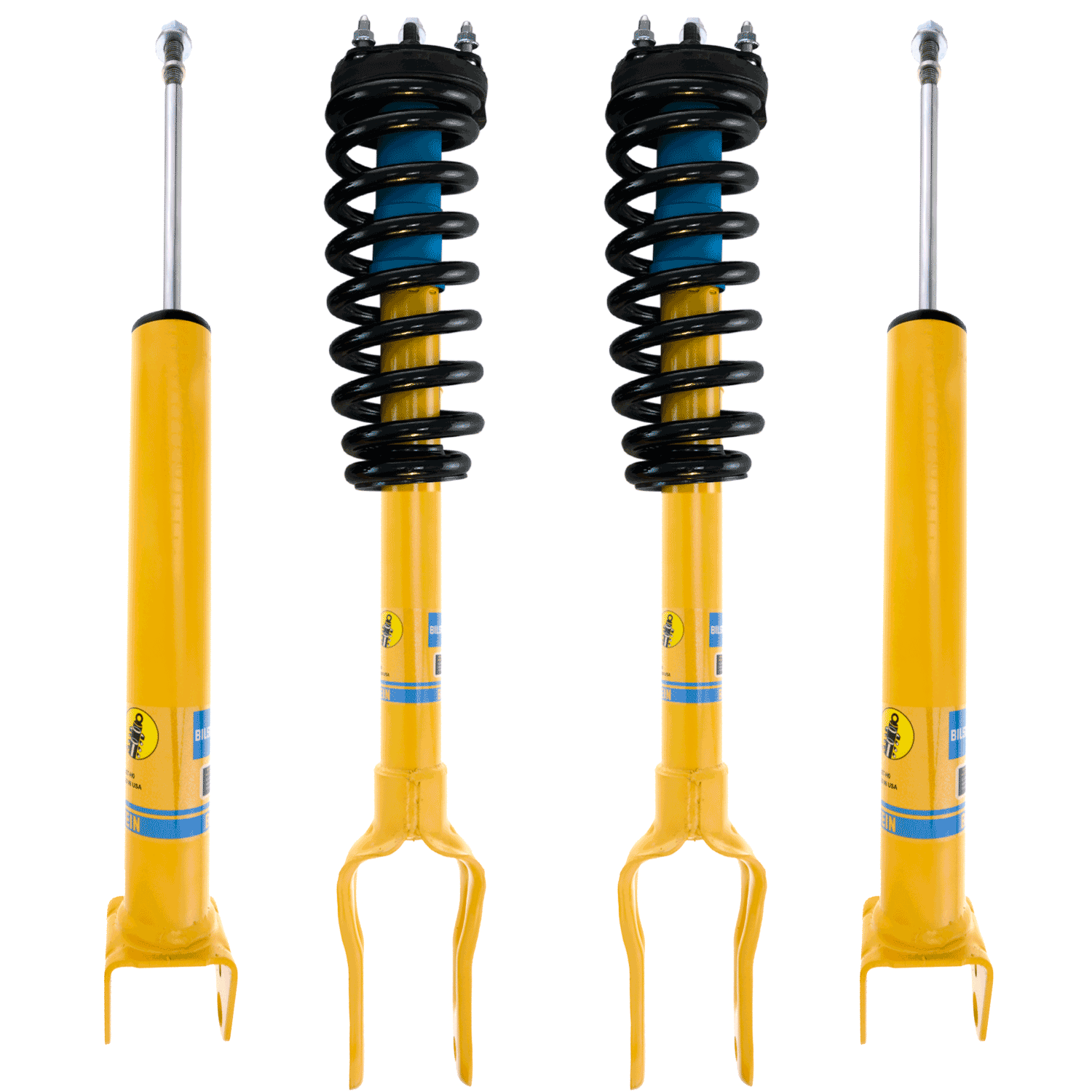

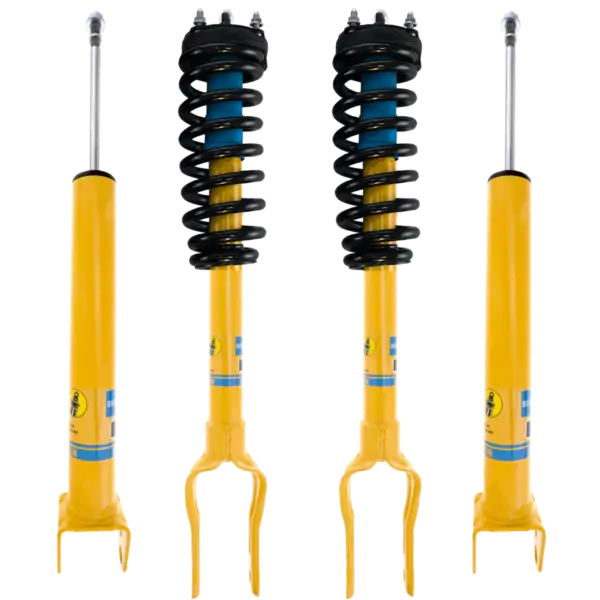

- (2) Bilstein 4600 Front Shocks (24-225410) assembled with OE replacement coils
- (2) Bilstein 4600 Rear Shocks (24-225427)
- New Front Spring Seats
- New Front Top Mounts
- New Bushings and Installation Hardware
Why Choose This Product?
- Engineering Advantage: Bilstein’s monotube, digressive-valved 4600 platform delivers fade-free damping backed by decades of OE and aftermarket engineering heritage.
- Performance Benefit: Restores factory ride height while improving stability, braking control, and overall ride comfort.
Frequently Asked Questions
Does this kit lift the Dodge Durango?
No. This kit is designed to maintain factory ride height.
Are the front coilovers fully assembled?
Yes. Front coilovers ship pre-assembled with OE replacement springs, mounts, bushings, and hardware.
Are these shocks adjustable?
No. Bilstein 4600 shocks feature fixed, application-specific valving.
Does this kit include rear coil springs?
No. This kit includes rear shocks only. If you need a kit with rear OE replacement coils, see Bilstein 4600 Front OE Replacement Coilovers, Rear Shocks and Springs for 2010-2015 Dodge Durango.
Be the first to review “Bilstein 4600 Front Coilovers with OE Replacement Coils and Rear Shocks for 2011-2015 Dodge Durango”
Questions and answers of the customers
-
will these fit my 2015 Dodge Durango r/t?
-
0 votesQ will these fit my 2015 Dodge Durango r/t?A yes if you chooser 6.4L engine and R/T submodel from the dropdown when ordering
Will the 4600 series fit my 2013 dodge Durango RT, I will require spring fitted to the front, please advise
-
0 votesQ Will the 4600 series fit my 2013 dodge Durango RT, I will require spring fitted to the front, ple...... Read moreA Those are springs for usual suspension, not for R/T
Are you using OEM spring in this kit? if not what brand?
-
0 votesQ Are you using OEM spring in this kit? if not what brand?A Moog coils with characteristics like factory
