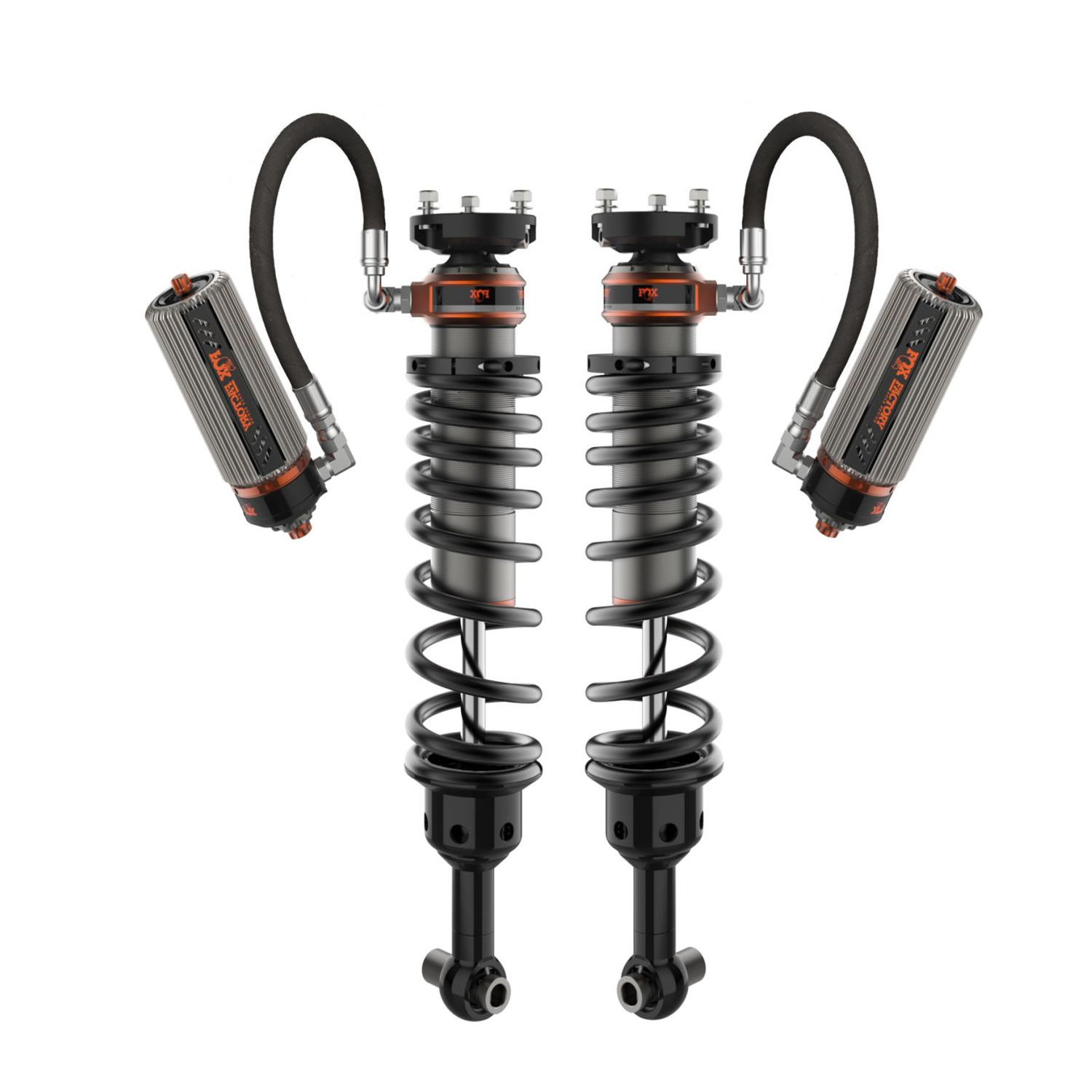

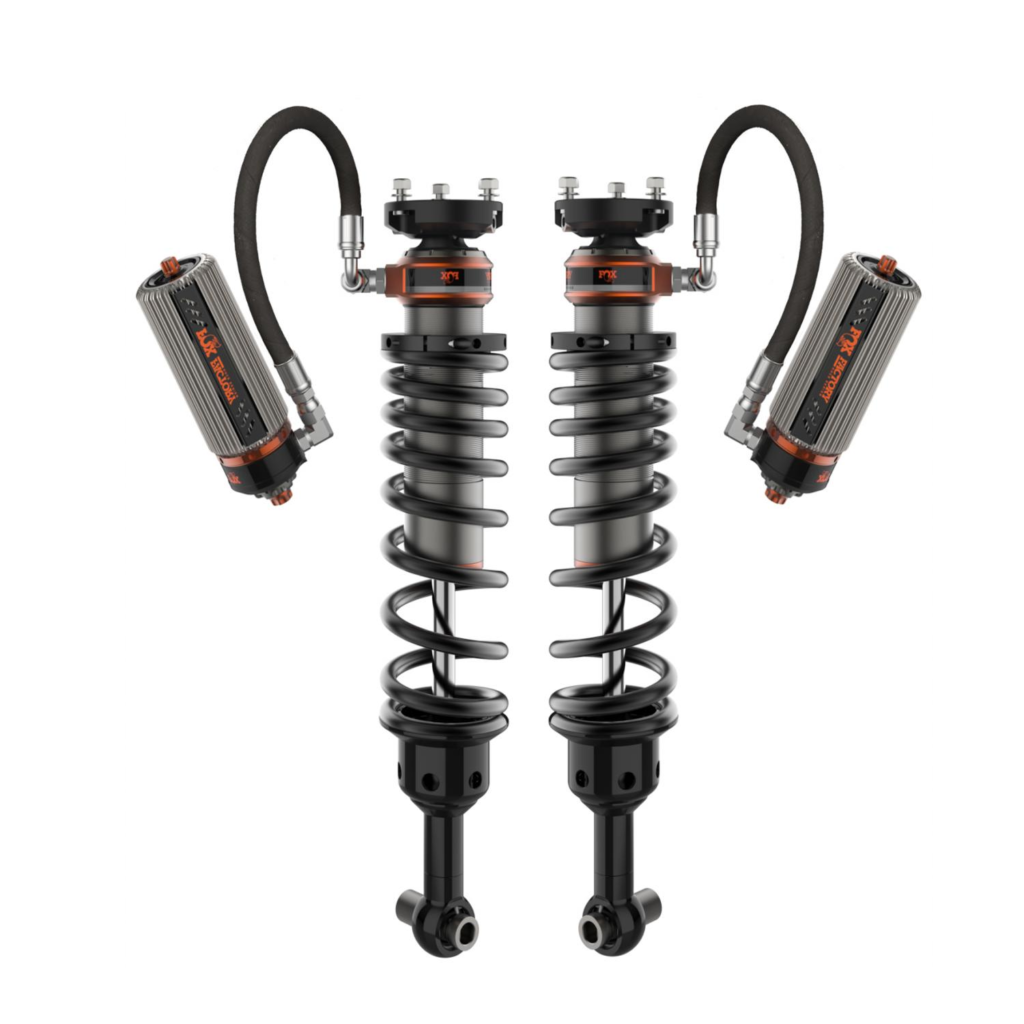

Fox Factory Race Series 3.0 Internal Bypass 2-3.5″ Rear Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco 2WD/4WD

Description
Fox Factory Race Series 3.0 Internal Bypass 2-3.5″ Rear Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco 2WD/4WD

Fox Factory Race Series 3.0 Internal Bypass 2-3.5 inches Rear Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco 2WD/4WD

Part Number: 883-06-205

Summary: The FOX Factory Race Series 3.0 Internal Bypass coilovers are engineered for the 2021-2024 Ford Bronco to provide high-speed ready performance in a bolt-on package. Utilizing patented Internal Bypass technology, these shocks offer position-sensitive damping that adapts to terrain for a comfortable ride and increased force through rough sections. This system is designed to manage heat and maintain performance during sustained off-road operation while allowing for precise user tuning.

Features

• Internal Bypass Technology: Patented bleed hole architecture provides multiple zones of damping control to ensure progressive force that prevents harsh bottom-outs and top-outs.
• Dual Speed Compression (DSC): External DSC adjuster provides manual tuning capability to ensure the vehicle is dialed in for specific loads, environments, and driving styles.
• Finned External Reservoirs: High-capacity external reservoirs provide increased oil volume to ensure cooler fluid temperatures and better performance under high-speed operation.
• Aluminum Shock Bodies: 3.0-inch hard-anodized 6061-T6 aluminum provides superior heat dissipation and corrosion resistance to ensure long-term durability in rugged terrain.

Technical Specifications

Fitment

• 2021-2024 Ford Bronco
• Note: Excludes Raptor Sub-model. Lift height varies by configuration: 2-Door without Sasquatch (3.5 inches), 4-Door without Sasquatch (3 inches), 2-Door with Sasquatch (2.5 inches), 4-Door with Sasquatch (2 inches).

What’s Included

• Sold Individually
• Coilover Assembly with Finned External Reservoir

Why Choose This Product?

• Engineering Advantage: The 3.0-inch Internal Bypass design allows fluid to bypass the main piston through specific zones, offering a level of position-sensitive damping usually reserved for race-bred applications.
• Performance Benefit: Drivers experience a confident, controlled ride that remains plush during initial travel but firms up significantly during hard impacts to prevent bottoming out.

Frequently Asked Questions

Does this shock provide lift for the Ford Bronco?
Yes, depending on your specific vehicle configuration (2-door vs 4-door and Sasquatch package), it provides between 2 and 3.5 inches of rear lift.

What is the benefit of the DSC adjuster?
The Dual Speed Compression (DSC) adjuster allows you to manually dial in your suspension settings based on your driving style, the environment, or the load you are carrying.

Can these be used on a Bronco Raptor?
No, these specific coilovers are noted to exclude the Raptor sub-model.
