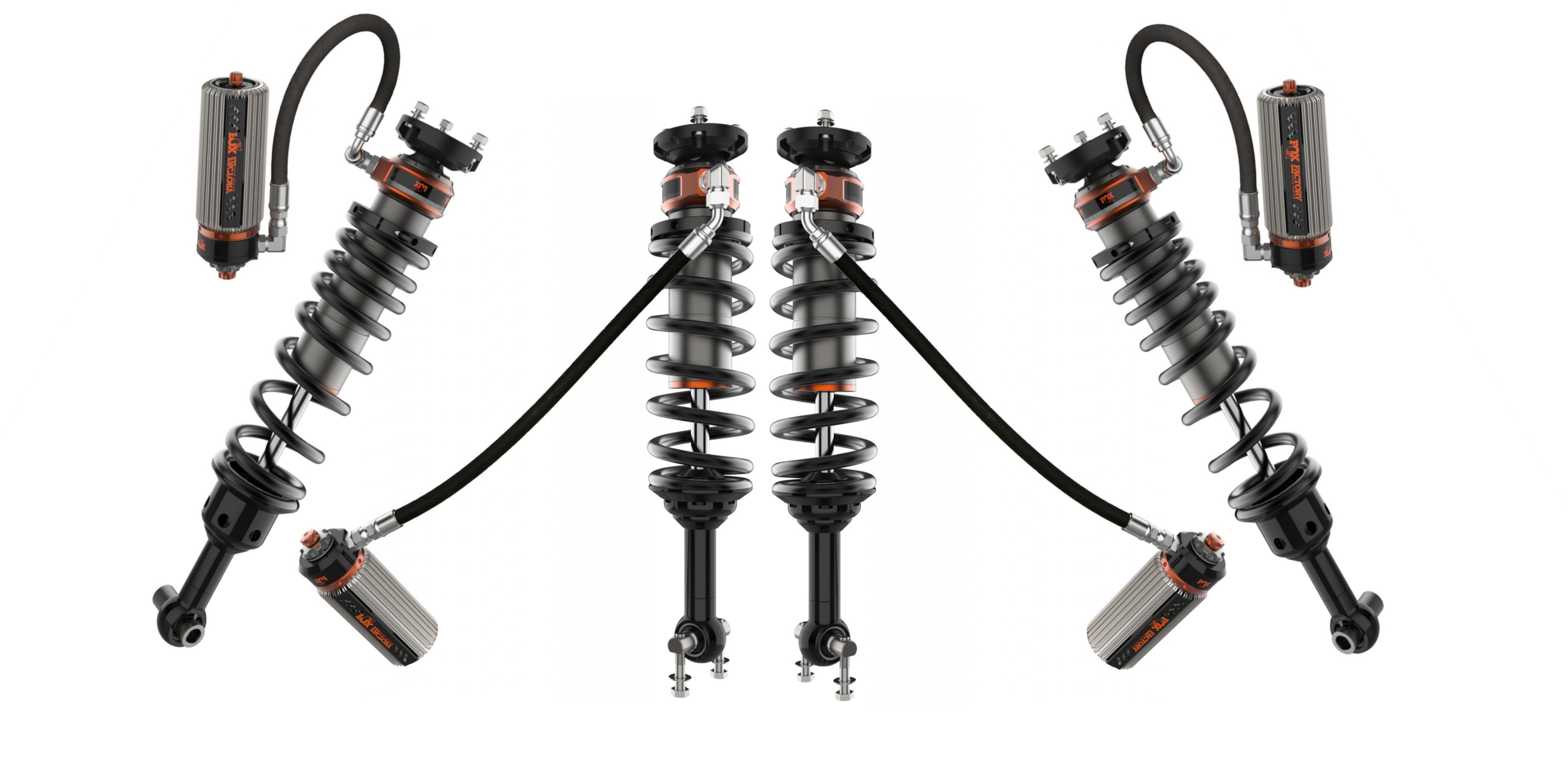

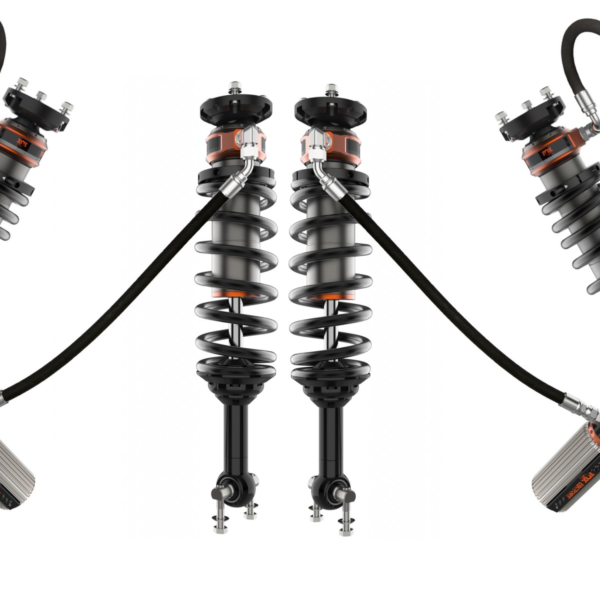

Fox Factory Race Series 3.0 Internal Bypass 3-4.5″ Front, 2-3.5″ Rear Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco

Description
Fox Factory Race Series 3.0 Internal Bypass 3-4.5″ Front, 2-3.5″ Rear Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco

Fox Factory Race Series 3.0 Internal Bypass 3-4.5 inches Front, 2-3.5 inches Rear Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco

Part Number: 883-06-204_883-06-205

Summary: The FOX Factory Race Series 3.0 Internal Bypass shocks provide the ultimate suspension upgrade for the 2021-2024 Ford Bronco, featuring race-bred technology for high-speed off-road performance. Utilizing patented Internal Bypass technology, these coilovers offer position-sensitive damping to maintain a comfortable ride on the street while progressively increasing force to handle hard bottom-outs in rugged terrain. Equipped with Dual Speed Compression (DSC) adjusters and finned external reservoirs, this kit ensures your vehicle remains cool and controlled under the most demanding conditions.

Features

• Internal Bypass Technology: Patented position-sensitive damping provides multiple zones of control to ensure a comfortable initial ride with increased force to prevent harsh bottom-outs and top-outs.
• Dual Speed Compression (DSC): External DSC adjusters provide user-tunable compression settings to ensure the vehicle is dialed in for specific loads, environments, and driving styles.
• Finned External Reservoirs: High-capacity external reservoirs provide increased oil volume and cooling surface area to ensure shock fluid temperatures remain stable during high-speed operation.
• Aluminum Shock Bodies: 3.0-inch impact extruded 6061-T6 hard-anodized aluminum bodies provide superior heat dissipation and corrosion resistance to ensure long-term durability.
• Stainless Steel Shafts: 7/8 inches stainless steel shafts provide high-strength support and smooth operation to ensure reliable performance in harsh environments.

Technical Specifications

Fitment

• 2021-2024 Ford Bronco
• Note: 2 Door | Without Sasquatch Package – 4.5 inches Lift. 4 Door | Without Sasquatch Package – 4 inches Lift. 2 Door | With Sasquatch Package – 3.5 inches Lift. 4 Door | With Sasquatch Package – 3 inches Lift. Requires Upper Control Arms. Excludes Raptor sub-model.

What’s Included

• Includes Full Set (See Below)
• (1) 883-06-204 Front Coilover Assembly
• (1) 883-06-205 Rear Coilover Assembly
• Finned External Reservoirs
• Application-specific springs

Why Choose This Product?

• Engineering Advantage: The patented Internal Bypass design allows fluid to bypass the main piston through bleed holes in the ride zone, only forcing fluid through the piston as the shock extends past that zone for progressive control.
• Performance Benefit: Drivers experience a “catch” for landings and high-speed stability through rugged terrain without sacrificing the compliance needed for daily driving.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
It allows for position-sensitive damping, meaning the shock can be soft and comfortable in the “ride zone” but becomes progressively stiffer to control hard impacts and bottom-outs.

Do these shocks require any other modifications?
Yes, the installation of these coilovers requires the use of aftermarket Upper Control Arms and they are not compatible with the Raptor sub-model.

Can I adjust the damping on these shocks?
Yes, these coilovers feature Dual Speed Compression (DSC) adjusters that allow you to manually tune the damping for different loads and driving styles.
