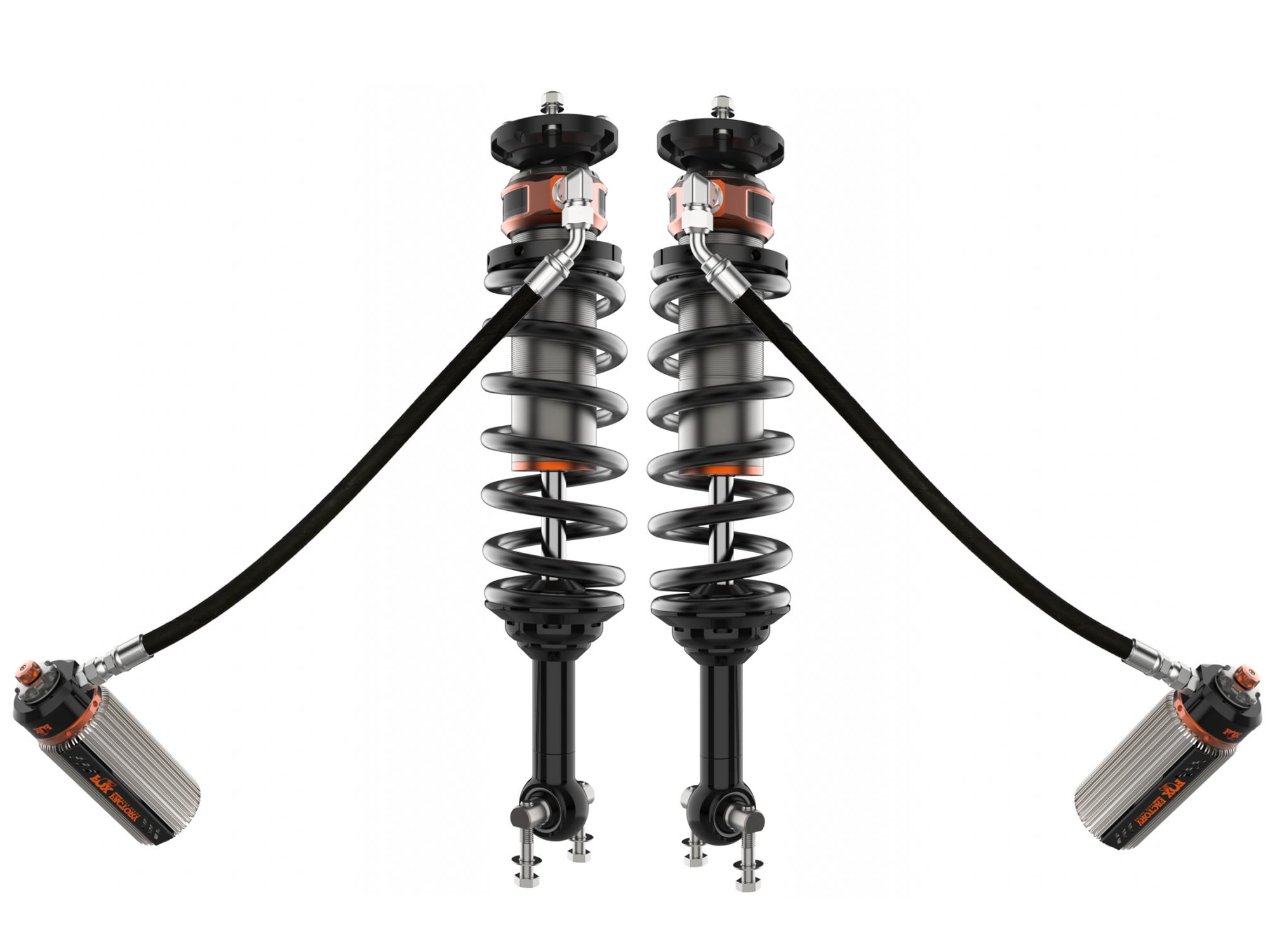

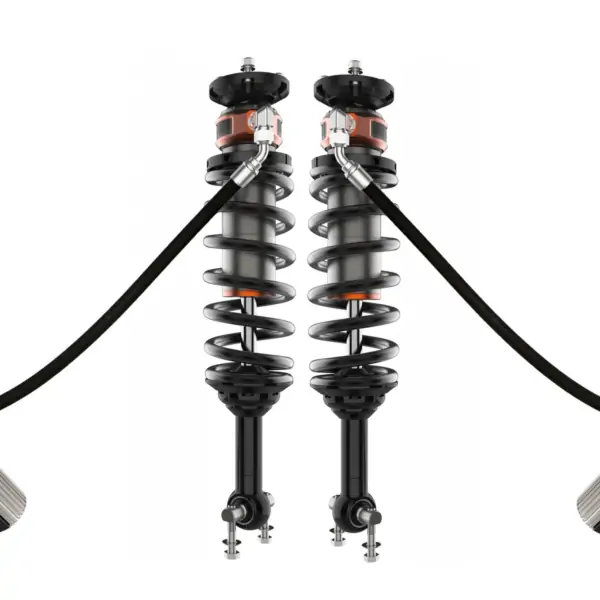

Fox Factory Race Series 3.0 Internal Bypass 3-4.5″ Front Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco 2WD/4WD

Description
Fox Factory Race Series 3.0 Internal Bypass 3-4.5″ Front Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco 2WD/4WD

Fox Factory Race Series 3.0 Internal Bypass 3-4.5 inches Front Lift Reservoir Adjustable Coilovers for 2021-2024 Ford Bronco 2WD/4WD

Part Number: 883-06-204

Summary: The FOX Factory Race Series 3.0 Internal Bypass coilovers are engineered for the 2021-2024 Ford Bronco to provide race-bred performance during high-speed off-road operation. Featuring patented Internal Bypass technology, these shocks offer position-sensitive damping to manage rough terrain while maintaining a confident ride. The addition of external reservoirs and aluminum bodies ensures superior heat management and fade resistance for sustained performance in rugged environments.

Features

• Internal Bypass Technology: Patented bleed hole architecture provides multiple zones of damping control to ensure a comfortable ride with progressive force to prevent bottom-outs and top-outs.
• Dual Speed Compression (DSC) Adjuster: External adjustment dials provide user-tunable damping control to ensure the vehicle is optimized for specific loads, environments, and driving styles.
• Finned External Reservoirs: Increased surface area provides enhanced cooling for shock fluid to ensure consistent performance under high-speed operation.
• 3-Inch Aluminum Bodies: Type III anodized 3.0 inches impact extruded bodies provide corrosion resistance and high-capacity cooling to ensure durability in harsh conditions.

Technical Specifications

Fitment

• 2021-2024 Ford Bronco (2WD/4WD)
• Note: 2 Door | Without Sasquatch Package – 4.5 inches Lift. 4 Door | Without Sasquatch Package – 4 inches Lift. 2 Door | With Sasquatch Package – 3.5 inches Lift. 4 Door | With Sasquatch Package – 3 inches Lift. Excludes Raptor sub-model. Requires Upper Control Arm.

What’s Included

• Sold Individually
• Coilover Assembly with Finned Reservoir

Why Choose This Product?

• Engineering Advantage: The 3.0 inches Internal Bypass design allows fluid to bypass the main piston through specific zones, providing soft damping for comfort and extreme resistance during hard impacts.
• Performance Benefit: Drivers gain the ability to manually tune their suspension via the DSC adjuster, allowing for a seamless transition between street comfort and high-speed desert performance.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
It allows for position-sensitive damping, where fluid bypasses the piston in the ride zone for comfort but is forced through the piston at the ends of the stroke to prevent harsh bottoming or topping out.

Does this shock require any other modifications?
Yes, this part number requires the installation of an aftermarket Upper Control Arm and is not compatible with the Raptor sub-model.

Can I adjust the damping on these shocks?
Yes, these coilovers feature Dual Speed Compression (DSC) adjusters that allow you to dial in the damping for different loads and driving styles.
