Bilstein 5100 1-2.9″ Lift Front, 1-2.5″ Rear Assembled Coilover Shocks for 2021-2025 Ford Bronco 4 Door

Description
Bilstein 5100 1-2.9″ Lift Front, 1-2.5″ Rear Assembled Coilover Shocks for 2021-2025 Ford Bronco 4 Door

Bilstein 5100 0-2.9″ Front Lift, 0-2.5″ Rear Shocks – 2021-2025 Ford Bronco 4 Door

Part #: BIL5100FB21

What is included

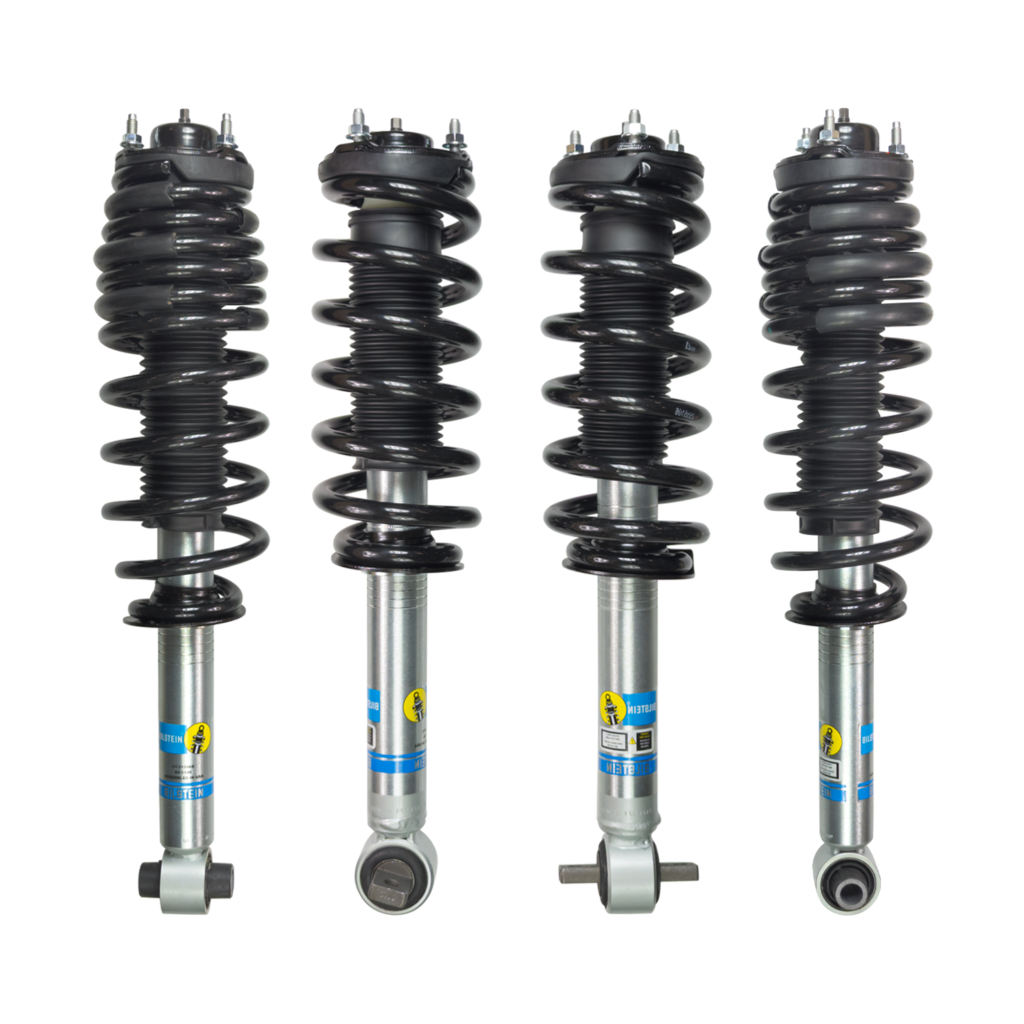

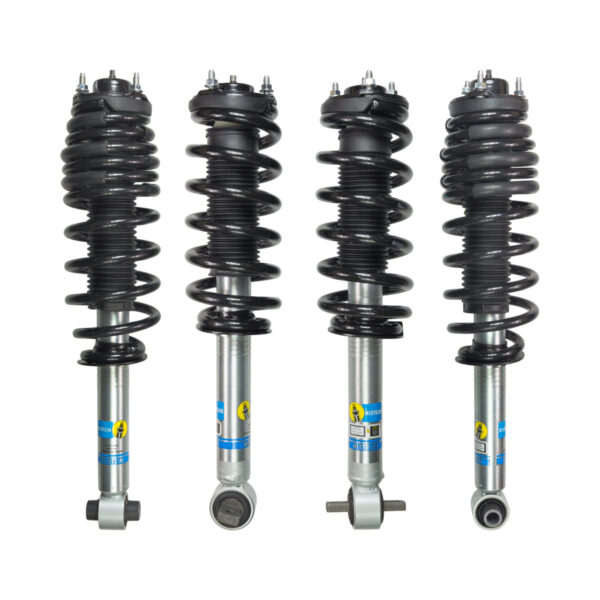

• Front (pre-assembled coilovers):
  • 2 x Bilstein B8 5100 ride-height-adjustable struts 24-313971
  • OE replacement front coil springs installed
  • New top mounts, bushings, seats, and hardware
  • Ships assembled – no spring compressor needed
• Rear (pre-assembled coilovers):
  • 2 x Bilstein B8 5100 rear coilovers with shocks 24-313988
  • OE replacement front coil springs installed
  • New top mounts, bushings, seats, and hardware
  • Ships assembled – no spring compressor needed

Ride height

• Front: adjustable ~0-2.9″ with OE springs via snap-ring spring perch positions
• Rear: adjustable ~0-2.5″” with OE springs via snap-ring spring perch positions

Why 5100

• Monotube control – 46 mm digressive piston delivers consistent, fade-free damping
• Improved wheel travel and handling on-road and off-road
• Direct fit for Bronco with OE coilover-style suspension
• Pre-assembled fronts for faster, safer installation

Fitment

• Ford Bronco 4 Door: 2021, 2022, 2023, 2024, 2025
• Standard suspension only
• Without Black Diamond; without Sasquatch Package

Install notes

• Alignment required after installation
• Actual front lift varies with trim, accessories, and spring condition
